Center Stop Lamp Assy (Coupe)

CENTER STOP LAMP ASSY (COUPE)

OVERHAUL

HINT: Installation is in the reverse order of removal.

1. REMOVE FRONT DOOR SCUFF PLATE LH
2. REMOVE FRONT DOOR SCUFF PLATE RH
3. REMOVE REAR SEAT ASSY
4. REMOVE FRONT DOOR WEATHERSTRIP LH
5. REMOVE FRONT DOOR WEATHERSTRIP RH
6. REMOVE CENTER PILLAR GARNISH LH
7. REMOVE CENTER PILLAR GARNISH RH
8. REMOVE ROOF SIDE GARNISH ASSY INNER LH
9. REMOVE ROOF SIDE GARNISH ASSY INNER RH
10. REMOVE PACKAGE TRAY TRIM PANEL ASSY

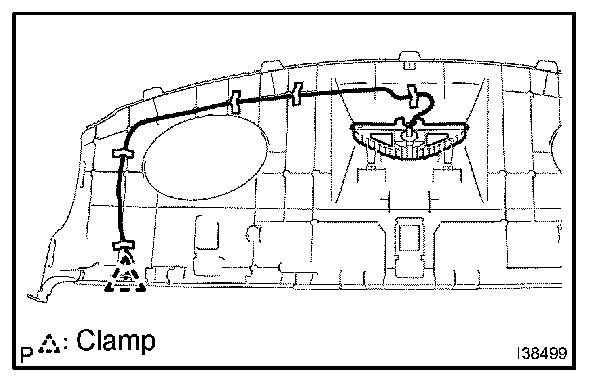

11. REMOVE CENTER STOP LAMP ASSY
a. Remove the 5 tape ties.
b. Disengage the clamp, and remove the center stop lamp assy.

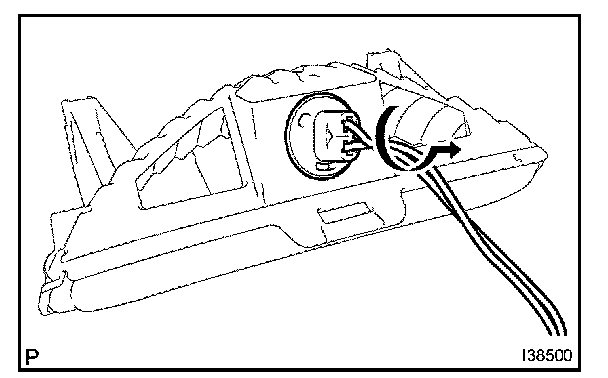

12. REMOVE REAR COMBINATION LAMP BULB
a. Remove the combination lamp socket as shown in the illustration.
b. Remove the combination lamp bulb from the combination lamp socket.
