Horn Relay: Locations

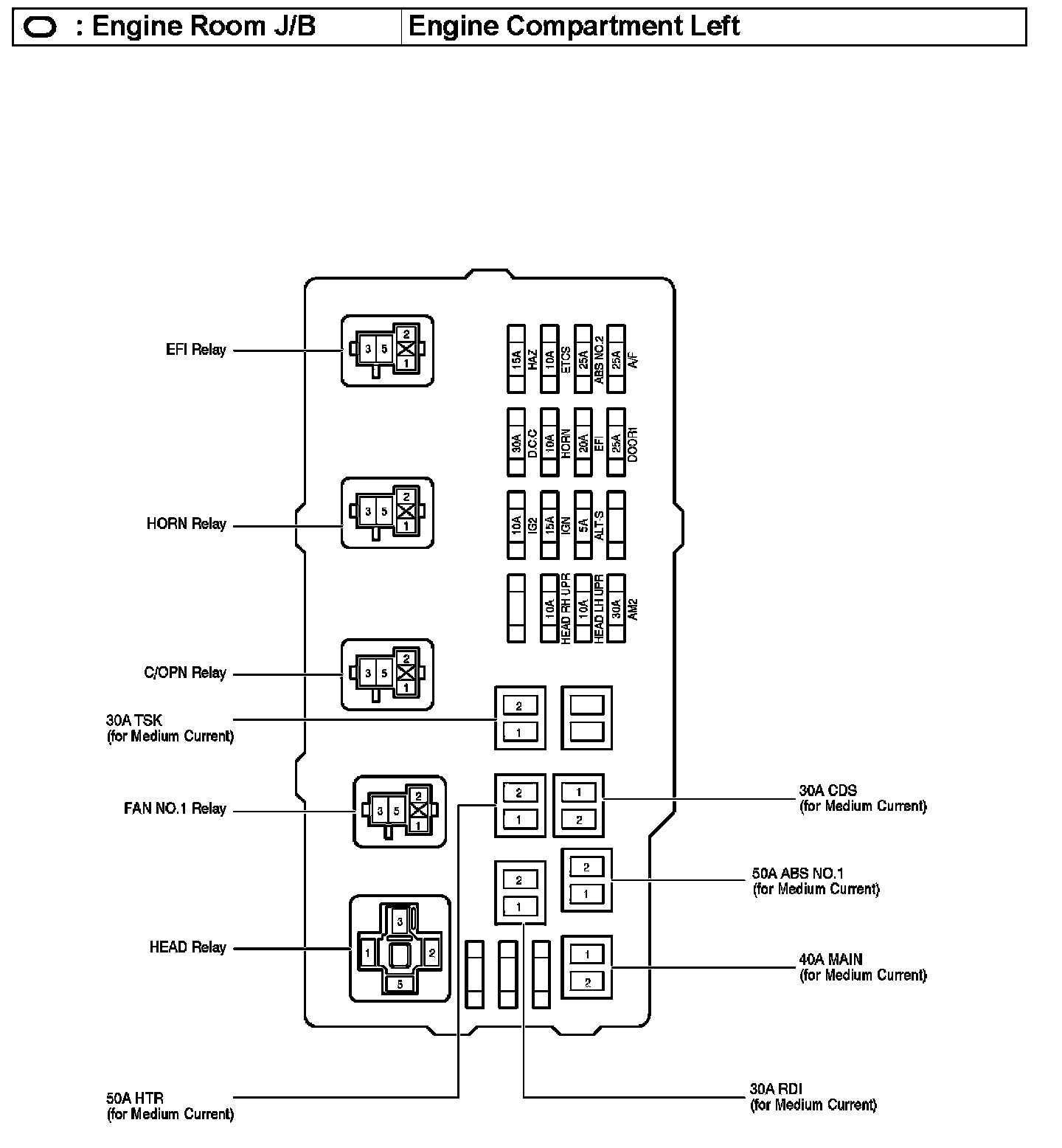

Engine Room J/B - Engine Compartment Left:

Theft Deterrent System:

Horn System:
