Without Scan Tool
DTC CHECKChecking DTCs.

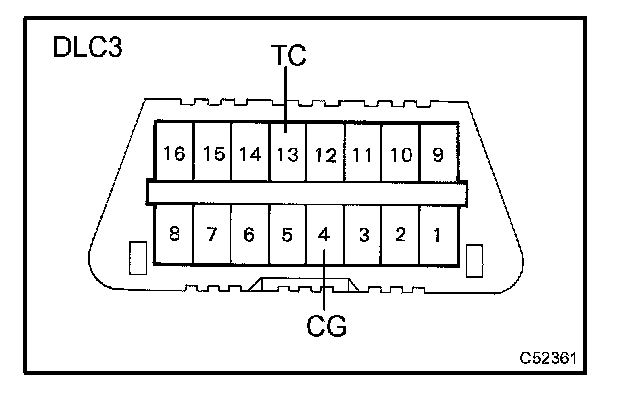

1. Using SST, connect terminals TC and CG of the DLC3.
SST 09843-18040
2. Turn the ignition switch to the ON position.
3. Read the DTC from the DOOR warning light on the combination meter.
HINT:
- If more than 1 malfunction is detected at the same time, the lowest numbered code will be displayed first.
- If no code appears, inspect the TC terminal circuit or combination meter.

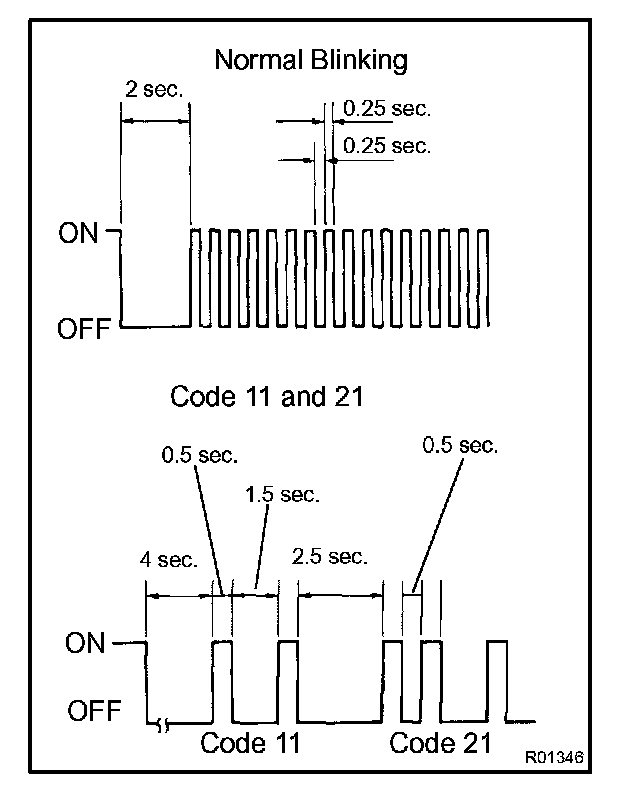

- As an example, the blinking patterns for the normal system code and codes 11 and 21 are shown.
4. Codes are explained in the code table.
5. After completing the check, disconnect terminal TC and CG of the DLC3, and turn off the display.
