Tail Relay Circuit

TAIL RELAY CIRCUIT

CIRCUIT DESCRIPTION

The multiplex network body ECU controls the TAIL relay when a signal is received from the headlamp dimmer switch assy.

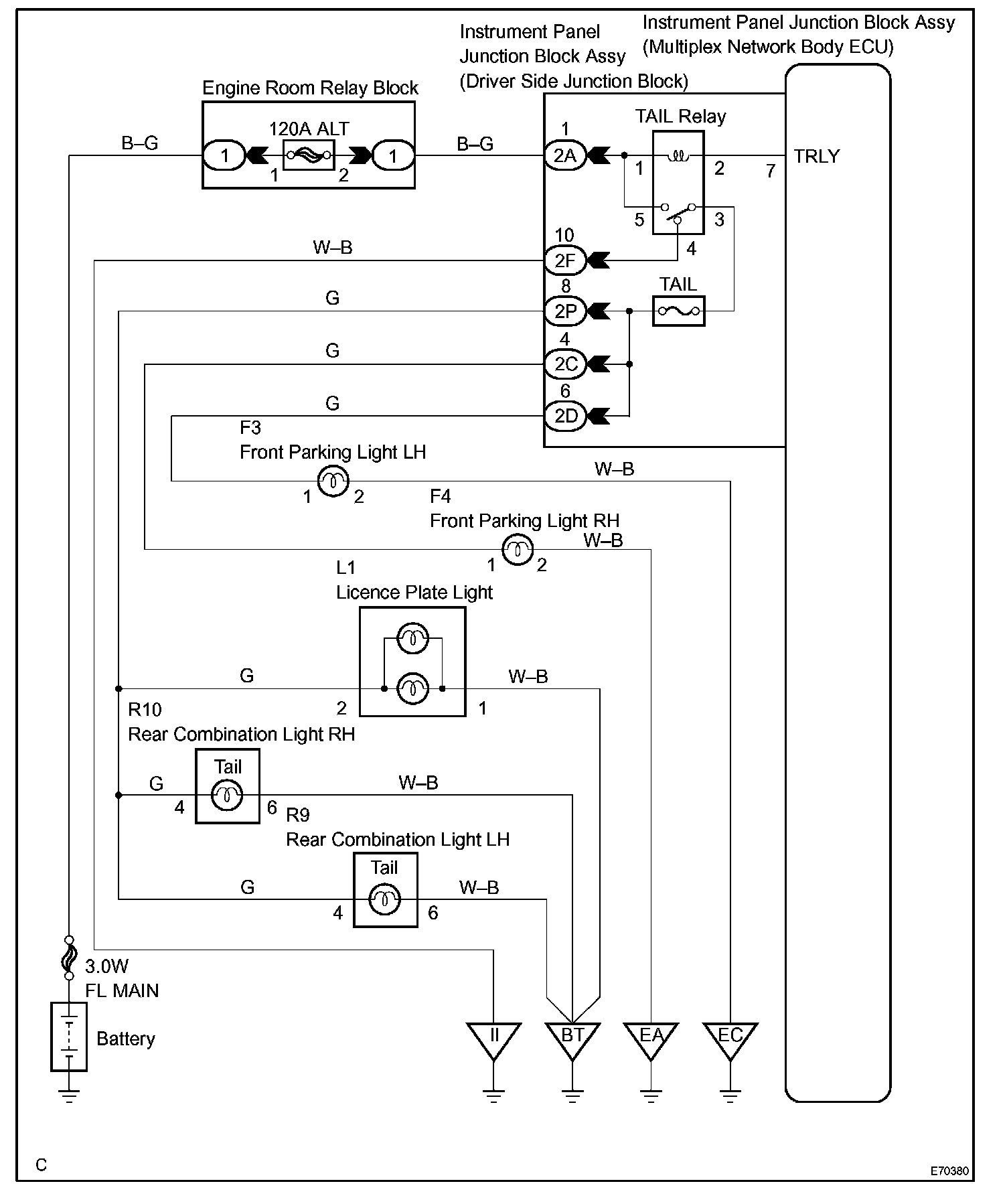

Wiring Diagram:

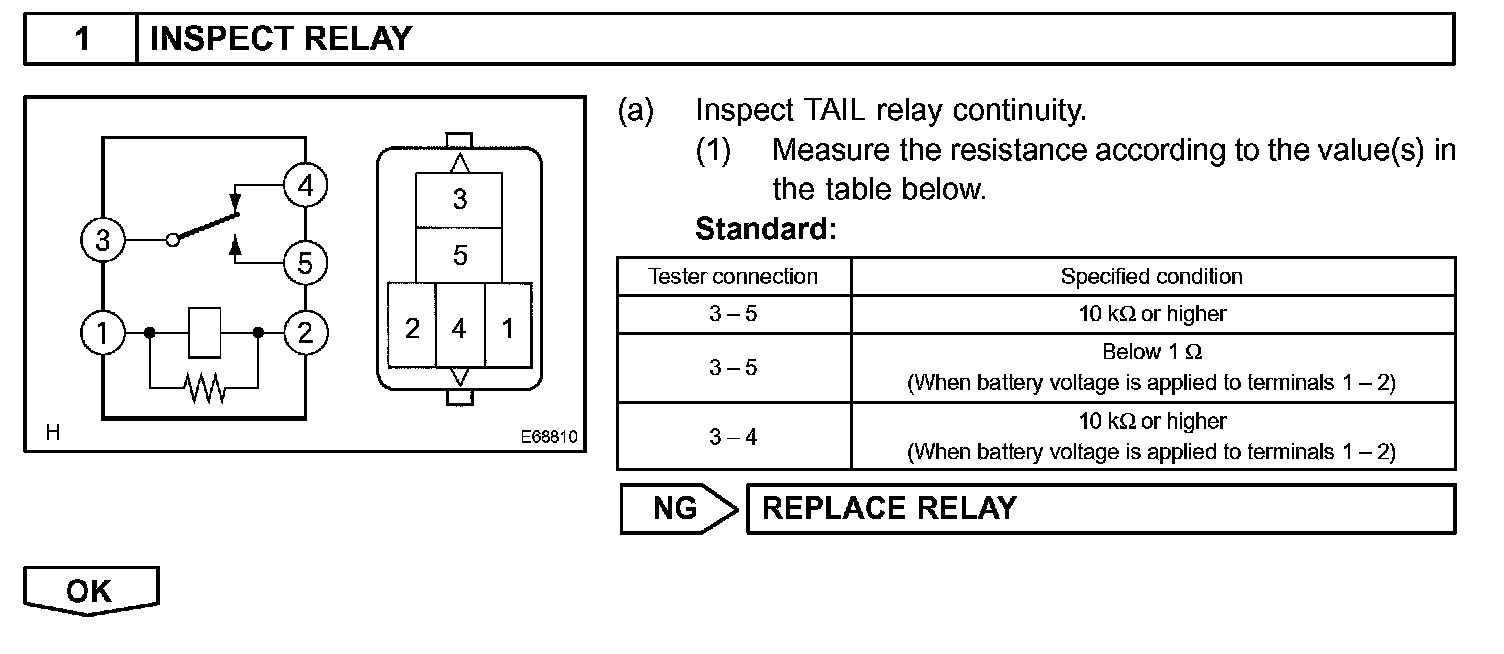

Step 1:

Step 2:

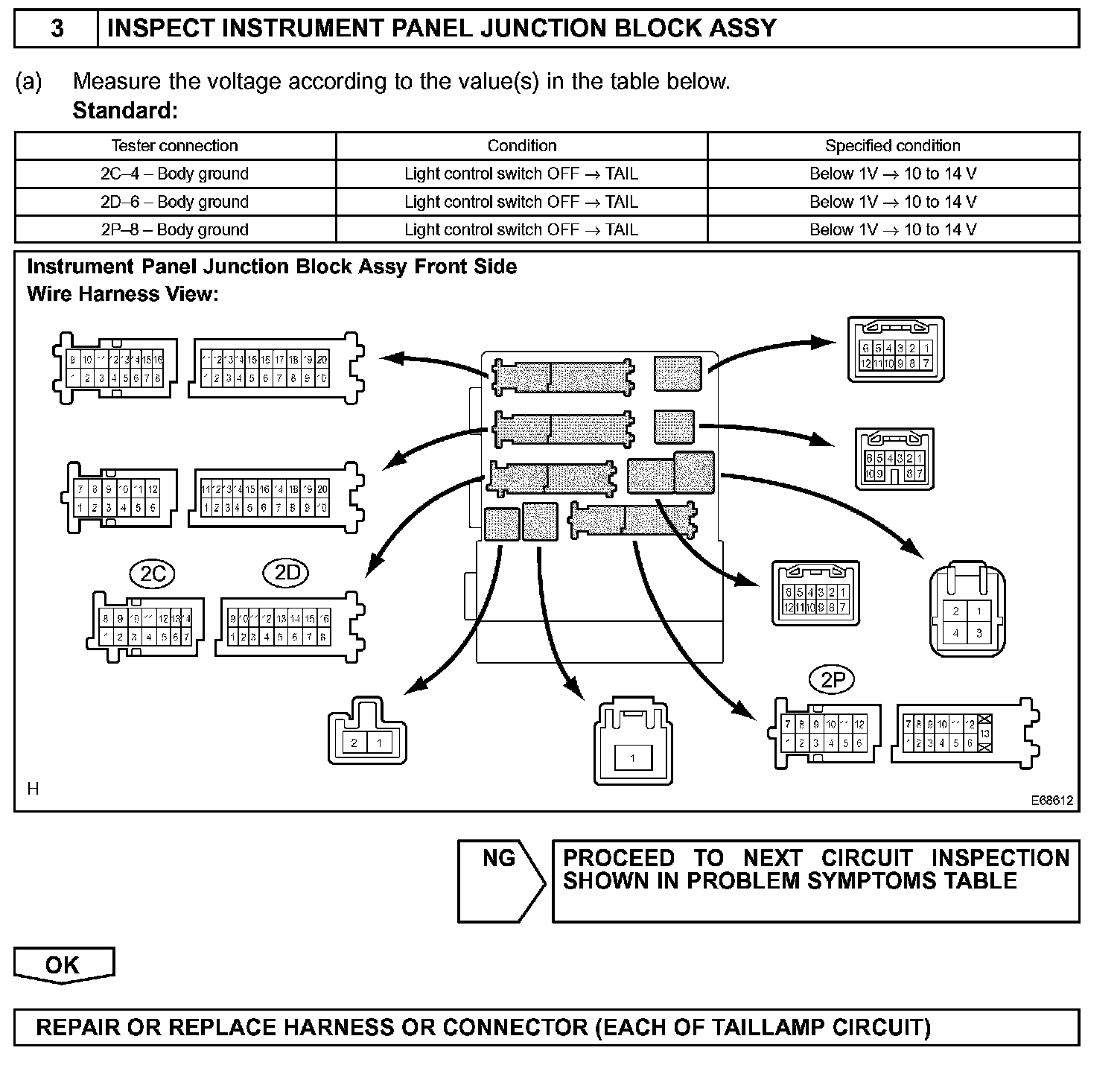

Step 3:

INSPECTION PROCEDURE
