Locations
>>
Connector Locations
Connector Locations
EA1 - EA2, EA - EH:

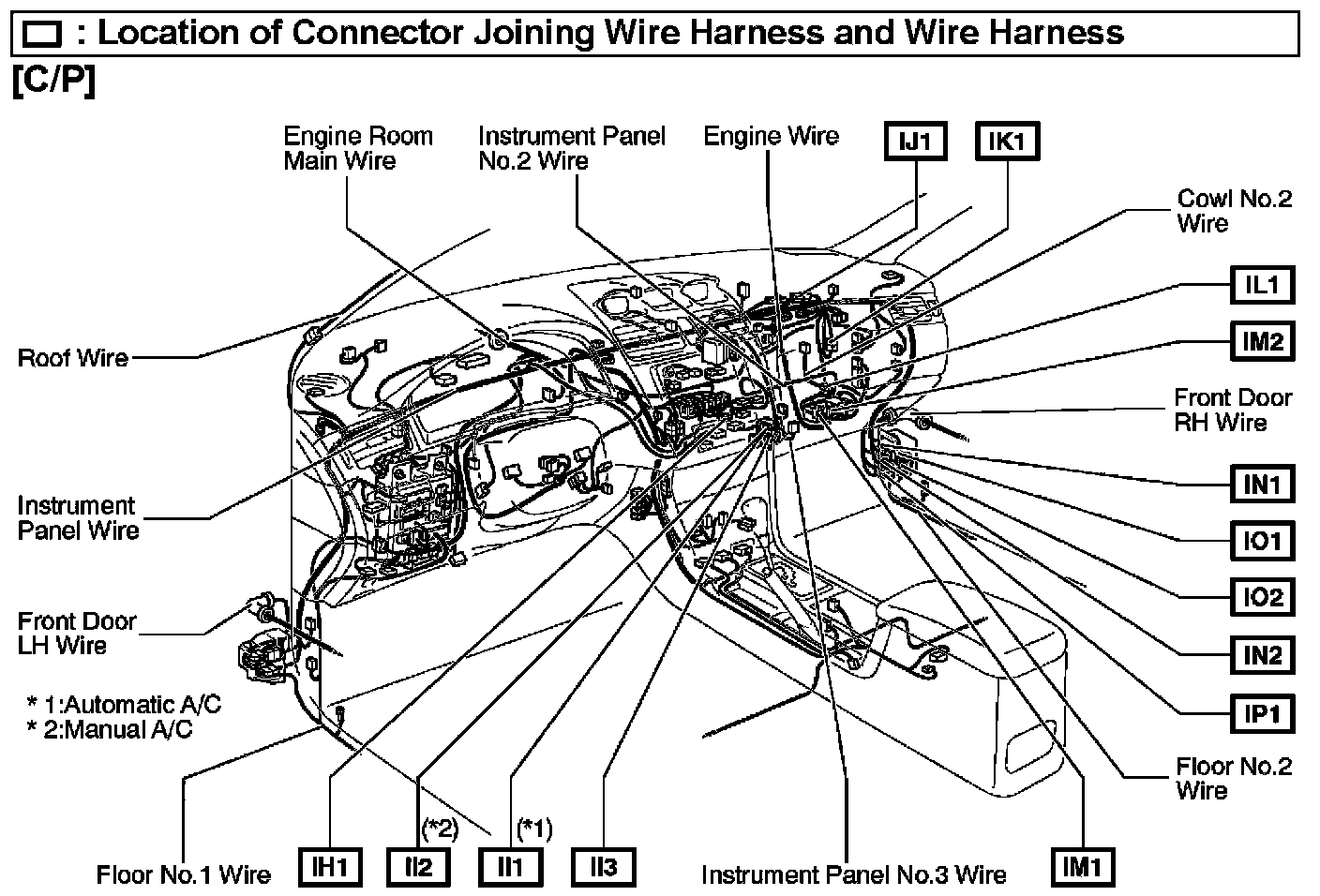

IA1 - IG8:

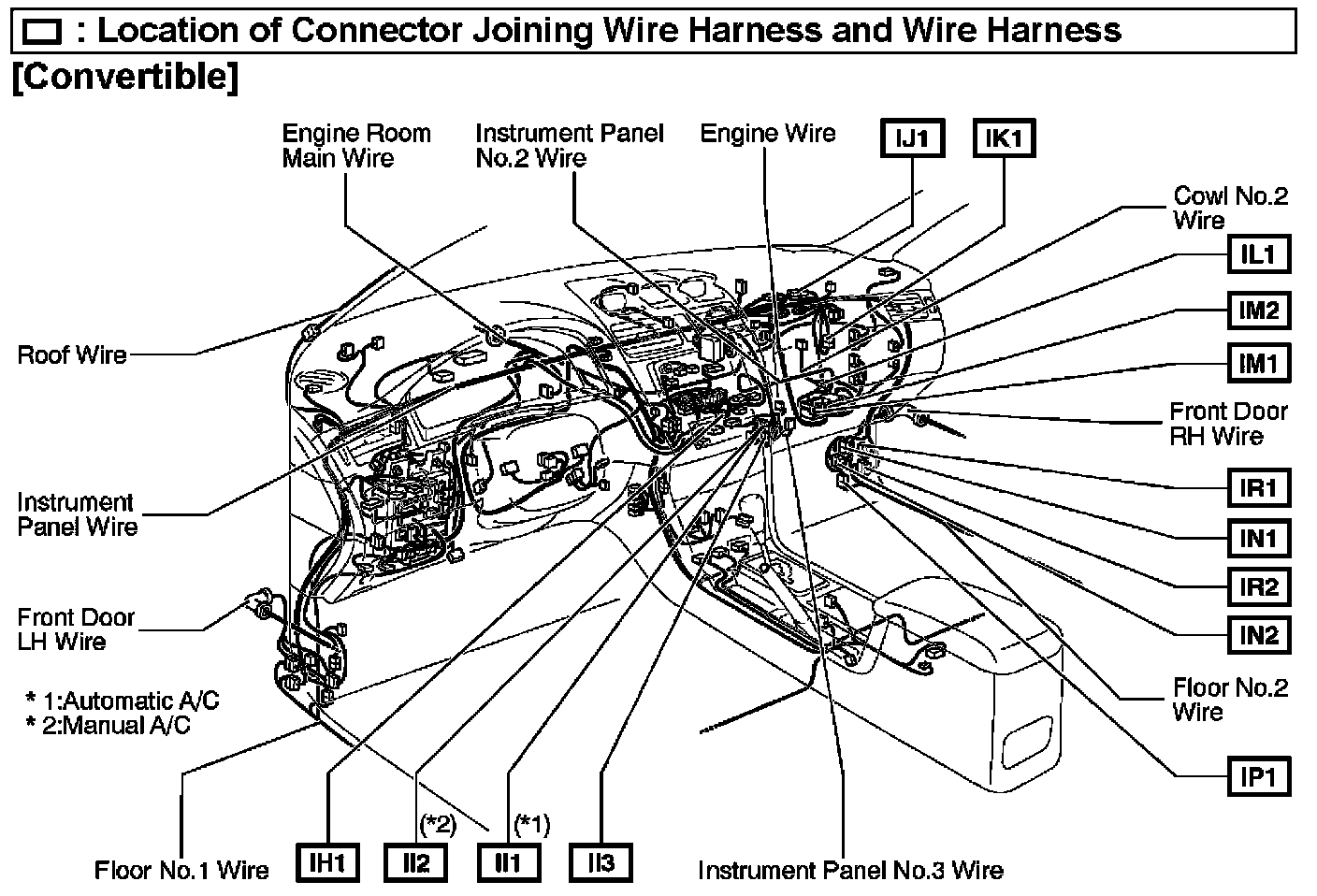

IH1 - IP1:

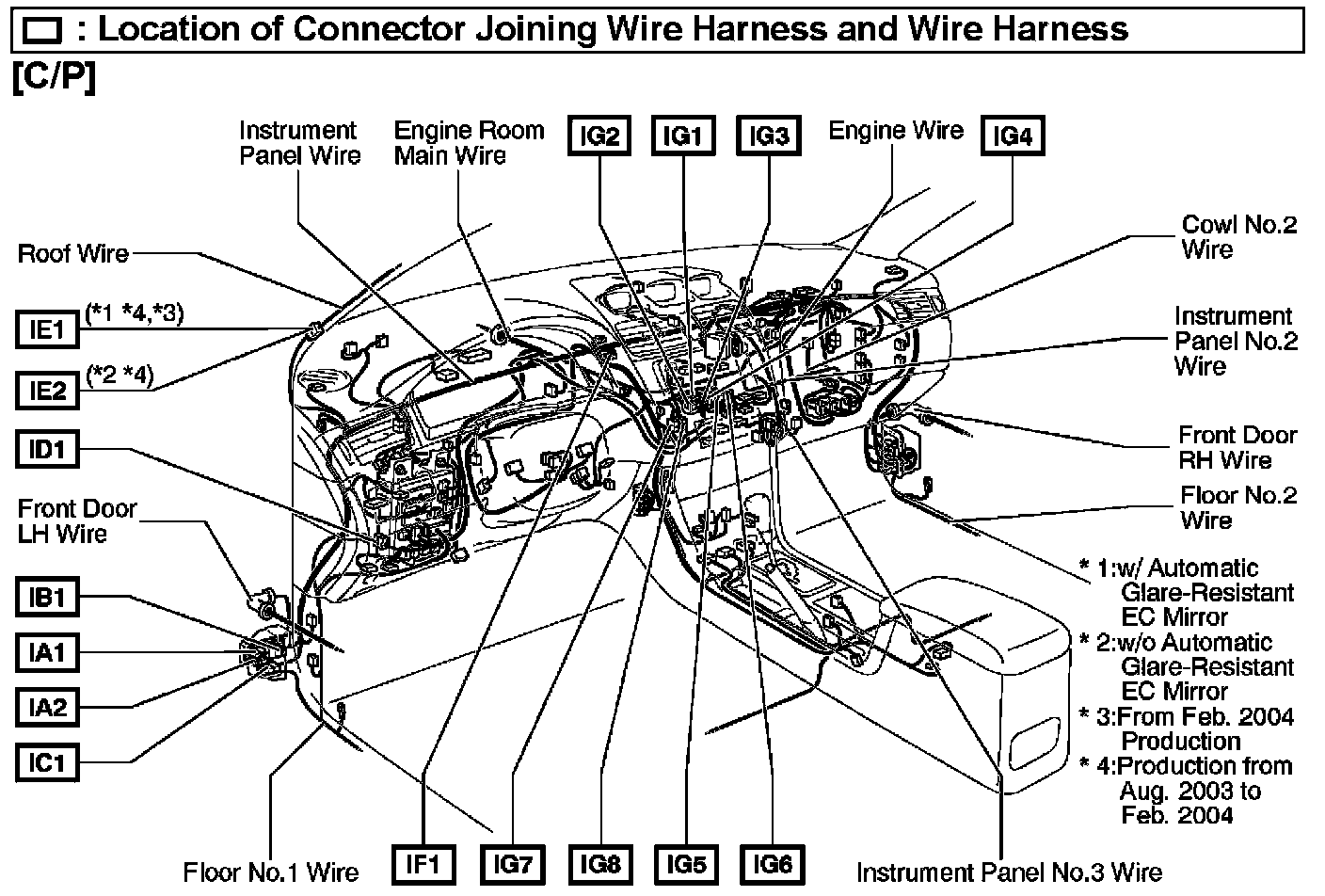

IA1 - IG8:
IH1 - IR2:
