Component Inspection

INSPECTION

INSPECT ACCELERATOR PEDAL ASSY (ACCELERATOR PEDAL POSITION SENSOR)

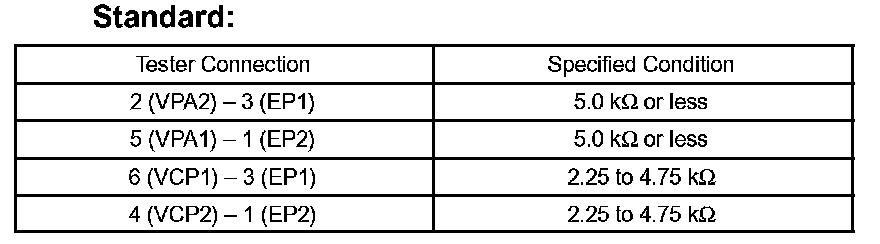

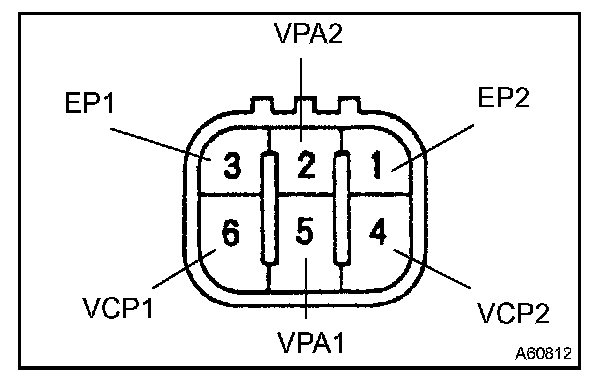

Measure the resistance between the terminals.

If the result is not as specified, replace the pedal assy.
