Positive Crankcase Ventilation Valve: Service and Repair

VENTILATION VALVE SUB-ASSY

REPLACEMENT

1. REMOVE VENTILATION VALVE SUB-ASSY
a. Disconnect the ventilation valve hose from the ventilation valve valve.
b. Remove the ventilation valve valve.

2. INSTALL VENTILATION VALVE SUB-ASSY




a. Reinstall the ventilation valve valve.

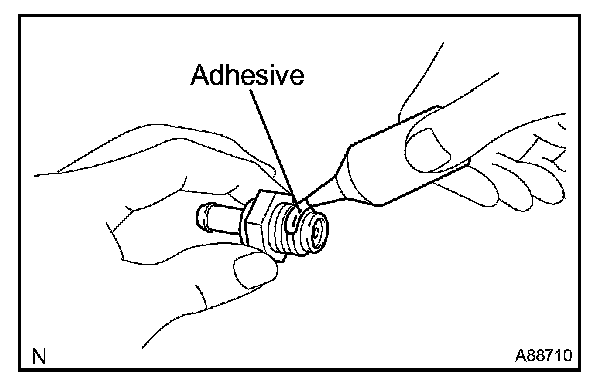

1. Apply adhesive to 2 or 3 threads.

Adhesive:
Part No. 08833-00070, THREE BOND 1324 or equivalent

2. Reinstall the ventilation valve valve.

Torque: 19 N.m (193 kgf.cm, 14 ft.lbf)

b. Connect the ventilation valve hose to the ventilation valve.
