Fuel Injector: Service and Repair

REPLACEMENT

1. WORK FOR PREVENTING GASOLINE FROM SPILLING OUT
2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
3. REMOVE ENGINE COVER SUB-ASSY NO. 1
4. DISCONNECT FUEL TUBE SUB-ASSY




5. REMOVE FUEL DELIVERY PIPE W/INJECTOR

NOTE: Be careful not to drop the injectors when removing the delivery pipe.

a. Remove the ventilation hose No. 2.
b. Disconnect the 4 injector connectors.
c. Remove the 2 clamps and wire harness from the delivery pipe.

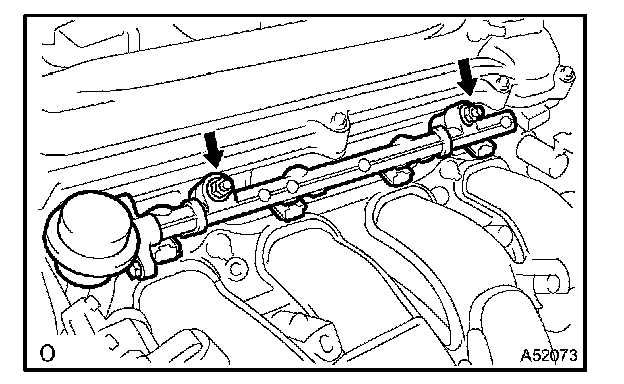

d. Remove the 2 bolts and delivery pipe together with the 4 injectors.

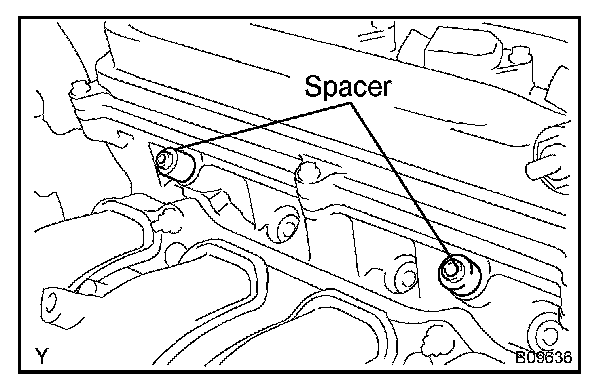

e. Remove the 2 spacers from the cylinder head.

6. REMOVE FUEL INJECTOR ASSY
a. Pull out the 4 injectors from the delivery pipe.




7. INSTALL FUEL INJECTOR ASSY

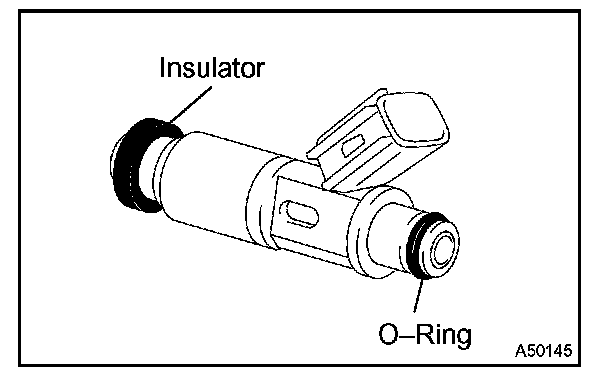

a. Install a new insulator to the injector.
b. Apply a light coat of grease or gasoline to a new O-ring and install to the injector.




c. Apply a light coat of grease or gasoline on the place where the delivery pipe touches the O-ring.

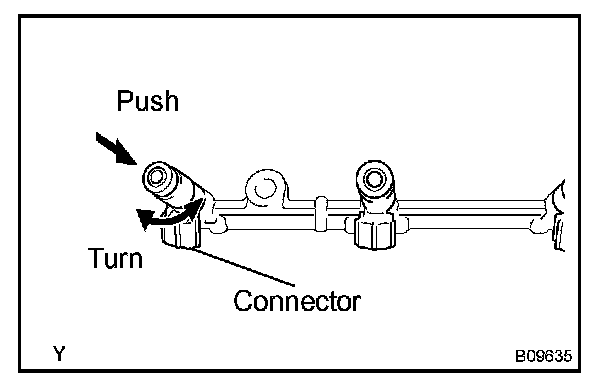

d. To install the fuel injector into the fuel delivery pipe, push the fuel injector while twisting it back and forth.

NOTE:
- Be careful not to twist the O-ring.
- After installing the fuel injector, check that it turns smoothly. If not, reinstall it with a new O-ring.

e. Position the injector connector so that it faces downward.

8. INSTALL FUEL DELIVERY PIPE W/INJECTOR




a. Place the 2 spacers in position on the cylinder head.
b. Place the delivery pipe together with the 4 injectors in position on the cylinder head.

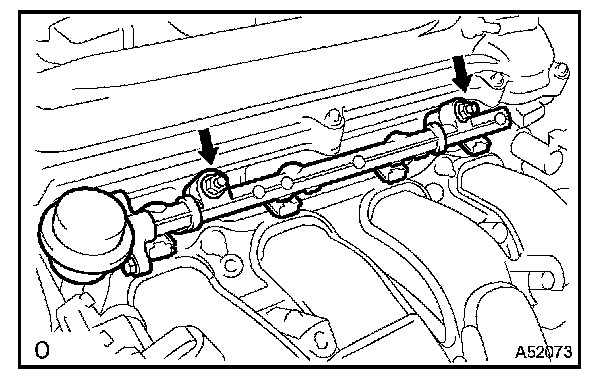

c. Loosely tighten the 2 bolts that hold the delivery pipe to the cylinder head.

NOTE: After installing the fuel injector, check that it turns smoothly. If not, reinstall it with a new O-ring.

d. Position the 4 injector connectors so that they face outward.
e. Tighten the 2 bolts holding the delivery pipe to the cylinder head.

Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)

f. Install the 2 clamps and wire harness.
g. Connect the 4 injector connectors.
h. Install the ventilation hose No.2.

9. CONNECT FUEL TUBE SUB-ASSY
10. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE
11. INSPECT FOR FUEL LEAKS
12. INSTALL ENGINE COVER SUB-ASSY NO. 1
