Airbag Assembly Connectors

DISCONNECTION

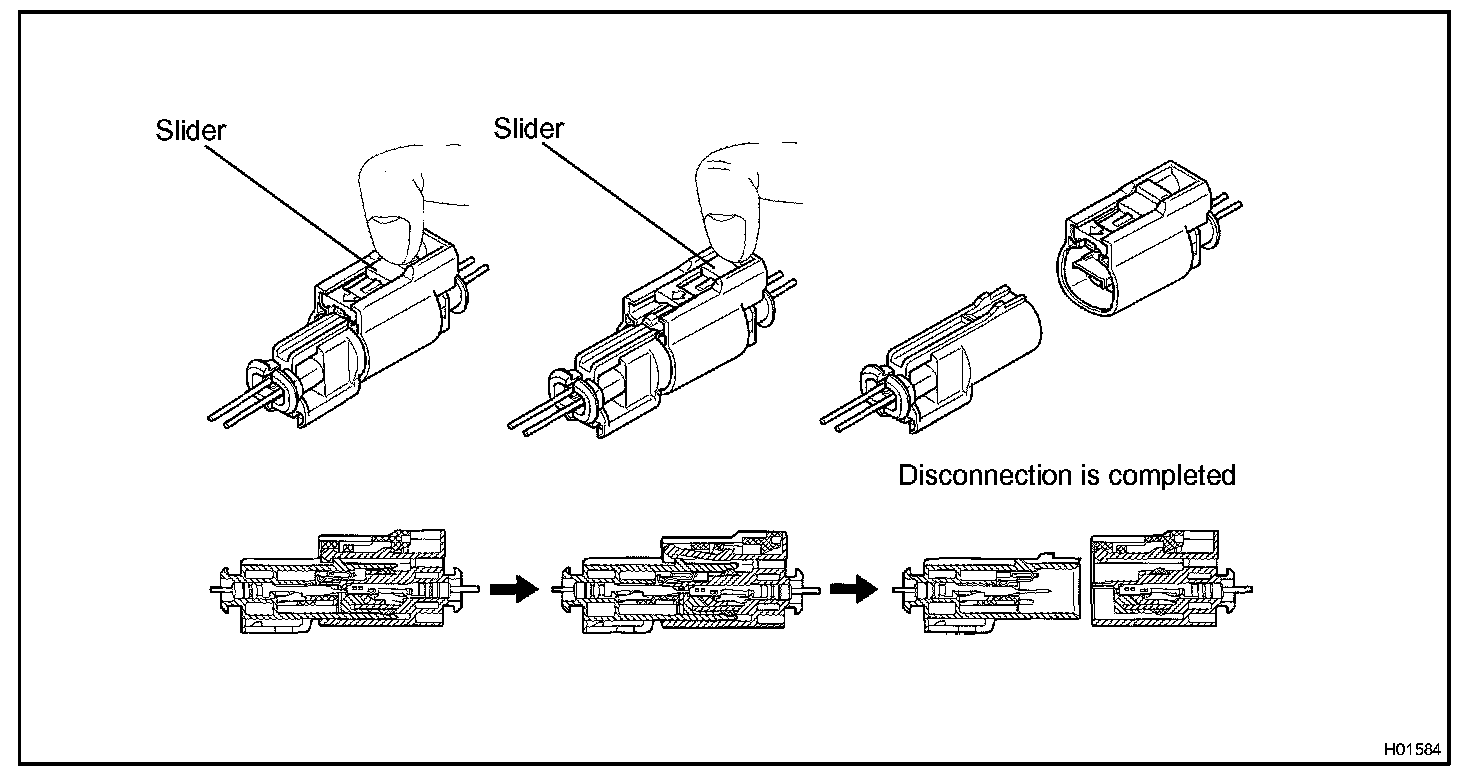

a. Place a finger on the slider, slide the slider to release the lock, and then disconnect the connector.




CONNECTION

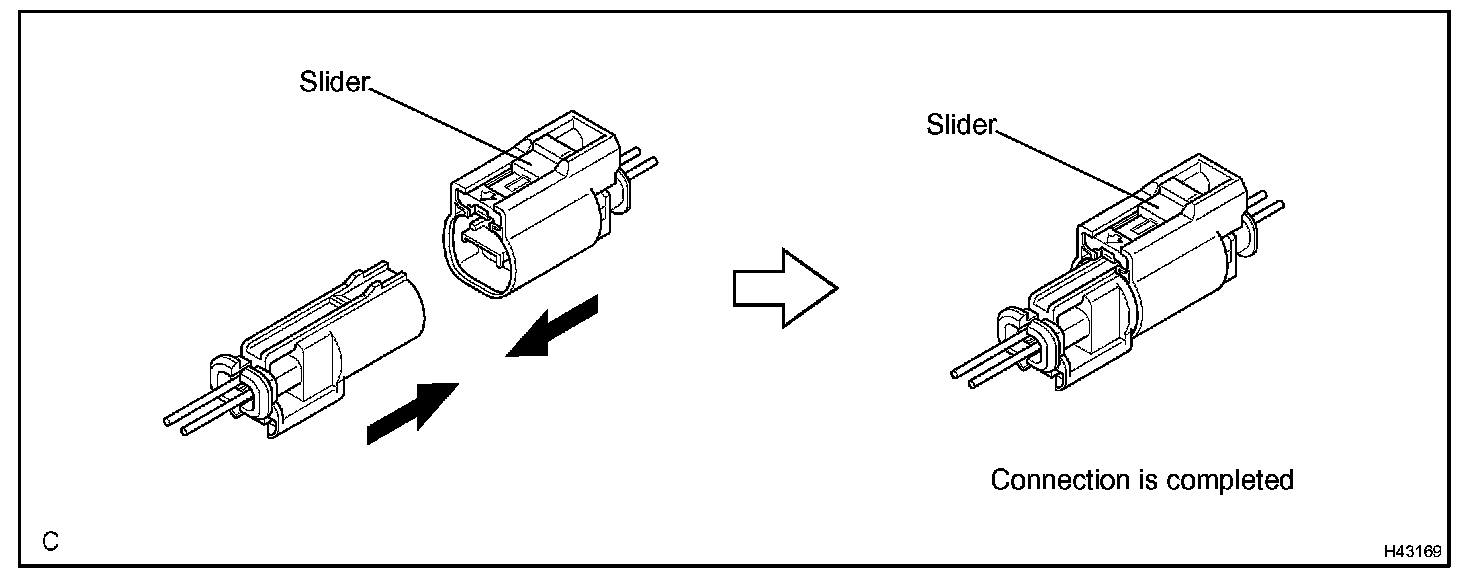

a. Connect the connector as shown in the illustration. (When locking, make sure that the slider returns to its original position and a click sound can be heard.)

HINT: When connecting, the slider will slide. Be sure not to touch the slider while connecting, as it may result in an insecure fit.
