System Specifications

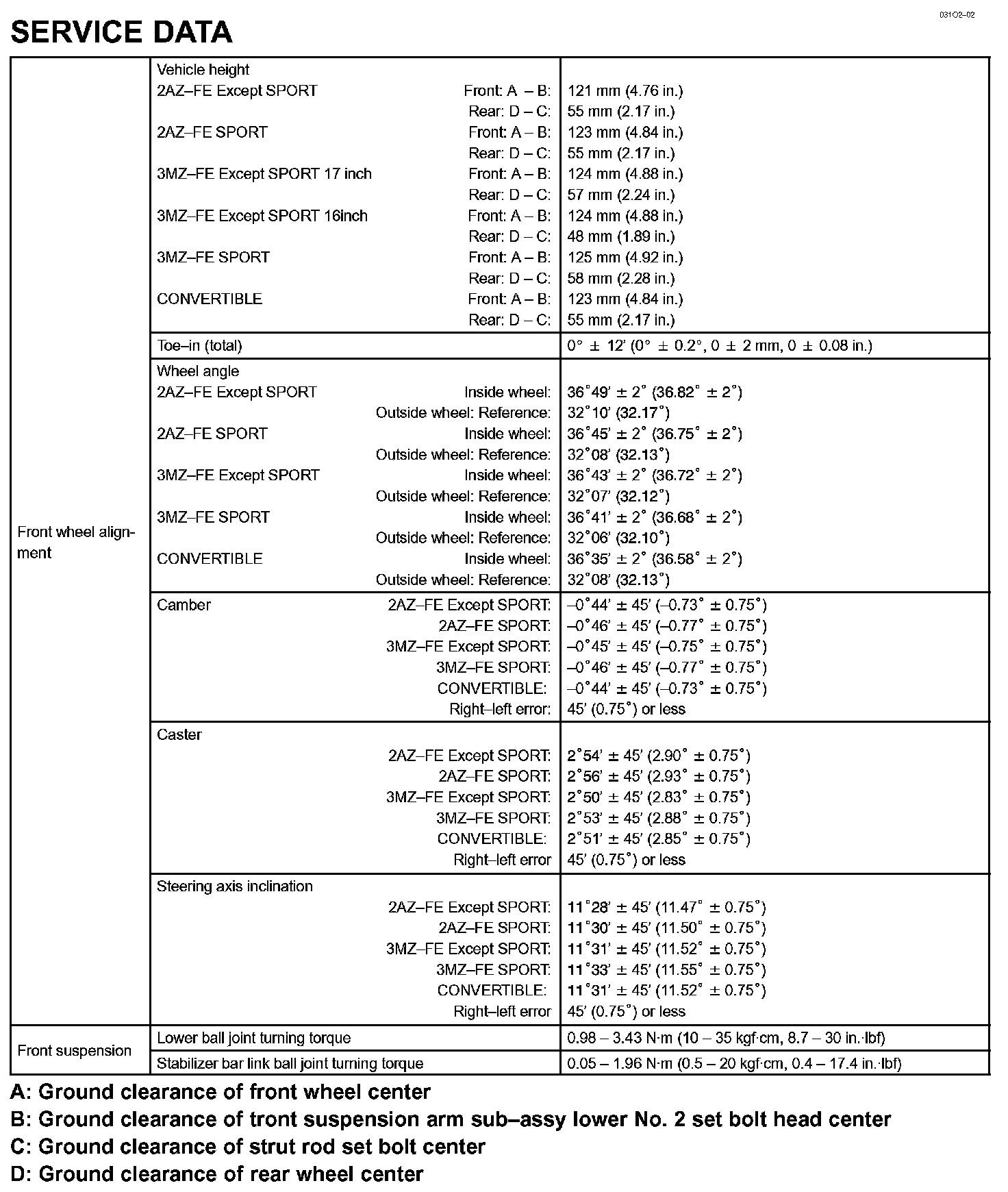

Front Suspension - Service Data:

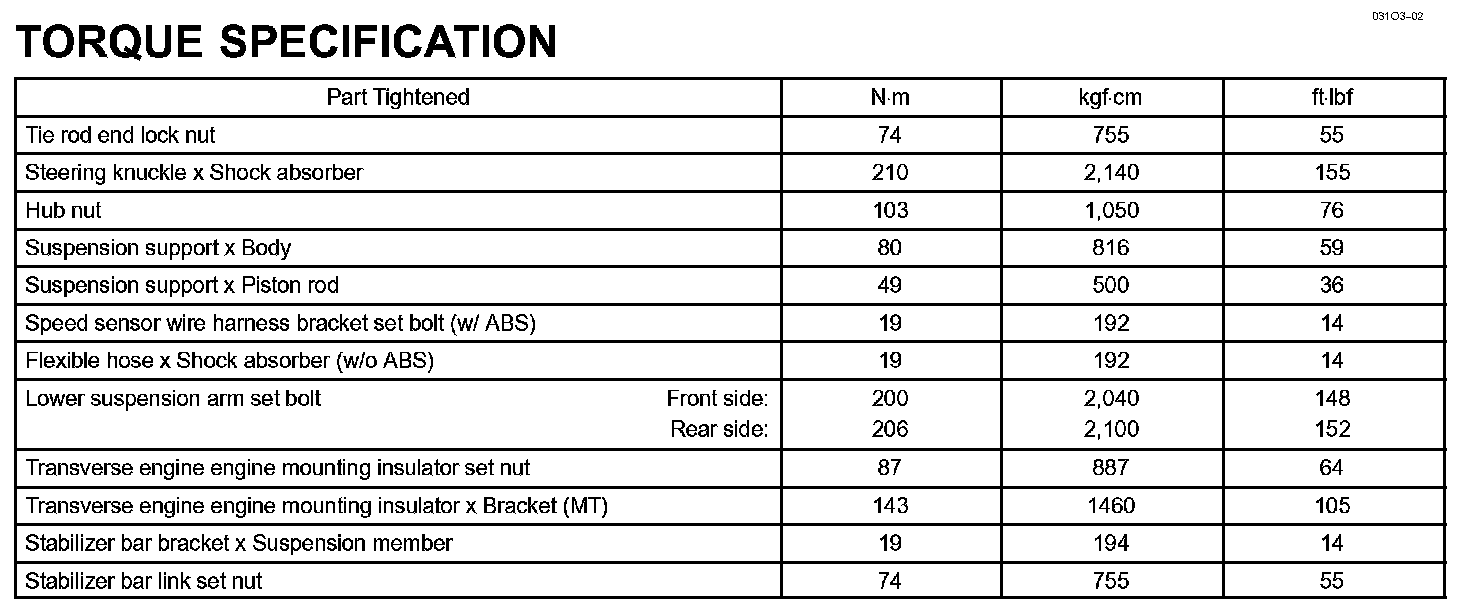

Front Suspension - Torque Specification:

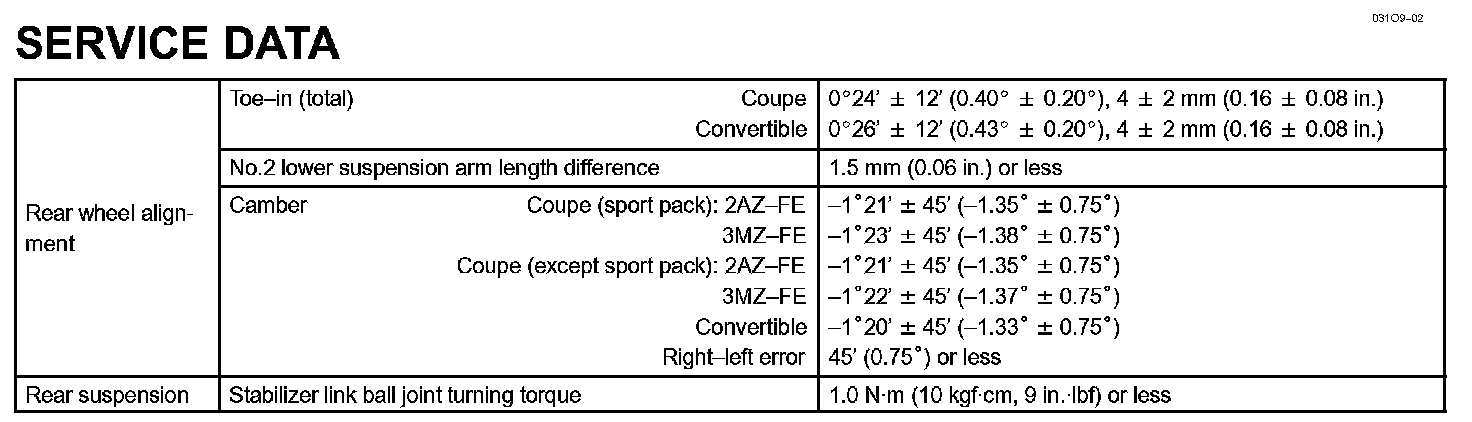

Rear Suspension - Service Data:




Rear Suspension - Torque Specification:
