Disposal
REAR SHOCK ABSORBER WITH COIL SPRINGDISPOSAL
1. DISPOSE OF SHOCK ABSORBER ASSY REAR LH
a. Fully extend the shock absorber rod.

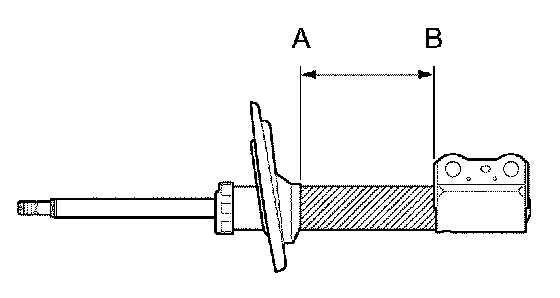

b. Using a drill, make a hole in the cylinder somewhere between A and B as shown in the illustration to discharge the gas inside.
CAUTION:
^ Be careful when drilling because shards of metal may fly about, so always use the proper safety equipment.
^ The gas is colorless, odorless and non-poisonous.
