Speedometer Gear, A/T: Service and Repair

SPEEDOMETER DRIVEN (ATM) GEAR SUB-ASSY
REPLACEMENT
1. REMOVE AIR CLEANER ASSY
2. REMOVE SPEEDOMETER SENSOR





a) Disconnect the speedometer driven gear sub-assy connector.

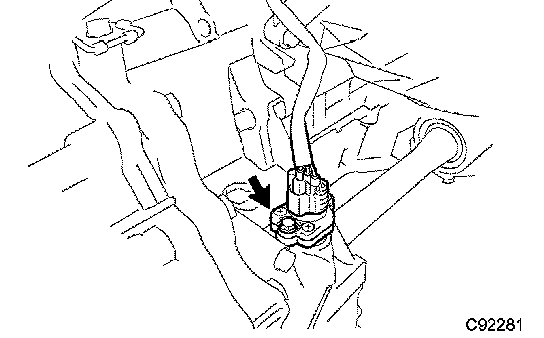

b) Remove the bolt and speedometer driven gear sub-assy.

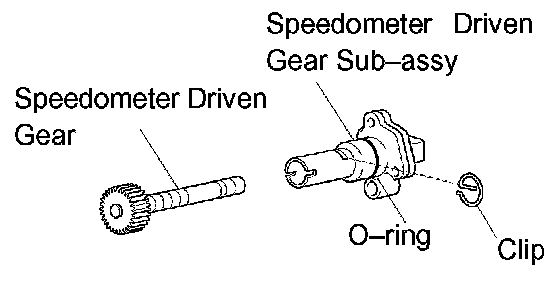

c) Remove the clip and speedometer driven gear from the speedometer driven gear sub-assy.
d) Remove the O-ring from the speedometer driven gear sub-assy.
3. INSTALL SPEEDOMETER SENSOR





a) Coat a new O-ring with ATF and install it to the speedometer driven gear sub-assy.

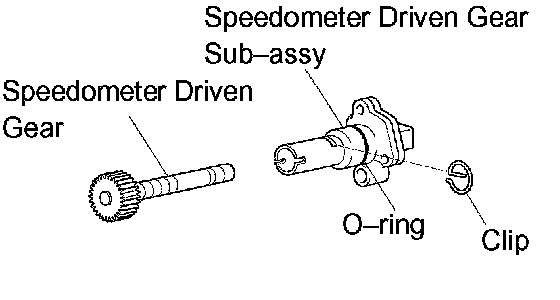

b) Install the speedometer driven gear to the speedometer driven gear sub-assy.

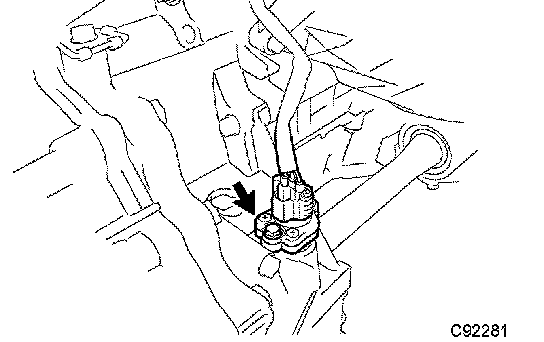

c) Install the speedometer driven gear sub-assy with the bolt.
Torque: 5.5 Nm (56 kgf-cm, 49 inch lbs.)
d) Connect the speedometer driven gear sub-assy connector.
4. INSTALL AIR CLEANER ASSY
