Clutch Slave Cylinder: Service and Repair

CLUTCH RELEASE CYLINDER ASSY
OVERHAUL

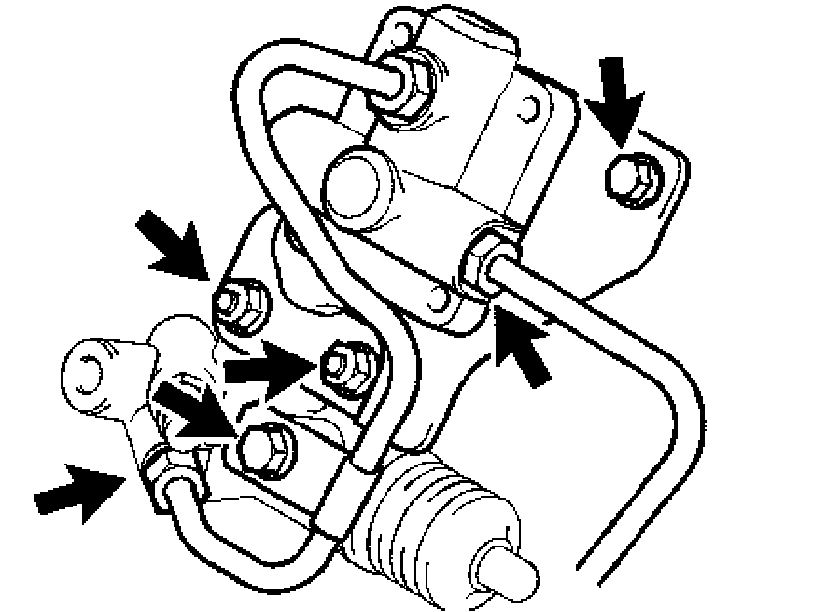

1. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE





a) Remove the bolt and tube clamp bracket.
b) Using SST, disconnect the 2 flexible hose tubes.
SST 09023-00100

HINT: Use a container to catch the fluid.

2. REMOVE CLUTCH ACCUMULATOR ASSY
a) Remove the bolt, 2 nuts and the clutch accumulator assy.
3. REMOVE CLUTCH RELEASE CYLINDER ASSY
a) Remove the 2 bolts and clutch release cylinder assy.
4. REMOVE CLUTCH RELEASE CYLINDER KIT
a) Remove the boot from the cylinder body.
b) Remove the push rod from the cylinder body.
c) Remove the piston from the cylinder body.

NOTICE: Be careful not to damage the inside of the cylinder body.

d) Remove the spring from the cylinder body.
e) Remove the bleeder plug cap from the bleeder plug.
5. REMOVE RELEASE CYLINDER BLEEDER PLUG
6. INSTALL RELEASE CYLINDER BLEEDER PLUG
Torque: 8.4 Nm (85 kgf-cm, 74 inch lbs.)
7. INSTALL CLUTCH RELEASE CYLINDER KIT
a) Install the bleeder plug cap to the bleeder plug.
b) Install a new spring to the cylinder body.

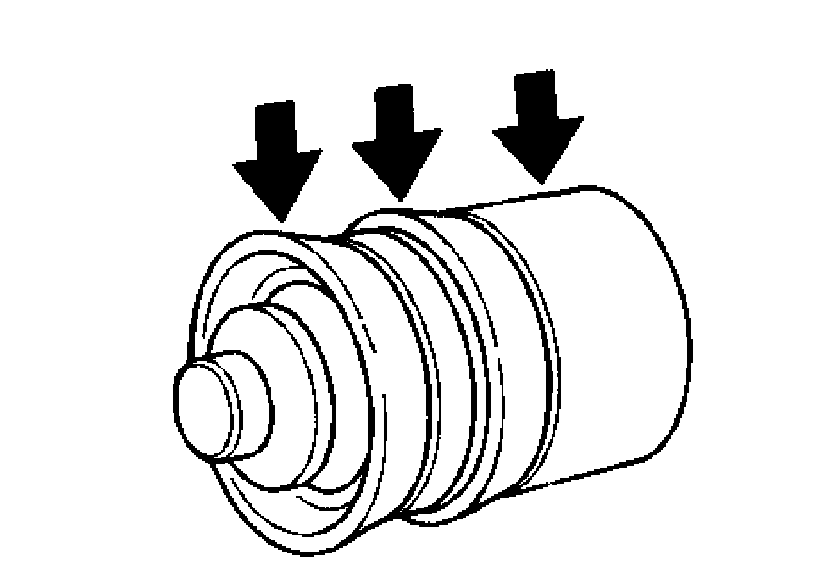

c) Coat the piston with lithium soap base glycol grease, as shown in the illustration.
d) Install the piston to the cylinder body.

NOTICE: Be careful not to damage the inside of the cylinder body.

e) Install the push rod to the cylinder body.
f) Install the boot to the cylinder body.
8. INSTALL CLUTCH RELEASE CYLINDER ASSY
a) Install the clutch release cylinder assy with the 2 bolts.
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
9. INSTALL CLUTCH ACCUMULATOR ASSY





a) Install the clutch accumulator assy with the 2 nuts and the bolt.

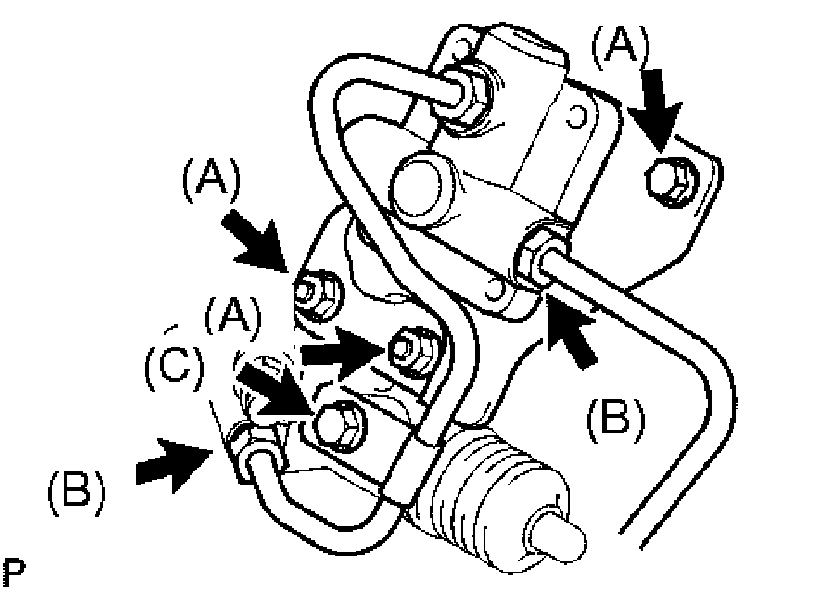

Bolt, Nut: (A) Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
10. CONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE
a) Using SST, connect the 2 flexible hose tubes.
SST 09023-00100
Flexible hose tube: (B)
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
b) Install the bolt and tube clamp bracket.
Bolt: (C) Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)
11. BLEED CLUTCH PIPE LINE
a) Fill the brake reservoir tank with clutch fluid and bleed the clutch system.
Torque: 8.4 Nm (85 kgf-cm, 74 inch lbs.)
12. CHECK CLUTCH FLUID LEAKAGE
13. CHECK FLUID LEVEL IN RESERVOIR
