Shift & Select Lever Shaft ASSY

SHIFT & SELECT LEVER SHAFT ASSY
OVERHAUL

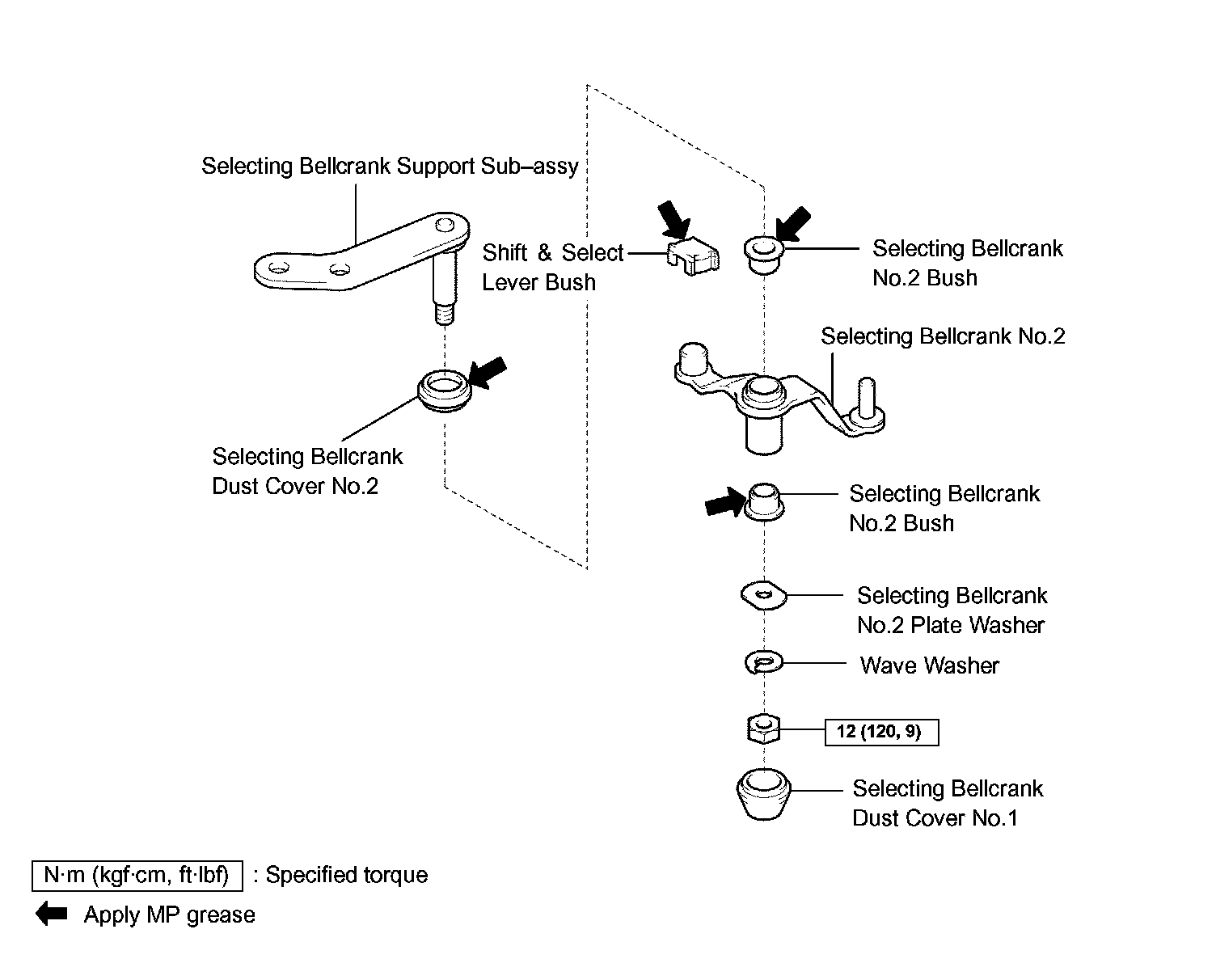

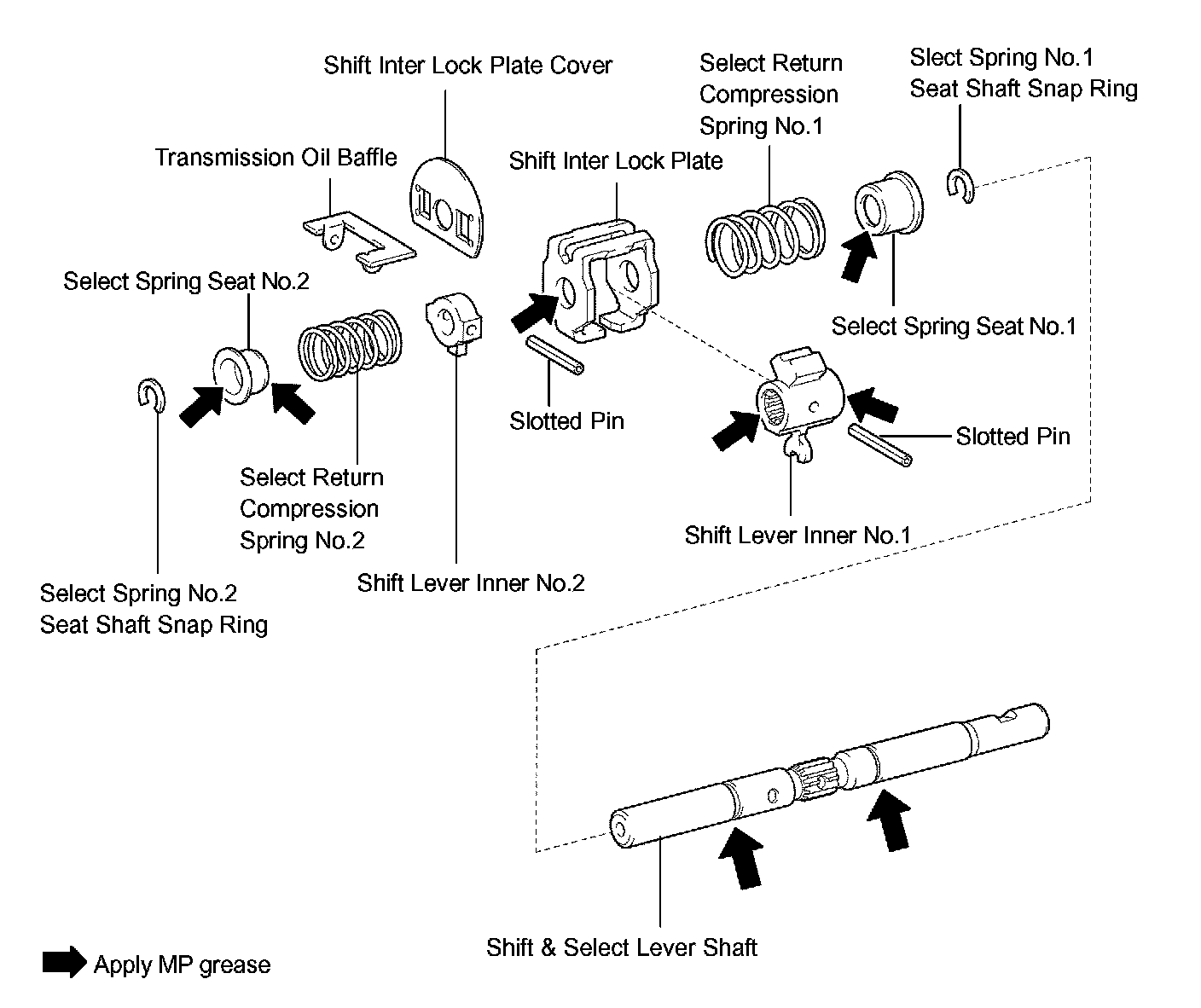

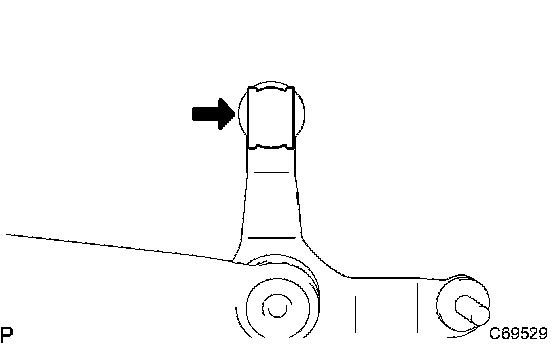

1. REMOVE CONTROL SHIFT LEVER BUSH

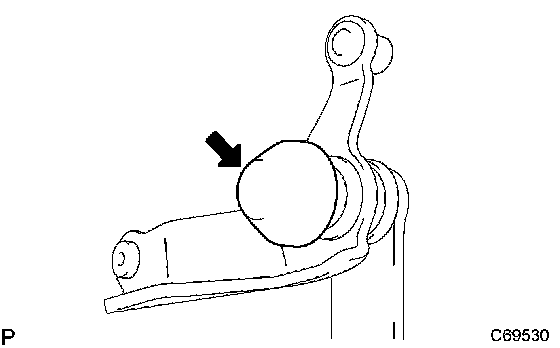

a) Remove the control shift lever bush from the selecting bellcrank No.2.
2. REMOVE SELECTING BELLCRANK DUST COVER NO.1

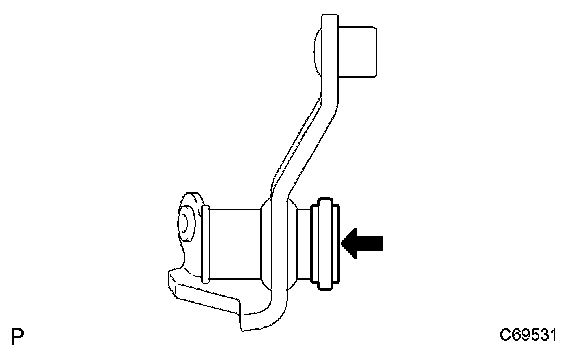

a) Remove the selecting bellcrank dust cover No.1 from the selecting bellcrank No.2.

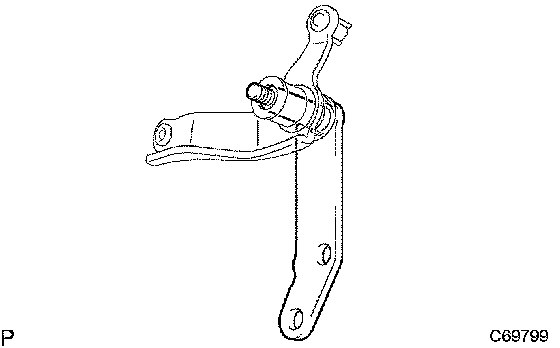

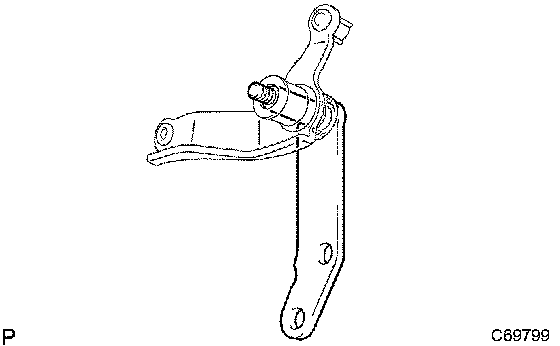

3. REMOVE SELECTING BELLCRANK SUPPORT SUB-ASSY

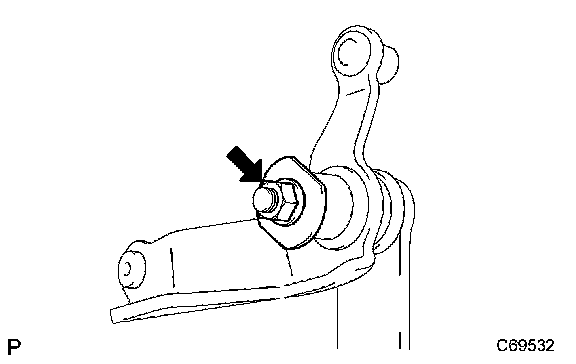

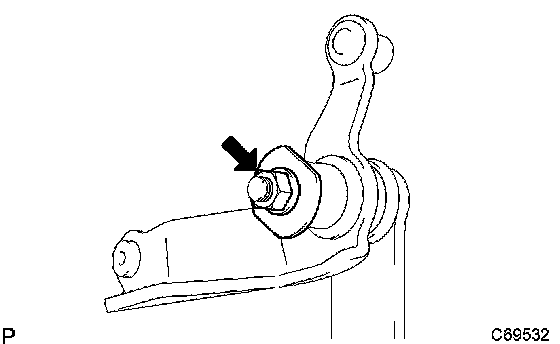

a) Remove the nut, wave washer and selecting bellcrank No.2 plate washer from the selecting bellcrank No.2.





b) Remove the selecting bellcrank support sub-assy from the selecting bellcrank No.2.
4. REMOVE SELECTING BELLCRANK DUST COVER NO.2





a) Remove the selecting bellcrank dust cover No.2 from the selecting bellcrank No.2.

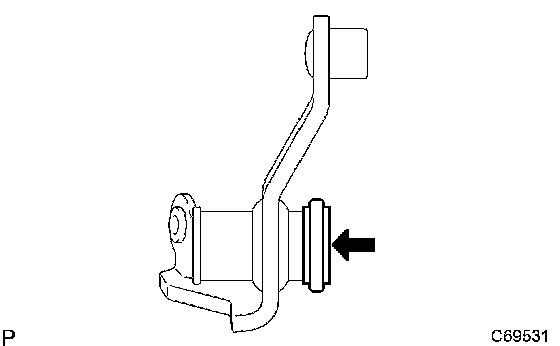

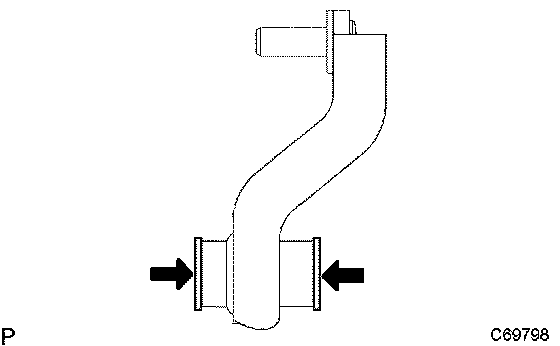

5. REMOVE SELECTING BELLCRANK NO.2 BUSH





a) Remove the selecting bellcrank bush from the selecting bellcrank No.2.
6. REMOVE SHIFT LEVER INNER NO.2

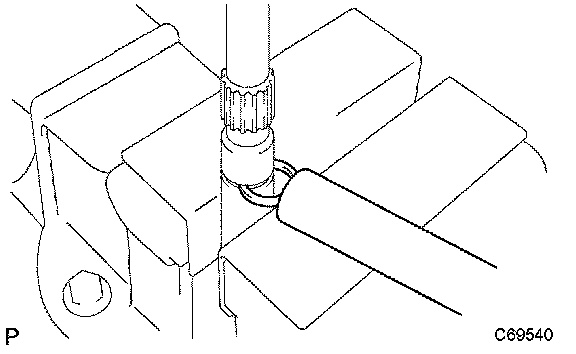

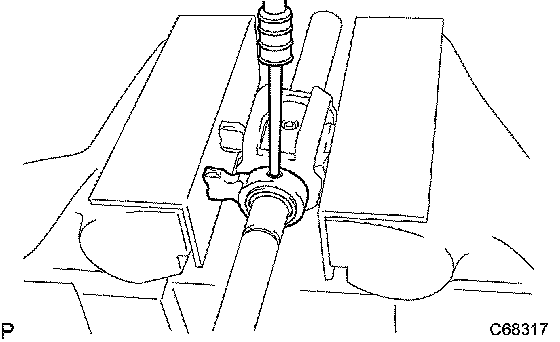

a) Hold the shift & select lever in a vise with soft jaws.

NOTICE: Do not damage the shift & select lever shaft.

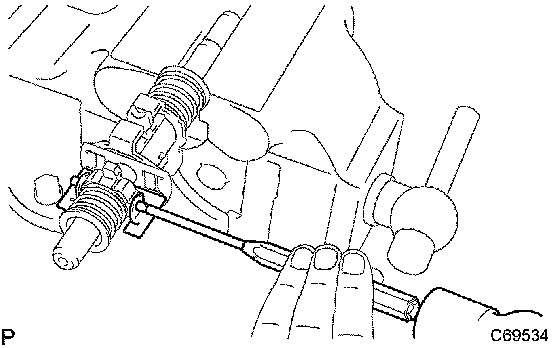

b) Using a pin punch ([diameter] 5 mm), remove the shift inner lever slotted pin and the transmission oil baffle.

NOTICE: Do not damage the shift & select lever shaft.

c) Apply force to the select return compression spring No.1 and select return compression spring No.2 then hold it in a vise with soft jaws.

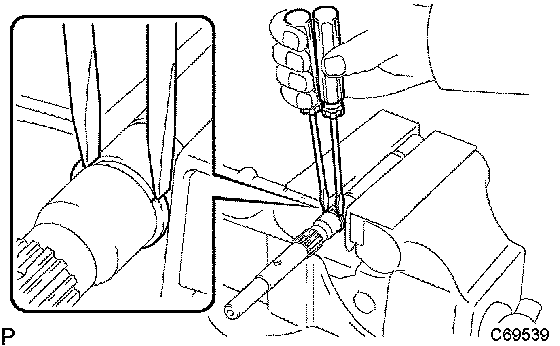

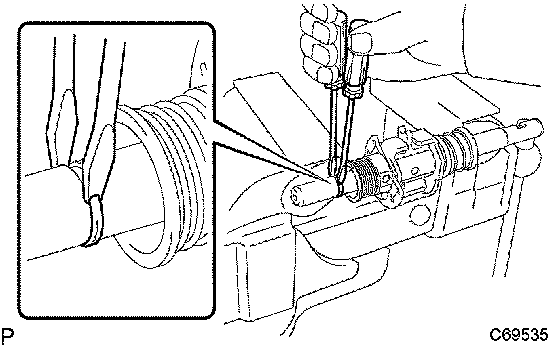

d) Using 2 screwdrivers and a hammer, remove the select spring No.2 seat snap ring from the shift & select lever shaft.

NOTICE: Do not damage the shift & select lever shaft.

7. REMOVE SELECT SPRING SEAT NO.1





a) Using a pin punch ([diameter] 5 mm), remove the shift inner lever slotted pin from the shift & select lever shaft.





b) Remove the shift lever assy select return compression spring No.1 and select spring seat No.1 from the shift & select lever shaft.
8. REMOVE SHIFT INTER LOCK PLATE COVER

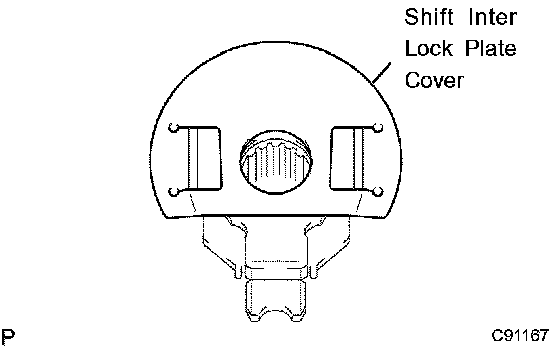

a) Remove the shift inter lock plate cover from the shift inter lock plate.
9. REMOVE SHIFT LEVER INNER NO.1





a) Remove the shift lever inner No.1 from the shift inter lock plate.
10. REMOVE SELECT SPRING NO.1 SEAT SHAFT SNAP RING





a) Using 2 screwdrivers and a hammer, remove the select spring No. 1 seat shaft snap ring.

NOTICE: Do not damage the shaft.

11. REMOVE CONTROL SHAFT COVER OIL SEAL

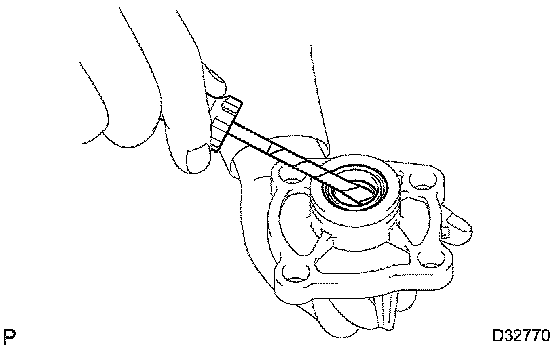

a) Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.

HINT: Tape the screwdriver tip before use to avoid damage.

12. INSTALL CONTROL SHAFT COVER OIL SEAL

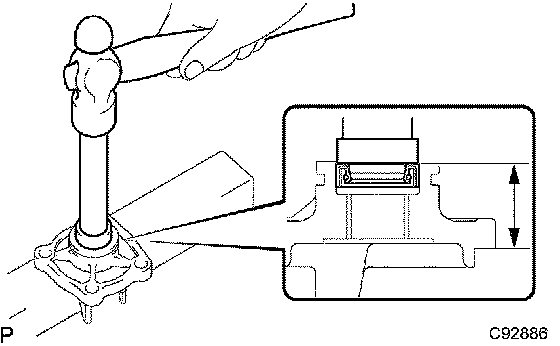

a) Using SST and a hammer, install a new control shaft cover oil seal to the control shaft cover.
SST 09950-60010 (09951-00280), 09950-70010 (09951-07100)
Oil seal drive in depth: 28.5 ± 0.50 mm (1.122 ± 0.020 inch)
13. INSTALL SELECT SPRING NO.1 SEAT SHAFT SNAP RING





a) Using a brass bar and a hammer, install the select spring No.1 seat shaft snap ring.

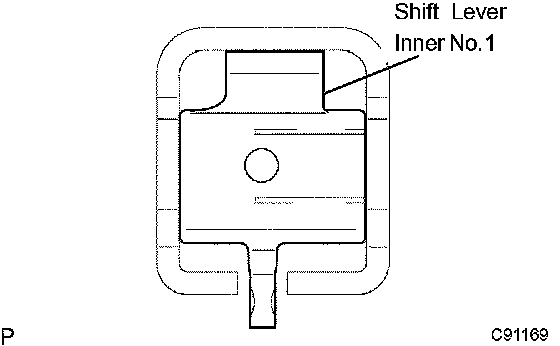

14. INSTALL SHIFT LEVER INNER NO.1

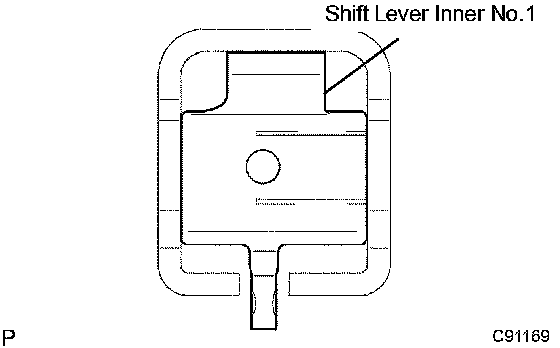

a) Install the shift lever inner No.1 to the shift inter lock plate.
15. INSTALL SHIFT INTER LOCK PLATE COVER

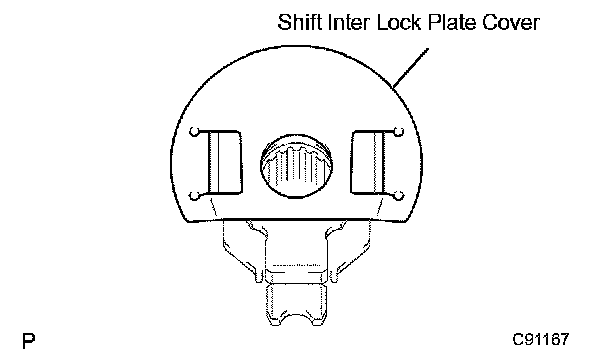

a) Install the shift inter lock plate cover to the shift inter lock plate.
16. INSTALL SELECT SPRING SEAT NO.1

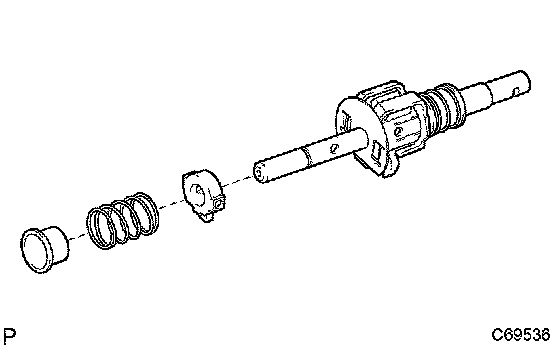

a) Install the select spring seat No.1, select return compression spring No.1 and shift lever inner assy to the shift & select lever shaft.





b) Hold the shift & select lever in a vise with soft jaws.
c) Using a pin punch ([diameter] 5 mm), install the shift lever slotted pin to the shift & select lever shaft.
Clearance: -0.5 to 0.5 mm (-0.0197 to 0.0197 inch)
17. INSTALL SHIFT LEVER INNER NO.2

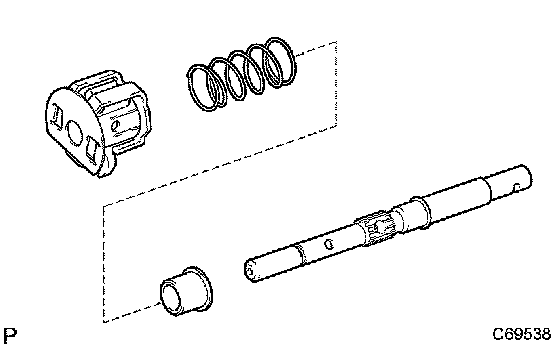

a) Install the shift lever inner No.2, select return compression spring No.2 and select return spring seat No.2 to the shift & select lever shaft.
b) Using a brass bar and a hammer, install the select seat snap ring to the shift & select lever shaft.

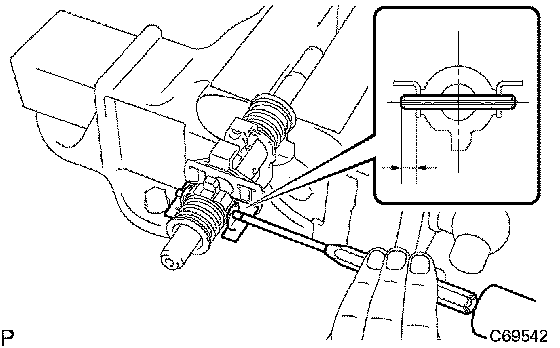

c) Install the transmission oil baffle. Using a pin punch ([diameter] 5 mm) and a hammer, install the shift inner lever slotted pin to the shift & select lever shaft.
Clearance: 5.8 to 6.8 mm (0.228 to 0.268 inch)

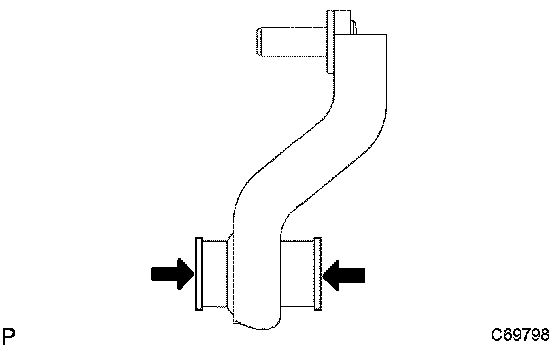

18. INSTALL SELECTING BELLCRANK NO.2 BUSH





a) Coat the 2 selecting bellcrank No.2 bushes with MP grease, and install them to the selecting bellcrank No.2.
19. INSTALL SELECTING BELLCRANK DUST COVER NO.2





a) Coat the selecting bellcrank dust cover No.2 with MP grease, and install it to the selecting bellcrank No.2.
20. INSTALL SELECTING BELLCRANK SUPPORT SUB-ASSY





a) Install the selecting bellcrank support sub-assy to the selecting bellcrank No.2.





b) Install the selecting bellcrank No.2 plate washer, washer and nut.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)
21. INSTALL SELECTING BELLCRANK DUST COVER NO.1





a) Install the selecting bellcrank dust cover No.1 to the selecting bellcrank No.2.
22. INSTALL CONTROL SHIFT LEVER BUSH





a) Install the control shift lever bush to the selecting bellcrank No.2.
