Mechanical Specifications

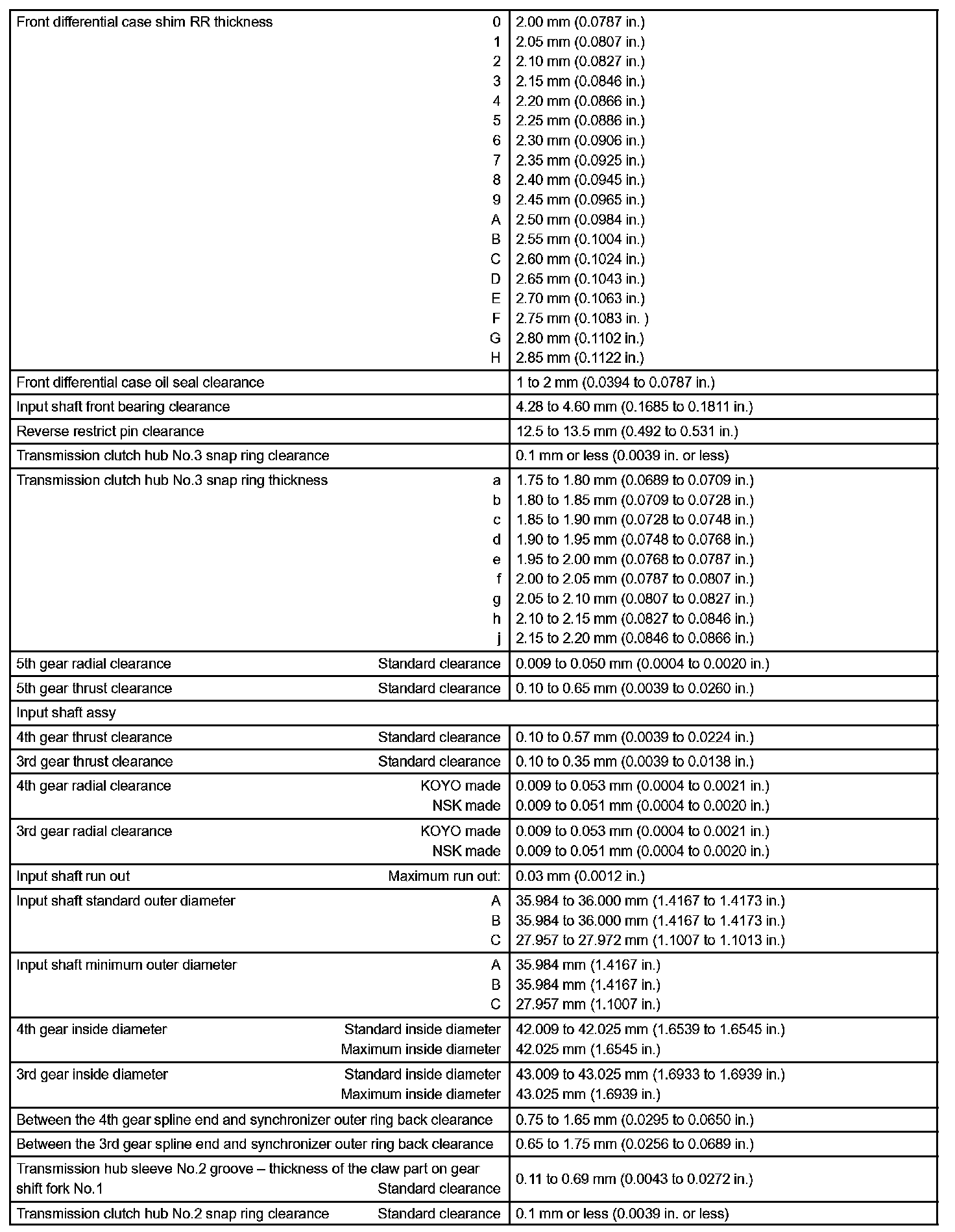

Manual Transmission/Transaxle - Service Data Part 1:

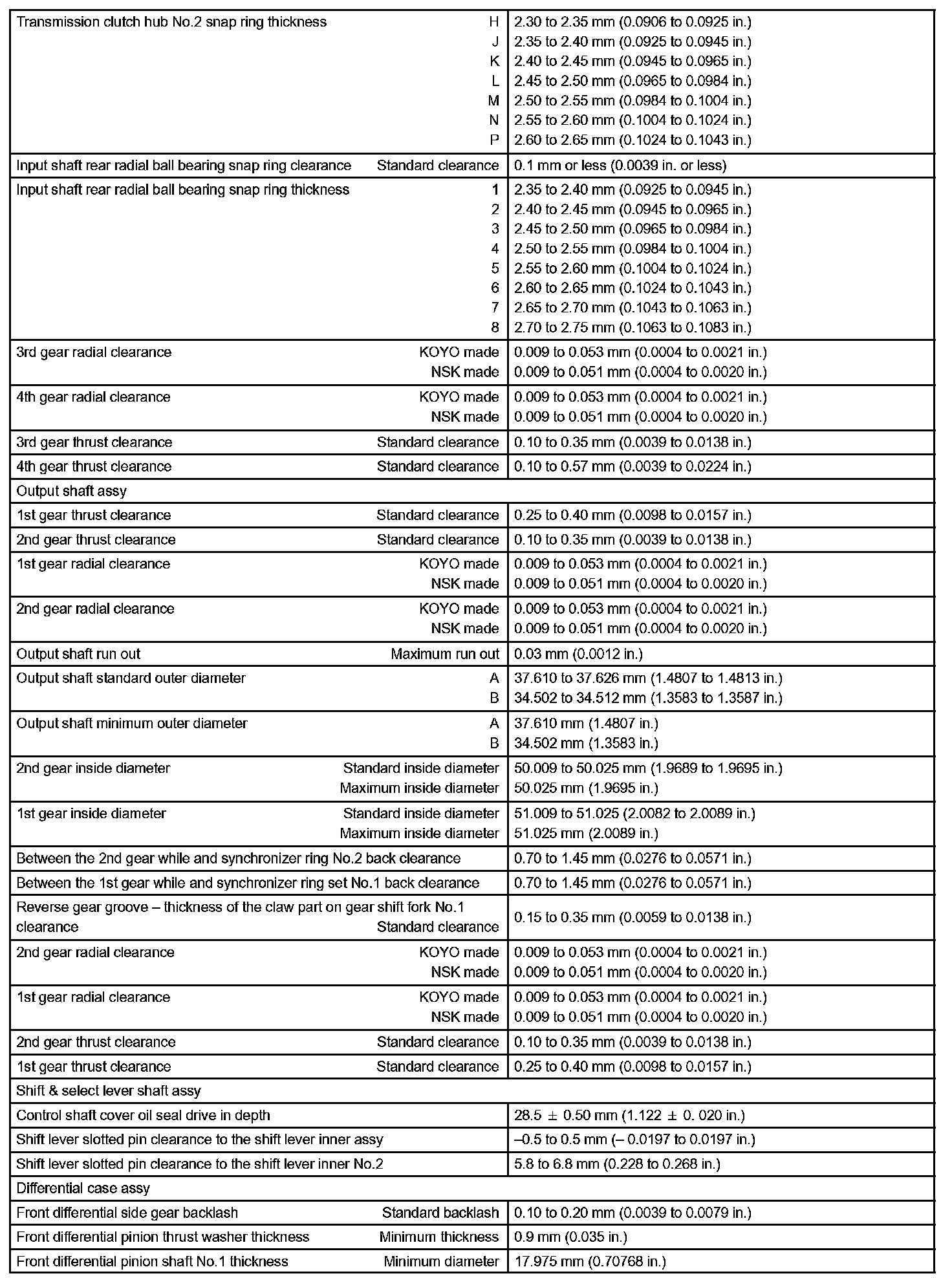

Manual Transmission/Transaxle - Service Data Part 2:

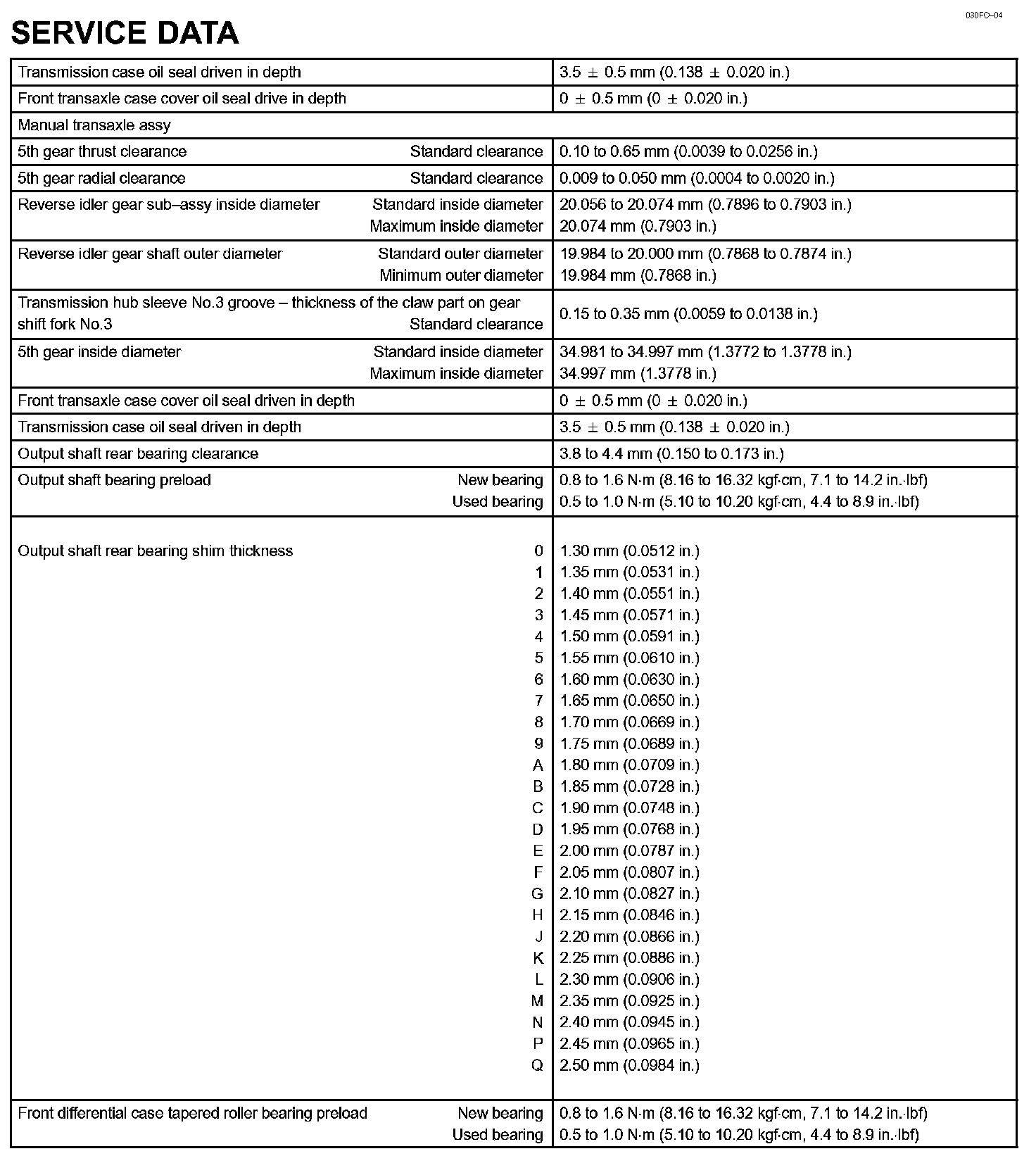

Manual Transmission/Transaxle - Service Data Part 3:

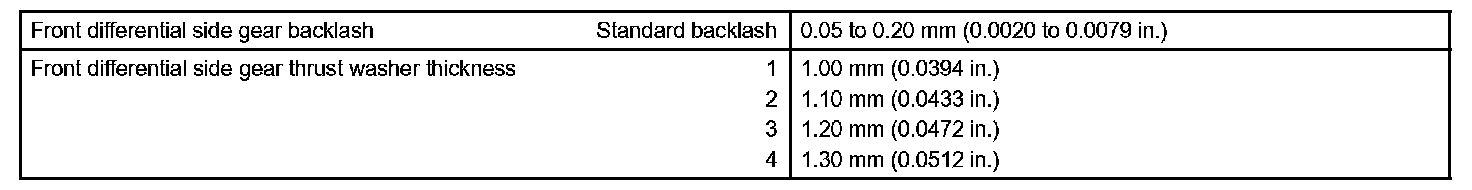

Manual Transmission/Transaxle - Service Data Part 4:

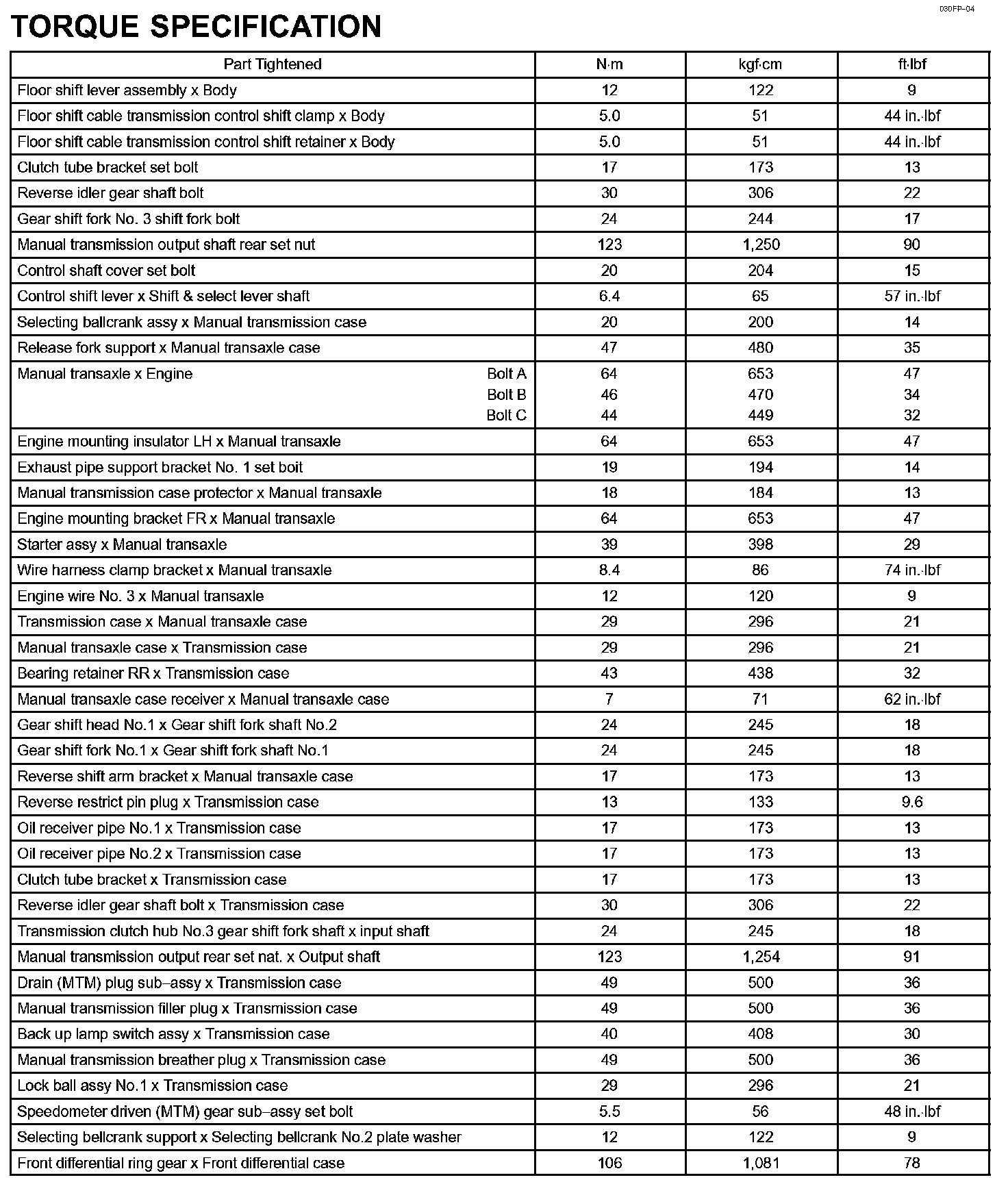

Manual Transmission/Transaxle - Torque Specification:
