On-Vehicle Inspection

ON-VEHICLE INSPECTION

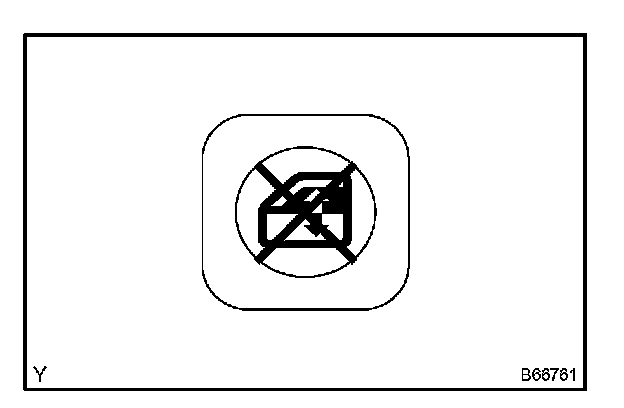

1. CHECK WINDOW LOCK SWITCH




a. Check that the passenger side power window operation is disabled when the window lock switch of the power window regulator master switch is pressed.
b. Check that the passenger side power window can be operated when the window lock switch is pressed again.

2. CHECK MANUAL UP/DOWN FUNCTION
a. Check that the driver side power window operates as follows:




Standard:

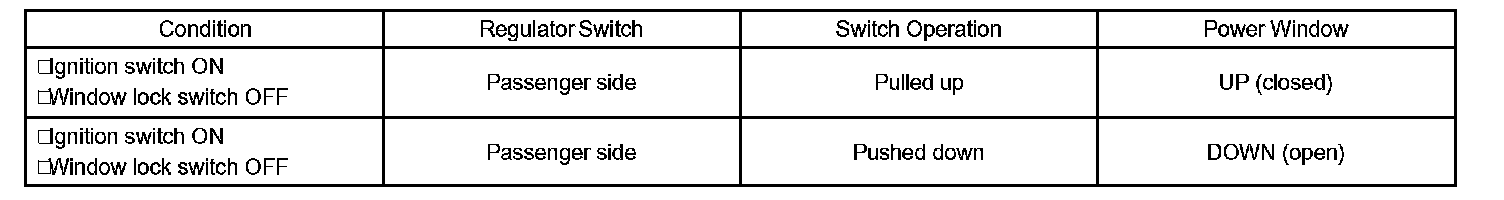

b. Check that the passenger side power window operates as follows:




Standard:

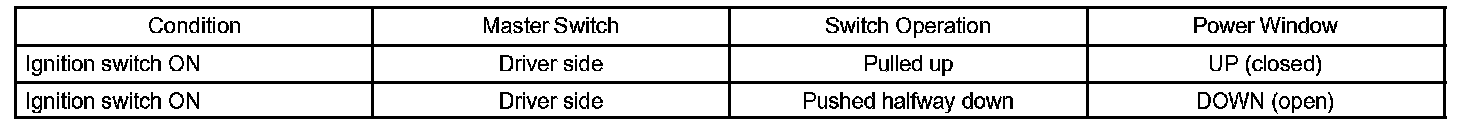

3. CHECK AUTO DOWN FUNCTION
a. Check that the driver side power window operates as follows:




Standard:

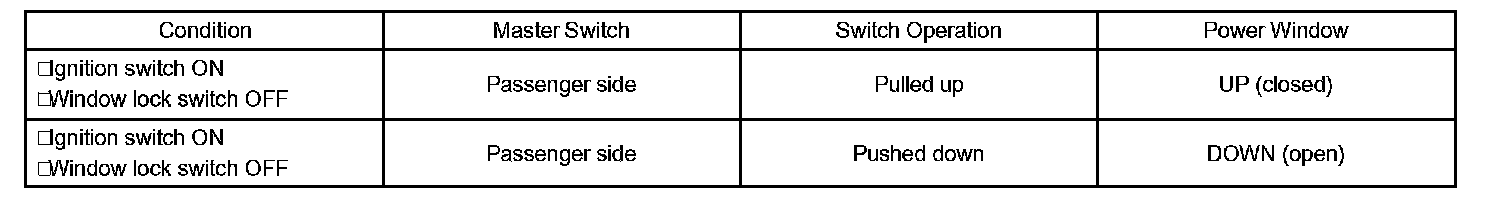

4. CHECK REMOTE UP/DOWN FUNCTION
a. Check that the passenger side power window operates as follows:




Standard:
