Manual Up/Down Function Does Not Operate on Driver Side

MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON DRIVER SIDE

CIRCUIT DESCRIPTION

If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator master switch, the power window regulator motor or the wire harness.

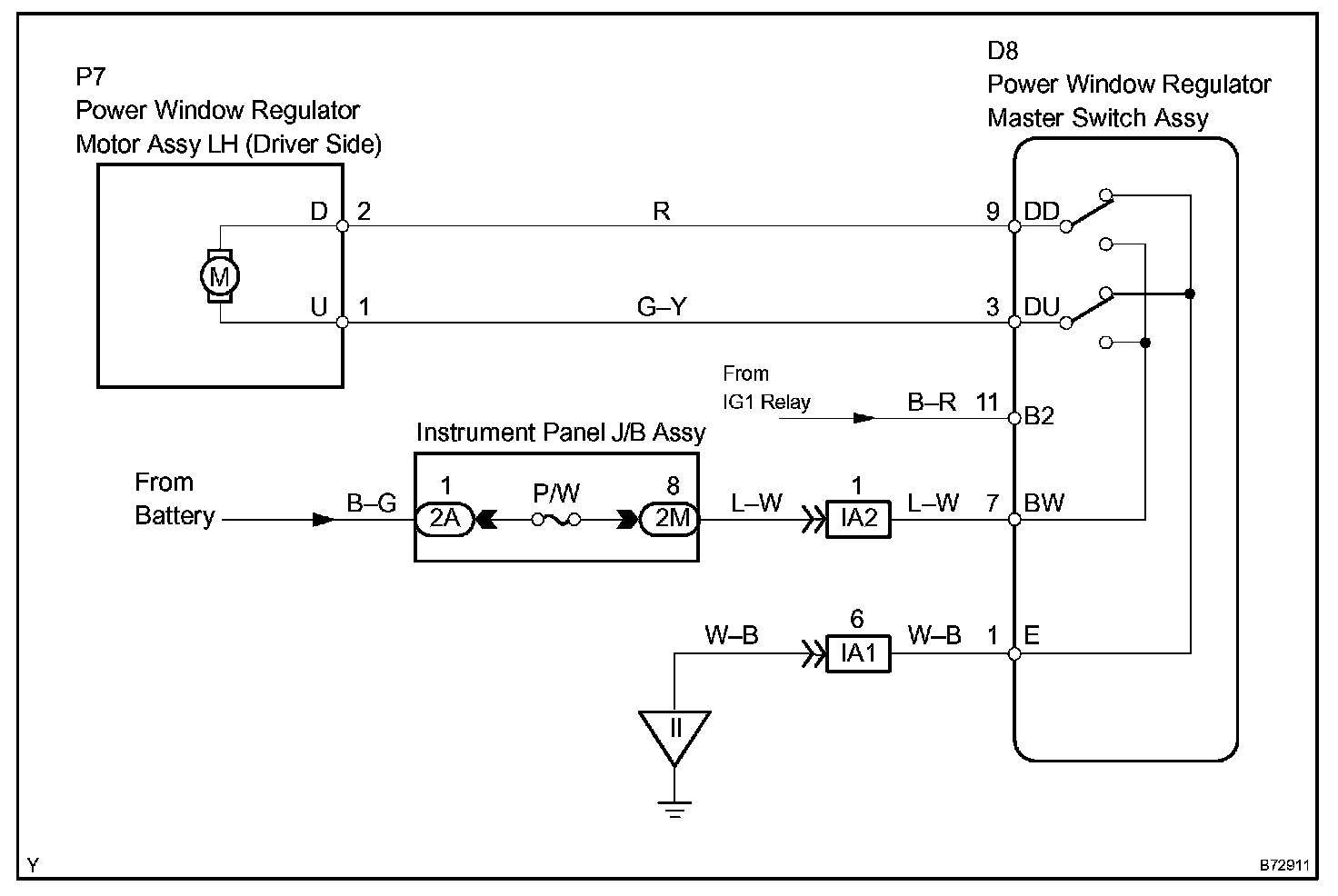

Wiring Diagram:






Step 1:

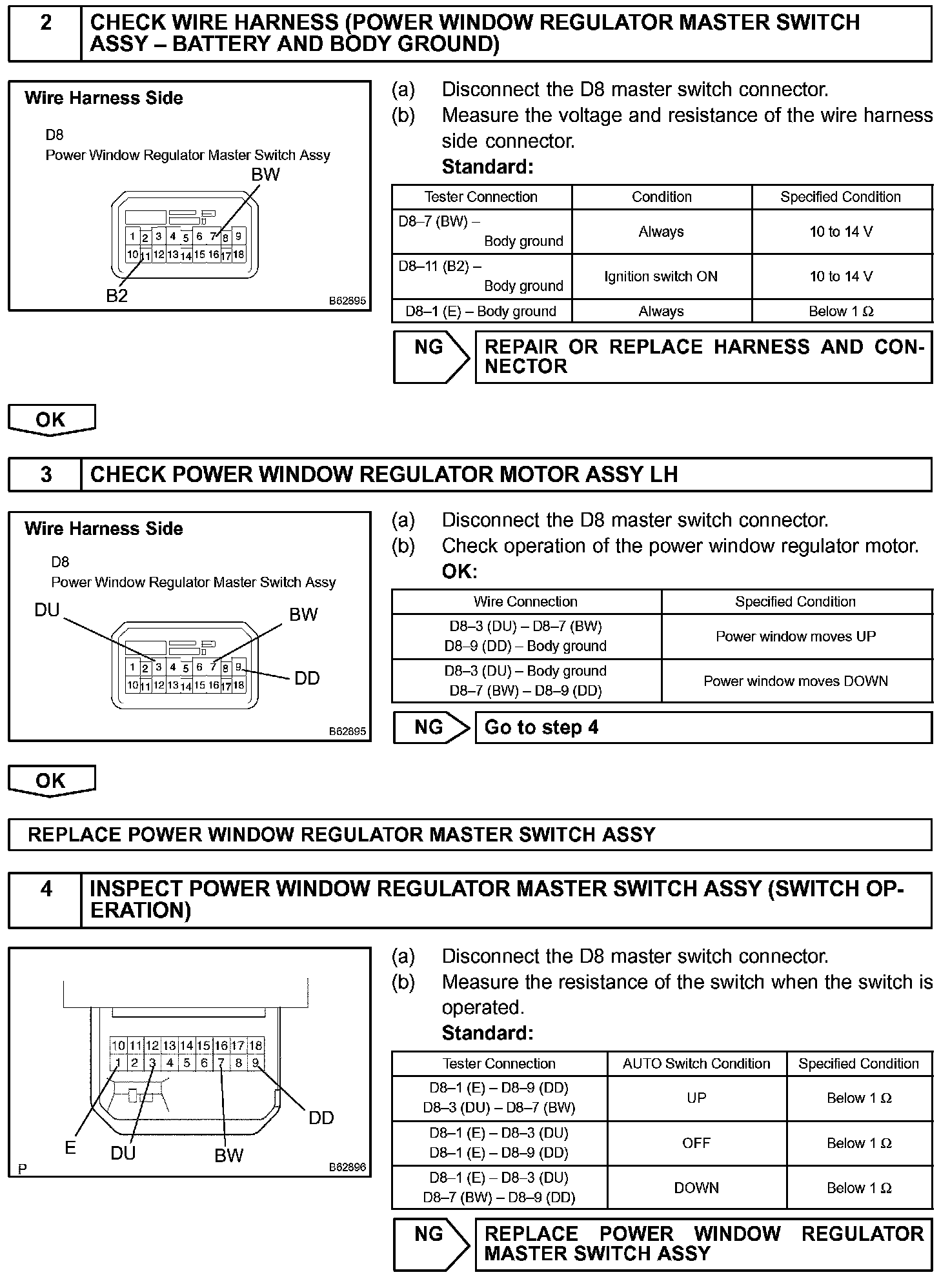

Step 2 - 4:

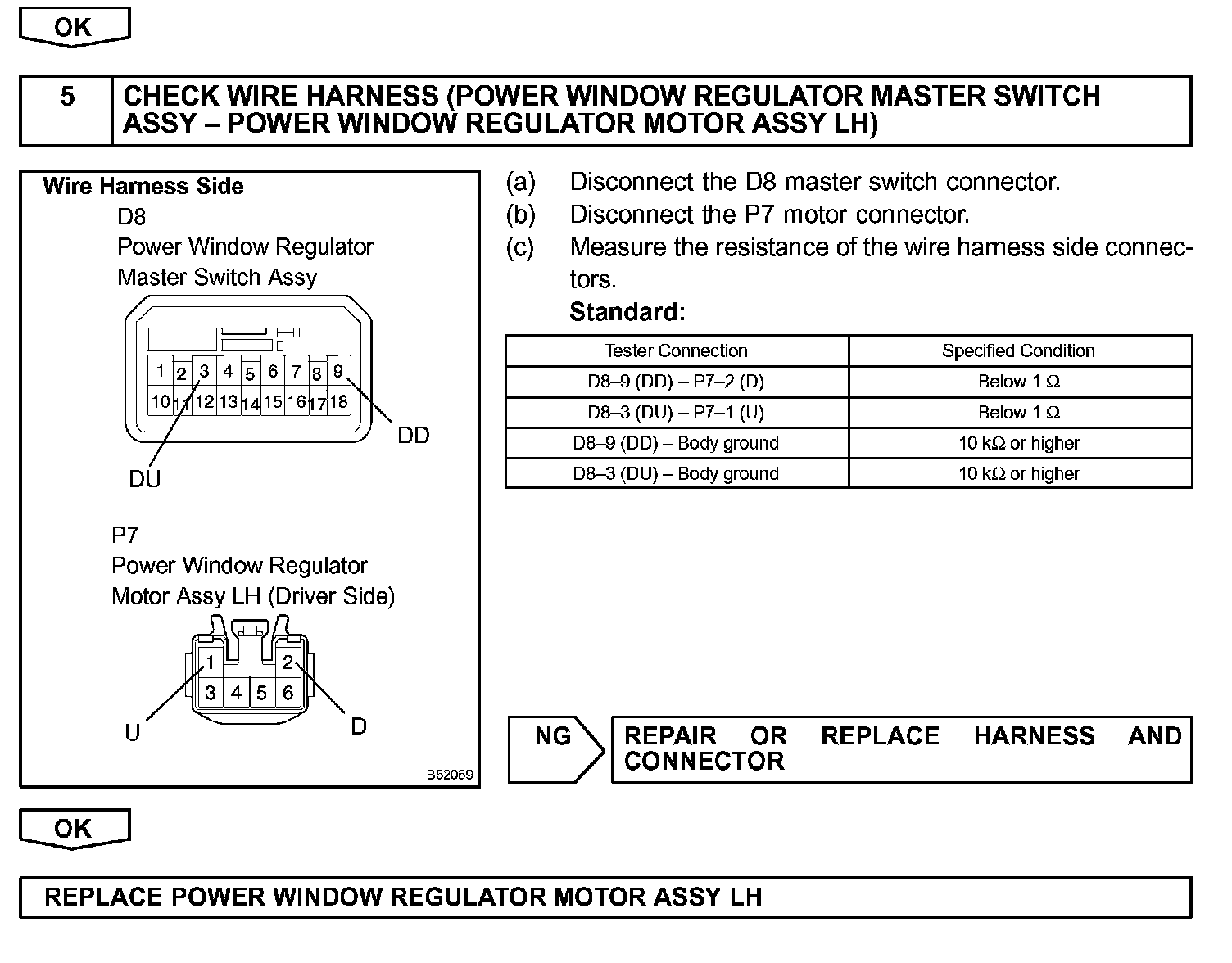

Step 4 (Continued) - 5:




INSPECTION PROCEDURE
