Manual Up/Down Function Does Not Operate on Passenger Side Only

MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON PASSENGER SIDE ONLY

CIRCUIT DESCRIPTION

If the passenger side manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window regulator switch or the wire harness.

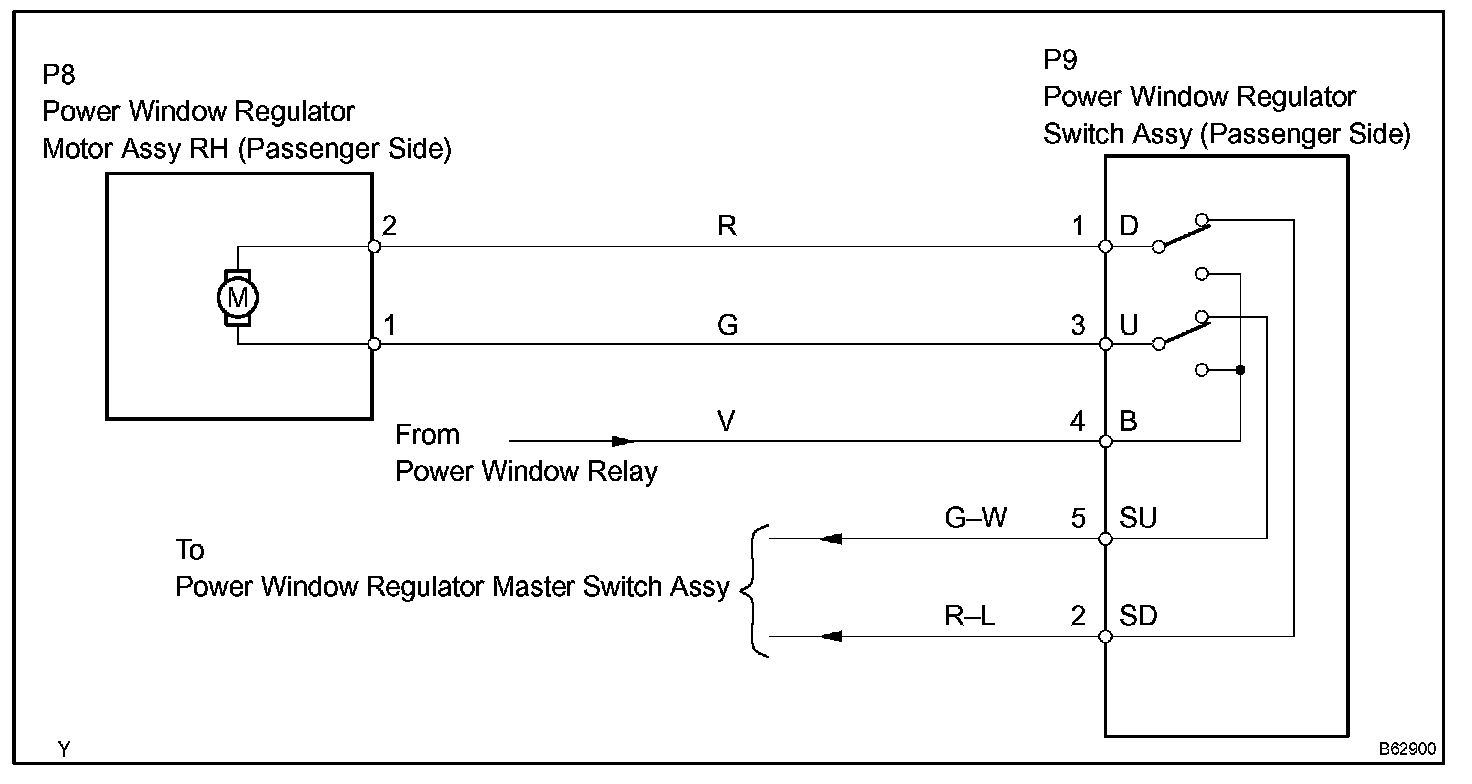

Wiring Diagram:

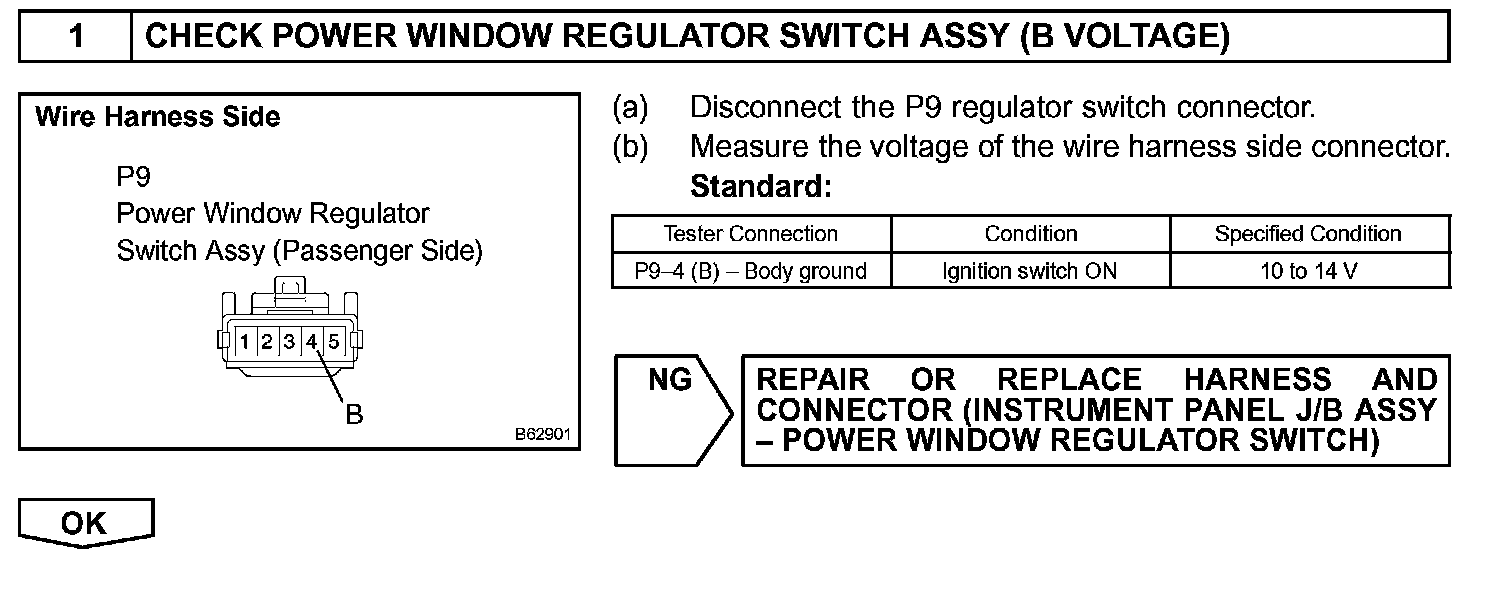

Step 1:

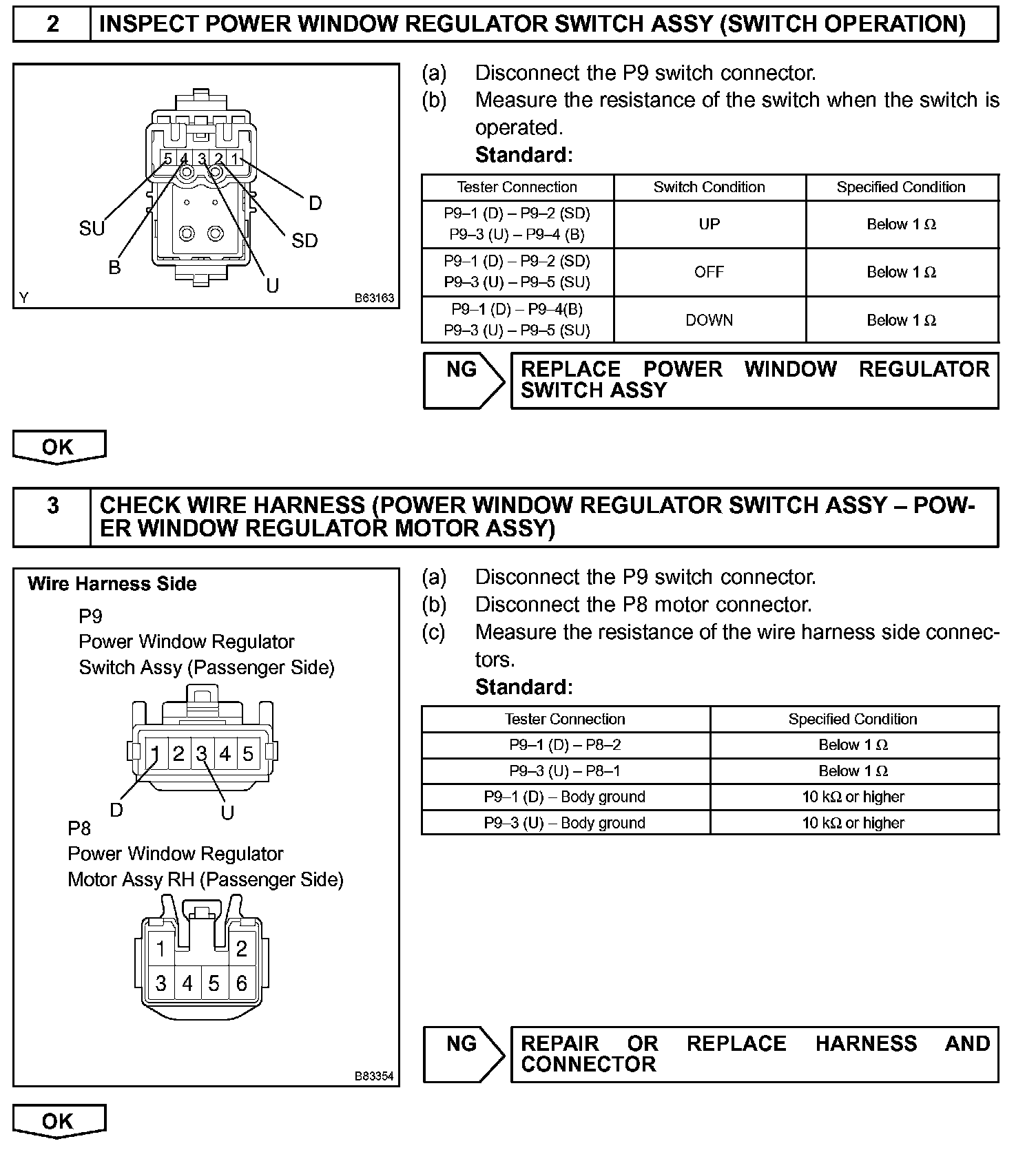

Step 2 - 3:

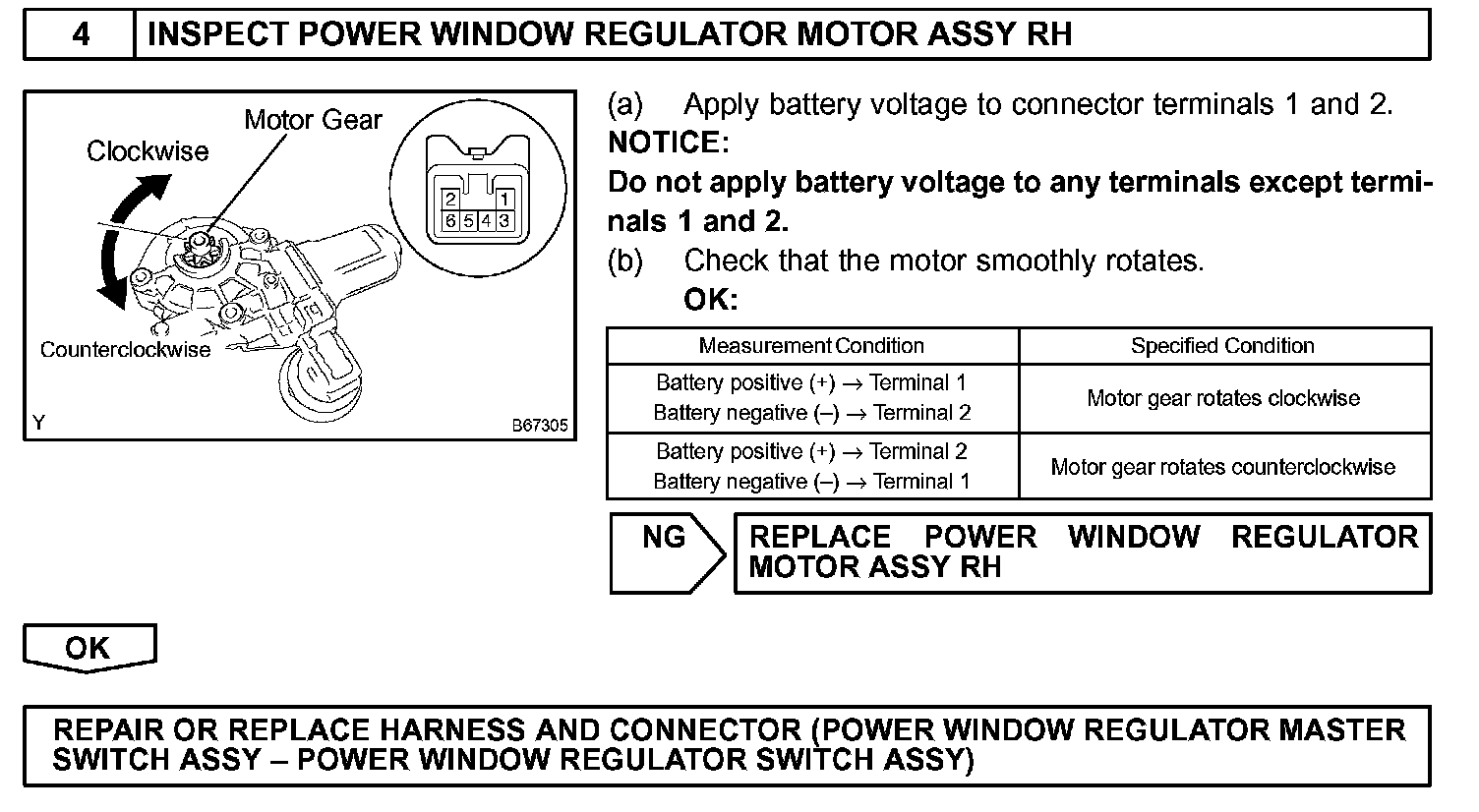

Step 4:

INSPECTION PROCEDURE
