Quarter Window Glass: Testing and Inspection

QUARTER WINDOW ASSEMBLY (CONVERTIBLE)

INSPECTION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

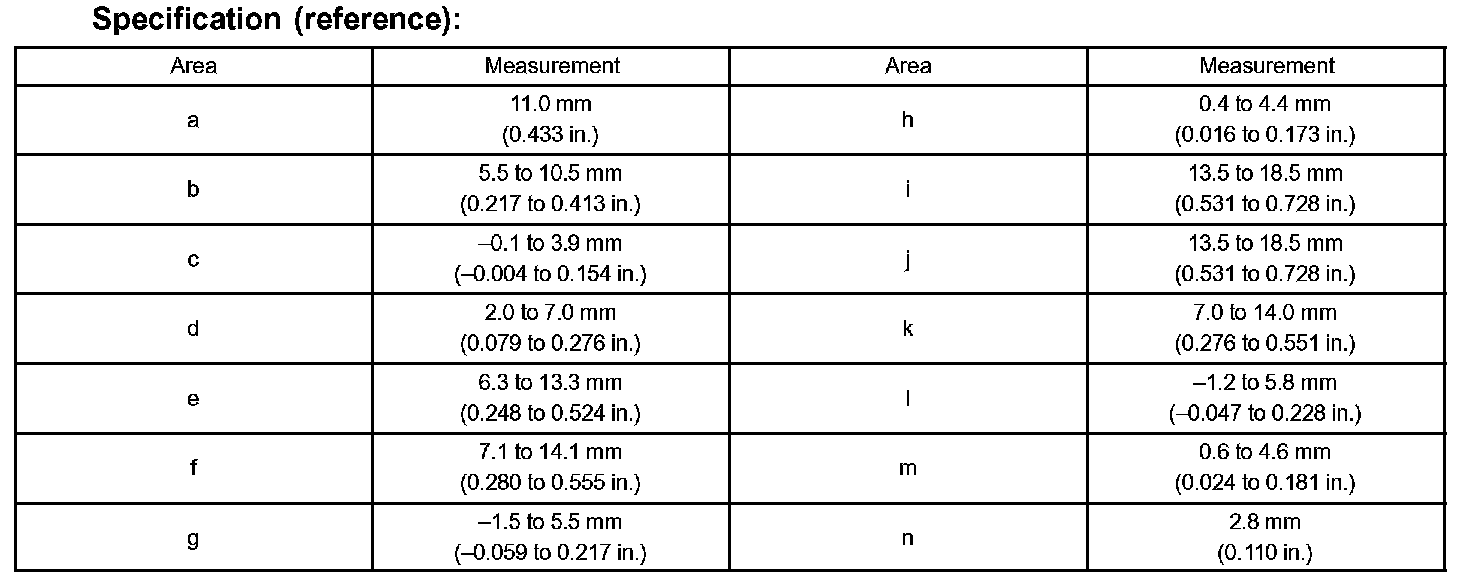

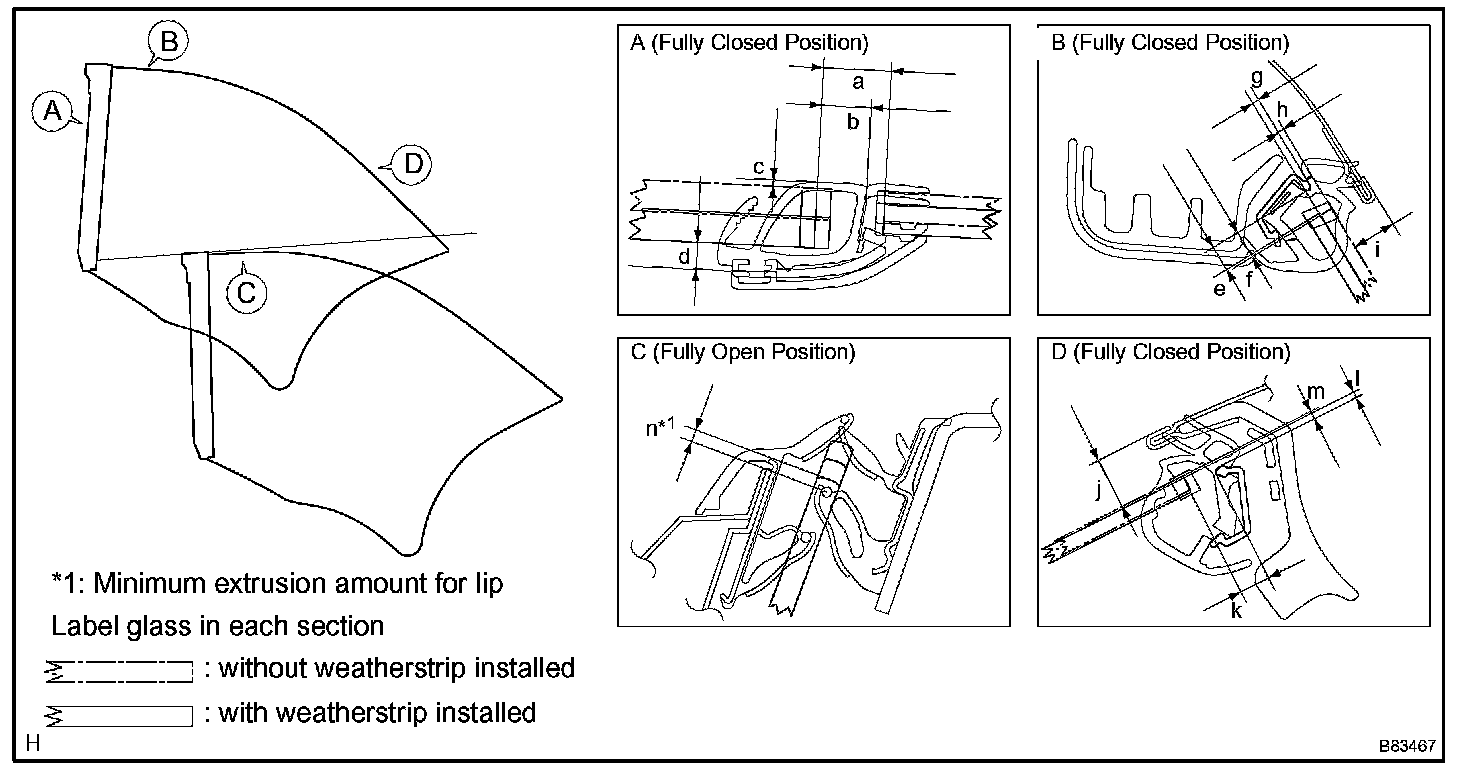

1. INSPECT QUARTER WINDOW ASSEMBLY LH

HINT: Start the inspection after making sure the front door panel and front door glass are fit properly.

a. Push the quarter window from the vehicle inside and make sure that the window is held in place by the tarpaulin rear rail weatherstrip.
b. Close the quarter window and make sure that the window moves up and down smoothly.
c. Around the quarter window's fully closed position, make sure that the window moves parallel to the tarpaulin rear rail weatherstrip.
d. Fully close the quarter window. When the window reaches the fully closed position, make sure that the bracket contacts the front and rear window stops simultaneously.
