Air Conditioning System

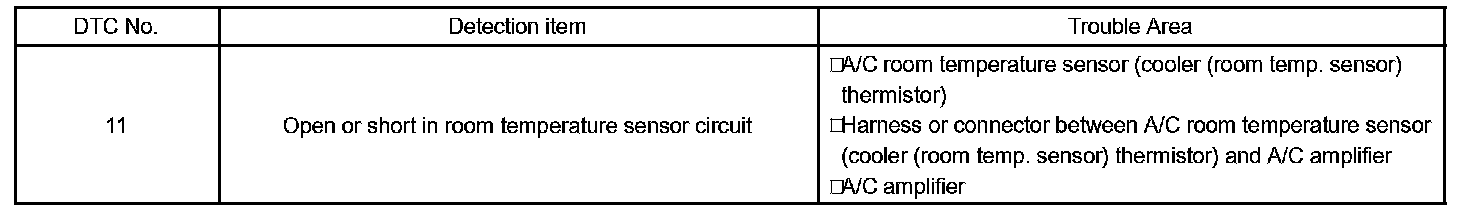

DTC 11 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

11:

This sensor detects the interior temperature that is used as the basis for temperature control and sends appropriate signals to the A/C amplifier.

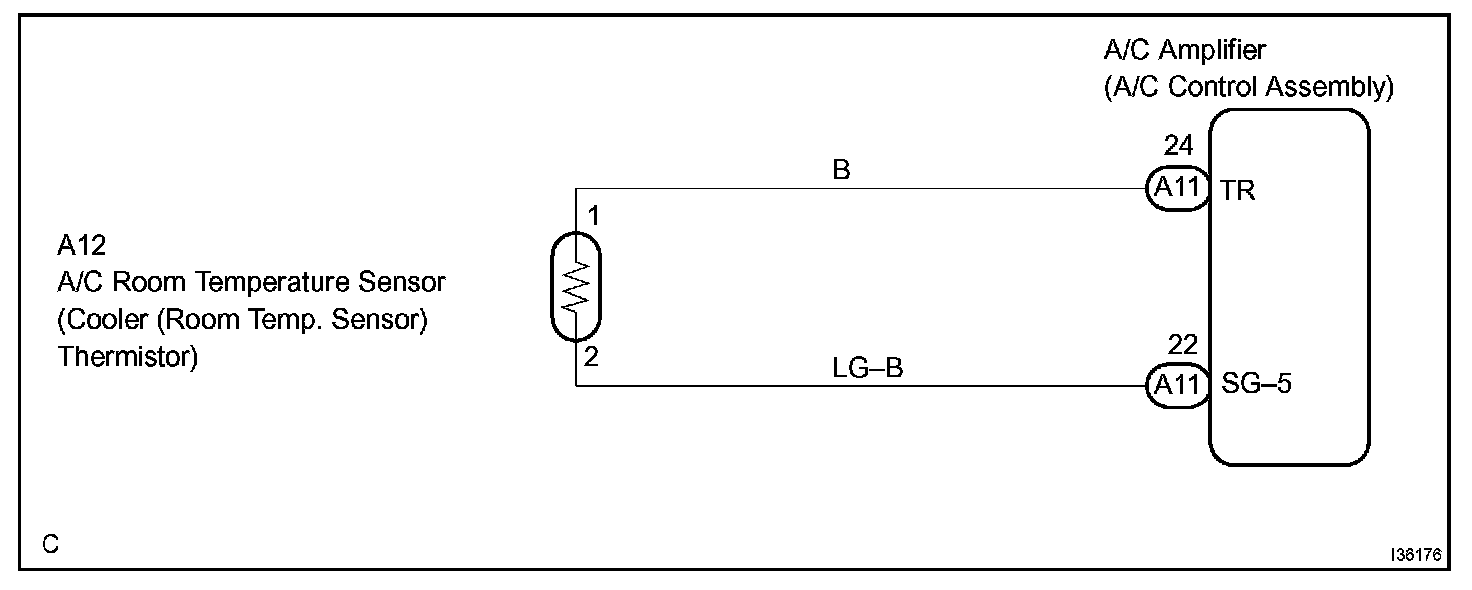

Wiring Diagram:

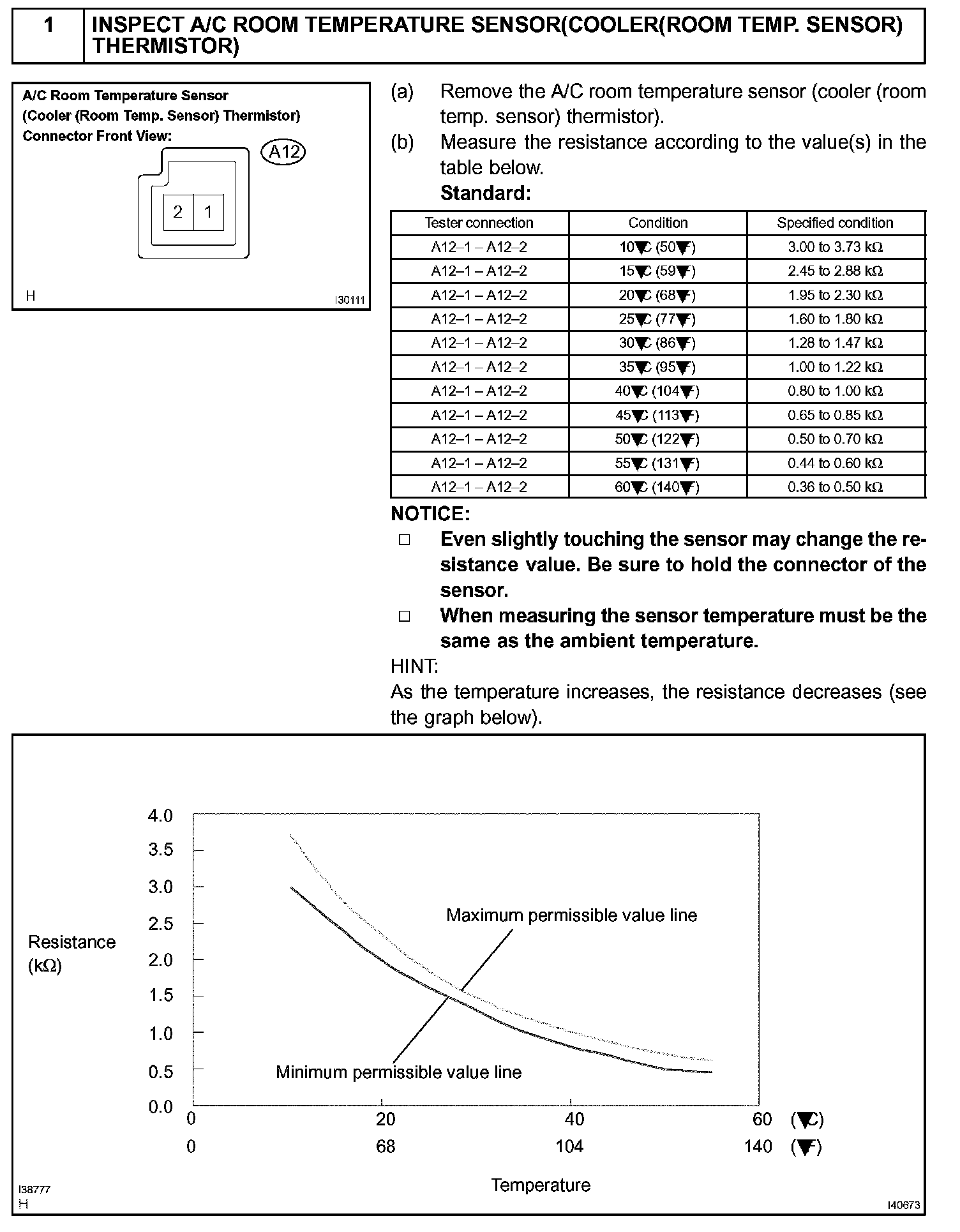

Step 1:

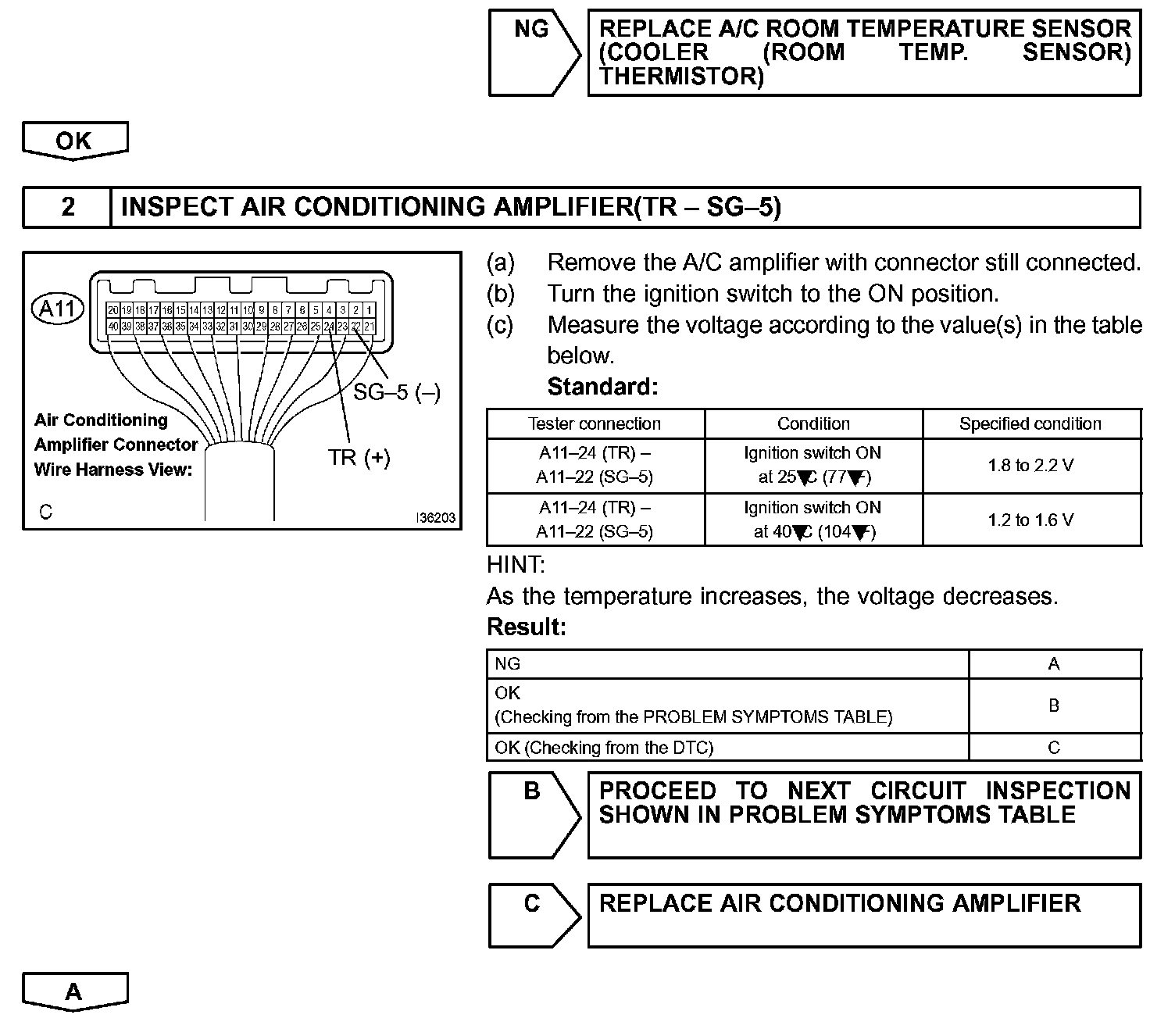

Step 1 (Continued) - 2:

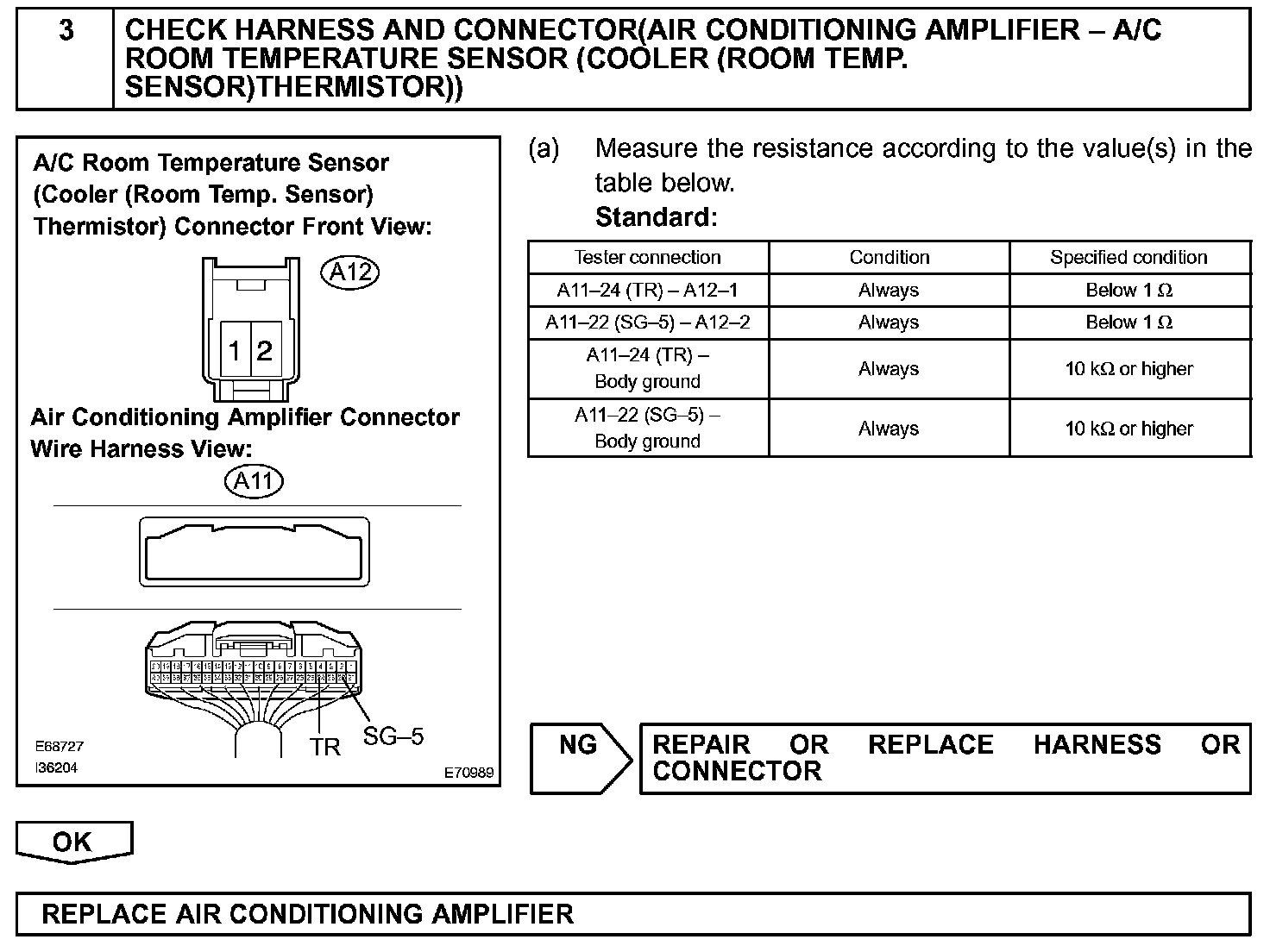

Step 3:

INSPECTION PROCEDURE
