Air Conditioning System

DTC 12 AMBIENT TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

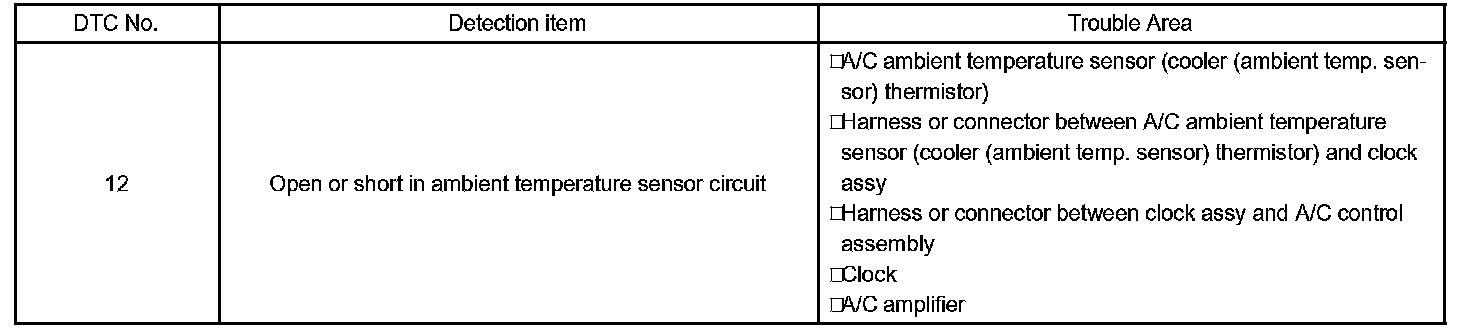

Detection Item:

The sensor connected to the clock detects fluctuations in the ambient temperature that is used for controlling the interior temperature. The sensor sends a signal to the A/C amplifier via the clock.

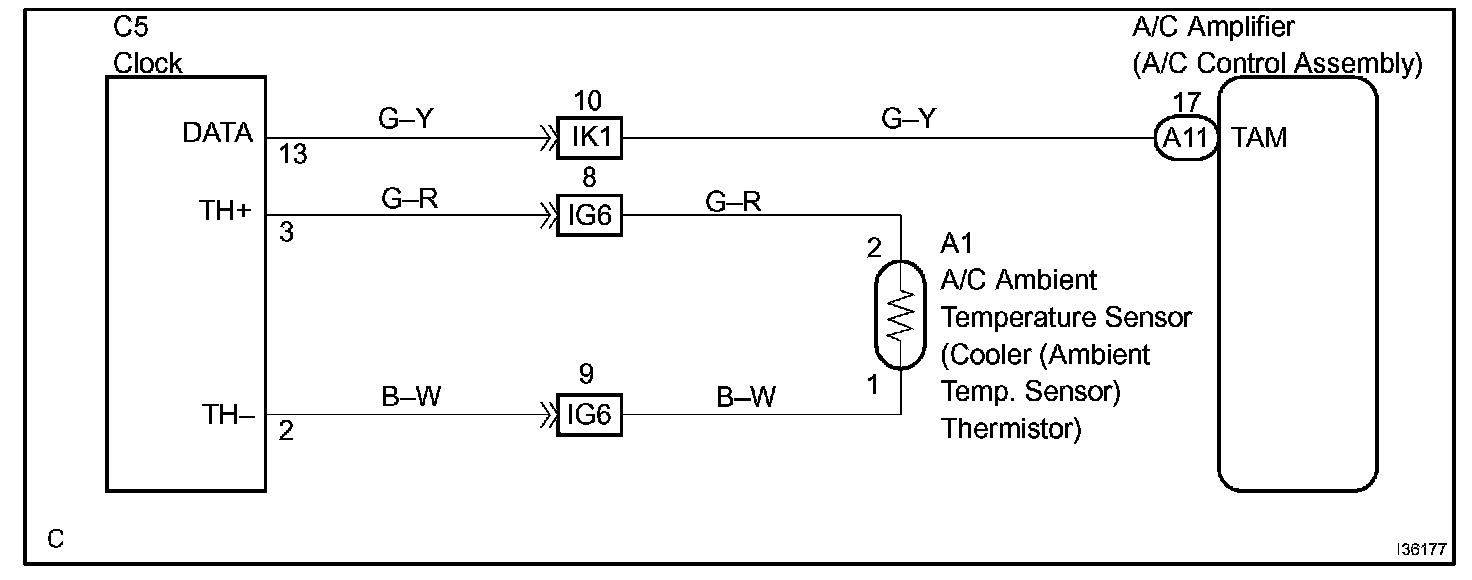

Wiring Diagram:

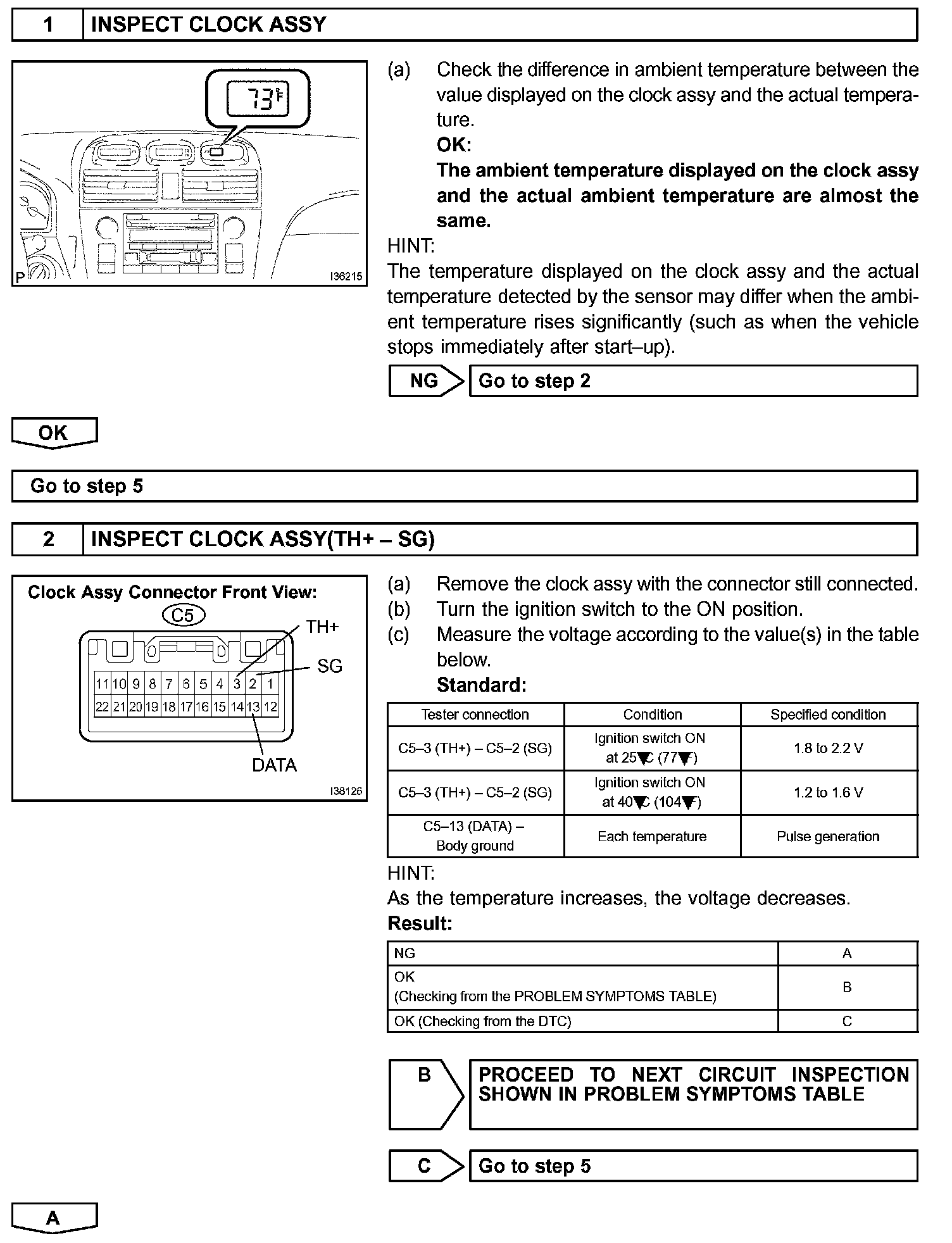

Step 1 - 2:

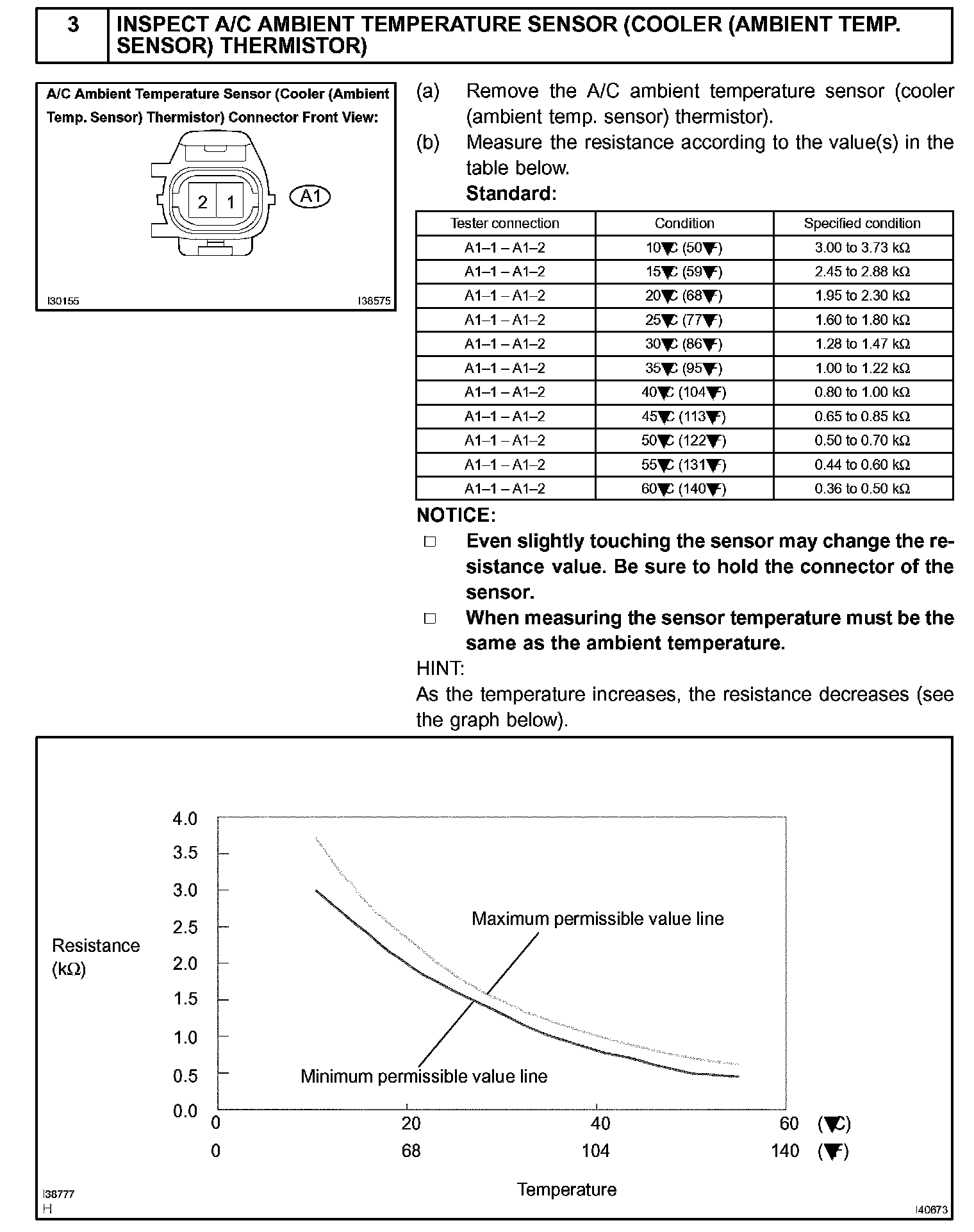

Step 3:

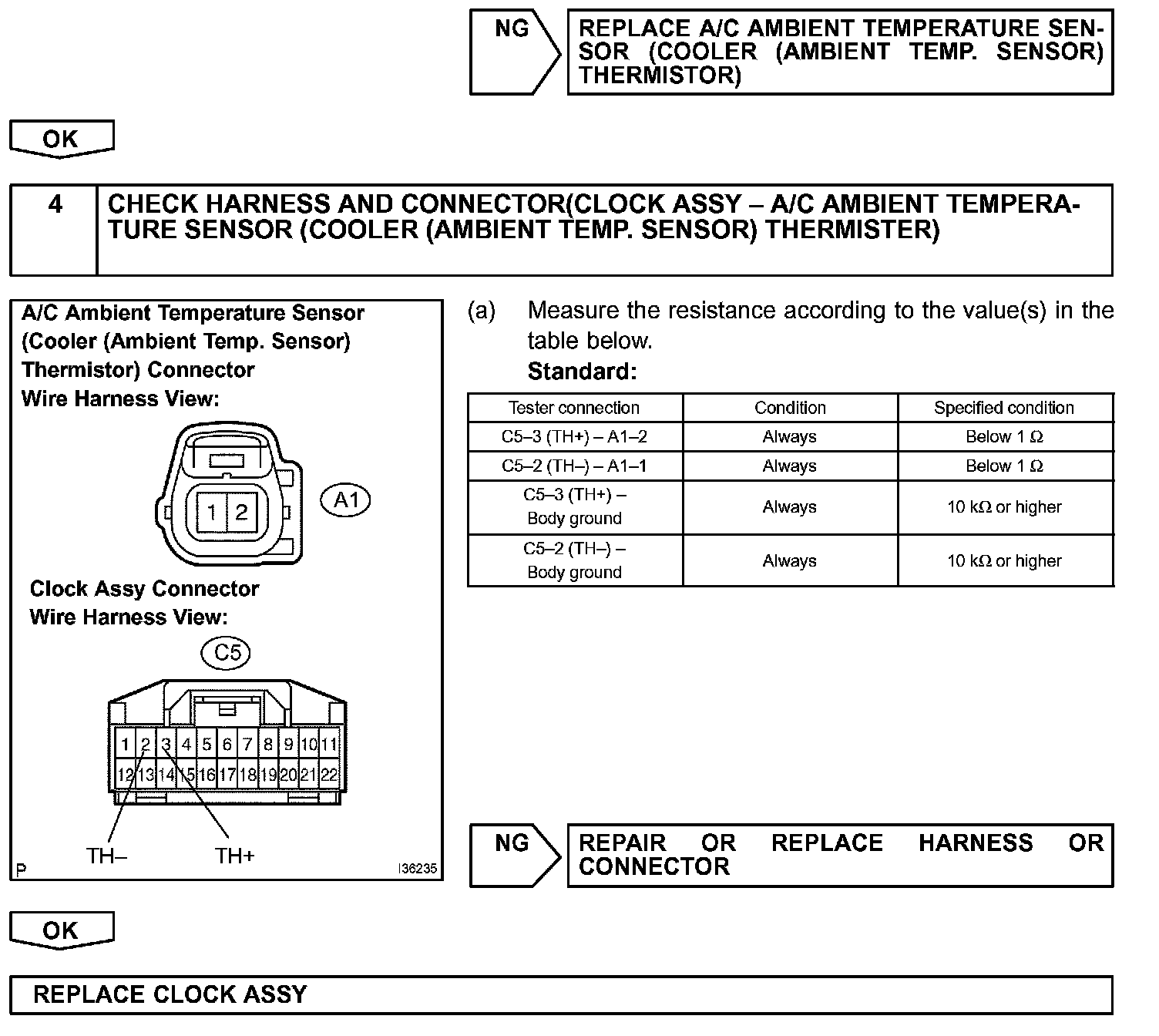

Step 3 (Continued) - 4:

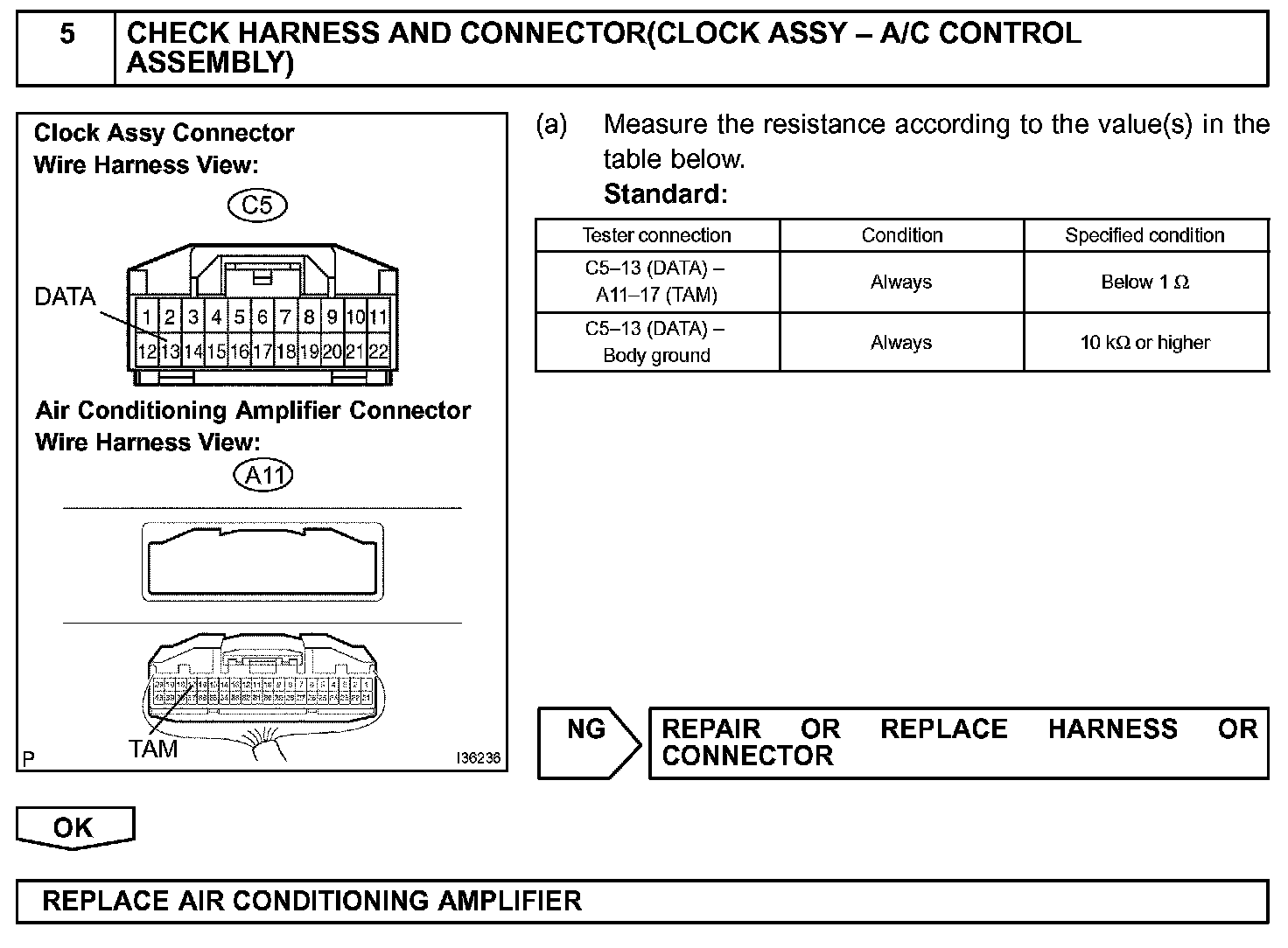

Step 5:

INSPECTION PROCEDURE
