Air Conditioning System

DTC 14 ENGINE COOLANT TEMPERATURE COMMUNICATION CIRCUIT

CIRCUIT DESCRIPTION

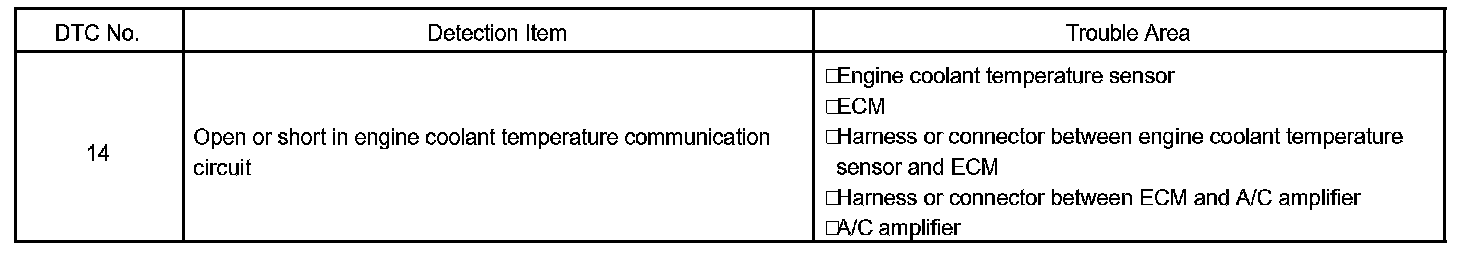

Detection Item:

The sensor connected to the ECM detects the engine coolant temperature that is used for warm up control when the engine is cold. The sensor sends a signal to the A/C amplifier via the ECM.

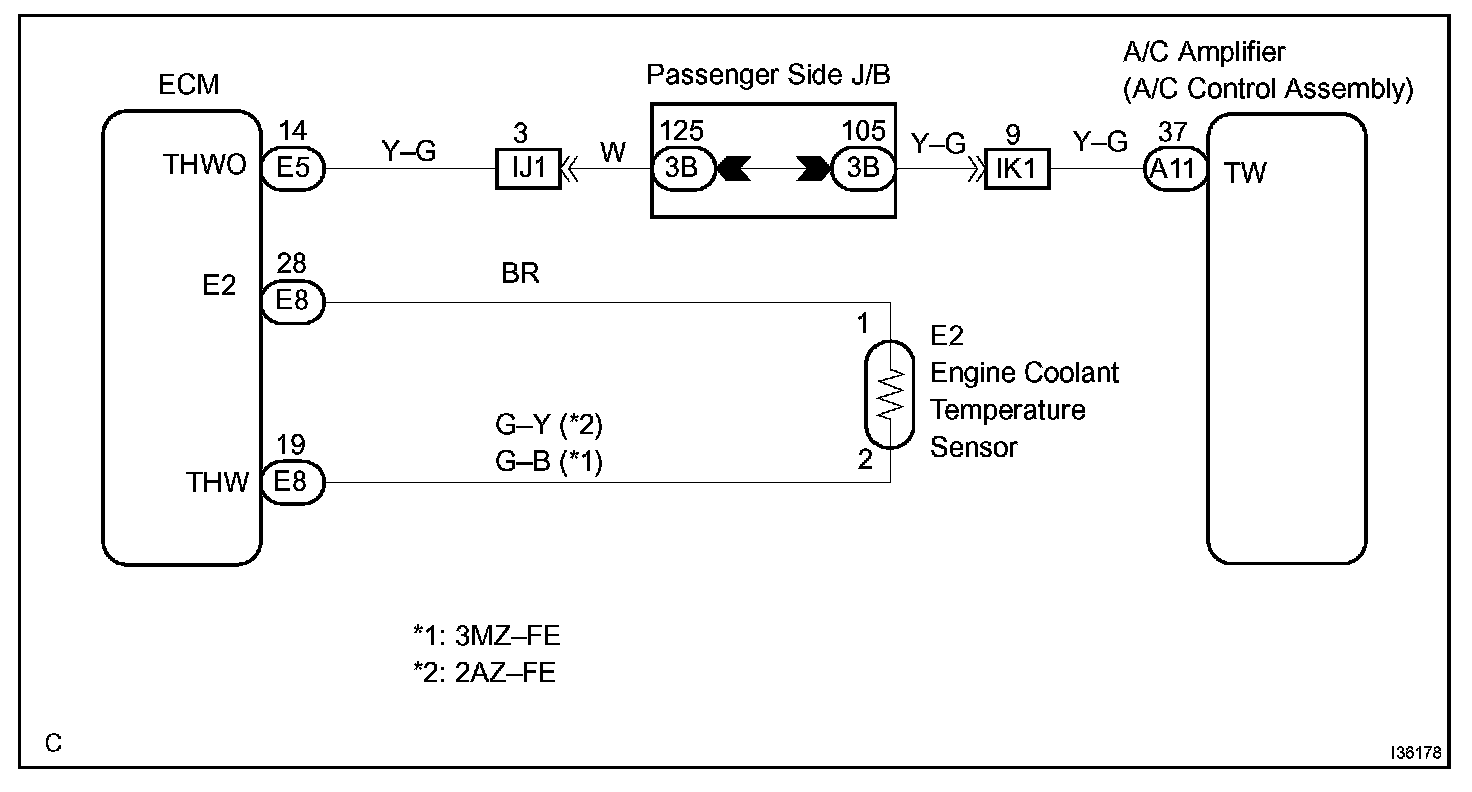

Wiring Diagram:

Step 1 - 2:

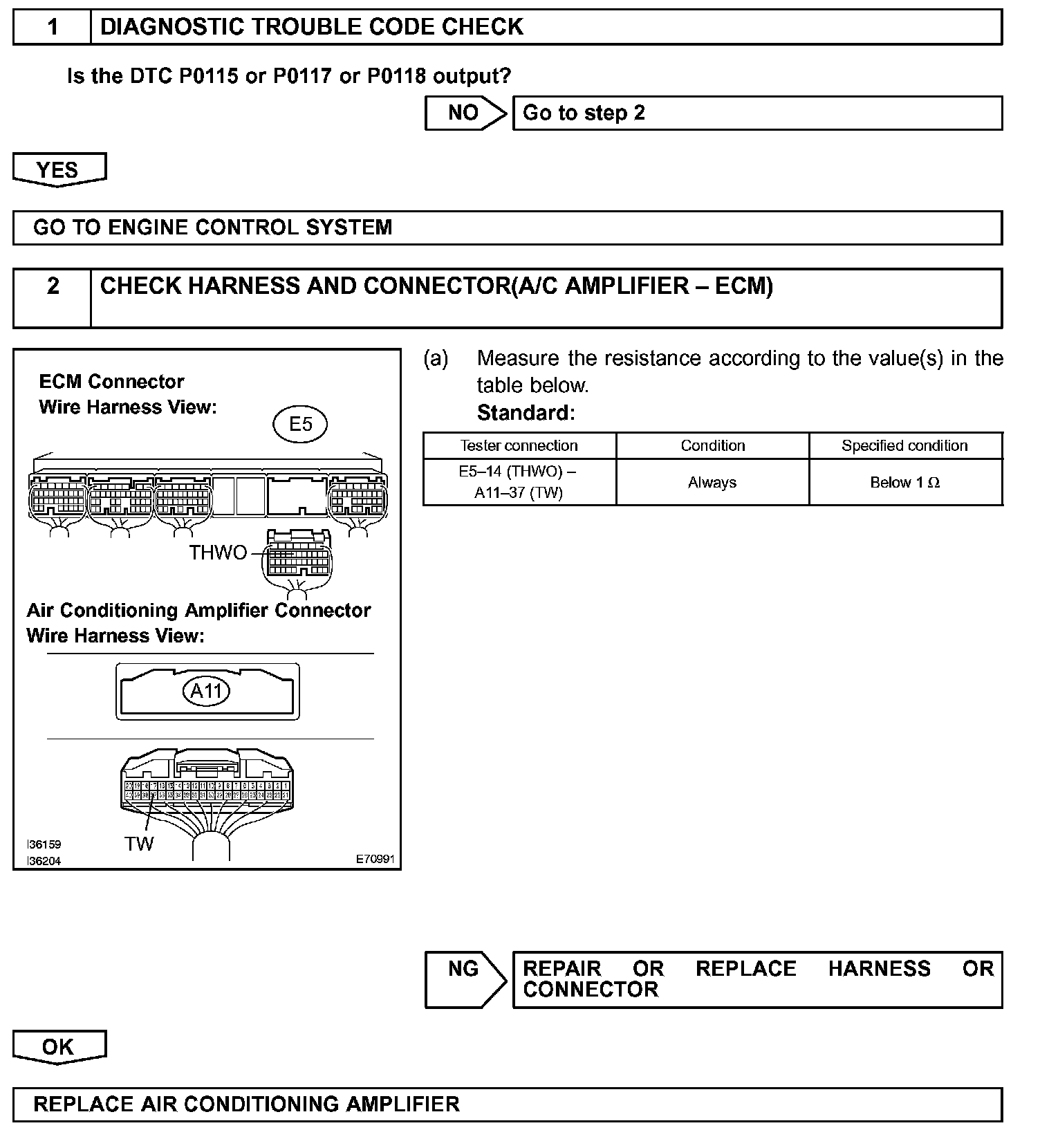

INSPECTION PROCEDURE
