Air Conditioning System

DTC 22 COMPRESSOR LOCK SENSOR CIRCUIT

CIRCUIT DESCRIPTION

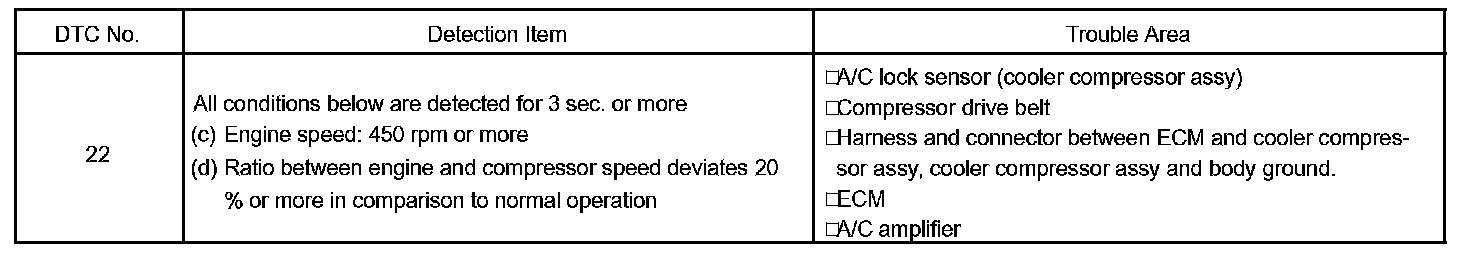

Detection Item:

This sensor sends 1 pulse per engine revolution to the ECM.

If the ratio between engine and compressor speed deviates 20 % or more in compression to normal operation, the ECM turns the cooler compressor off and the indicator blinks at approximately 1 second intervals. The ECM ACLD terminal informs the A/C amplifier A/CI terminal of the cooler compressor's operating condition.

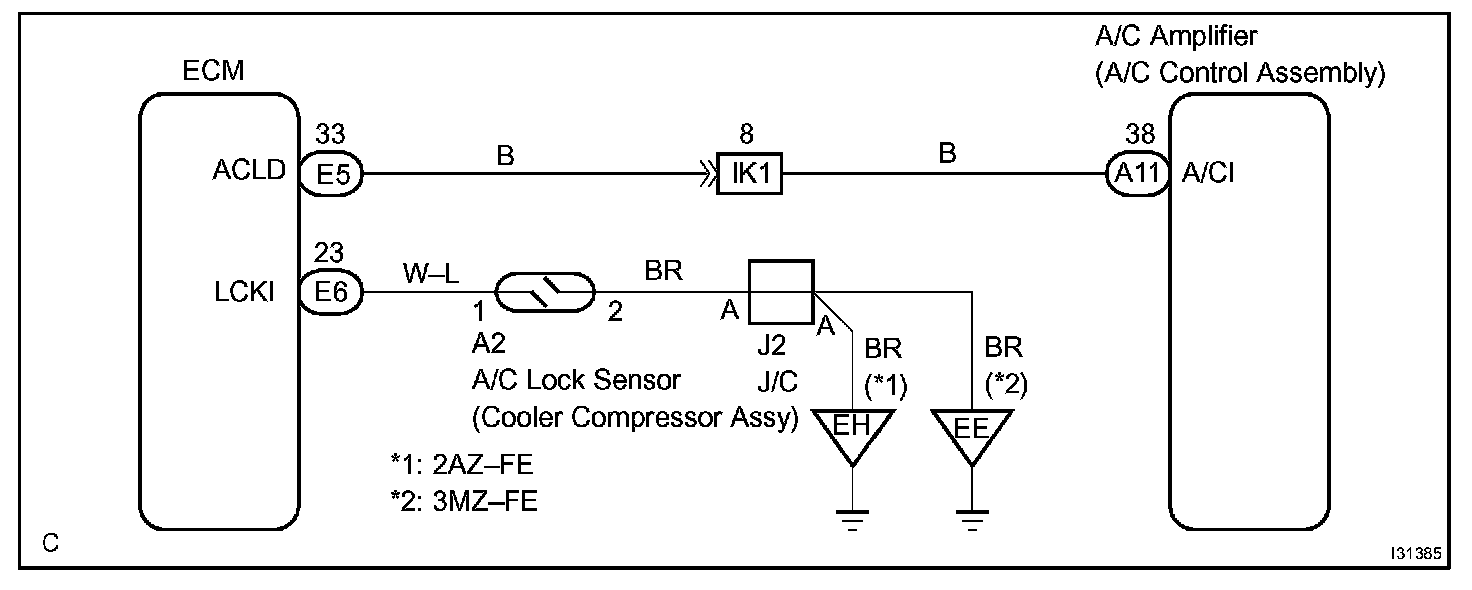

Wiring Diagram:

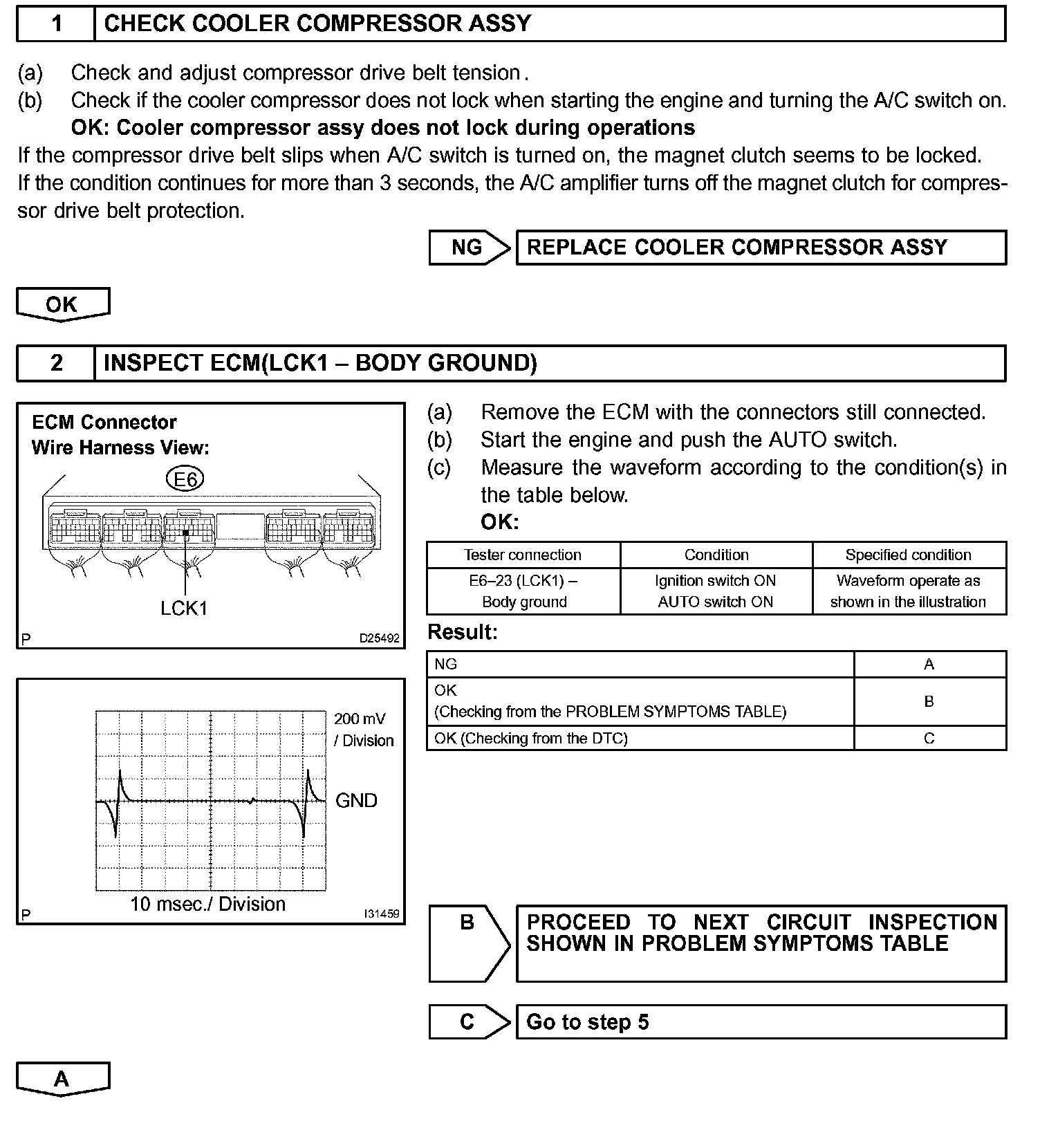

Step 1 - 2:

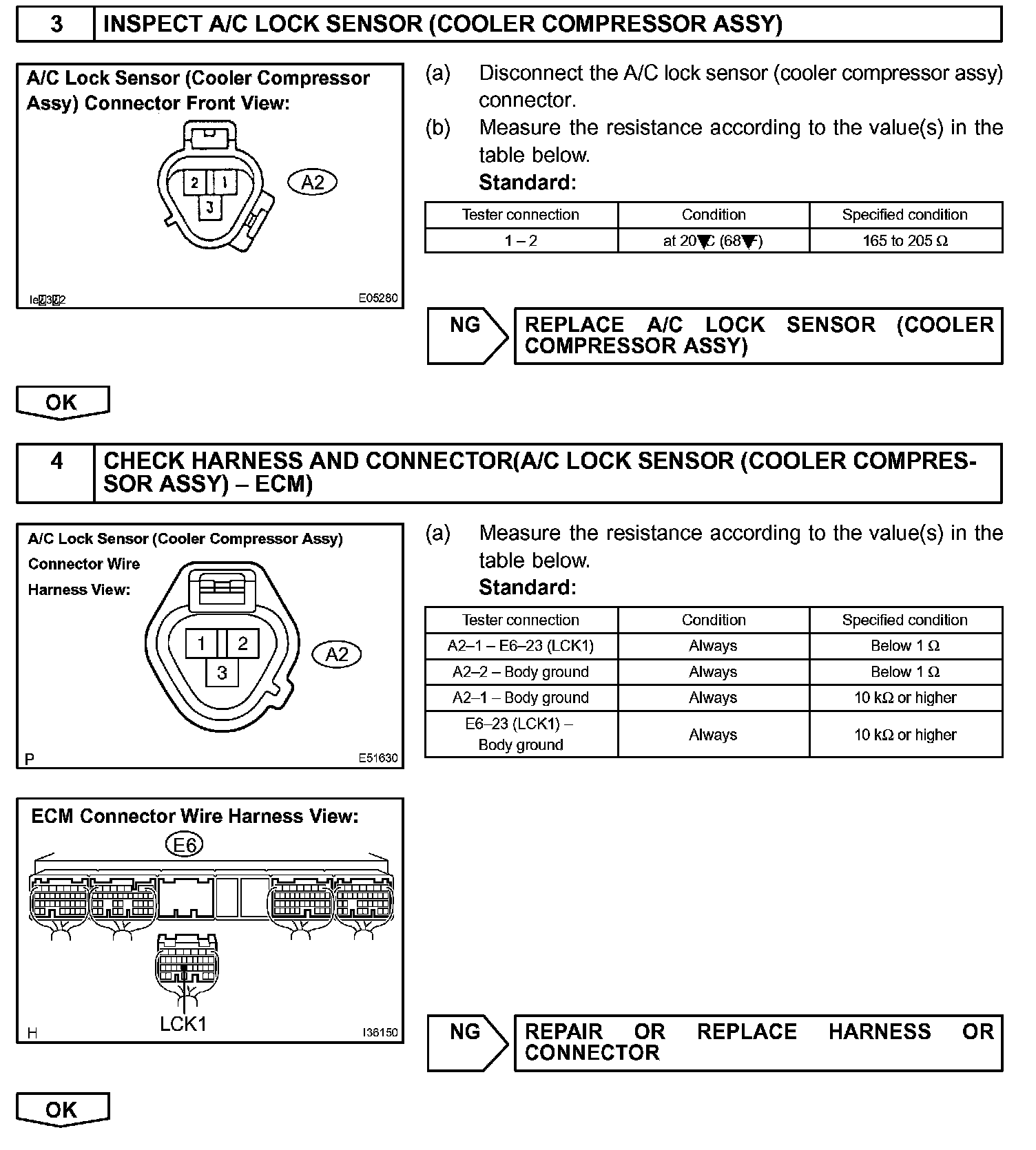

Step 3 - 4:

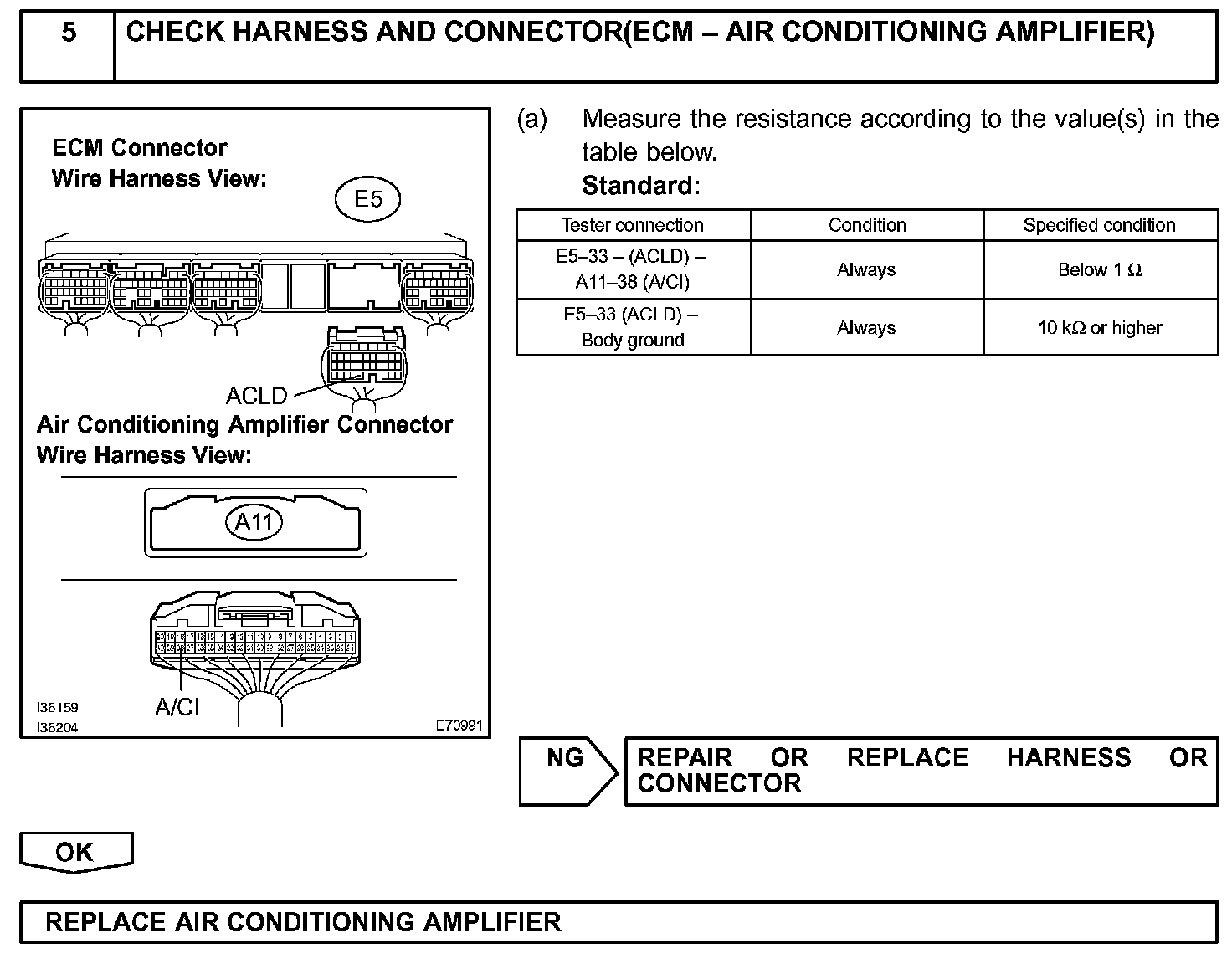

Step 5:

INSPECTION PROCEDURE
