DTC P0441 Evaporative Emission Control System Incorrect Purge Flow

DTC P0441 EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURGE FLOW

CIRCUIT DESCRIPTION

When predetermined conditions (closed loop, etc.) are met, the EVAP VSV is opened and stored fuel vapor in the canister is purged to the intake manifold. The ECM changes duty-cycle to the EVAP VSV to control purge flow volume. Purge flow volume is determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve (CCV) to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister.

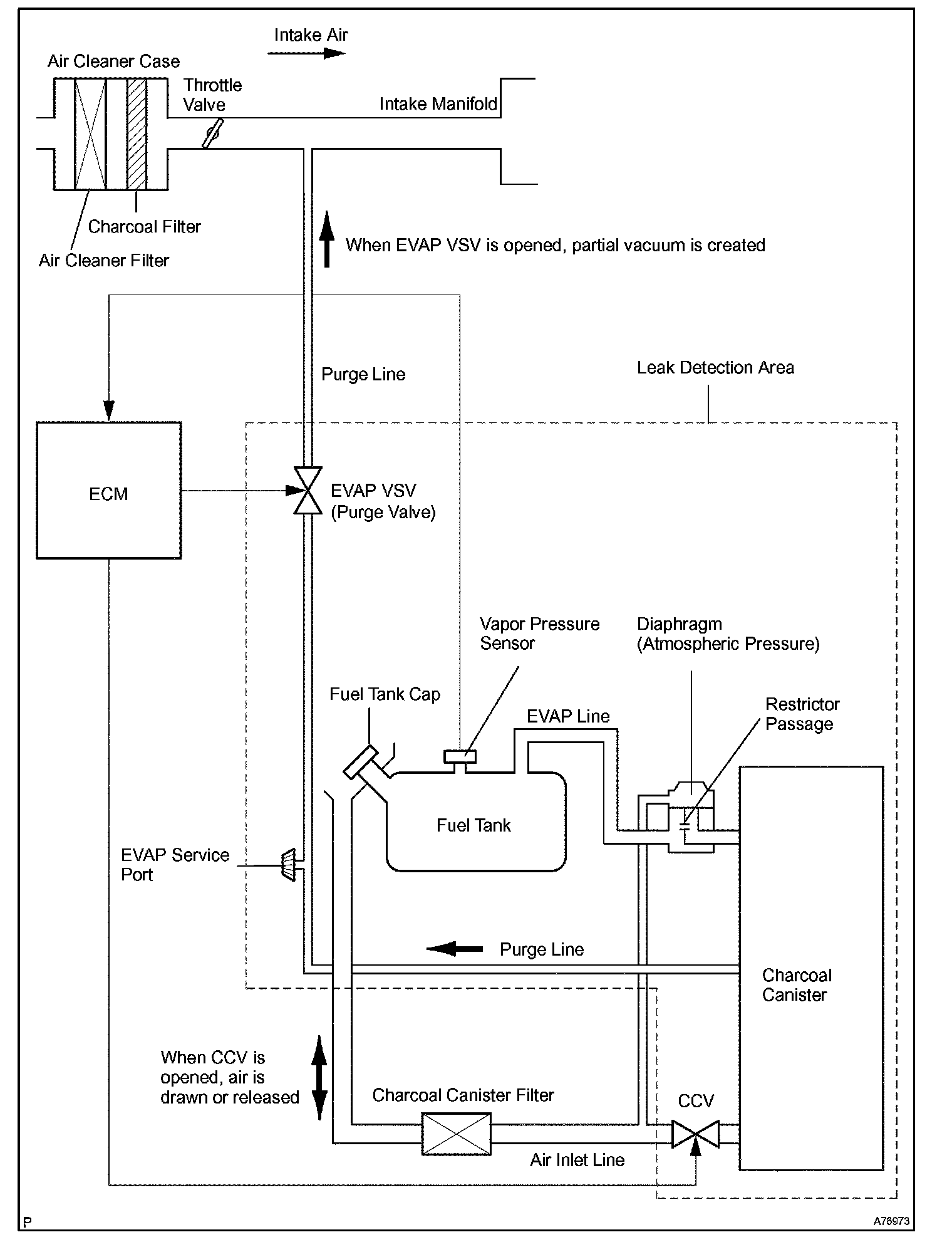

This EVAP system contains components as shown.

Related DTCs Of EVAP:

Step 1:

Step 2 - 4:

INSPECTION PROCEDURE

MONITOR DESCRIPTION

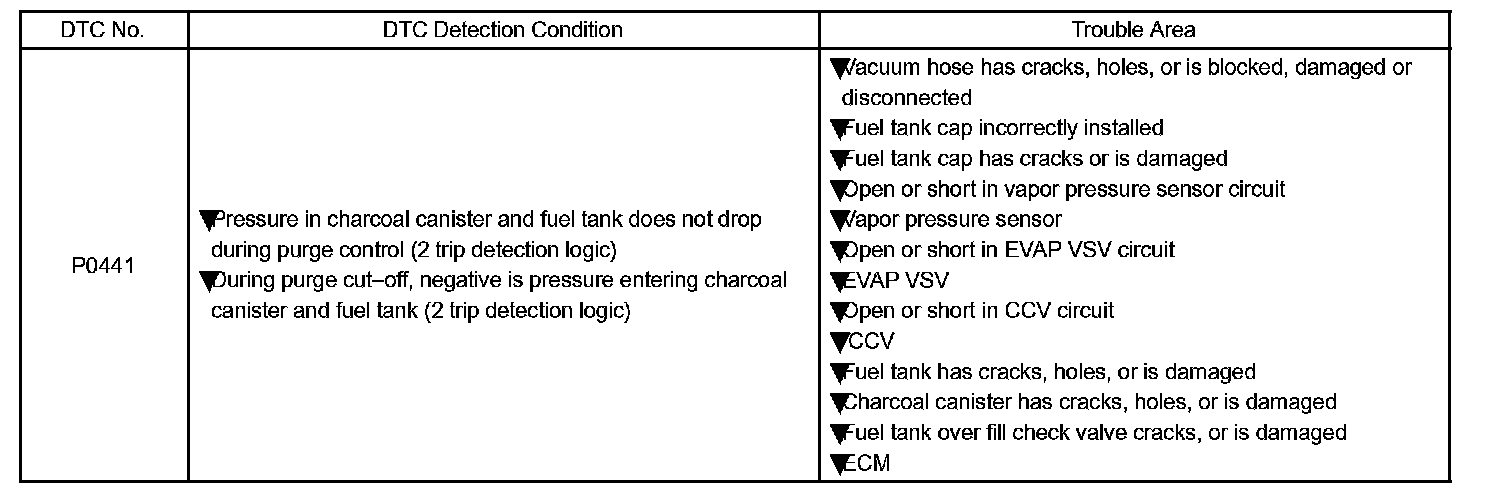

DTC Detection Condition:

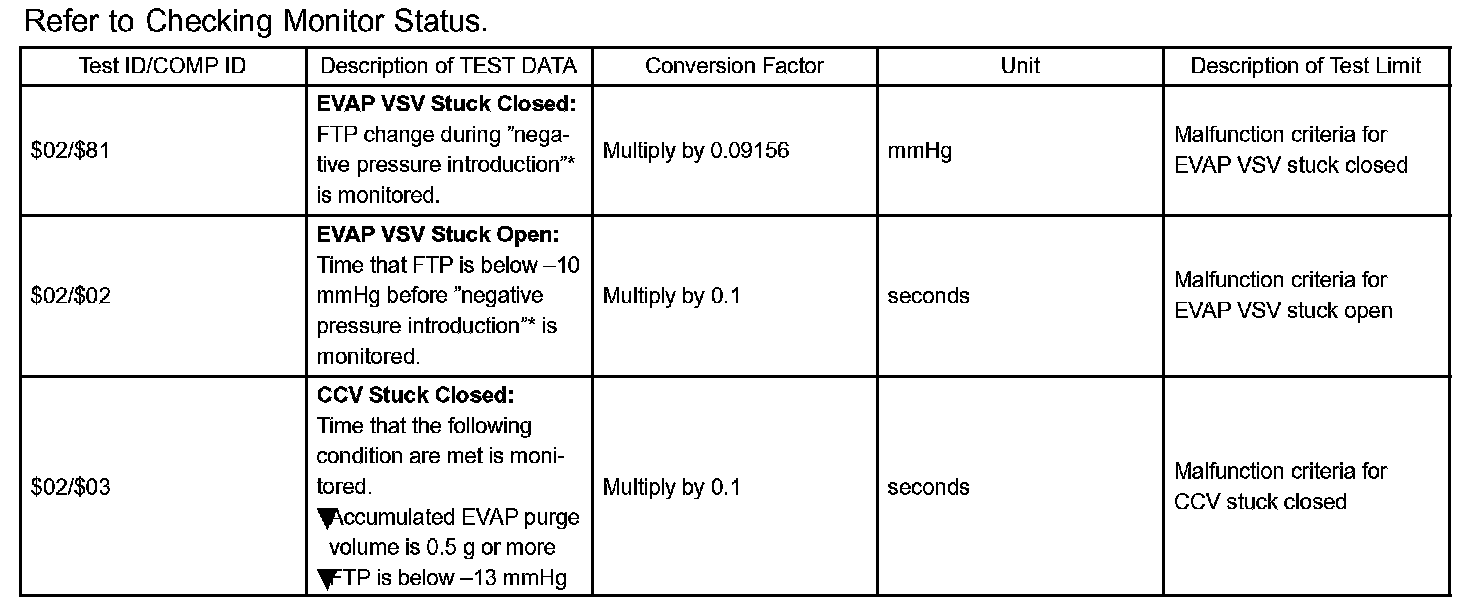

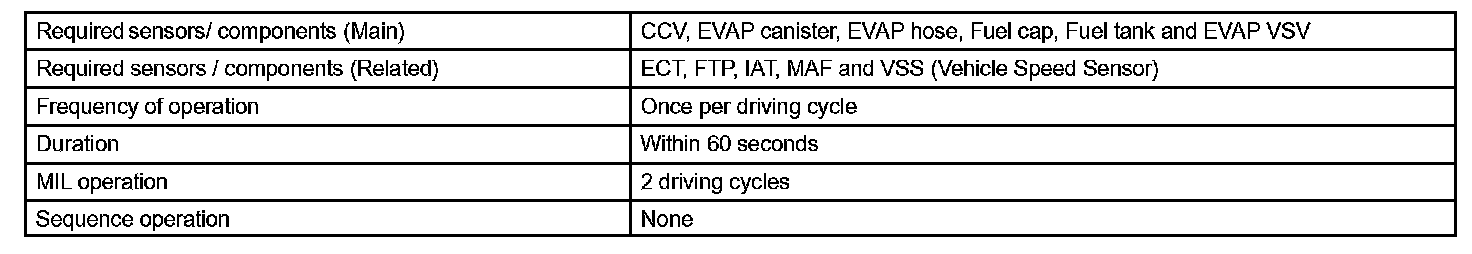

Monitor Strategy:

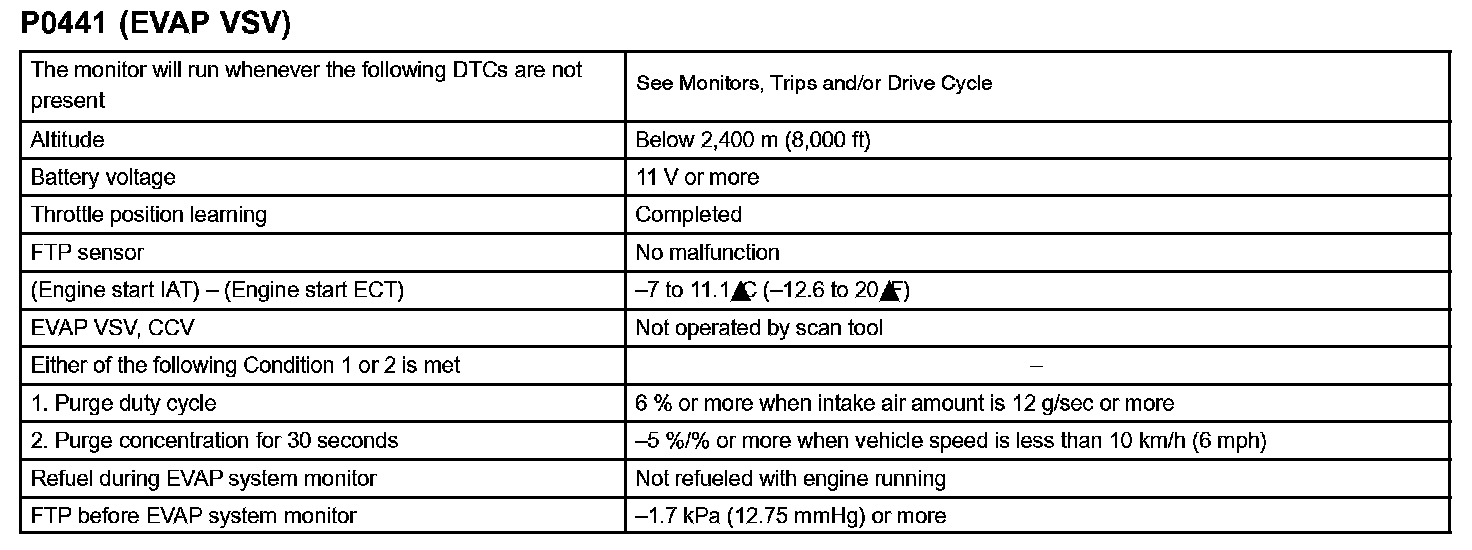

Typical Enabling Conditions:

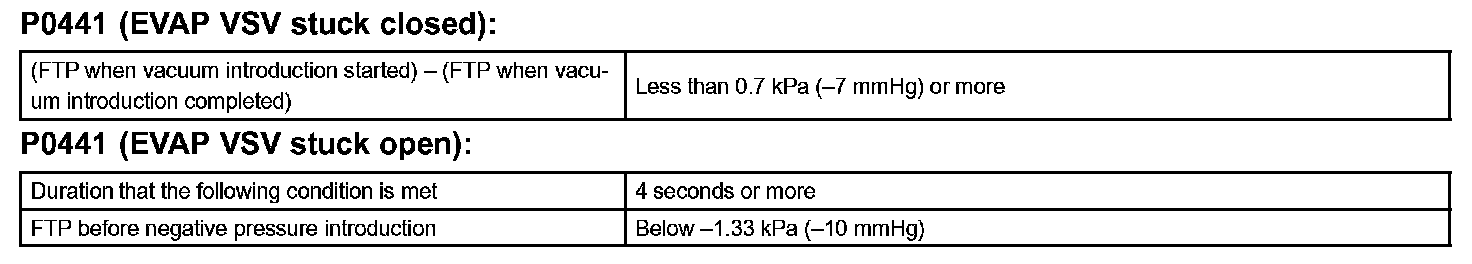

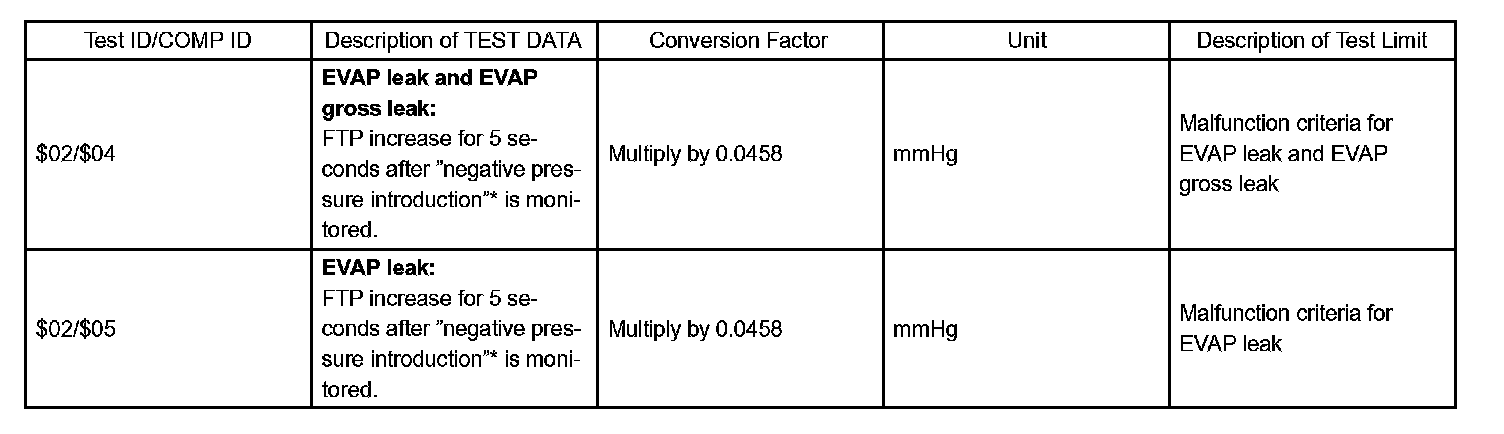

Typical Malfunction Thresholds:

Part 1:

Part 2:

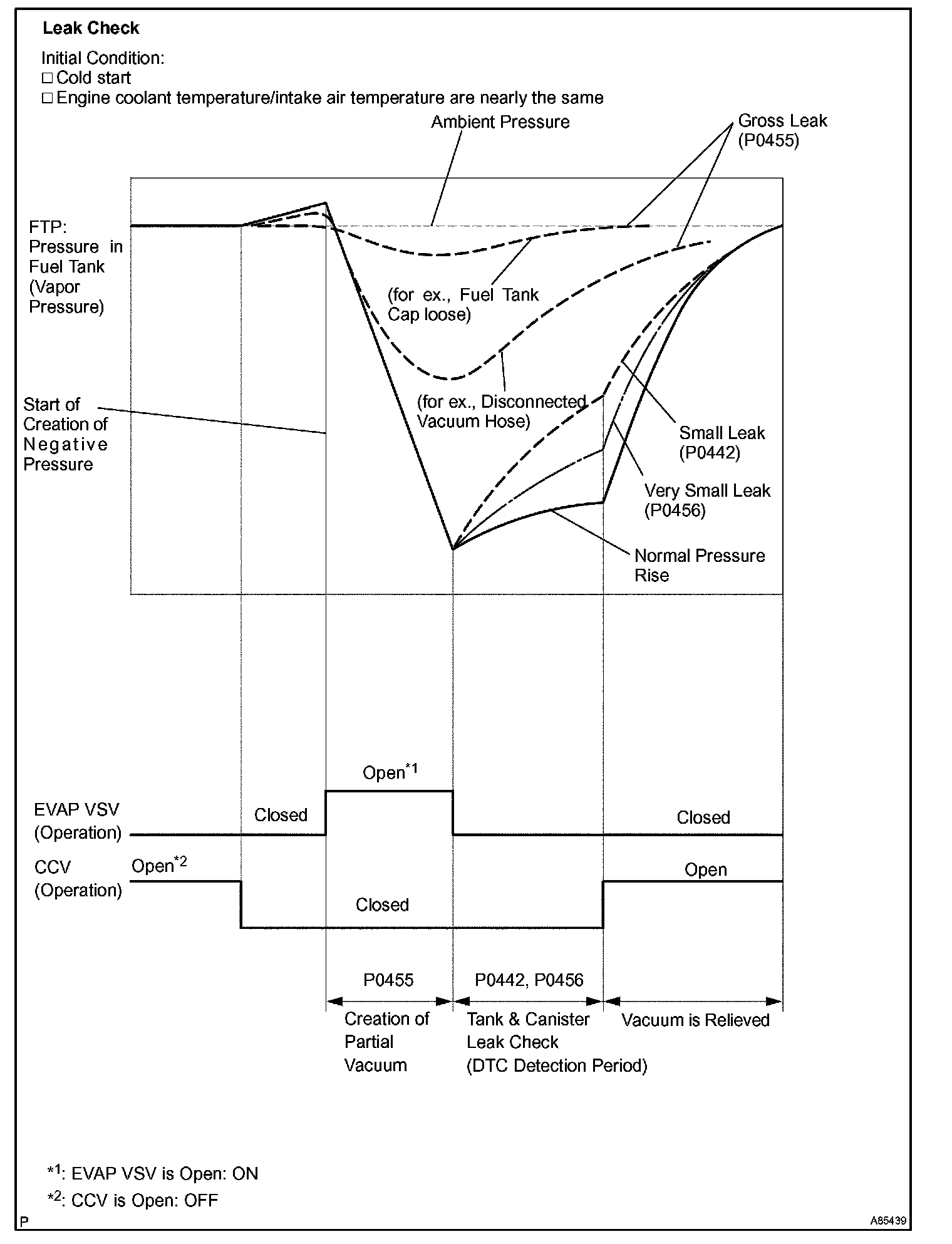

The ECM tests the Evaporative Emissions (EVAP) system using the fuel tank pressure sensor, Canister Close Valve (CCV), and EVAP VSV. The ECM closes the EVAP system and creates negative pressure (vacuum) into it. The ECM then monitors the internal pressure using the fuel tank pressure sensor.

P0441
The EVAP VSV has the following features:
1. Purges the evaporative emissions from the fuel tank to the intake manifold.
2. Works with the CCV to create negative pressure (vacuum) inside the fuel tank and performs leak tests.

Opening or closing malfunctions in the EVAP VSV prompt the ECM to set DTC P0441.

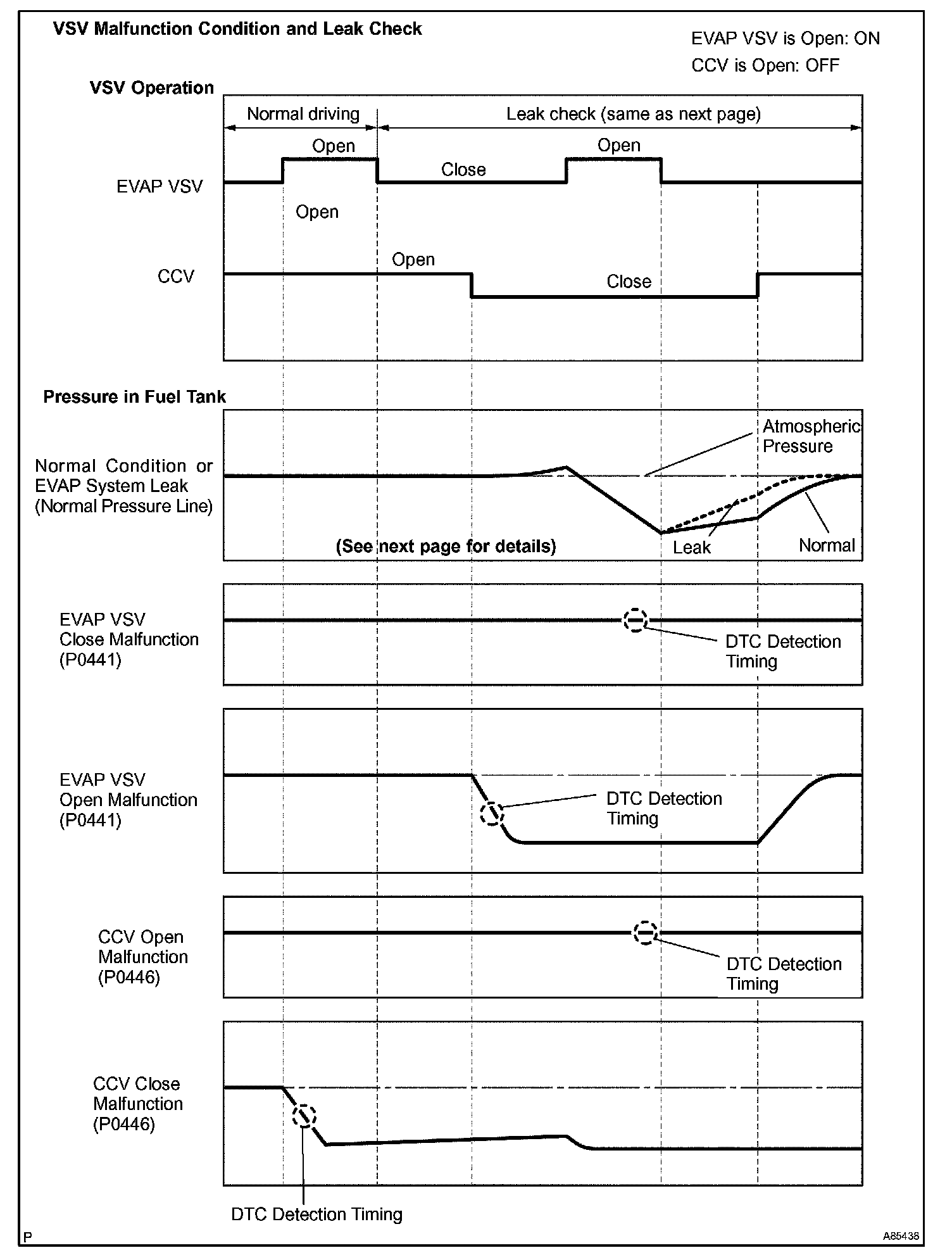

The ECM checks if the EVAP VSV is "stuck closed". The ECM commands the EVAP VSV to open while the CCV is closed. Under these circumstances, a high negative pressure(vacuum) should develop in the fuel tank. If no negative pressure develops, the ECM determines that the EVAP VSV remains closed despite the open command. The ECM would then turn on the MIL and output a DTC.

The ECM also checks if the EVAP VSV is "stuck open". The ECM commands the EVAP VSV to close while the CCV is closed and the fuel tank is at ambient pressure. Under these circumstances, the fuel tank should remain at ambient pressure. If negative pressure develops in the fuel tank, the ECM determines that the EVAP VSV remains open despite the close command. The ECM would then turn on the MIL and output a DTC.
