DTC P0453 Evaporative Emission Control System Pressure Sensor/Switch High Input

DTC P0453 EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR/SWITCH HIGH INPUT

MONITOR DESCRIPTION

DTC Detection Condition:

Monitor Strategy:

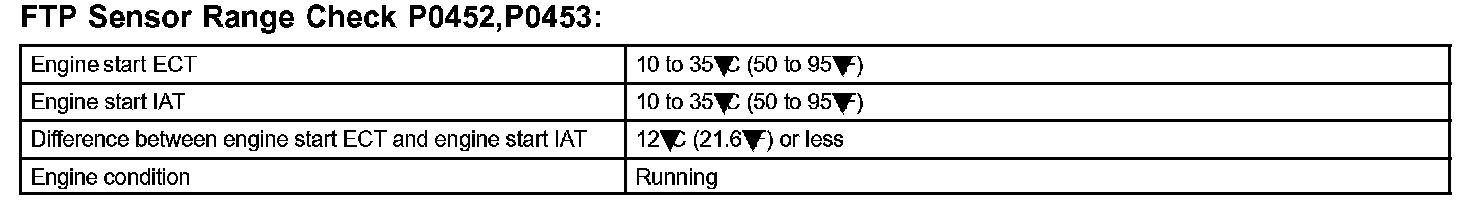

Typical Enabling Conditions:

Typical Enabling Conditions:

Typical Malfunction Thresholds:

Component Operating Range:

DTC "P0451, P0452 or P0453" is recorded by the ECM when the vapor pressure sensor malfunctions.

P0452 and P0453
When pressure indicated by the vapor pressure sensor deviates below -3.999 kPa (-30 mmHg) or above 1.999 kPa (15 mmHg), the ECM interprets this as a malfunction in the vapor pressure sensor. The ECM will turn on the MIL and a DTC will be set.

Wiring Diagram:

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE

HINT:
- If DTCs related to different system that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
- Always troubleshoot DTCs P0441 (purge flow), P0446 (VSV for CCV), P0451, P0452 and P0453 (evaporative pressure sensor) before troubleshooting DTCs P0442, P0455 and P0456.
- Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.
