DTC P0456 Evaporative Emission Control System Leak Detected (Very Small Leak)

DTC P0456 EVAPORATIVE EMISSION CONTROL SYSTEM LEAK DETECTED (VERY SMALL LEAK)

CIRCUIT DESCRIPTION

When predetermined conditions (closed loop, etc.) are met, the EVAP VSV is opened and stored fuel vapor in the canister is purged to the intake manifold. The ECM changes duty-cycle to the EVAP VSV to control purge flow volume. Purge flow volume is determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve (CCV) to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister.

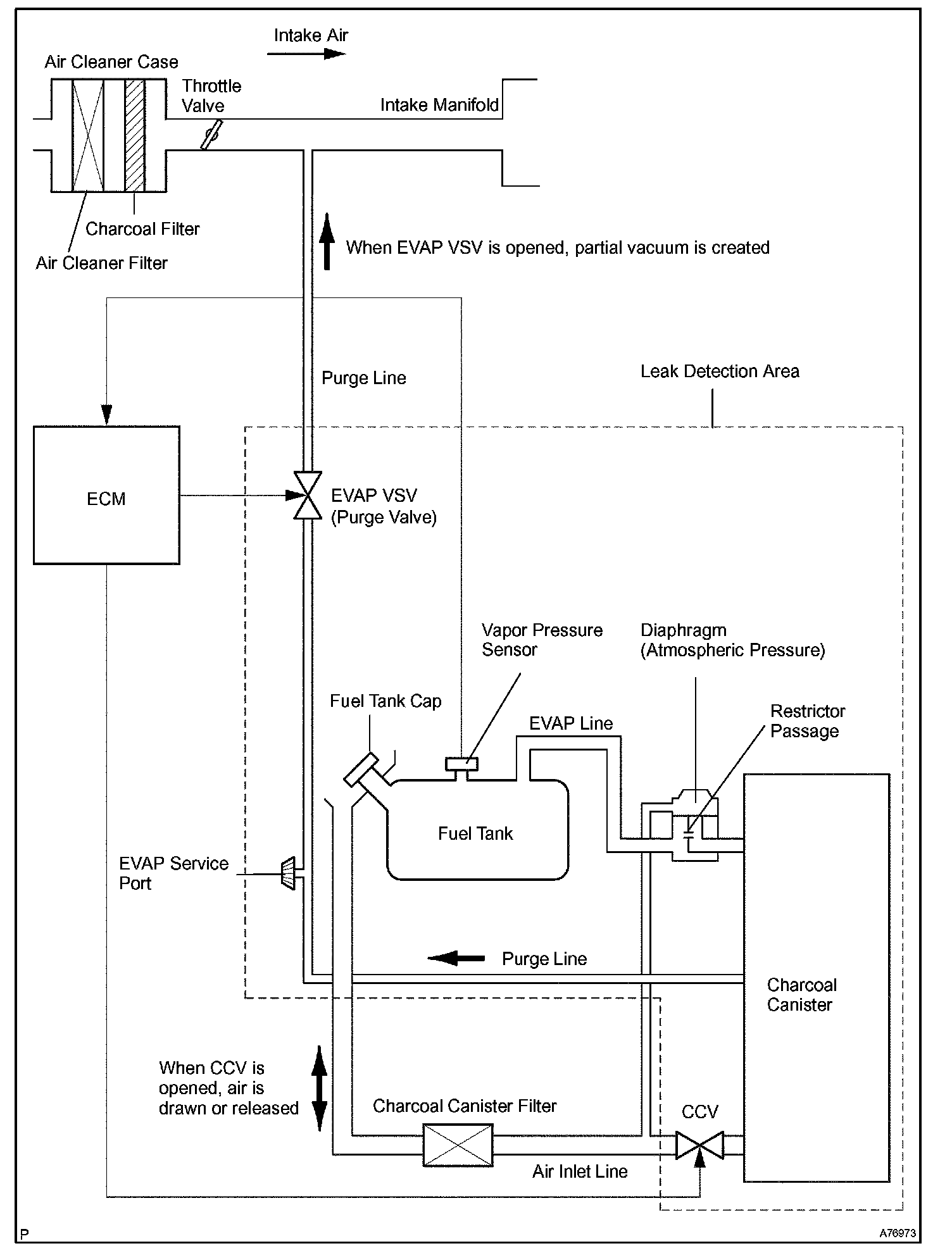

This EVAP system contains components as shown.

Related DTCs Of EVAP:

Step 1:

Step 2 - 4:

INSPECTION PROCEDURE

MONITOR DESCRIPTION

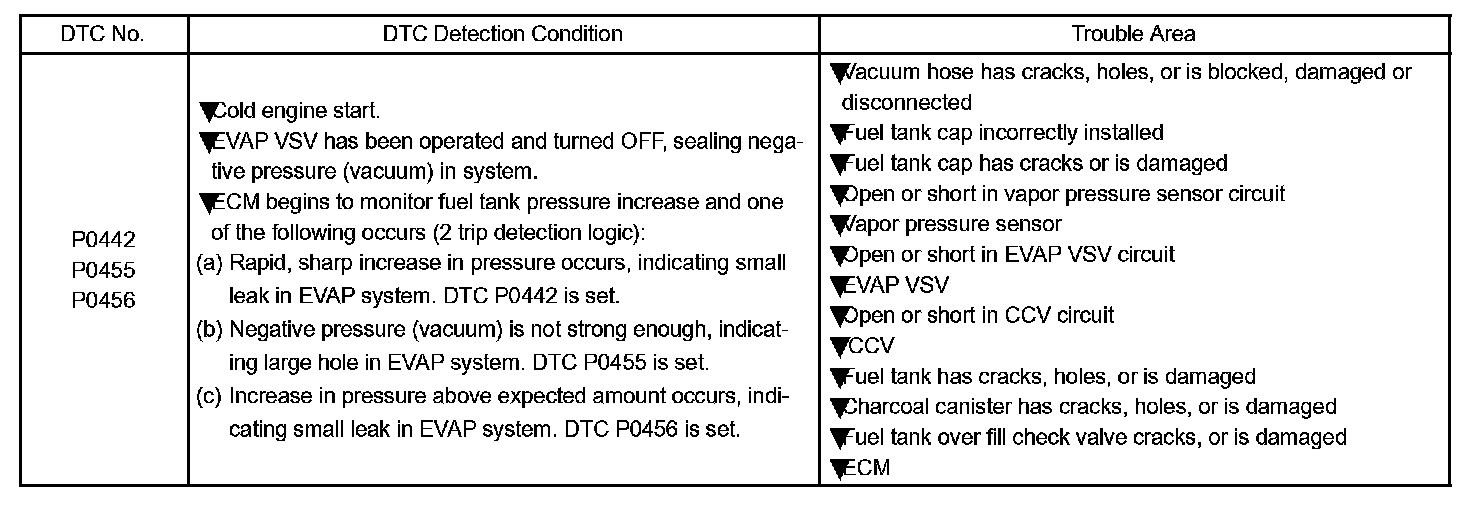

DTC Detection Condition:

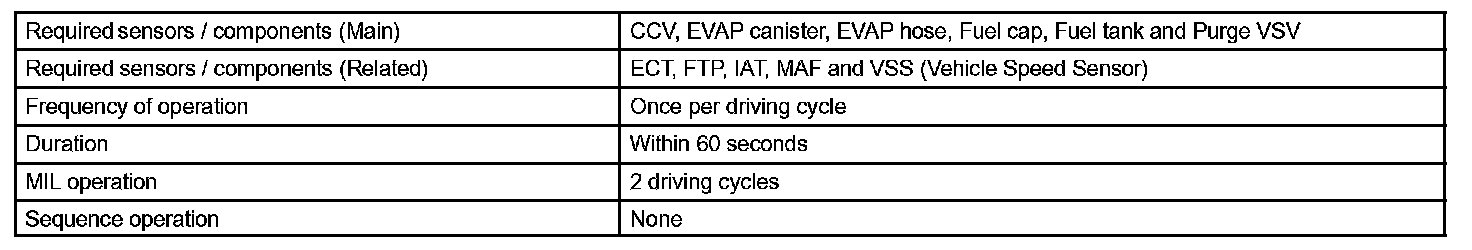

Monitor Strategy:

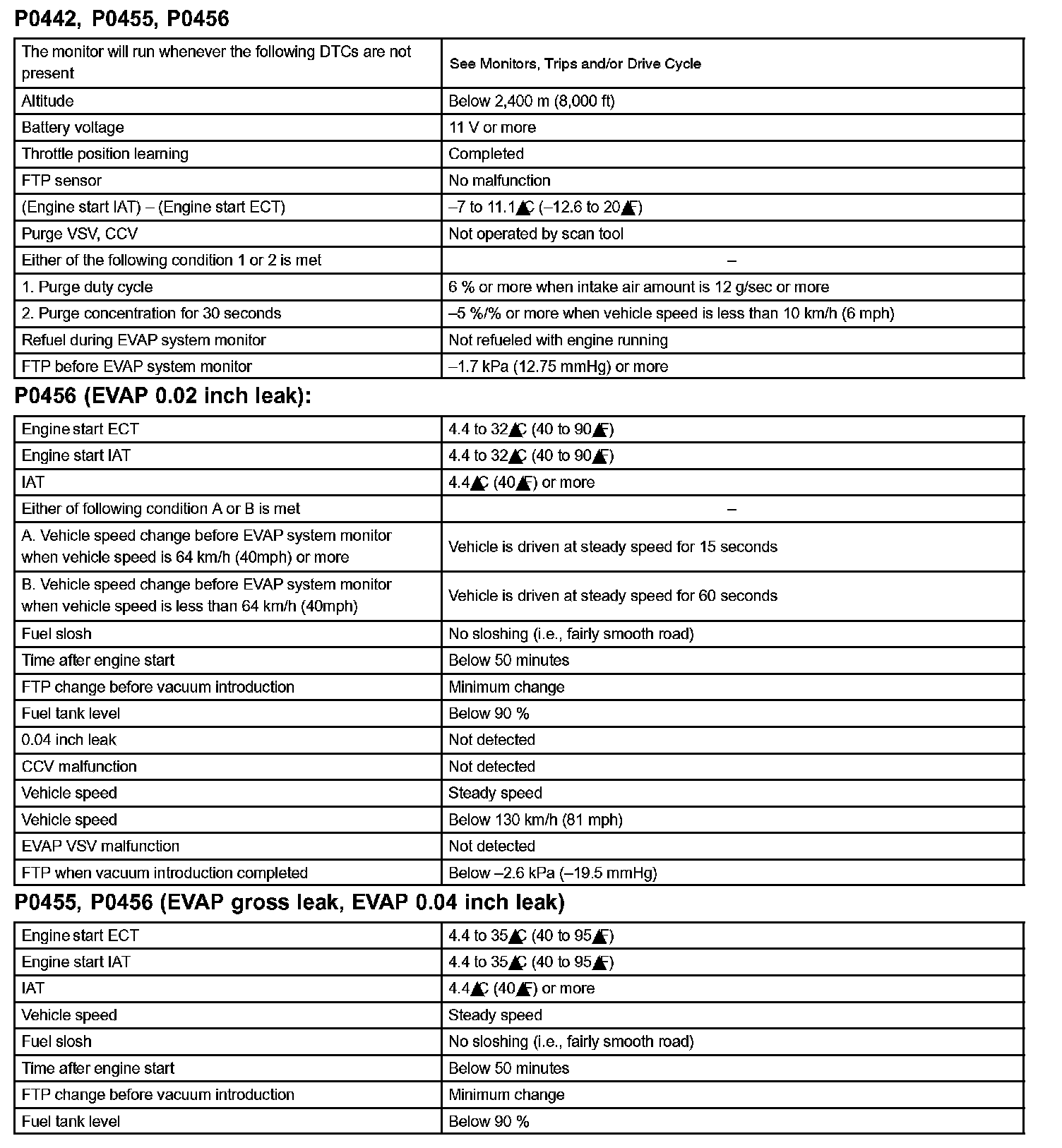

Typical Enabling Conditions:

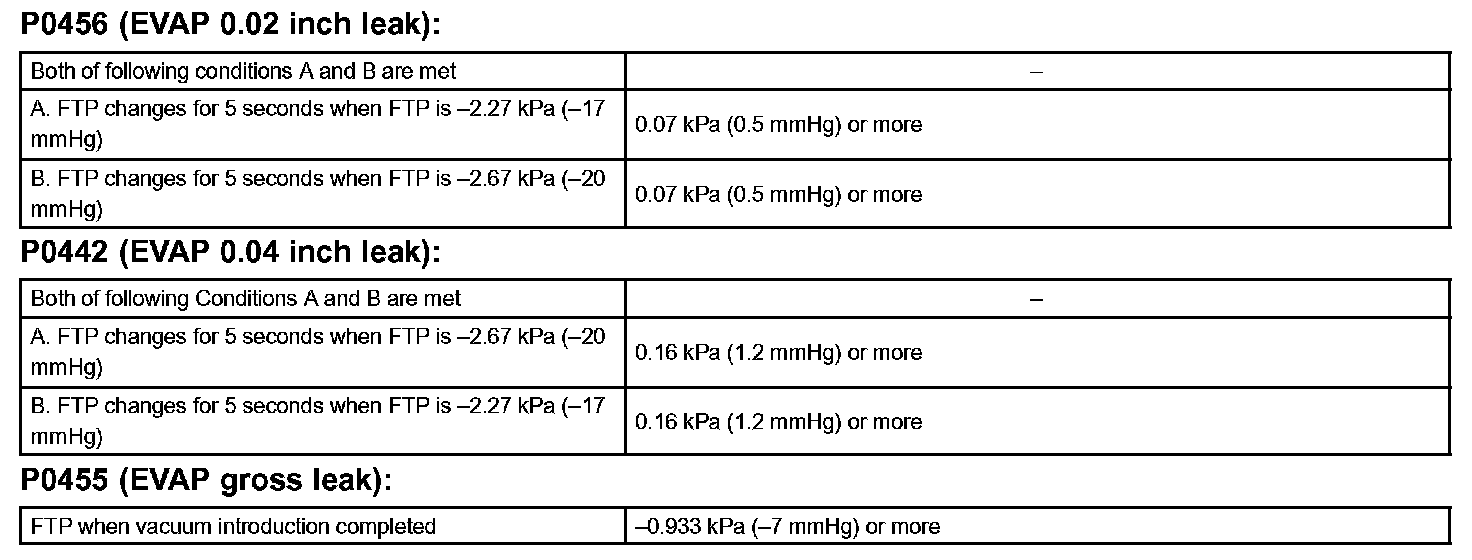

Typical Malfunction Thresholds:

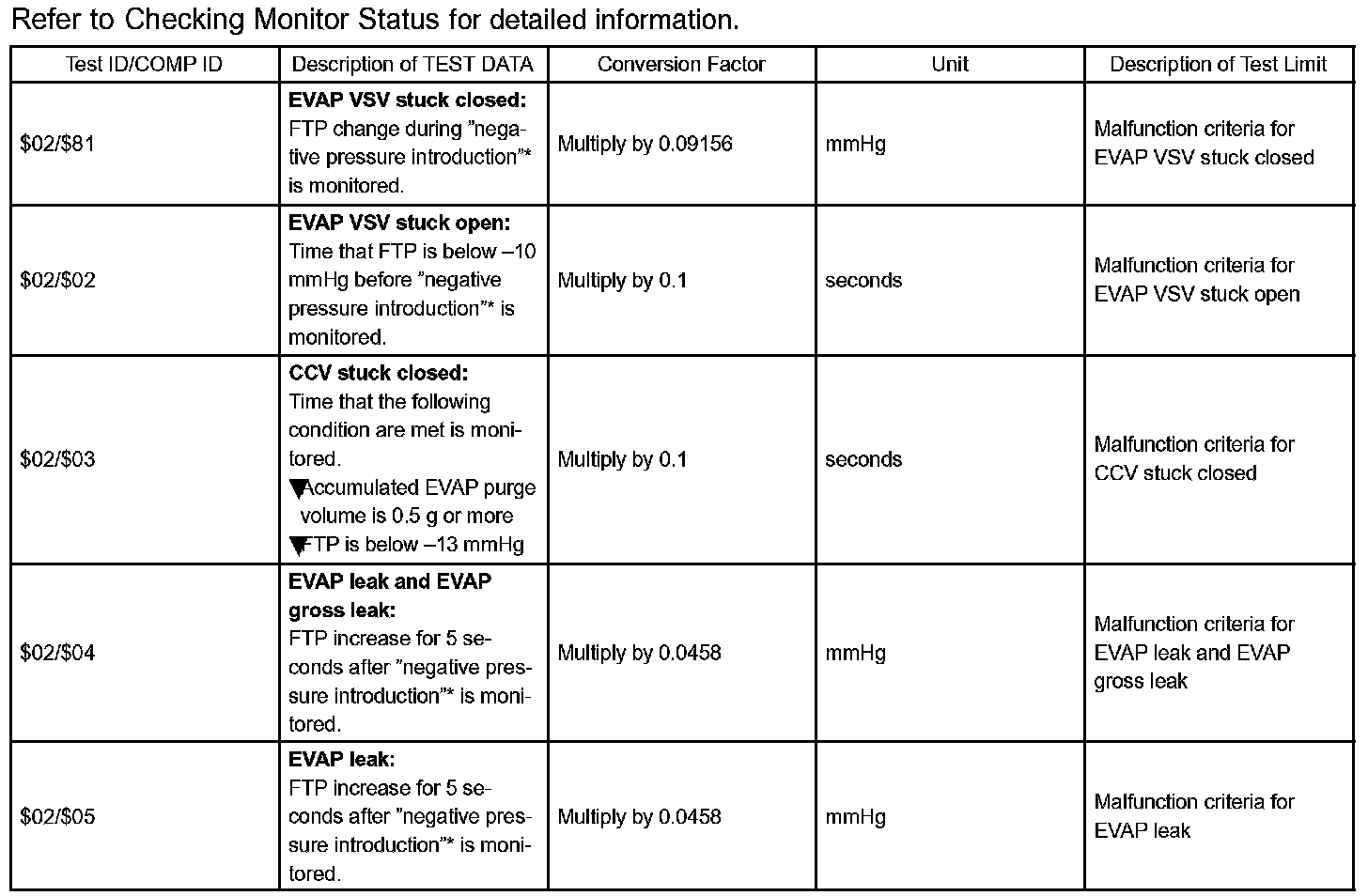

Monitor Result (Mode 06 Data):

The ECM tests the Evaporative Emissions (EVAP) system using the fuel tank pressure sensor, Canister Close Valve (CCV), and EVAP VSV. The ECM closes the EVAP system and creates negative pressure (vacuum) into it. The ECM then monitors the internal pressure using the fuel tank pressure sensor.

P0442, P0455 and P0456
A leak in the evaporative emission system prompts the ECM to set DTC P0442, P0455 or P0456.

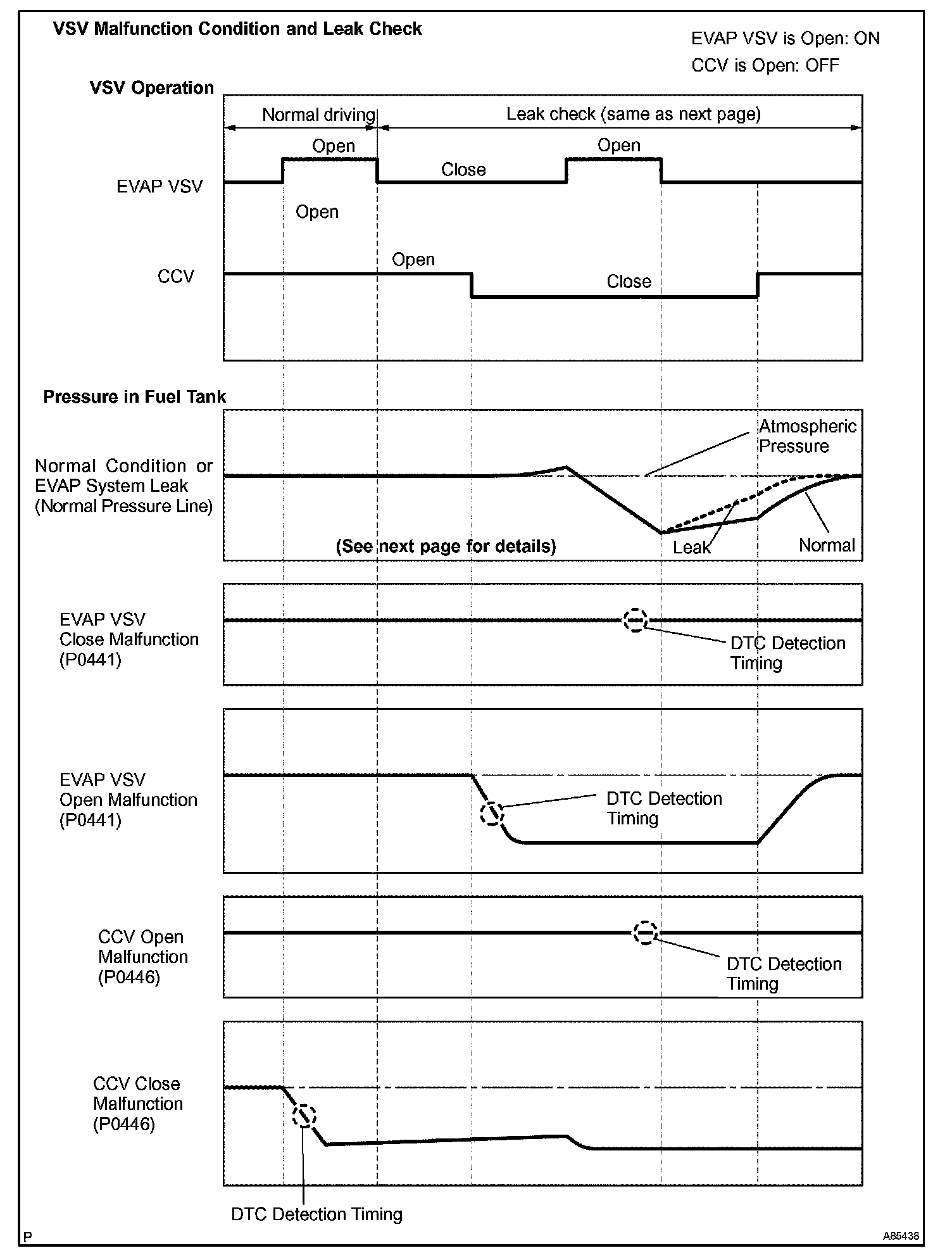

The ECM checks if the EVAP has leaks. First, the ECM opens the EVAP VSV while the CCV is closed. After a sufficient amount of time has passed, a high negative pressure(vacuum) will develop in the fuel tank as air is drawn into the intake manifold. The EVAP VSV is then closed. The ECM then monitors the pressure increase (loss of vacuum) in the fuel tank. If the pressure rises beyond a specified amount, the ECM determines that the system has a leak, turns on the MIL and outputs a DTC.

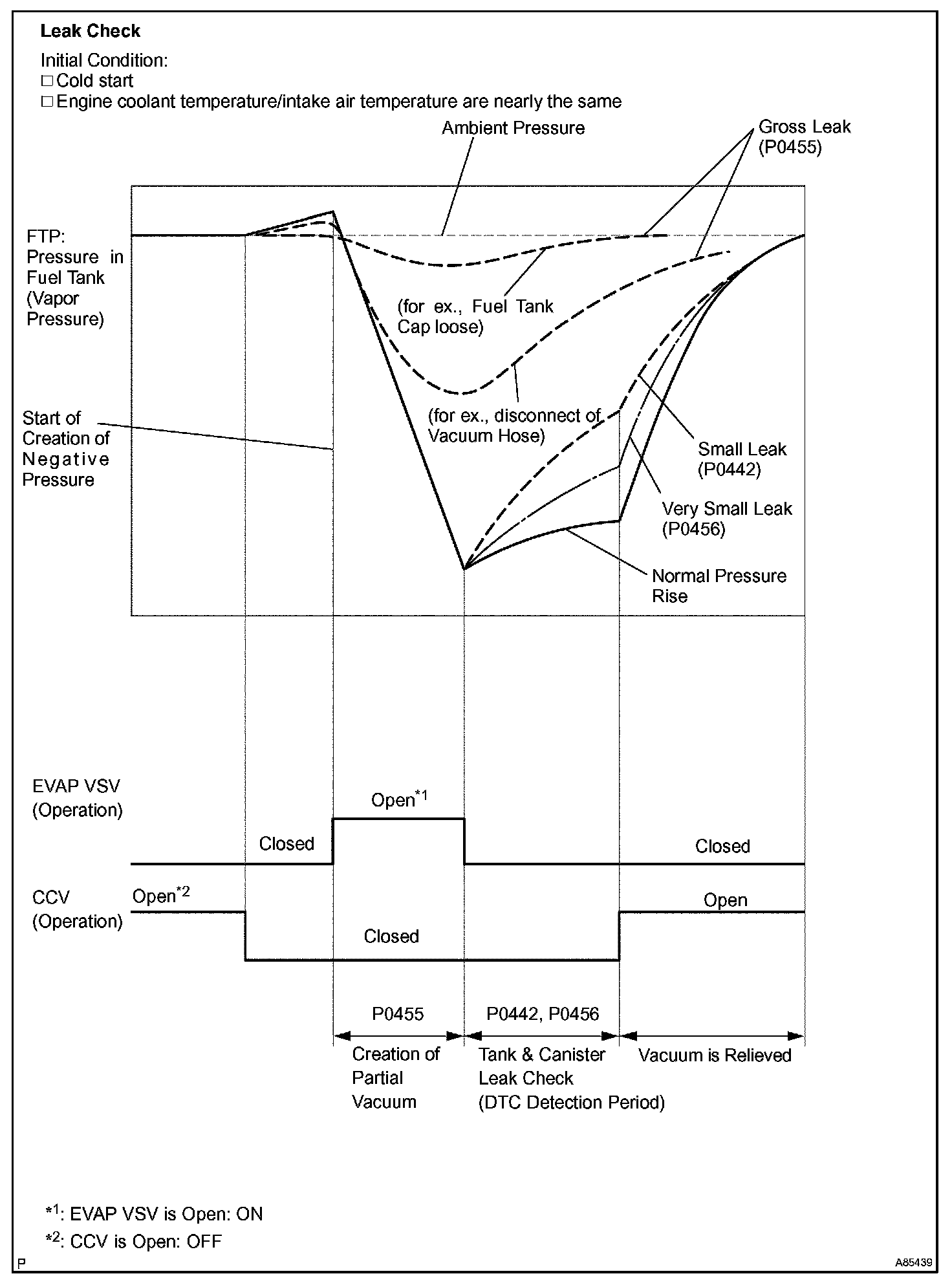

The ECM has separate DTCs for small and large leaks:
1. DTC P0442 is set when the internal fuel tank pressure has a large increase and the EVAP system has a small leak.
2. DTC P0455 is set when the EVAP system has a very large leak. The ECM tries to create negative pressure (vacuum) in the fuel tank by opening the EVAP VSV while the CCV is closed. However, the fuel tank pressure does not decrease beyond a specified threshold.
3. DTC P0456 is set when the internal fuel tank pressure increases slightly and the EVAP system has a very small leak.
