Antenna, Navigation: Service and Repair

Audio & Visual System - Part 2:

NAVIGATION ANTENNA ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY

HINT: Refer to the instructions for removal of the instrument panel safety pad sub-assy w/ passenger air bag assy.

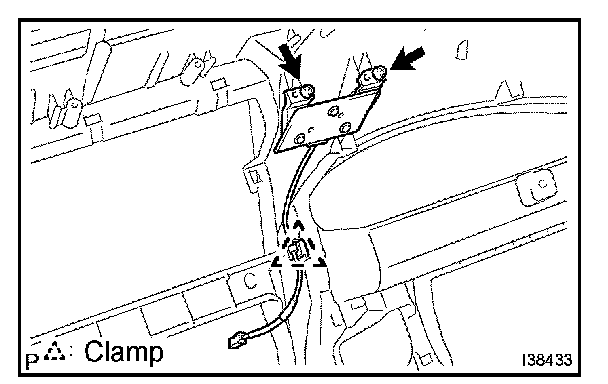

2. REMOVE NAVIGATION ANTENNA ASSY
a. Remove the 2 screws.
b. Remove the clamp and navigation antenna assy.

3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/PASSENGER AIR BAG ASSY
