Rear Speaker Assy (Coupe)

Audio & Visual System - Part 2:






REAR SPEAKER ASSY (COUPE)

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE REAR SEAT ASSY
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE FRONT DOOR SCUFF PLATE RH
4. REMOVE QUARTER TRIM PANEL ASSY FRONT LH
5. REMOVE QUARTER TRIM PANEL ASSY FRONT RH
6. REMOVE CENTER PILLAR GARNISH LH
7. REMOVE CENTER PILLAR GARNISH RH
8. REMOVE ROOF SIDE GARNISH ASSY INNER LH
9. REMOVE ROOF SIDE GARNISH ASSY INNER RH
10. REMOVE QUARTER TRIM PANEL UPPER LH
11. REMOVE QUARTER TRIM PANEL UPPER RH
12. REMOVE PACKAGE TRAY TRIM PANEL ASSY




13. REMOVE REAR SPEAKER ASSY
a. Disconnect the connector.

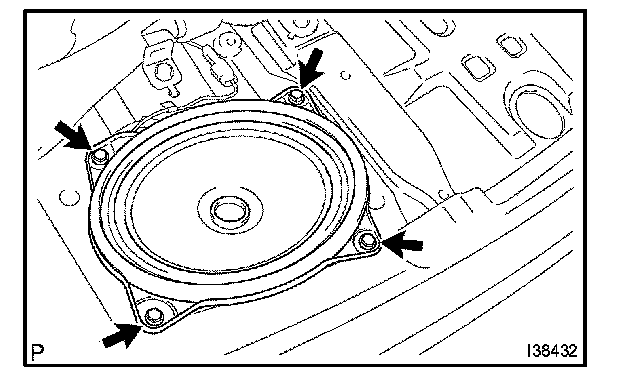

b. Remove the 4 screws and rear speaker assy.




14. INSTALL REAR SPEAKER ASSY
a. Install the rear speaker assy with the 4 screws.

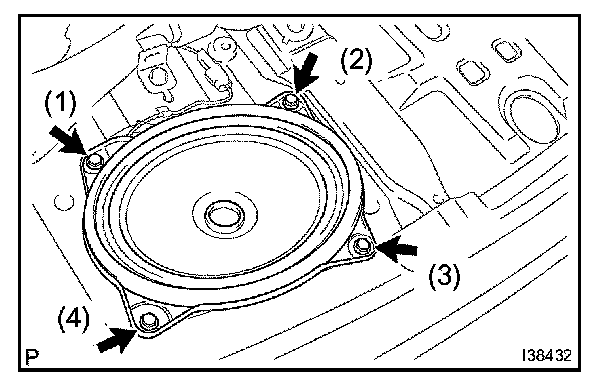

NOTE: Install them in the order shown in the illustration.

b. Connect the connector.
