Pinout Values and Diagnostic Parameters

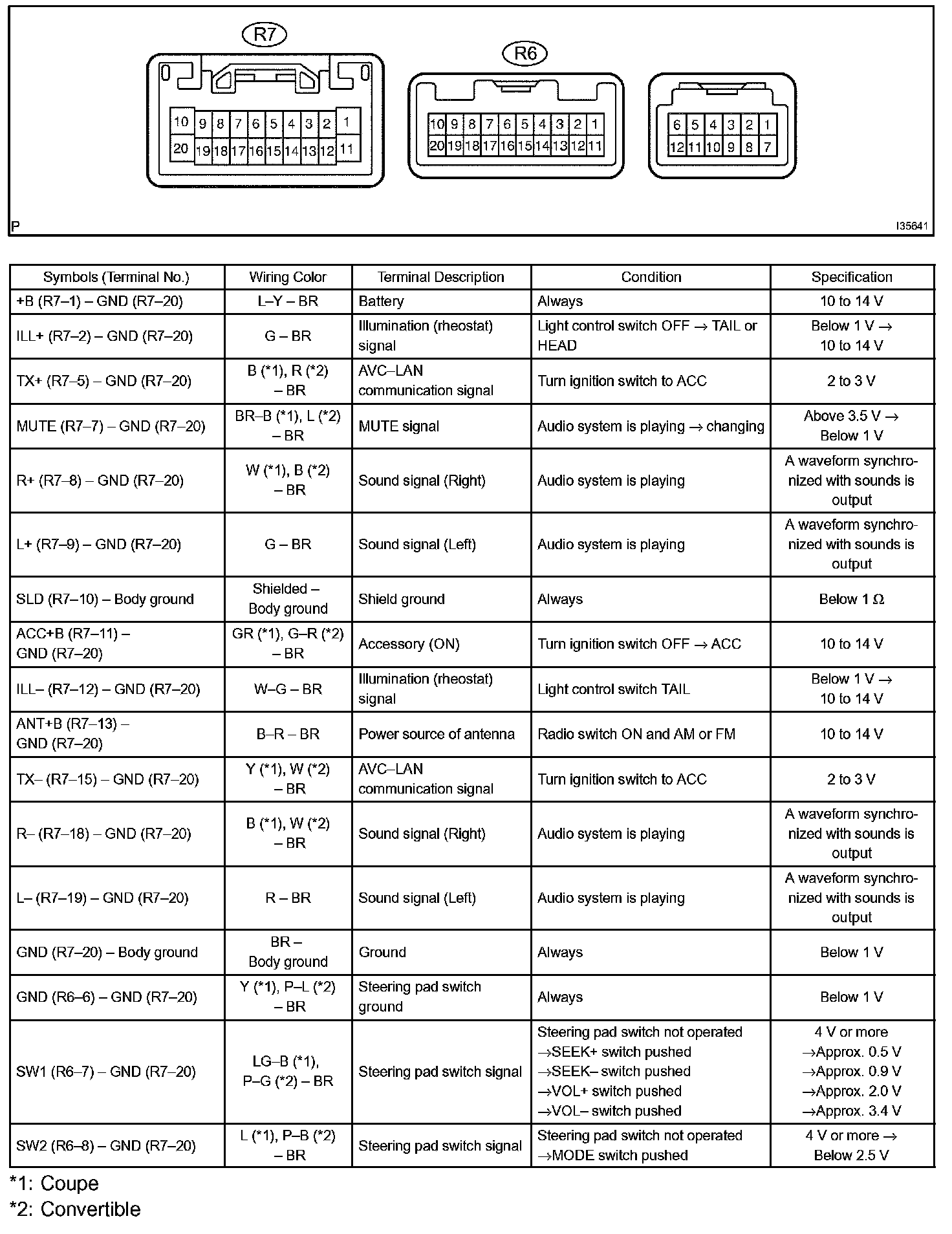

Terminal Of ECU/Pinouts - Radio Receiver Assy (Separate Type Amplifier):

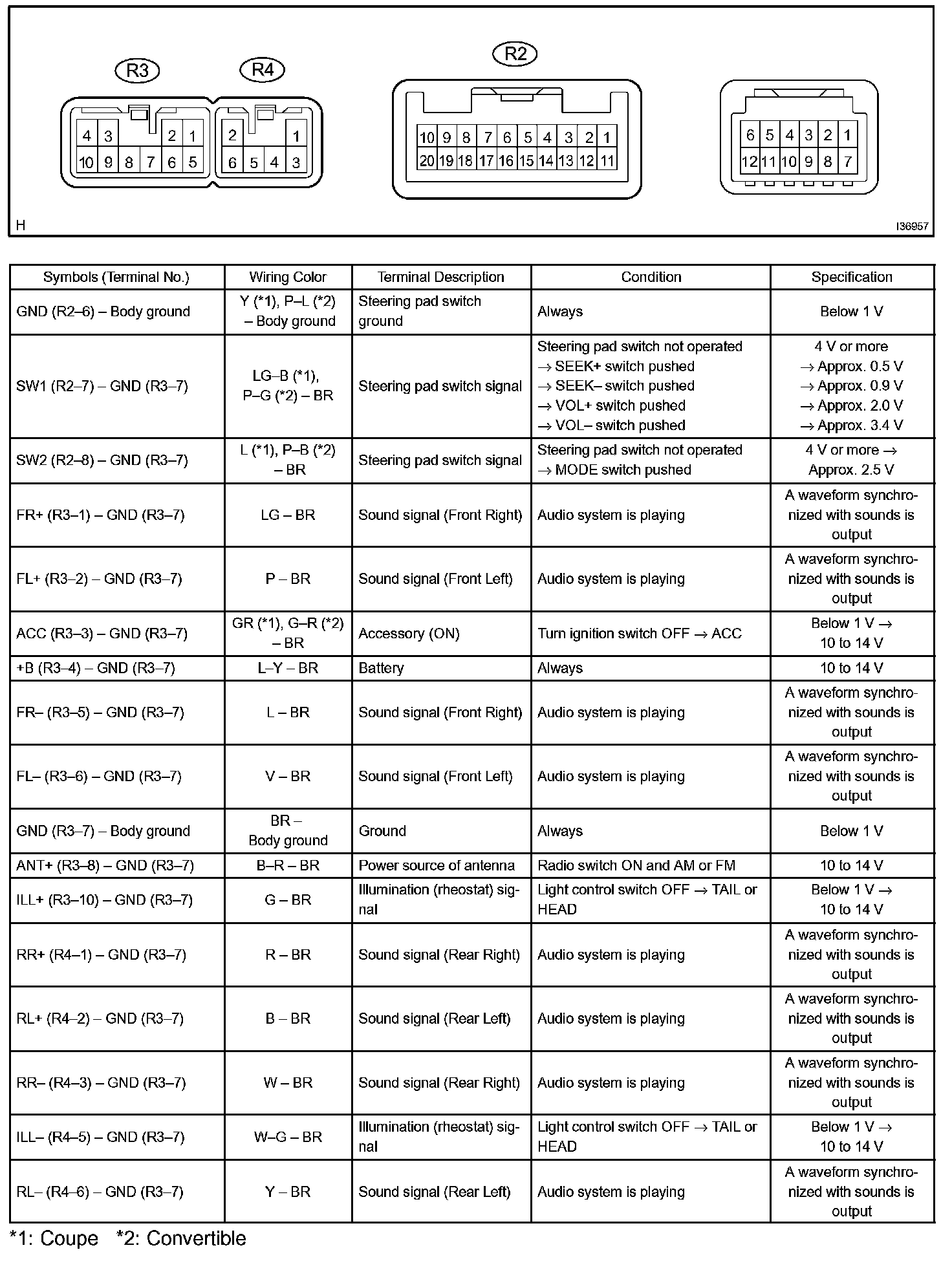

Terminal Of ECU/Pinouts - Radio Receiver Assy (Built-in Type Amplifier):

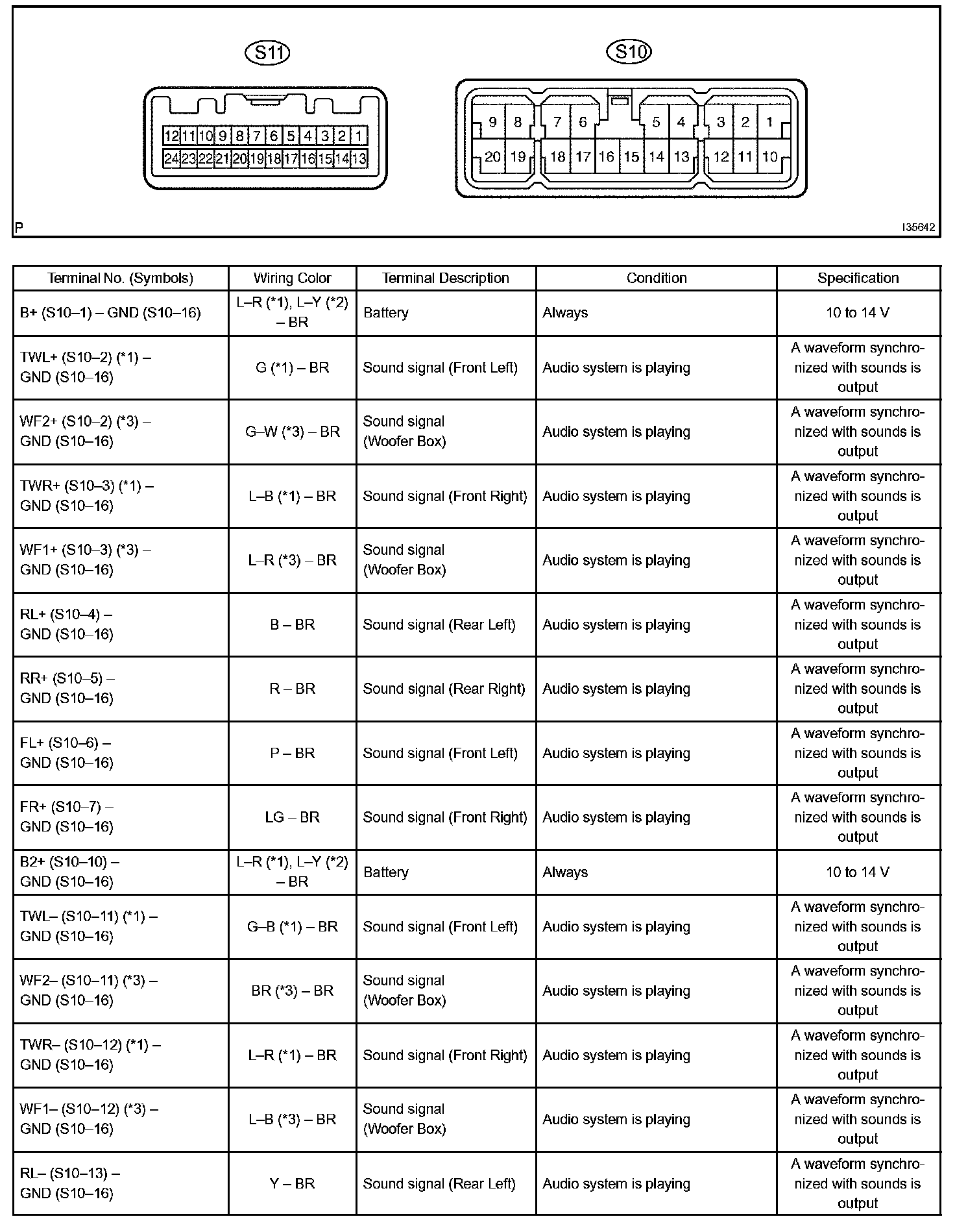

Terminal Of ECU/Pinouts - Stereo Component Amplifier Assy Part 1:

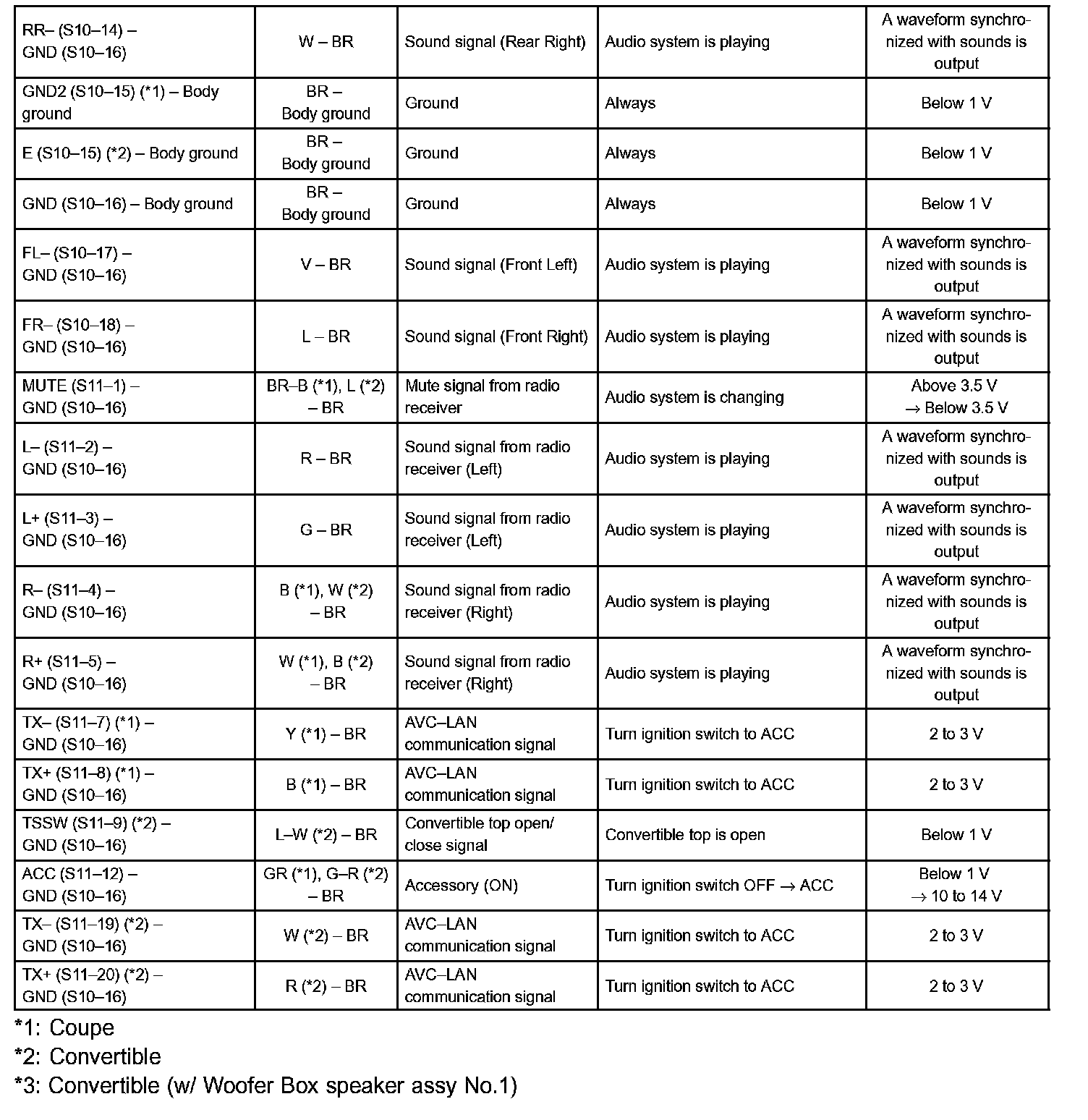

Terminal Of ECU/Pinouts - Stereo Component Amplifier Assy Part 2:
