Removal and Replacement

HOOD SUPPORT

REPLACEMENT

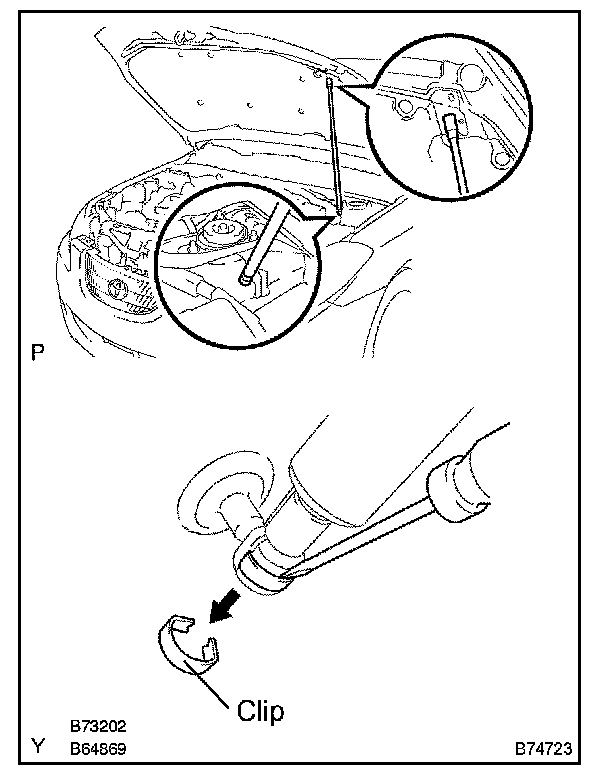

1. REMOVE HOOD SUPPORT ASSY LH
a. Using a screwdriver, remove the clip and support from the hood side.

HINT:
- Tape the screwdriver tip before use.
- Remove the hood support while supporting the hood with your hands.

b. Using a screwdriver, remove the clip and hood support from the body side.

HINT: Tape the screwdriver tip before use.

2. INSTALL HOOD SUPPORT ASSY LH
a. Install the 2 clips to the hood support.
b. Install the hood support.
