Only Wireless Control Function Is Inoperative

ONLY WIRELESS CONTROL FUNCTION IS INOPERATIVE

CIRCUIT DESCRIPTION

The door control receiver receives signals from the transmitter and sends these signals to the multiplex network body ECU. The multiplex network body ECU then controls all the doors by sending LOCK/UNLOCK signals to each door lock actuator, buzzer signals to the wireless door lock buzzer and headlamp/taillamp and hazard warning signals to the turn signal flasher relay.

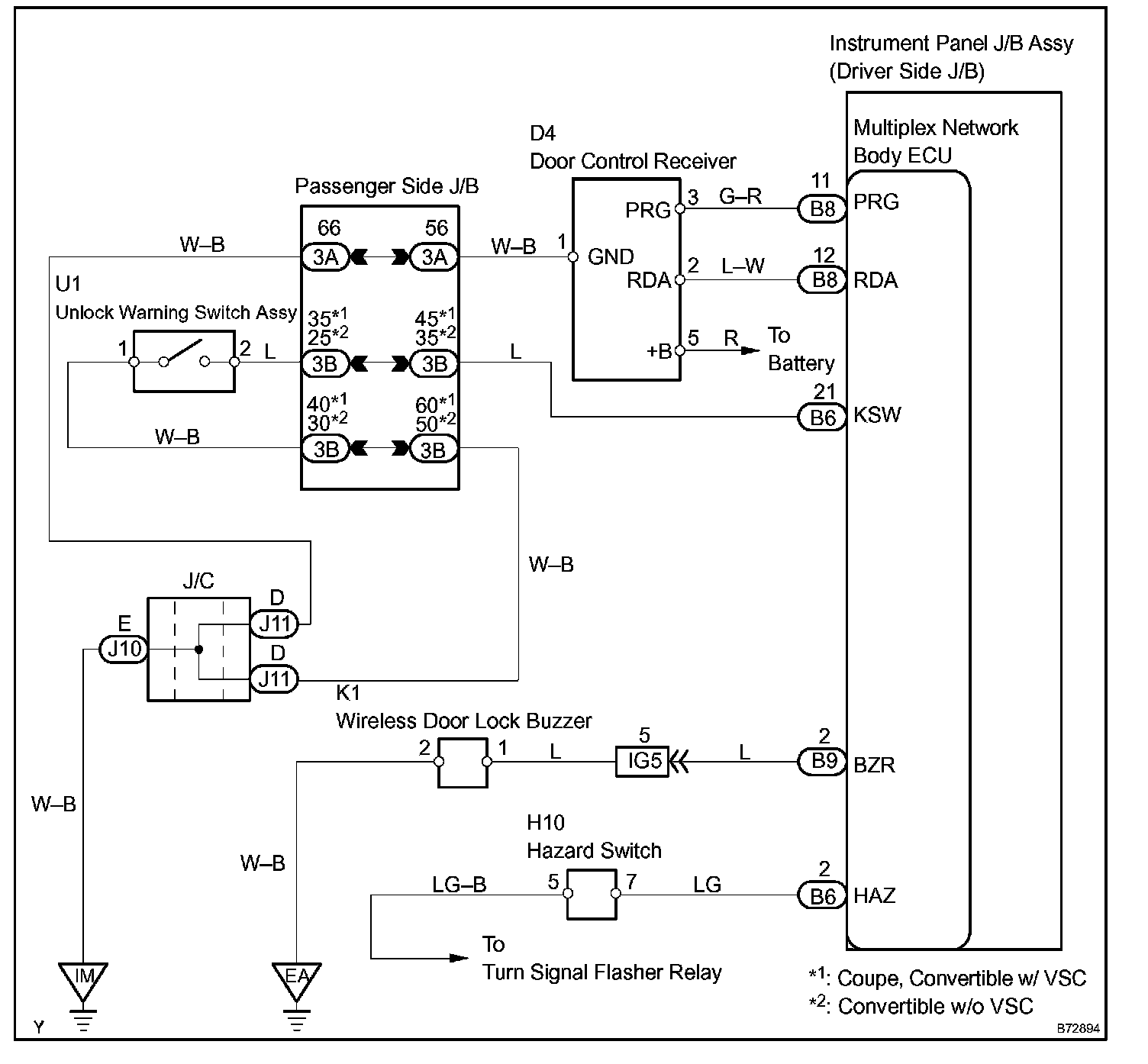

Wiring Diagram:

Step 1 - 4:

Step 5:

Step 6:

Step 7 - 10:

Step 11 - 12:

Step 13 - 14:

Step 15 - 17:

Step 18 - 19:

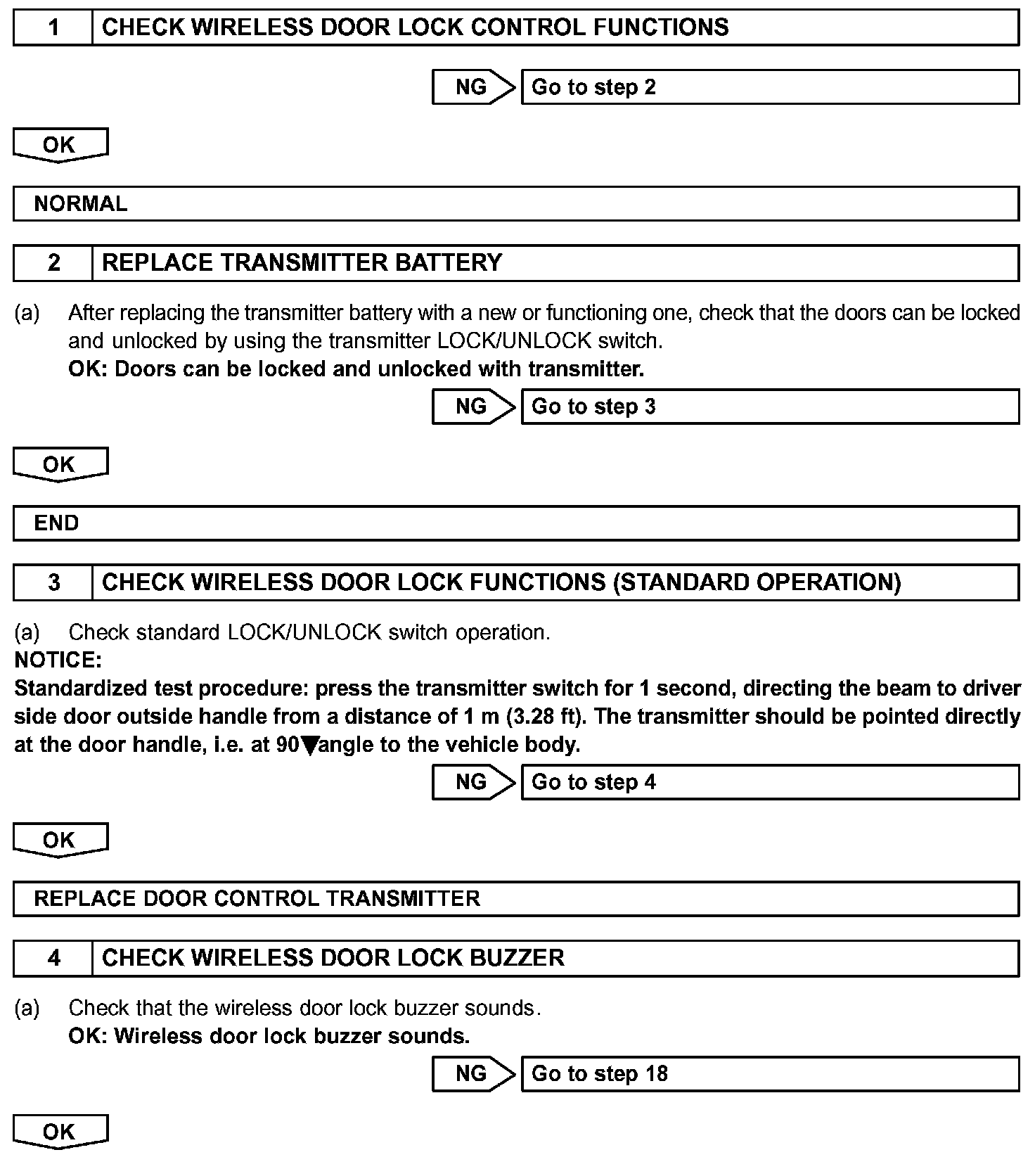

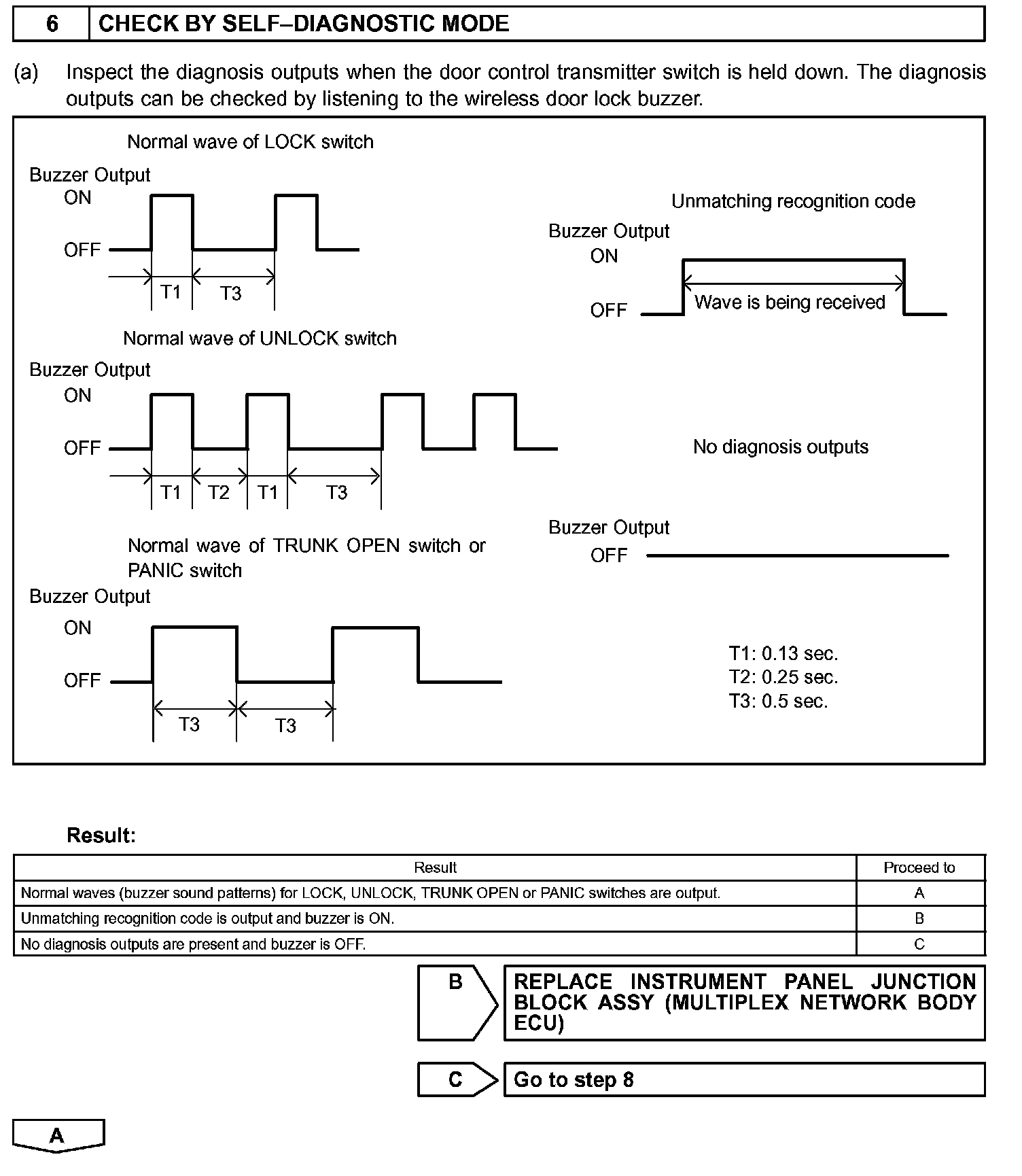

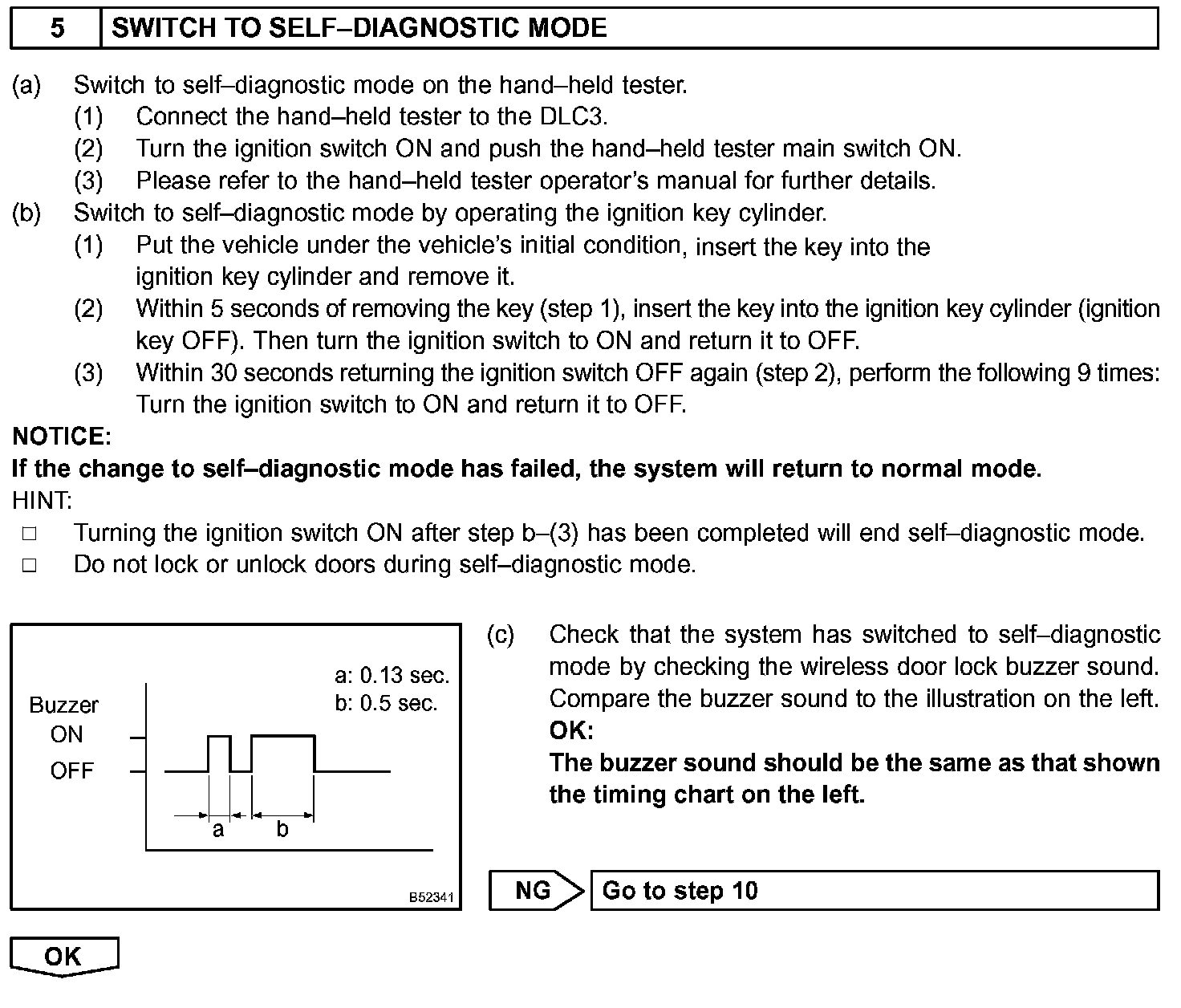

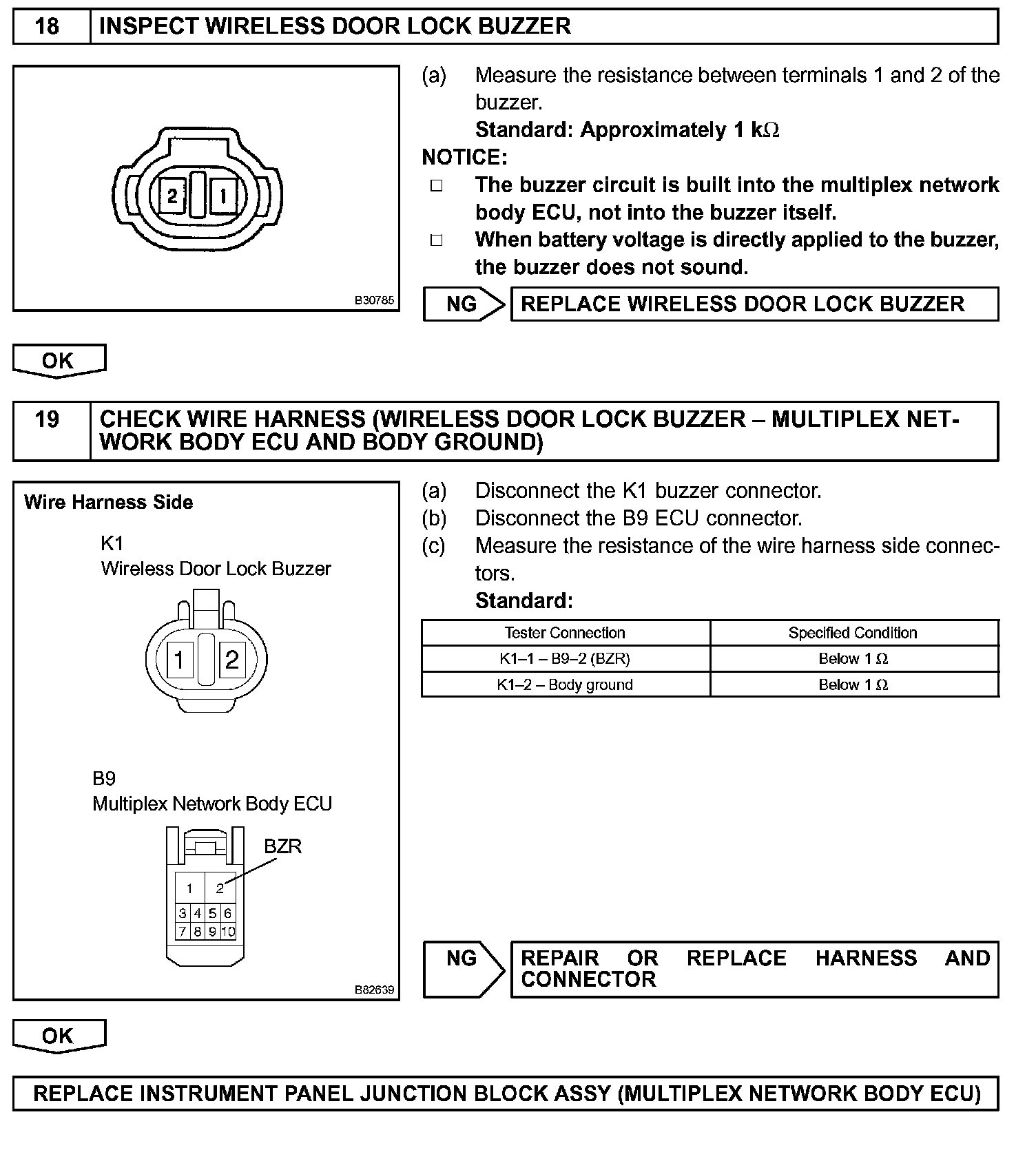

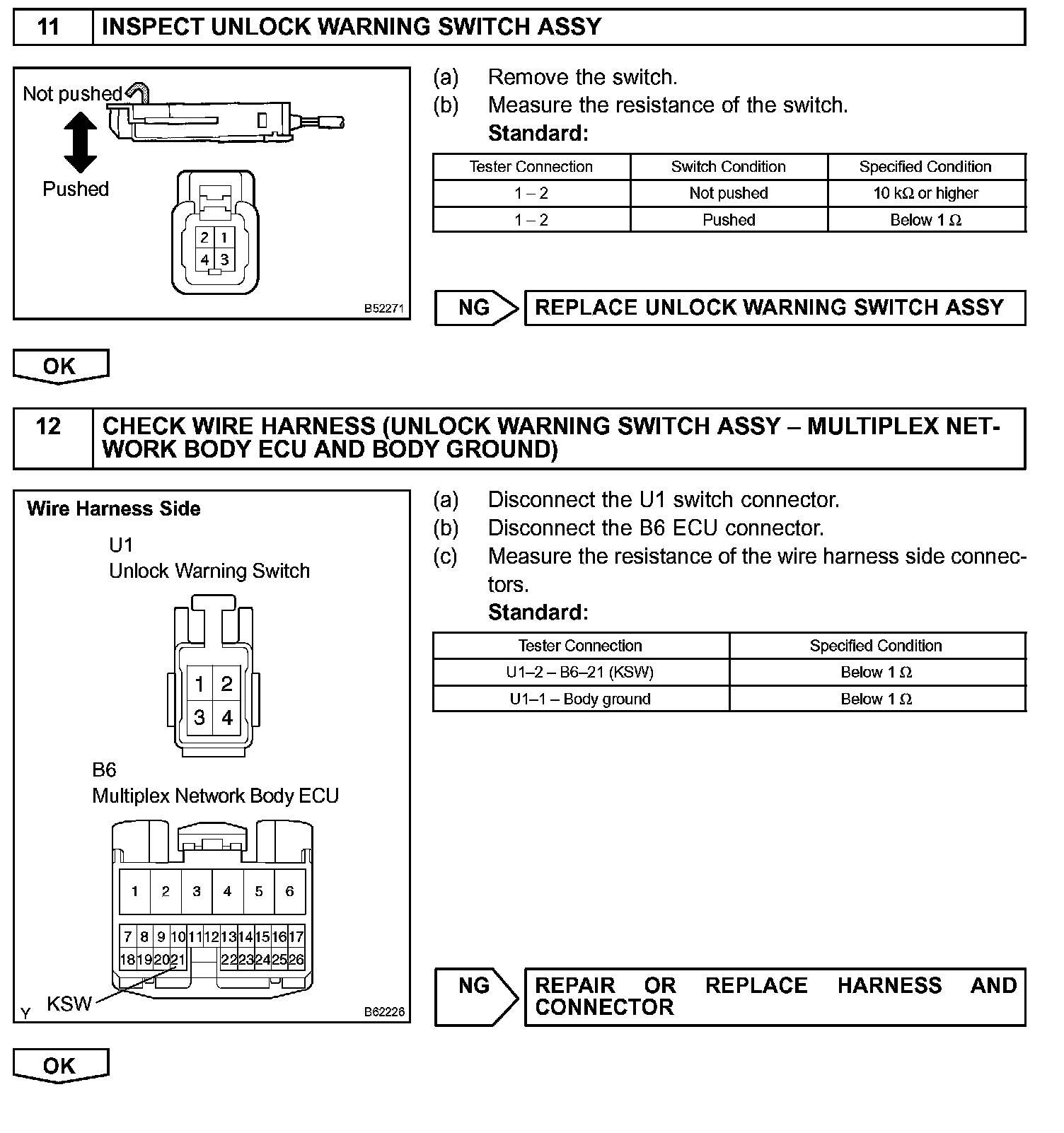

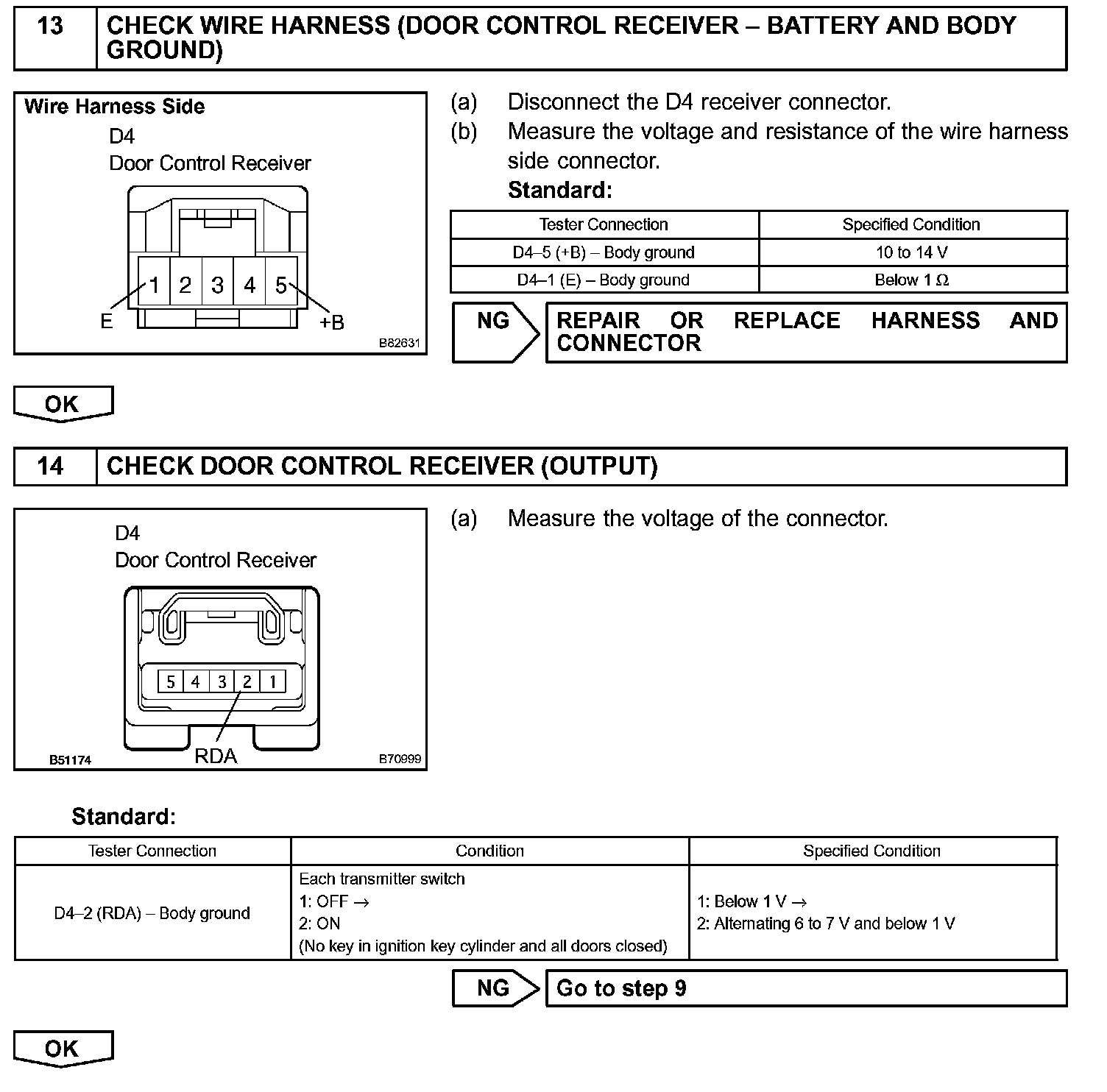

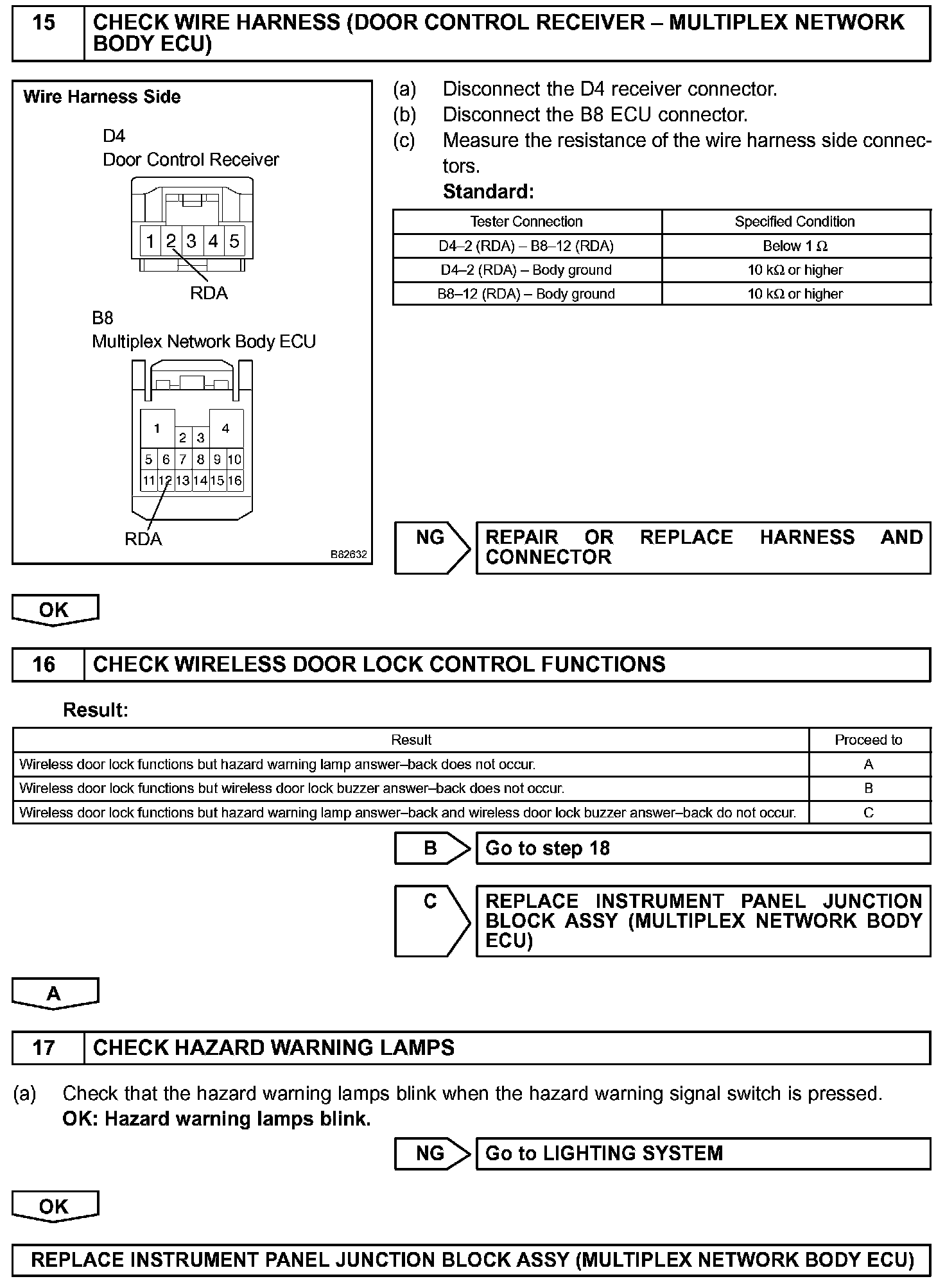

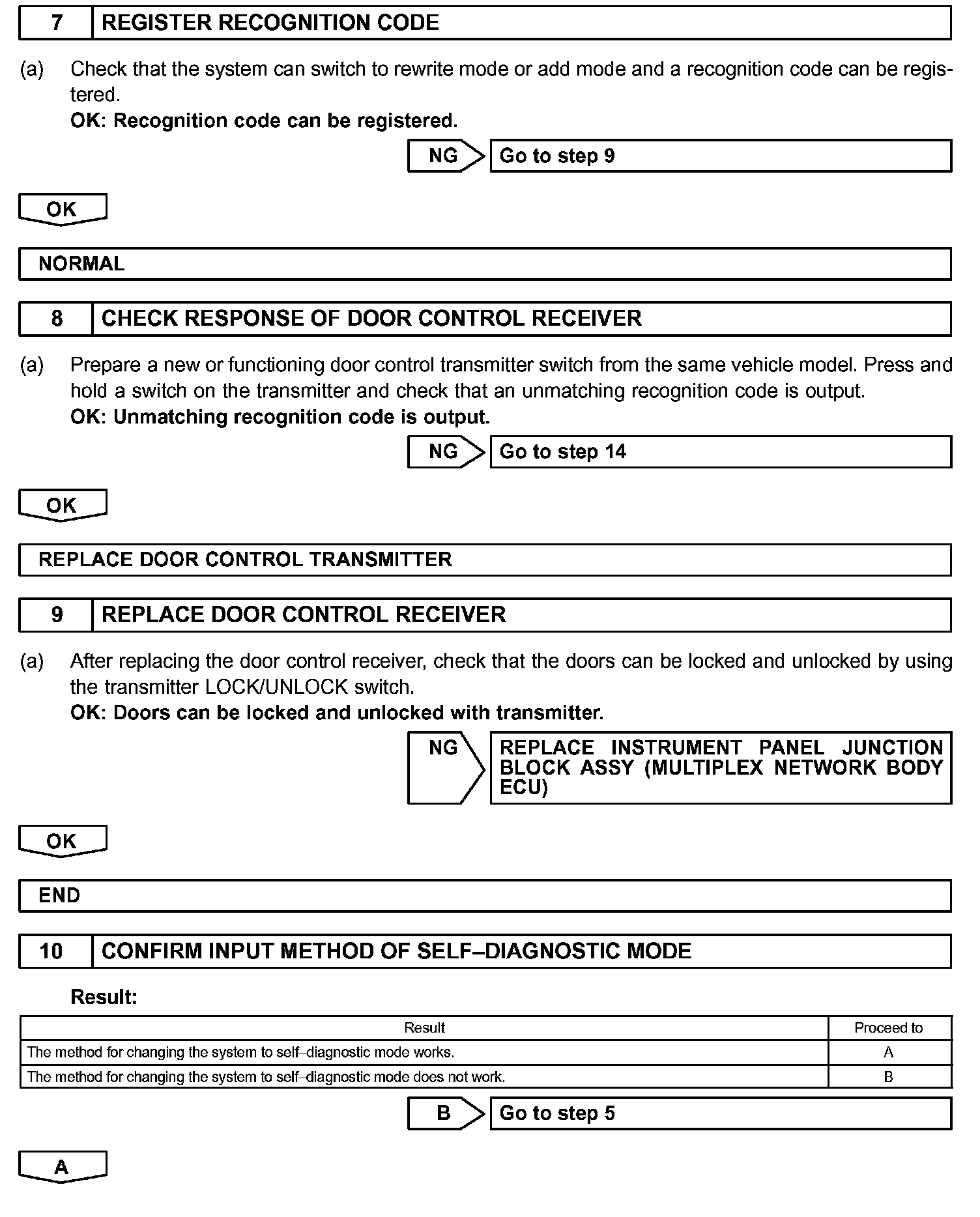

INSPECTION PROCEDURE
