All Doors Cannot Be Locked / Unlocked Simultaneously

ALL DOORS CANNOT BE LOCKED/UNLOCKED SIMULTANEOUSLY

CIRCUIT DESCRIPTION

The multiplex network body ECU activates the door lock motors with switch signals from the master switch, door control switch and driver/passenger side door key cylinder.

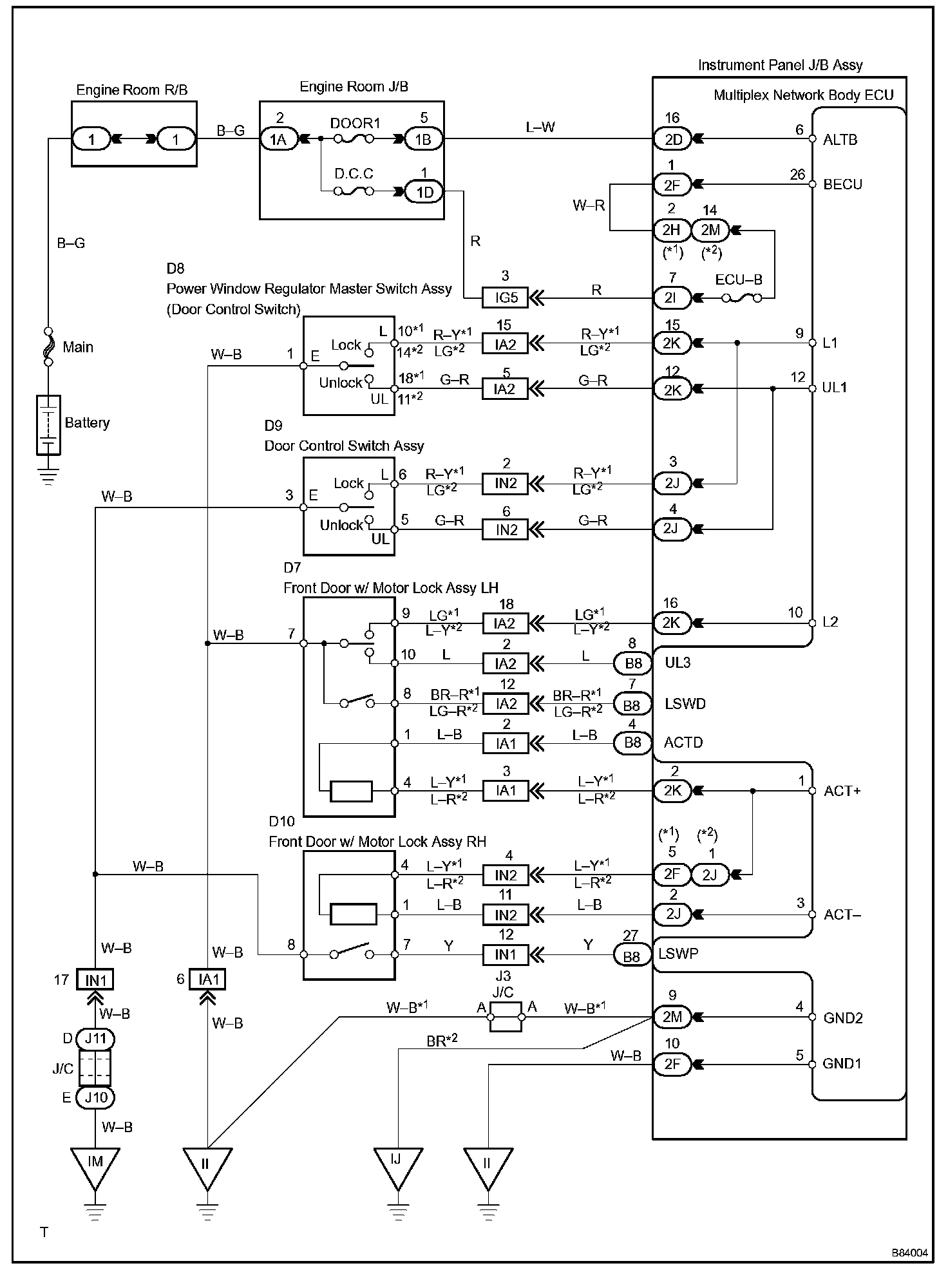

Wiring Diagram:

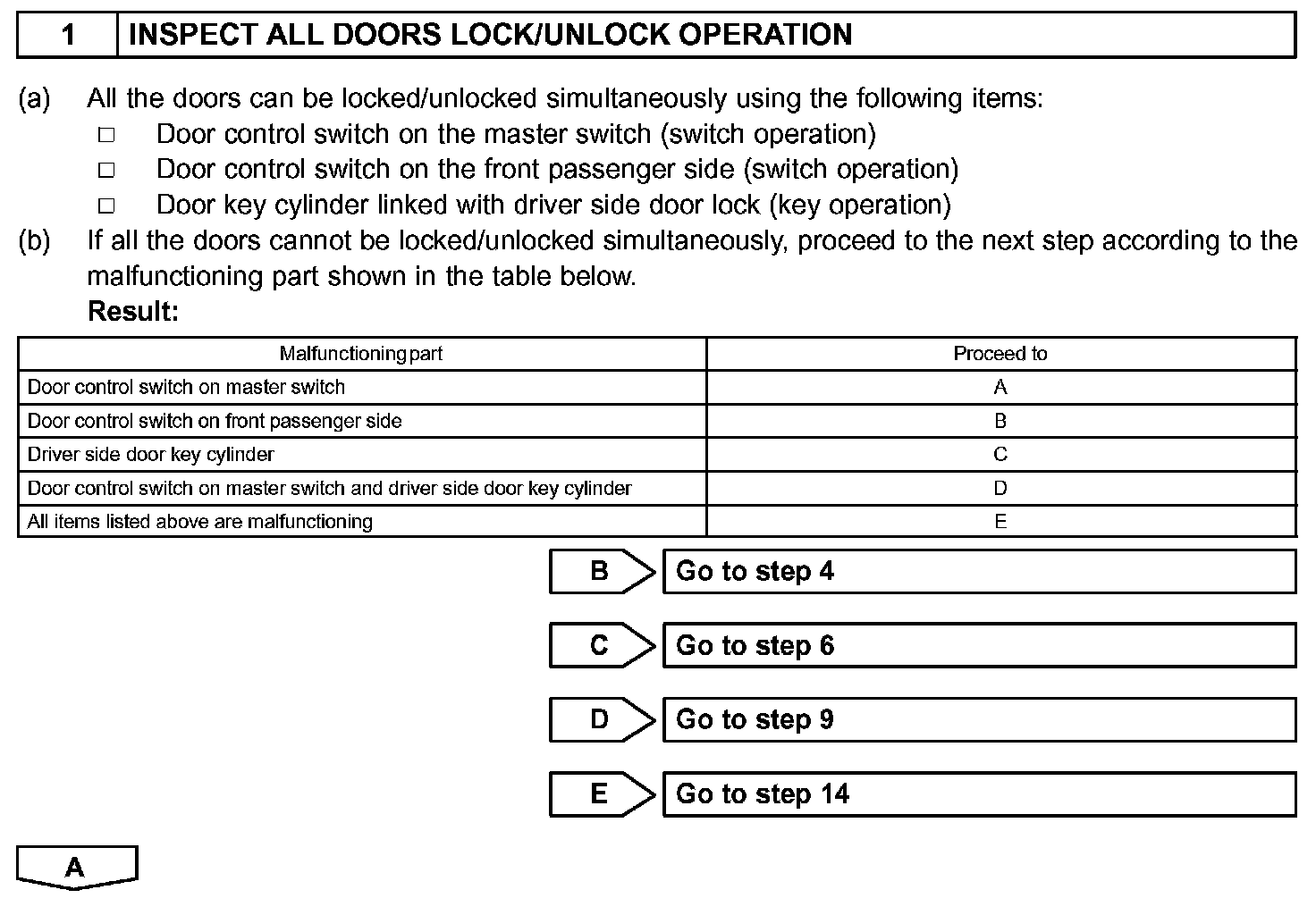

Step 1:

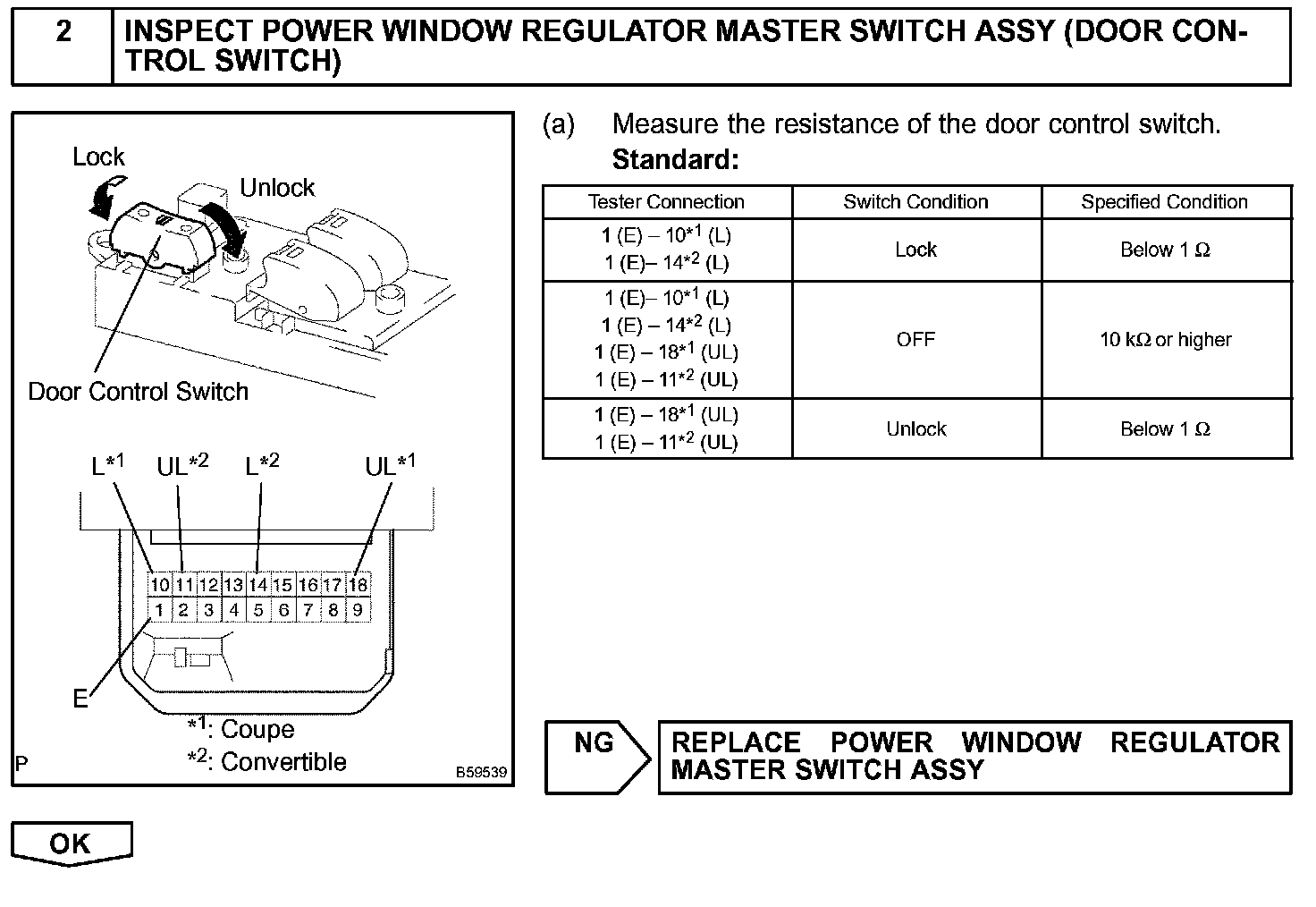

Step 2:

Step 3 - 4:

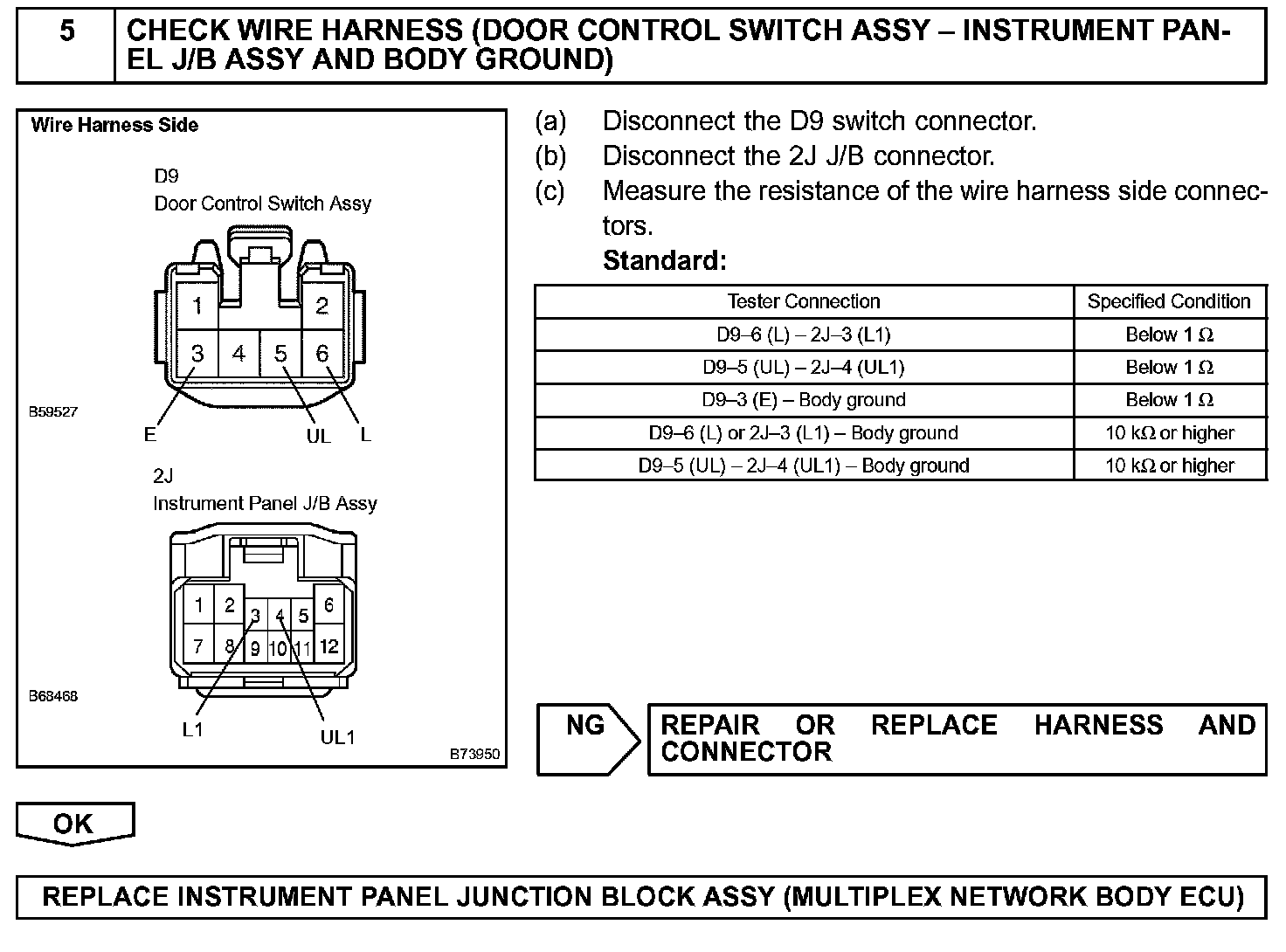

Step 5:

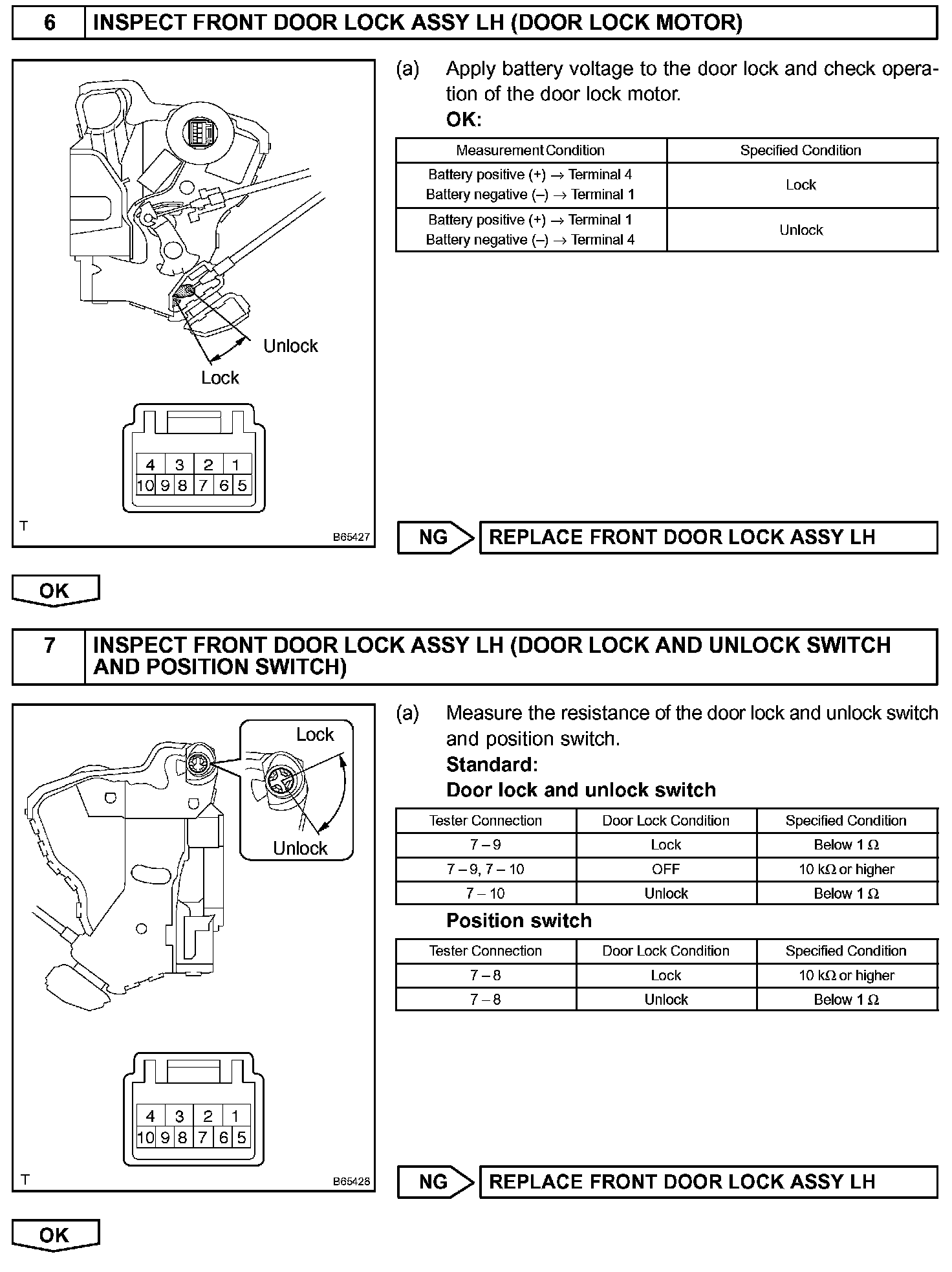

Step 6 - 7:

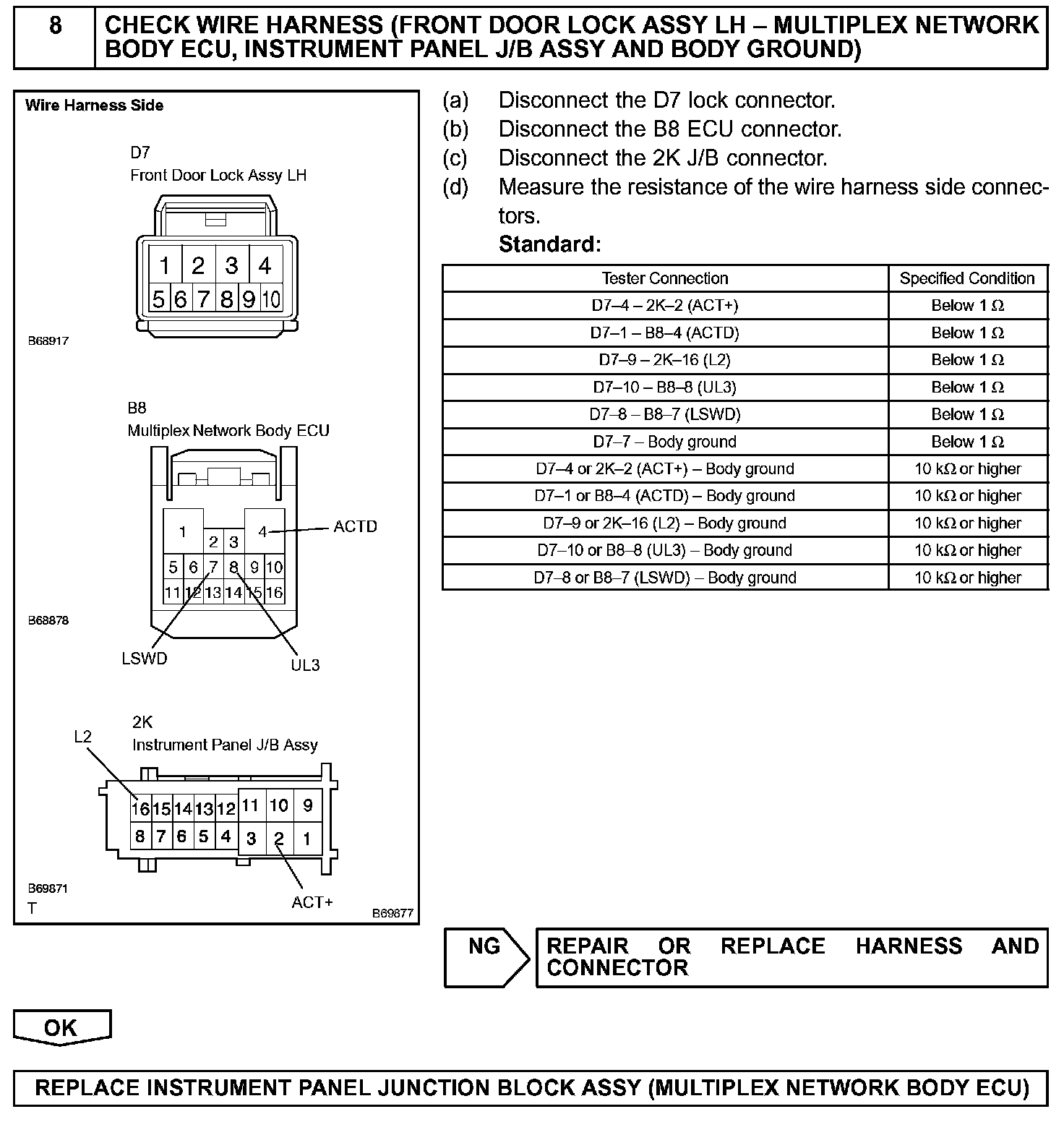

Step 8:

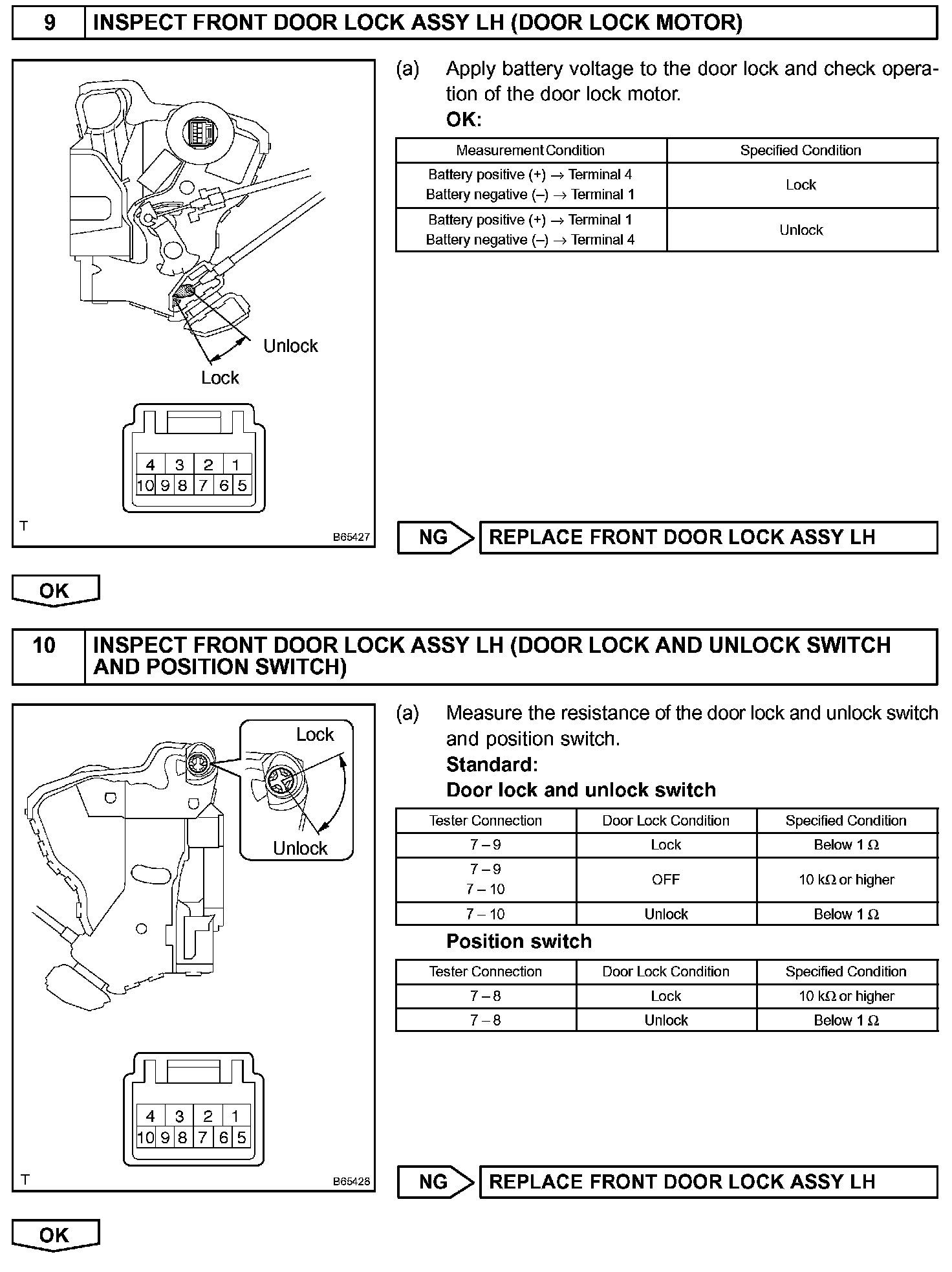

Step 9 - 10:

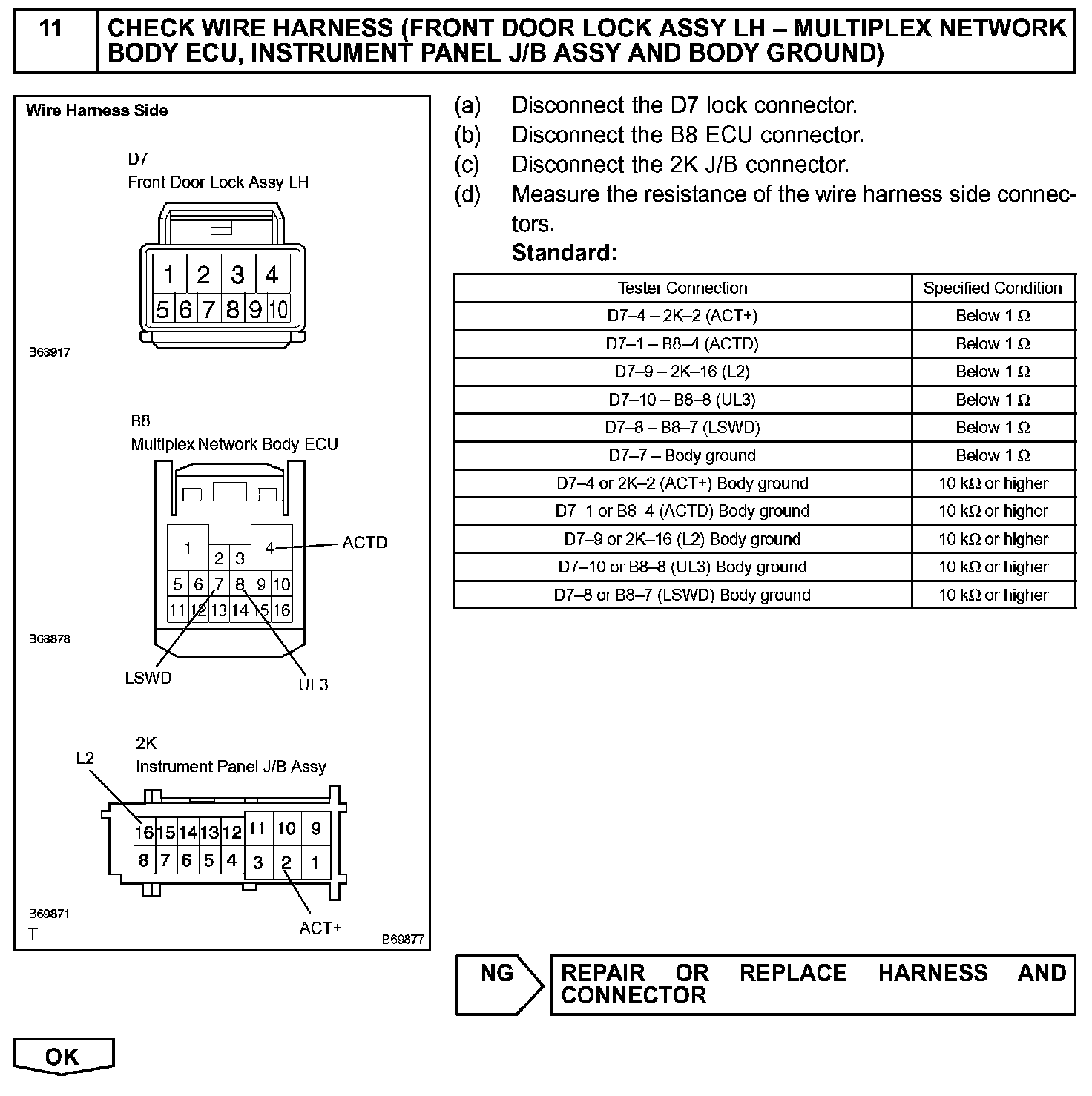

Step 11:

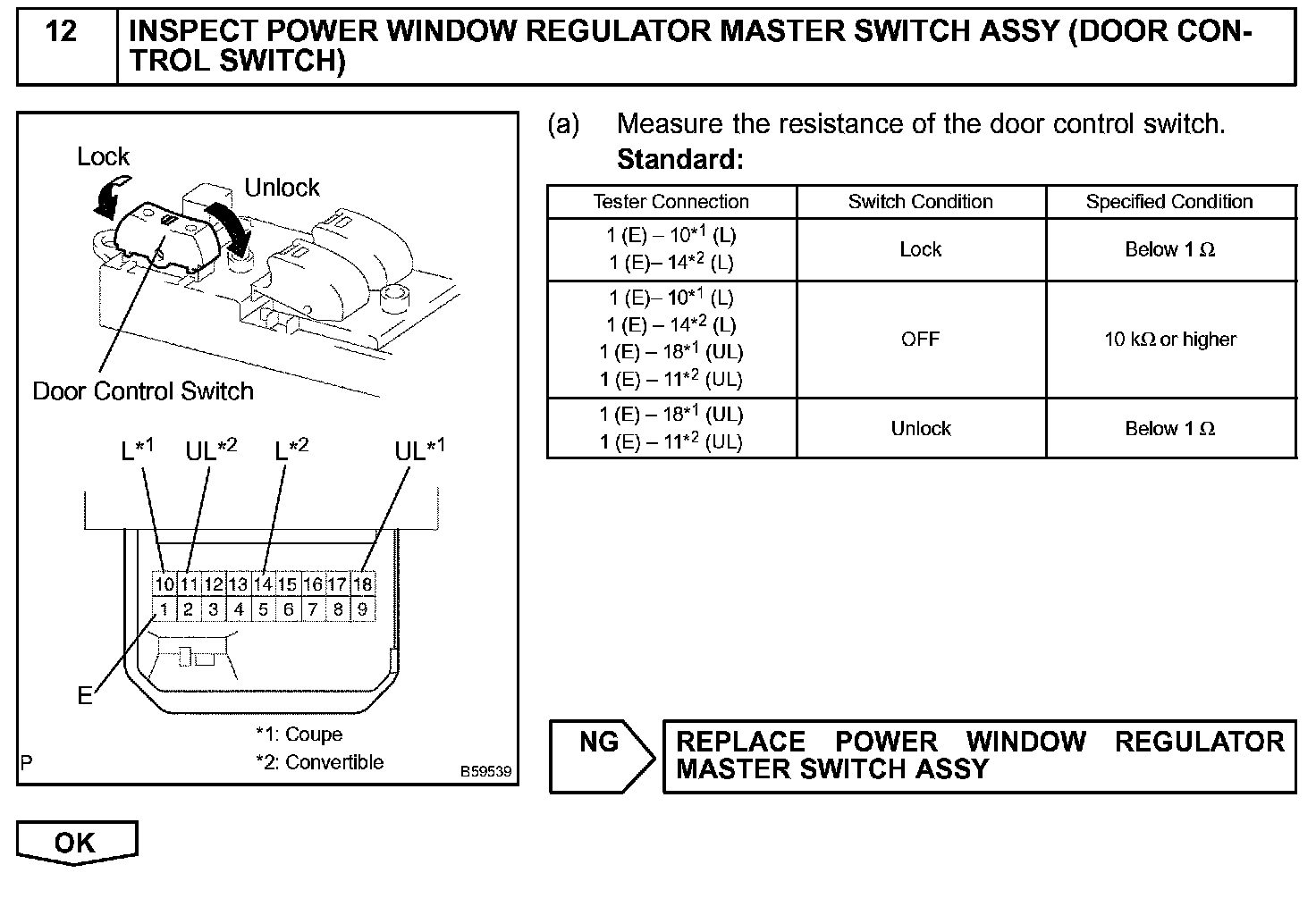

Step 12:

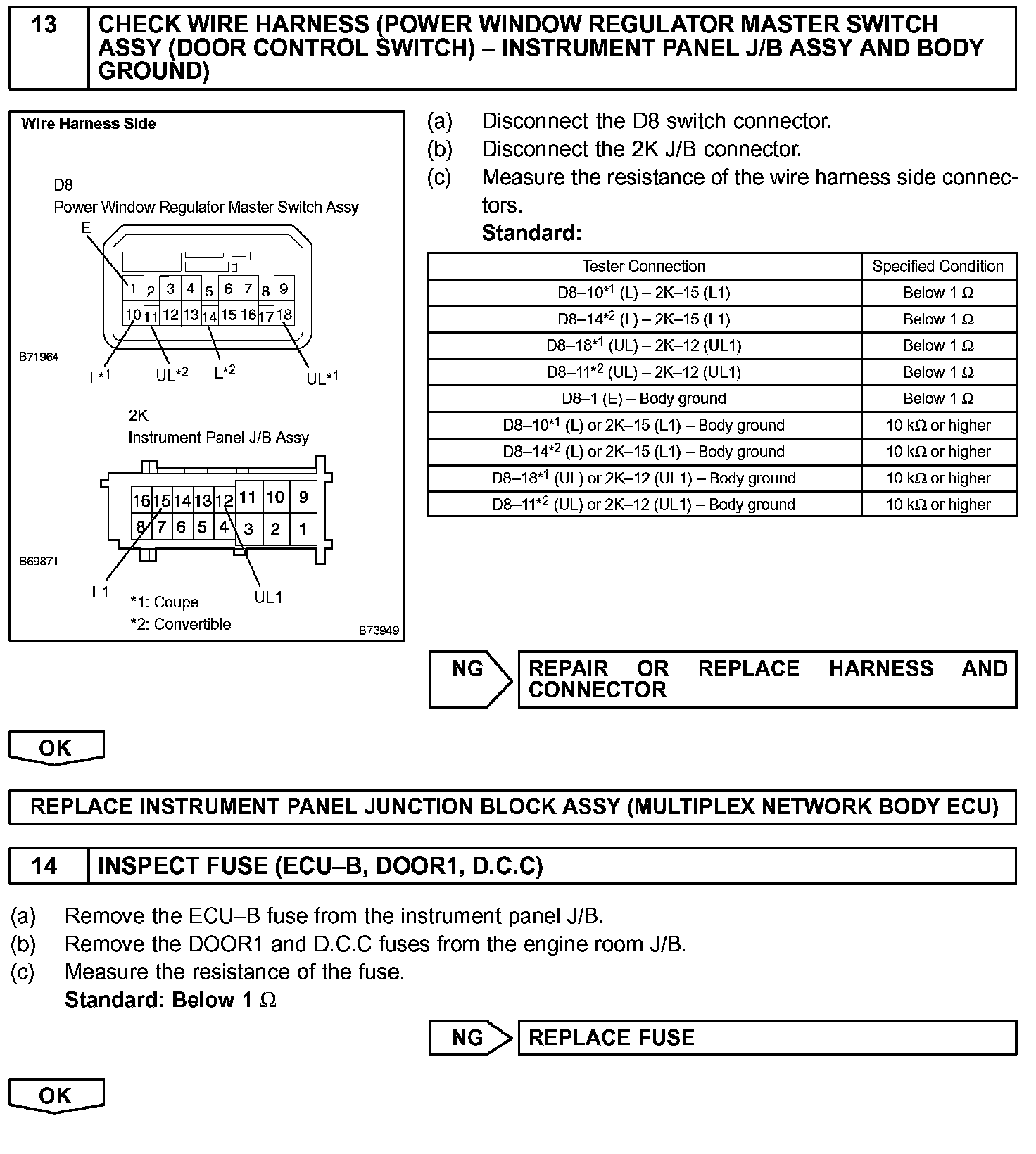

Step 13 - 14:

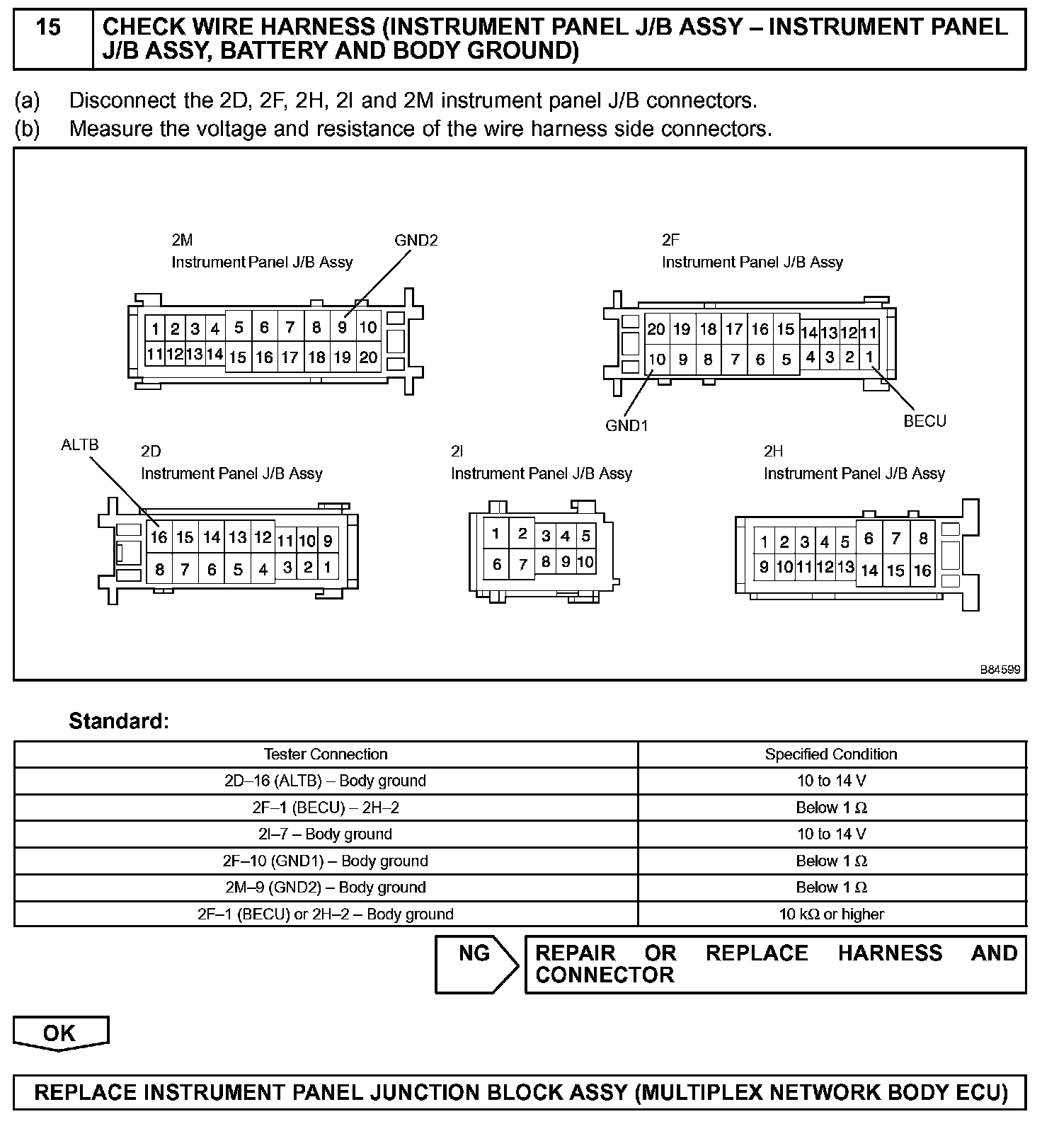

Step 15:

INSPECTION PROCEDURE
