TERMINALS OF ECU

CHECK CONVERTIBLE ROOF CONTROL ECU

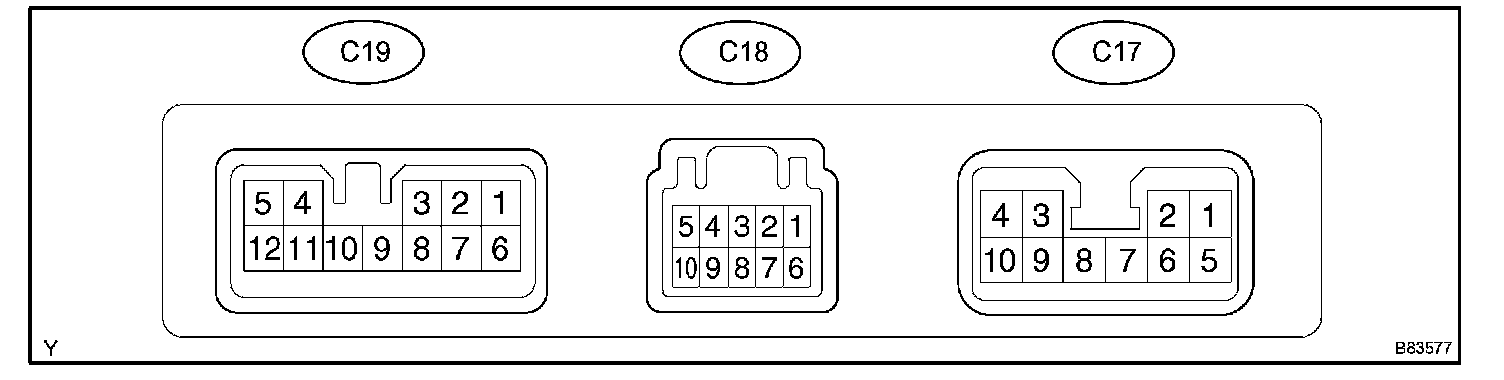

a. Disconnect the C17, C18 and C19 ECU connectors.

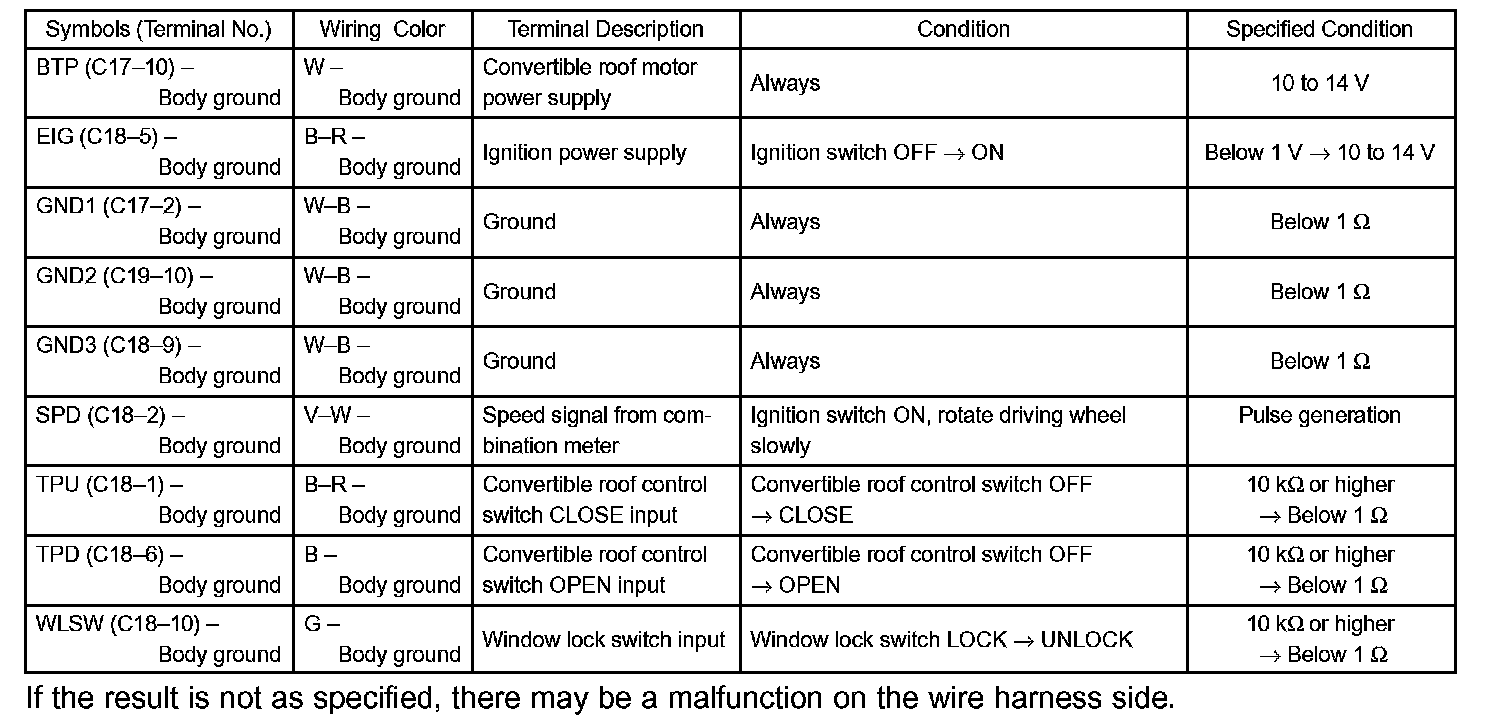

b. Measure the voltage and resistance of the wire harness side connectors.




Standard:

c. Reconnect the C17, C18 and C19 ECU connectors.

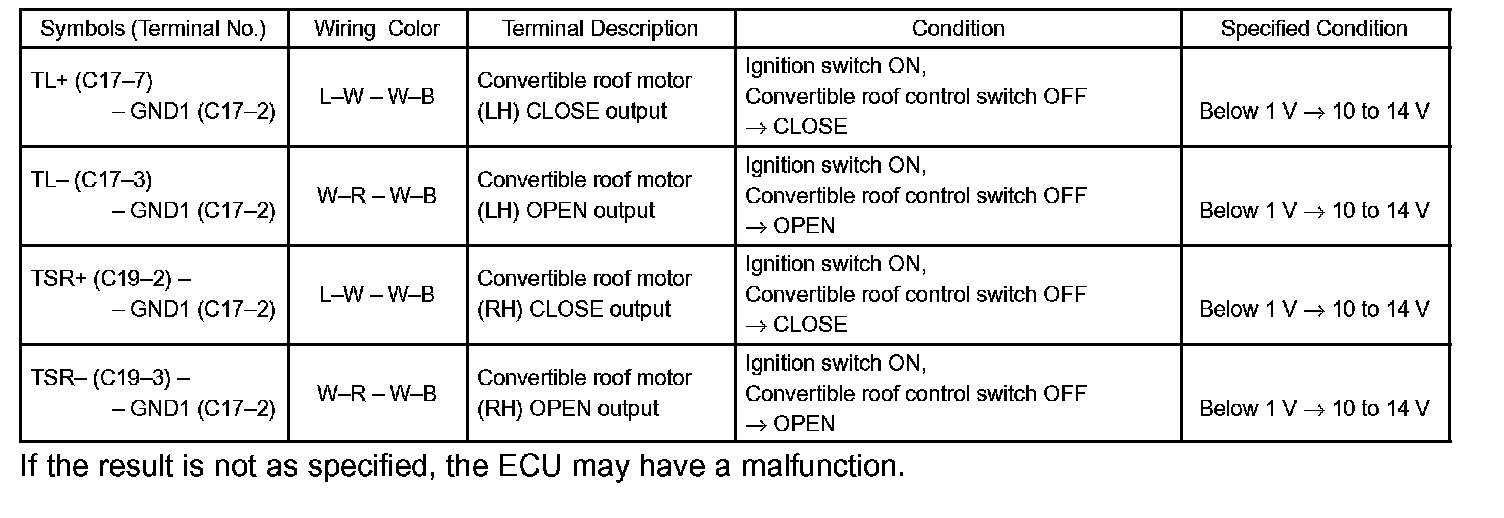

d. Measure the voltage the connectors.




Standard:
