Diagnosis By Symptom

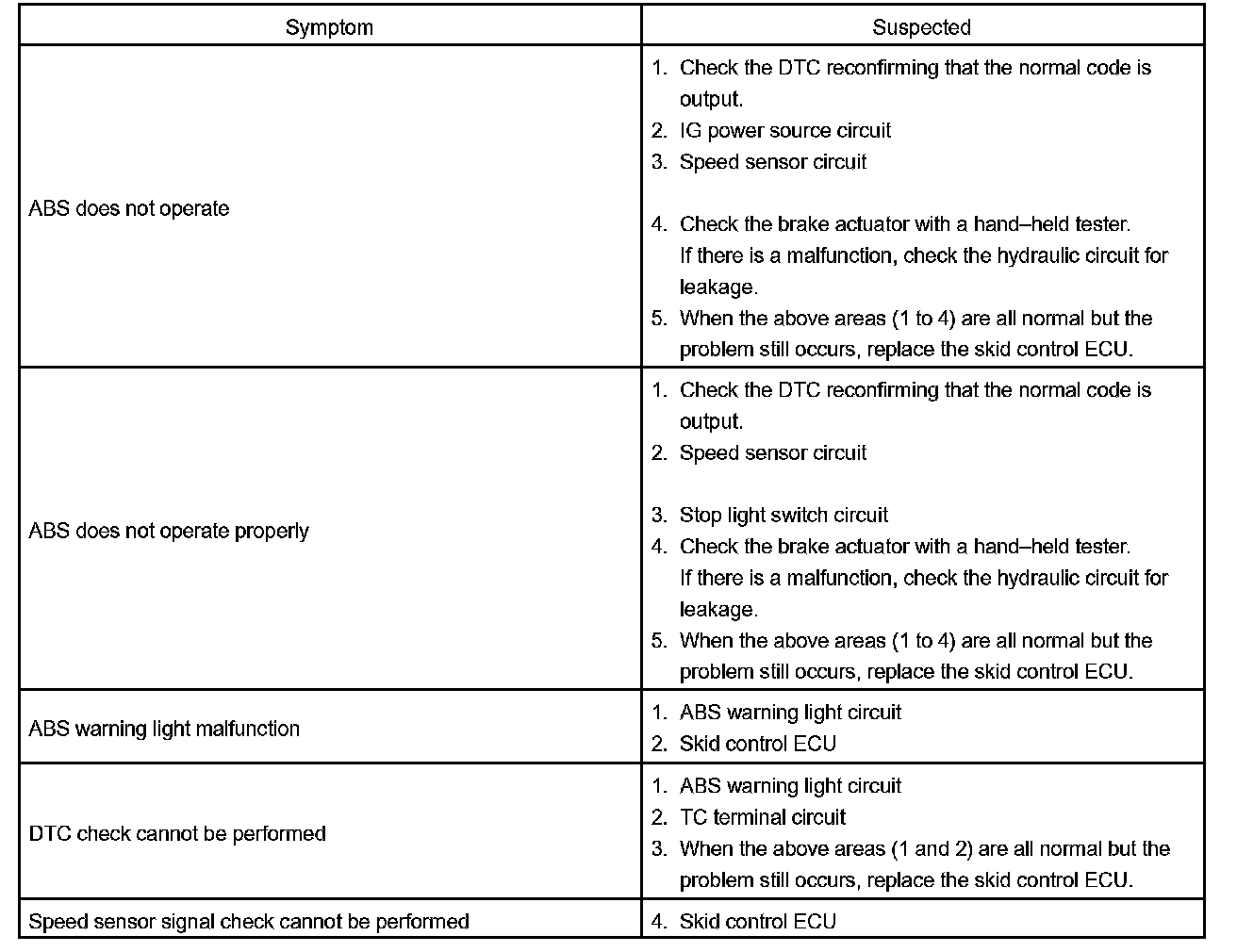

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:

If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

NOTE: When replacing the skid control ECU, sensor etc., turn the ignition switch to off.
