Parking Brake Lever: Service and Repair

PARKING BRAKE LEVER SUB-ASSY
REPLACEMENT

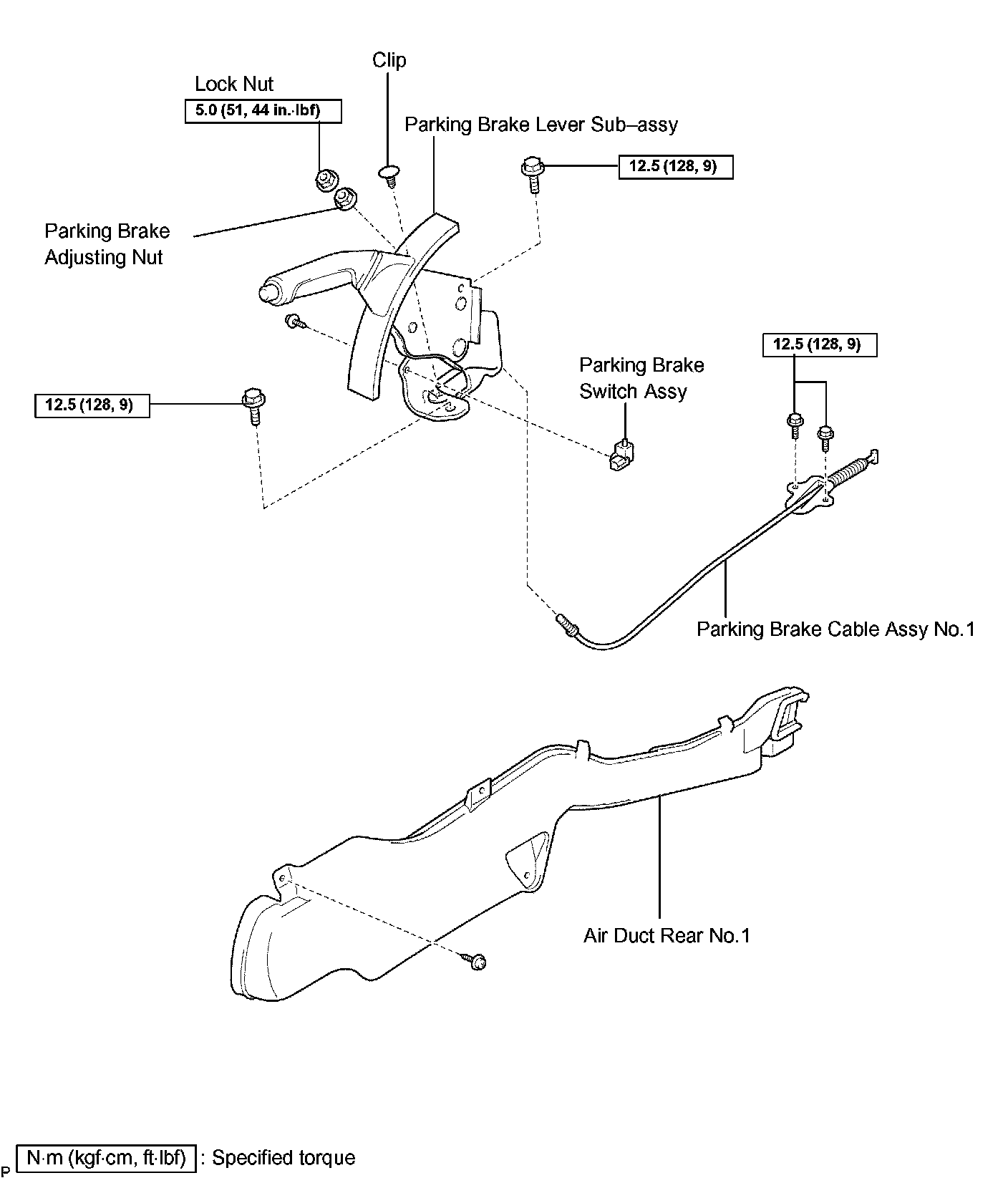

HINT: COMPONENTS: See Instrument Panel, Gauges and Warning Indicators.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY
2. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
3. REMOVE CONSOLE BOX SUB-ASSY REAR W/CONSOLE DOOR
4. REMOVE AIR DUCT REAR NO.1





5. REMOVE PARKING BRAKE LEVER SUB-ASSY
a. Disconnect the parking brake switch assy connector.
b. Remove the lock nut and parking brake adjusting nut.

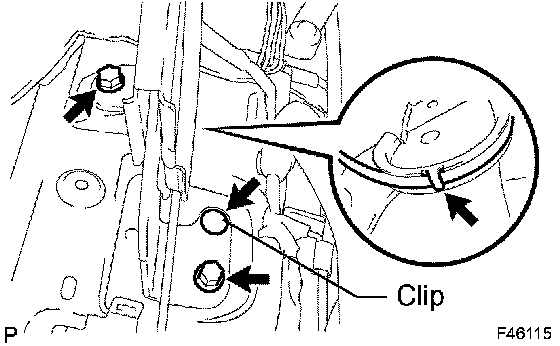

c. Remove the 2 bolts and clip.
d. Using a screwdriver, disconnect the parking brake cable assy No.1 and remove the parking brake lever sub-assy.
6. REMOVE PARKING BRAKE SWITCH ASSY
a. Remove the screw and parking brake switch assy.
7. INSTALL PARKING BRAKE SWITCH ASSY
a. Install the parking brake switch assy with the screw.





8. INSTALL PARKING BRAKE LEVER SUB-ASSY
a. Connect the parking brake cable assy No.1 to the lever and install the parking brake adjusting nut and lock nut.
b. Install the parking brake lever sub-assy with the 2 bolts and clip.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
c. Connect the parking brake switch connector.
9. INSPECT PARKING BRAKE LEVER TRAVEL
10. ADJUST PARKING BRAKE LEVER TRAVEL
