Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

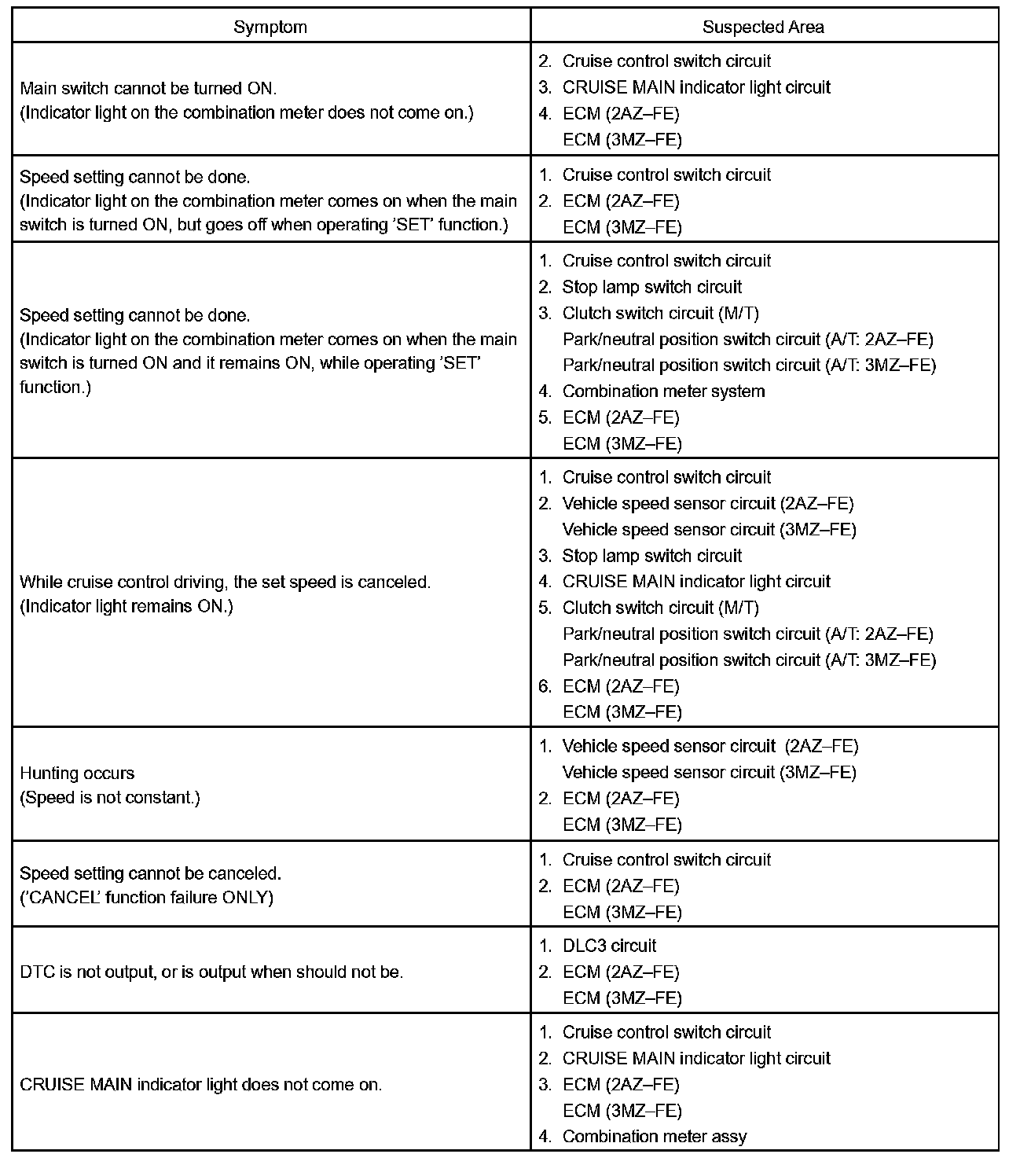

Problem Symptoms Table:

If a normal code is displayed while checking DTCs but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
