Radiator Cooling Fan Motor

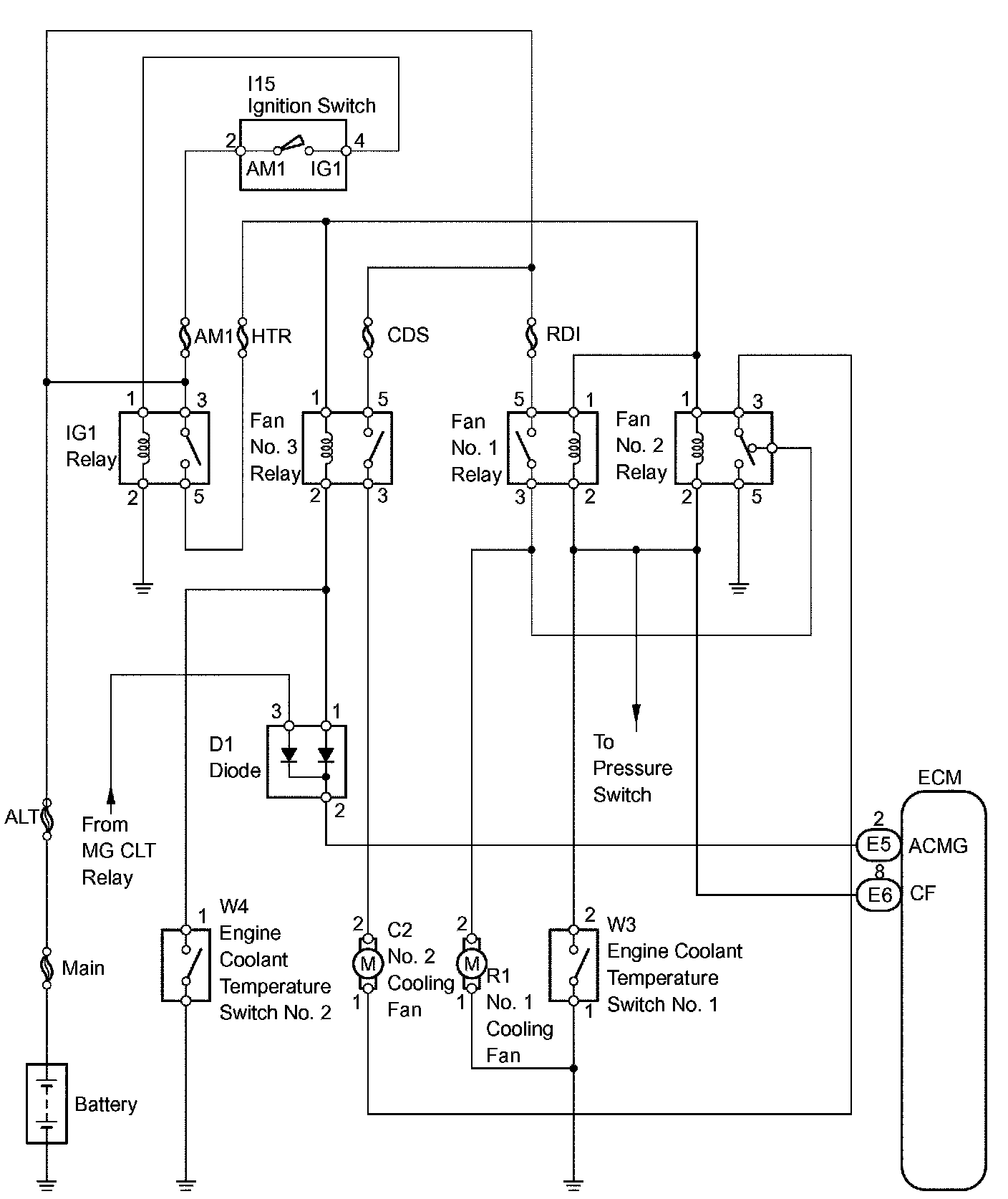

SYSTEM DIAGRAM





The electric cooling fan system controls the fan motors using the 2 Engine Coolant Temperature (ECT) switches, and turns the 3 fan relays on and off according to the ECT and the air conditioner's operating condition.
