System Diagram
System Diagram

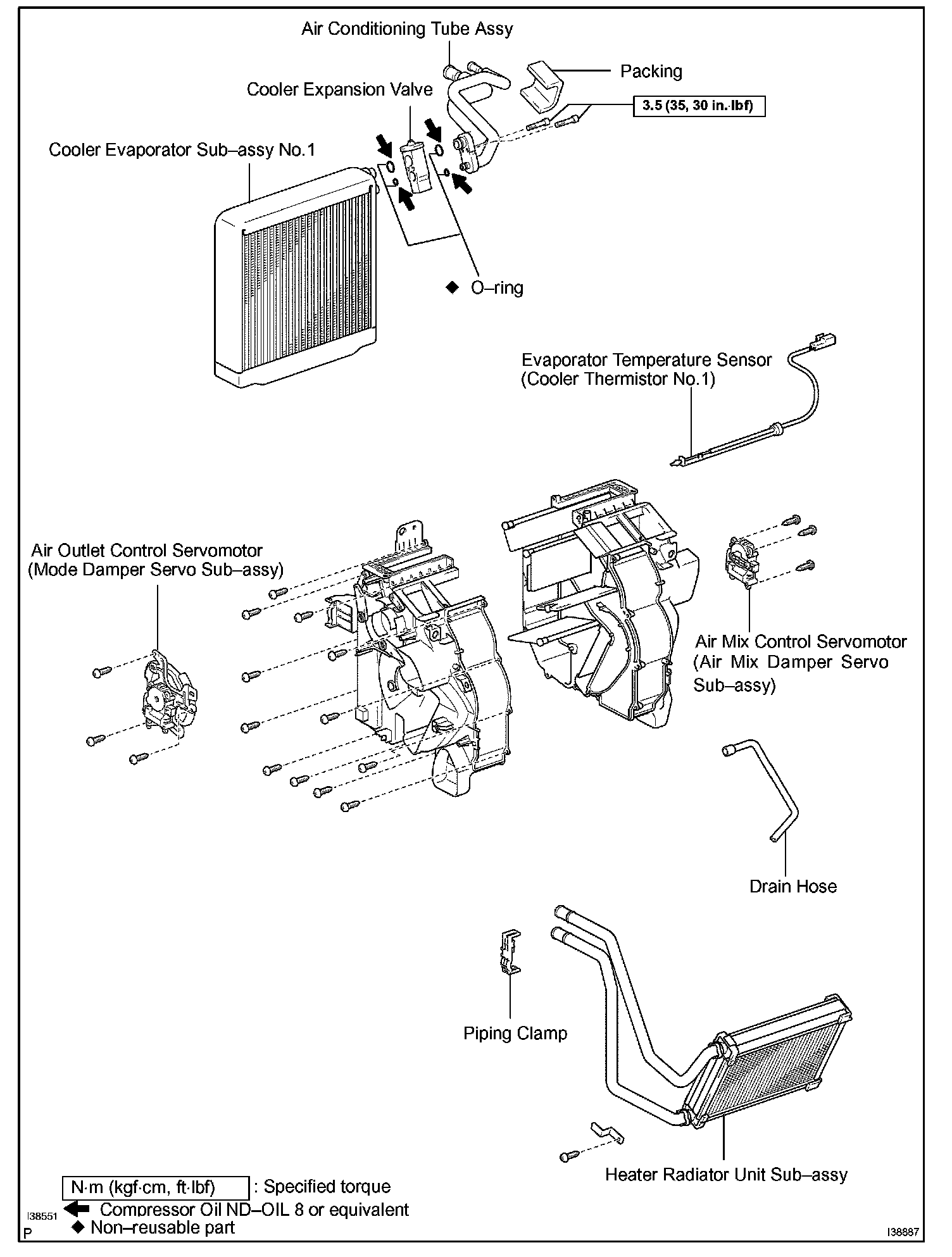

Air Conditioning Radiator Assy - Part 1:

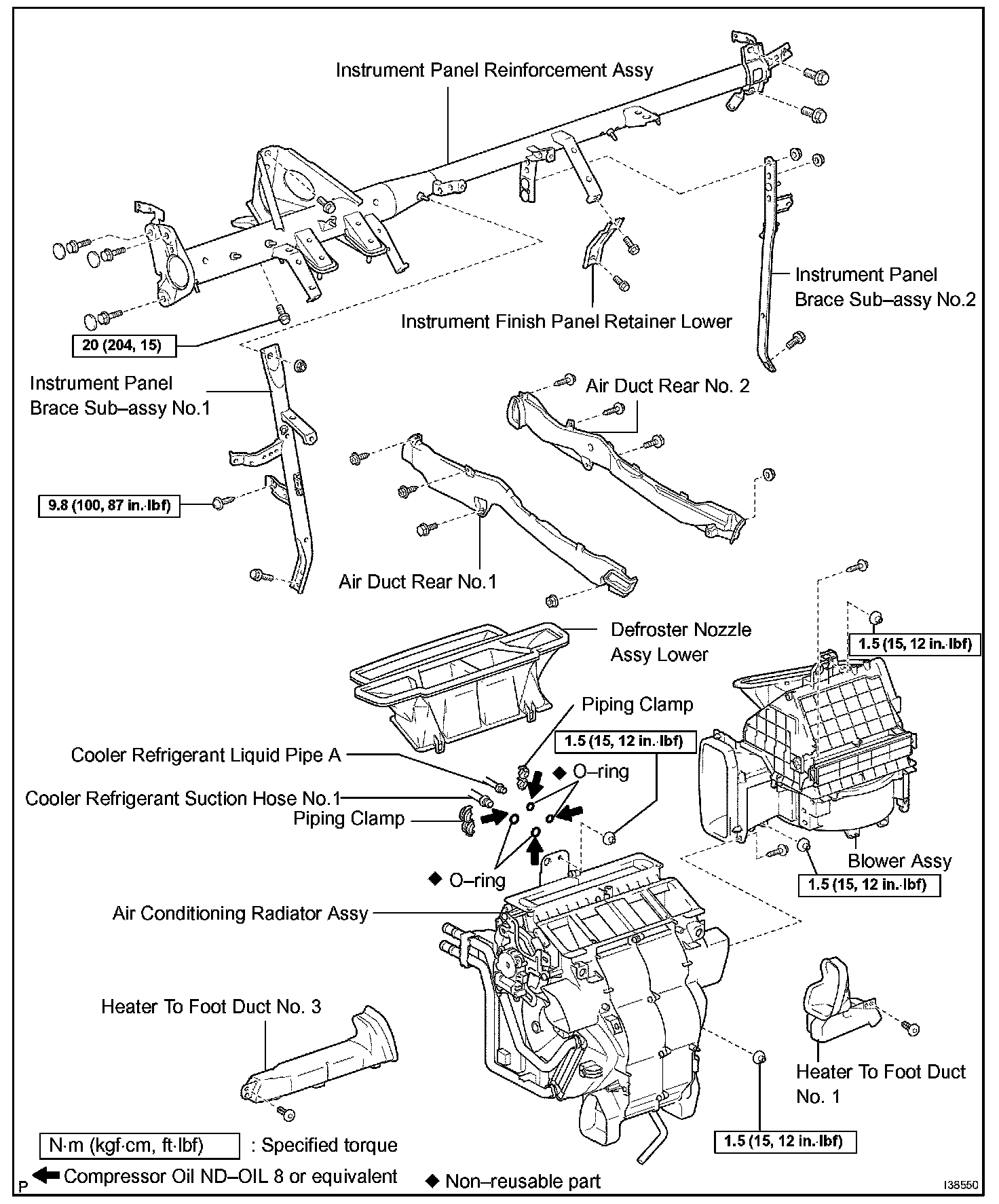

Air Conditioning Radiator Assy - Part 2:
