Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Solara V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Seat Belt >> Front Seat Belt (Coupe)

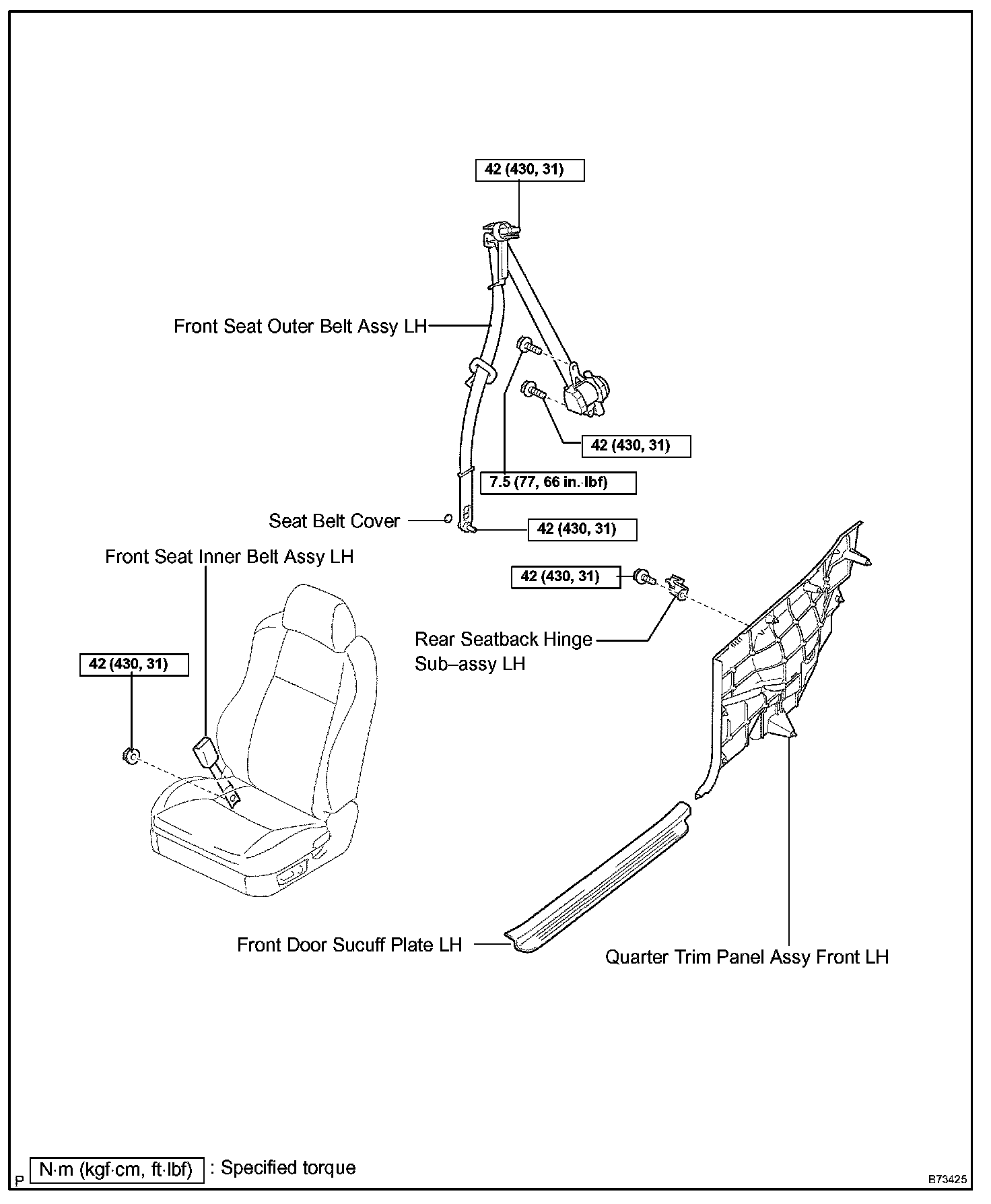

Front Seat Belt (Coupe)

Front Seat Belt (Coupe):
