PARTIAL ENGINE ASSY
REPLACEMENT
121. INSTALL SPEED SENSOR FRONT RH
HINT: Use the same procedures described for the LH side.
122. INSTALL FRONT AXLE HUB LH NUT
a) Using a 30 mm socket wrench, install a new hub nut.
Torque: 294 Nm (2,998 kgf-cm, 217 ft. lbs.)

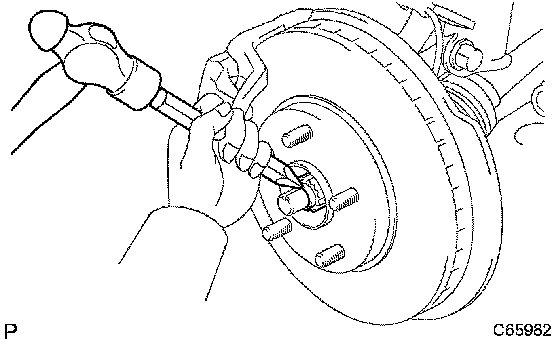

b) Using a chisel and hammer, tapped the hub nut.
123. INSTALL FRONT AXLE HUB RH NUT
HINT: Use the same procedures described for the LH side.
124. INSTALL FRONT STABILIZER LINK ASSY LH
a) Using a 6 mm socket hexagon wrench, hold the ball stud and install the nut.
Torque: 74 Nm (755 kgf-cm, 55 ft. lbs.)
125. INSTALL FRONT STABILIZER LINK ASSY RH
HINT: Use the same procedures described for the LH side.
126. INSTALL EXHAUST PIPE ASSY FRONT
127. INSTALL EXHAUST PIPE NO.1 SUPPORT BRACKET
128. CONNECT FUEL PIPE SUB-ASSY NO.1

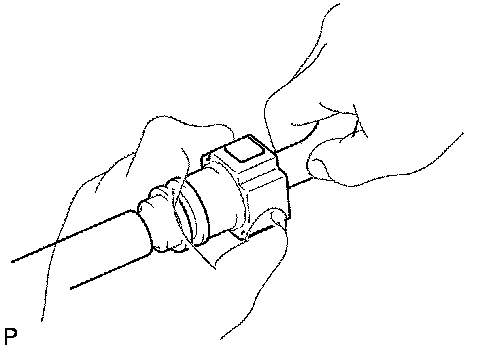

a) Push in the fuel tube connector to the fuel pipe until connector makes a "click" sound.
NOTICE:
^ Check for damage or contamination on the connected Pi of the pipe.
^ After having finished the connection, check if the pipe and the connector are securely connected by trying to pull them apart.
b) Install the fuel pipe clamp.
129. INSTALL AIR CLEANER ASSEMBLY WITH HOSE

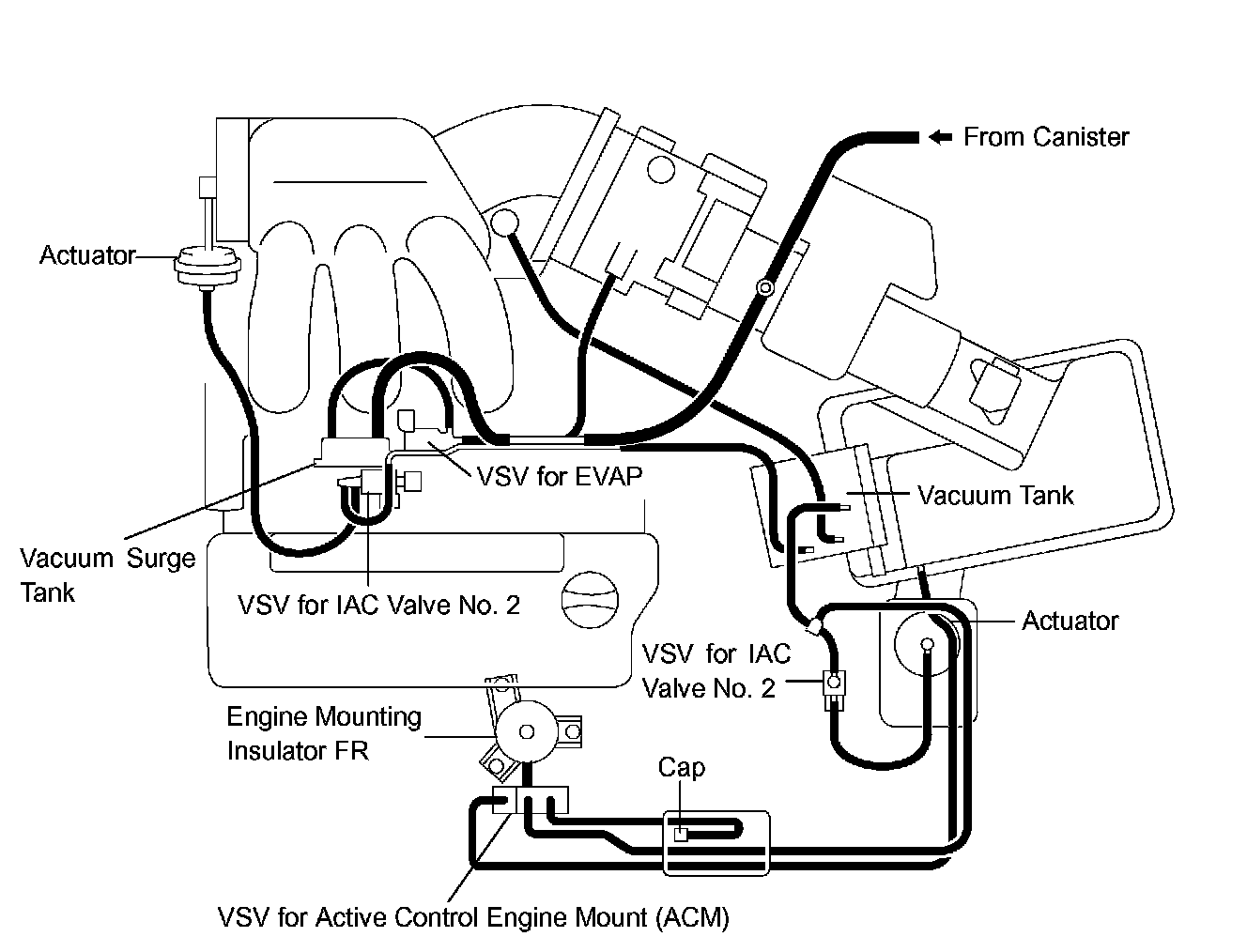

130. CONNECT VACUUM HOSES
131. INSTALL V-BANK COVER SUB-ASSY
a) Fit the 2 retainers and install the V-bank cover.
b) Using a 5 mm socket hexagon wrench, tighten the 3 nuts.
Torque: 7.9 Nm (81 kgf-cm. 70 inch lbs.)

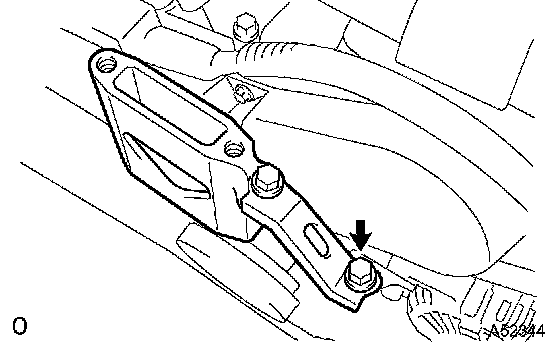

132. INSTALL ENGINE MOUNTING STAY NO. 2 RH
a) Install the mounting stay and mounting bracket with the bolt.
Torque: 64 Nm (653 kgf-cm, 47 ft. lbs.)

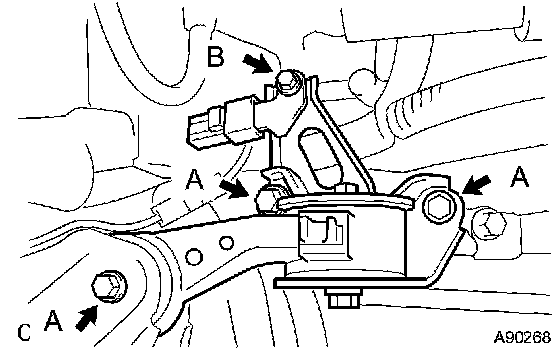

133. INSTALL ENGINE MOVING CONTROL ROD
a) Install the control rod and bracket with the 4 bolts.
Torque:
64 Nm (653 kgf-cm, 47 ft. lbs.) for bolt A
23 Nm (235 kgf-cm, 17 ft. lbs.) for bolt B
134. INSTALL VANE PUMP V BELT
135. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO.1
136. INSPECT DRIVE BELT TENSION
137. INSTALL FRONT WHEELS
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
138. ADD AUTOMATIC TRANSAXLE FLUID
139. ADD ENGINE OIL
140. ADD ENGINE COOLANT
141. ADD POWER STEERING FLUID
142. BLEED POWER STEERING FLUID
143. INSPECT OIL LEAK
144. CHECK FOR ENGINE COOLANT LEAKS
145. INSPECT FOR FUEL LEAKS
146. CHECK FOR EXHAUST GAS LEAKS
147. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
148. INSPECT IGNITION TIMING
149. INSPECT ENGINE IDLE SPEED
150. INSPECT CO/HC
151. CHECK ABS SPEED SENSOR SIGNAL
