Overhaul

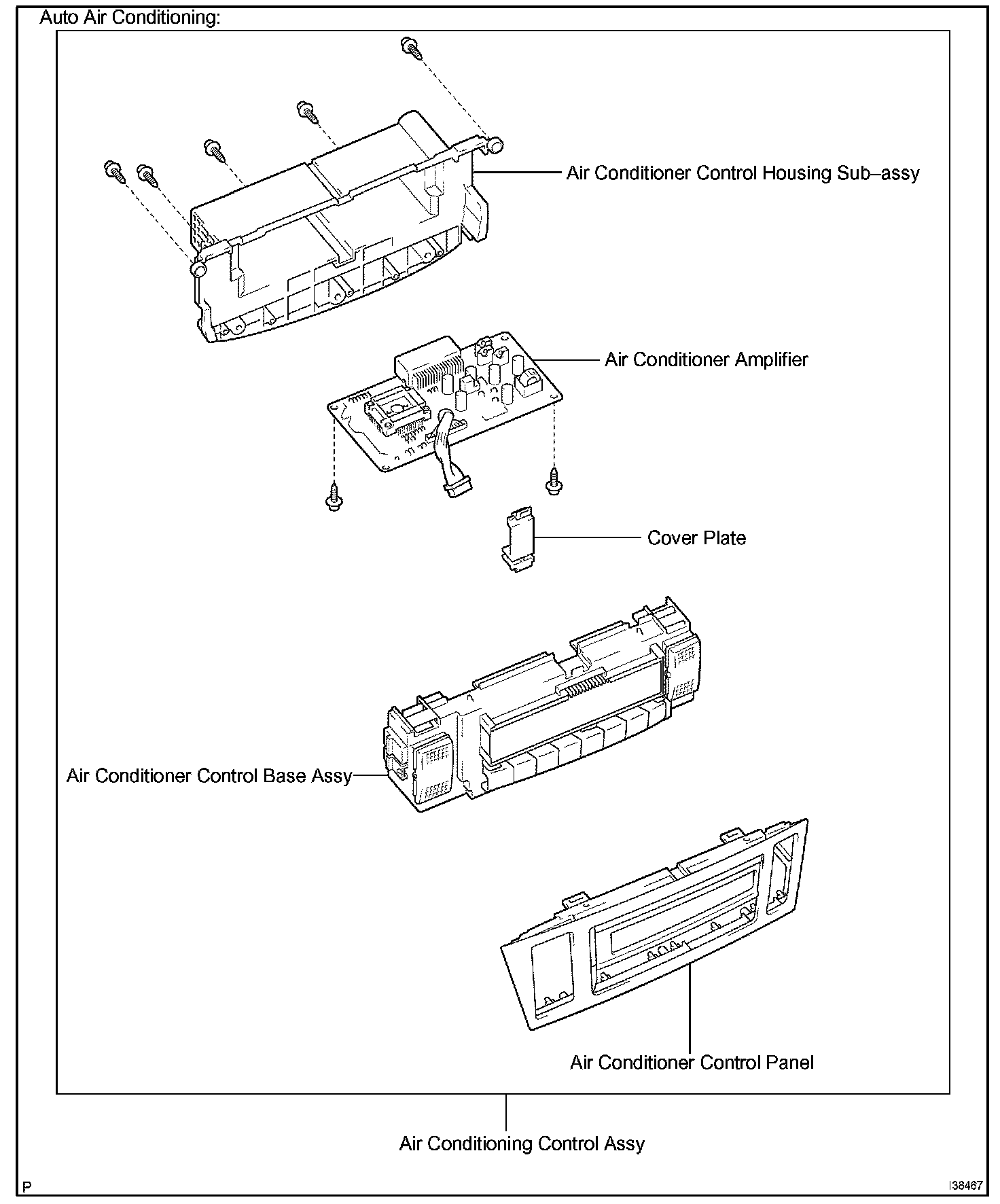

Air Conditioning Control Assy:






OVERHAUL

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL LOWER
2. REMOVE INSTRUMENT PANEL FINISH PLATE
3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
4. REMOVE INSTRUMENT PANEL REGISTER ASSY NO.1
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY
6. REMOVE COMBINATION METER ASSY
7. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSY
8. REMOVE CONSOLE PANEL SUB-ASSY UPPER
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
10. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY (W/O NAVIGATION SYSTEM)
11. REMOVE CENTER CLUSTER INTEGRATION PANEL ASSY (W/ NAVIGATION SYSTEM)




12. REMOVE AIR CONDITIONING CONTROL ASSY

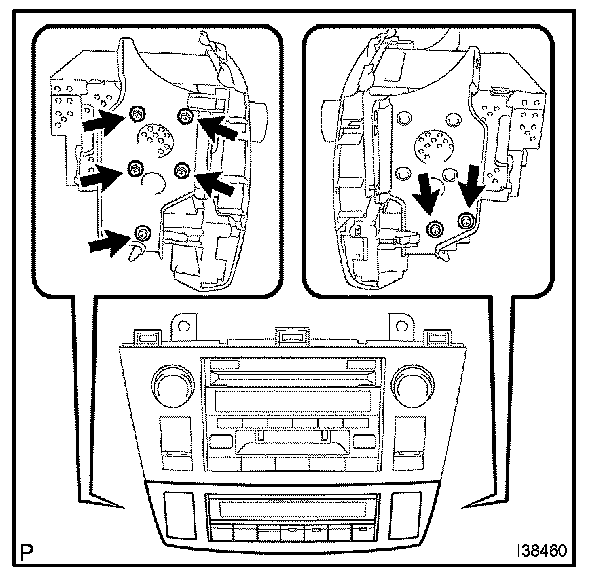

a. Remove the 4 bolts, 3 screws and air conditioning control assy.




13. REMOVE AIRCONDITIONER AMPLIFIER ASSY

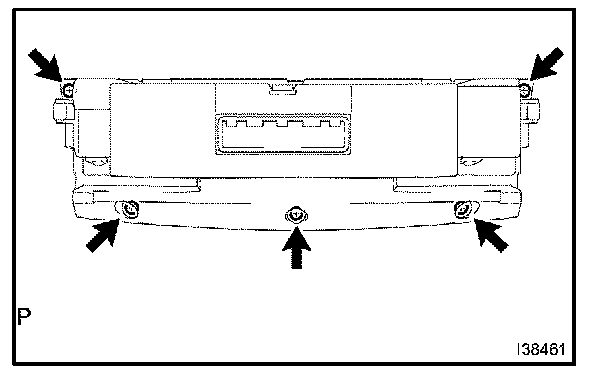

a. Remove the 5 screws.

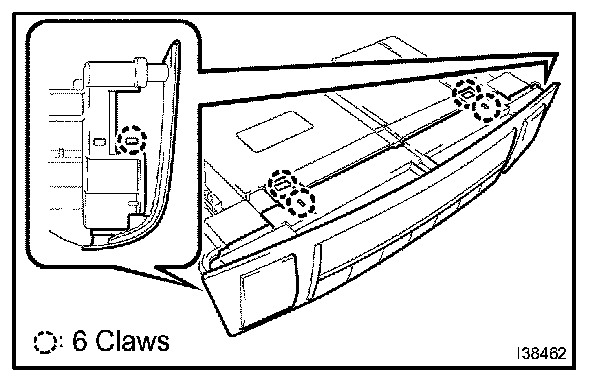

b. Release the 6 fitting claws and remove the air conditioner control panel.

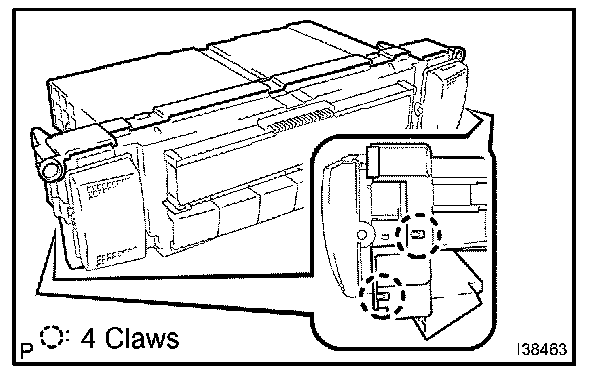

c. Release the 4 fitting claws.

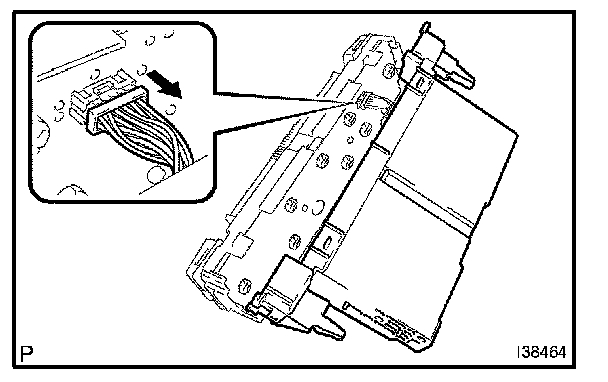

d. Disconnect the connector and remove the air conditioner control housing sub-assy.




e. Release the 2 fitting claws and remove the cover plate.

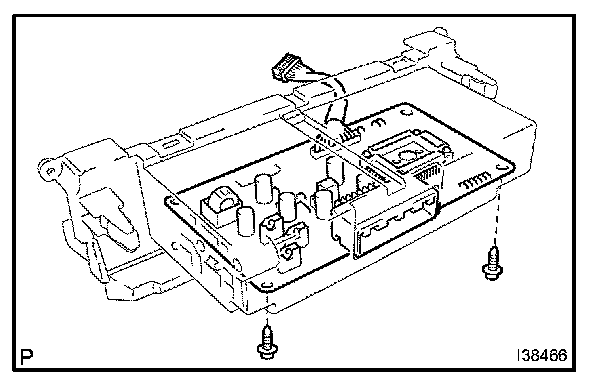

f. Remove the 2 screws and air conditioner amplifier.
