Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminal Of ECU/Pinouts - Check Instrument Panel J/B Assy (Multiplex Network Body ECU):

CHECK INSTRUMENT PANEL J/B ASSY (MULTIPLEX NETWORK BODY ECU)

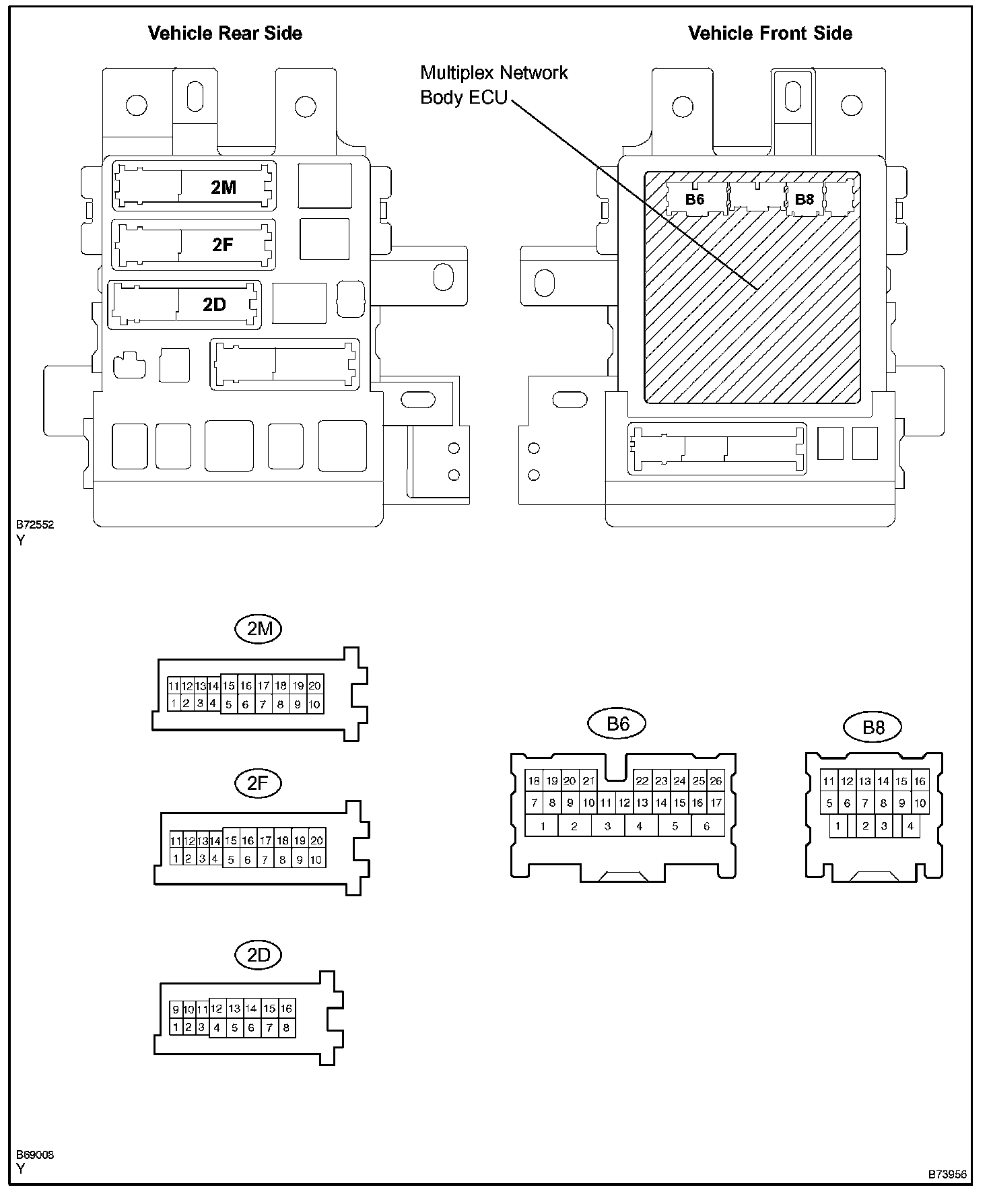

a. Disconnect the 2D, 2F and 2M J/B, B6 and B8 ECU connectors.
b. Measure the voltage and resistance of the wire harness side connectors.

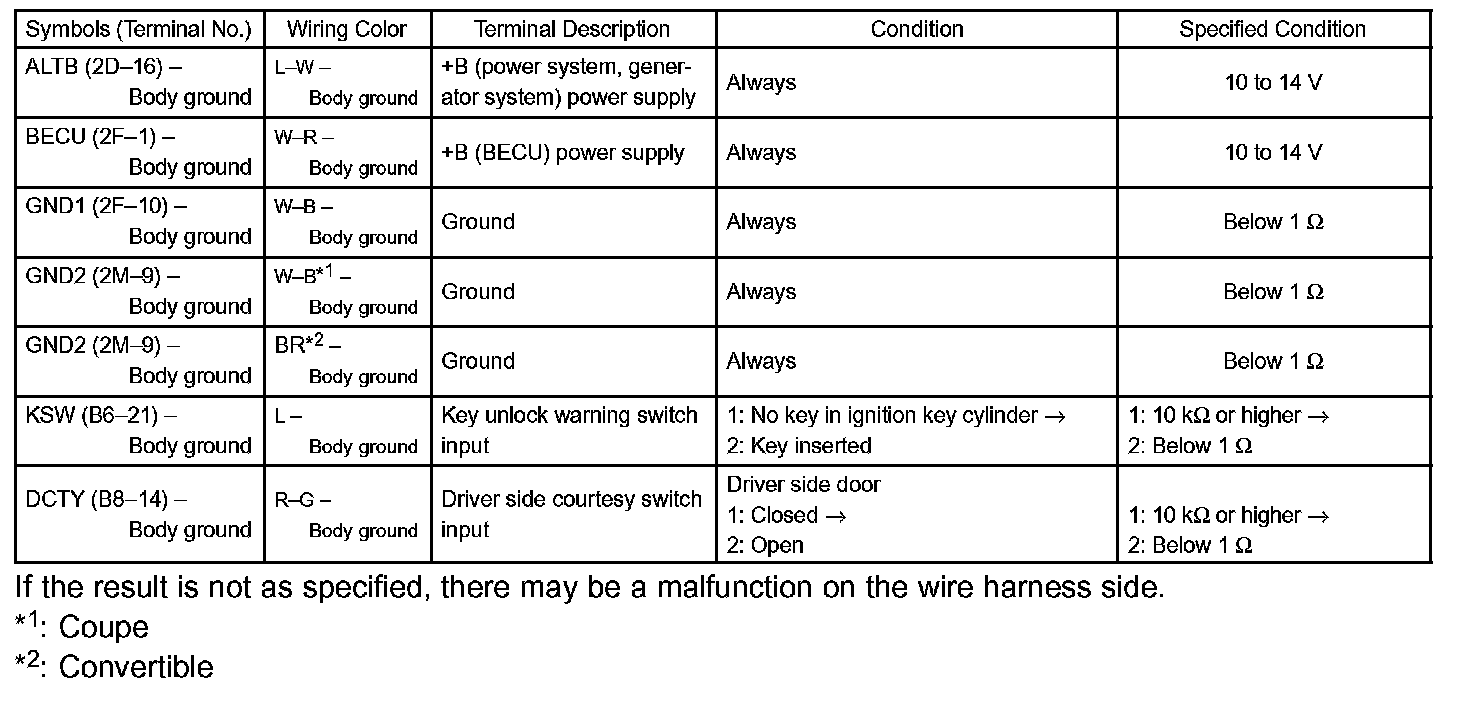

Standard:
