Light Control Rheostat Does Not Change Light Brightness
OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS

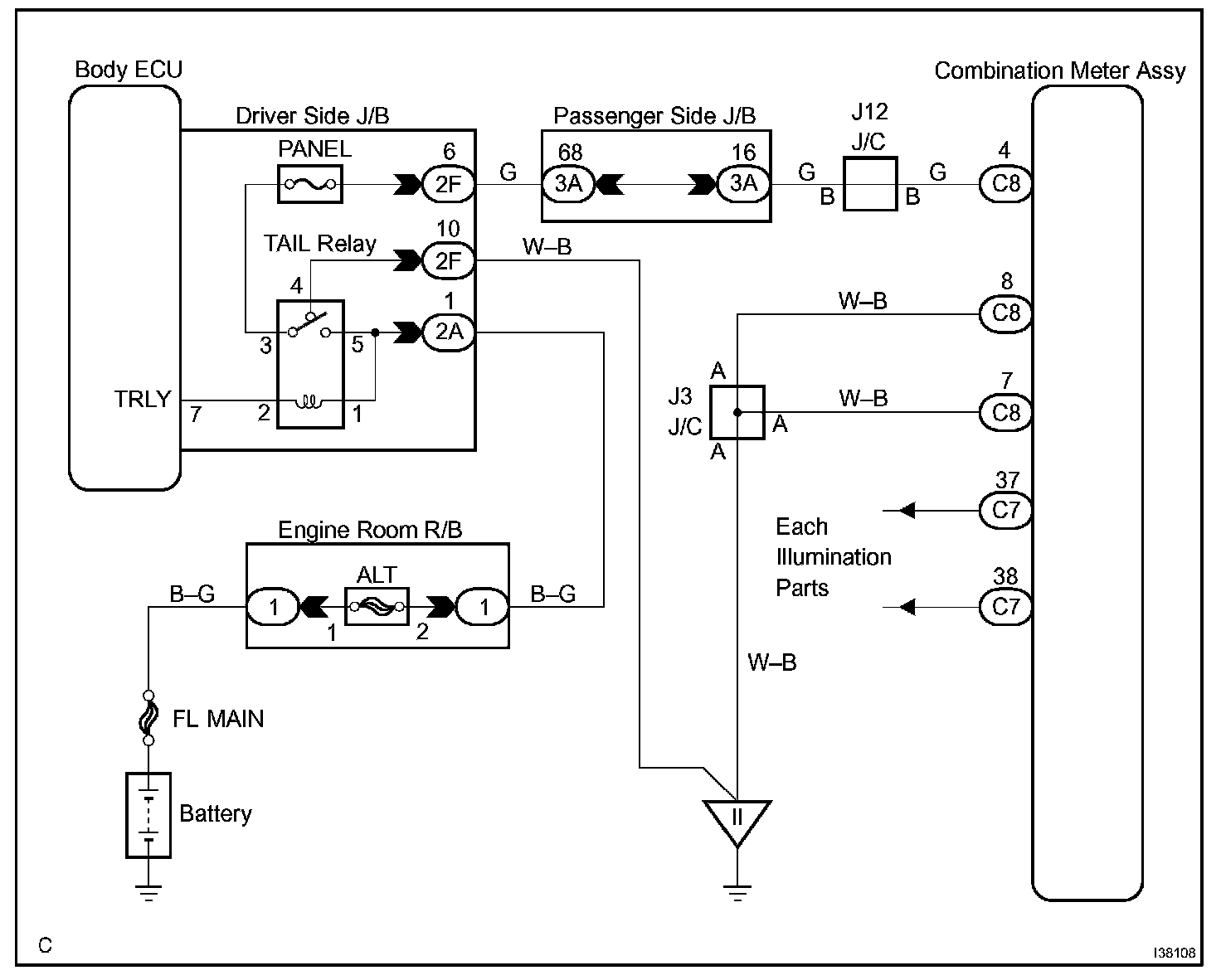

Wiring Diagram:

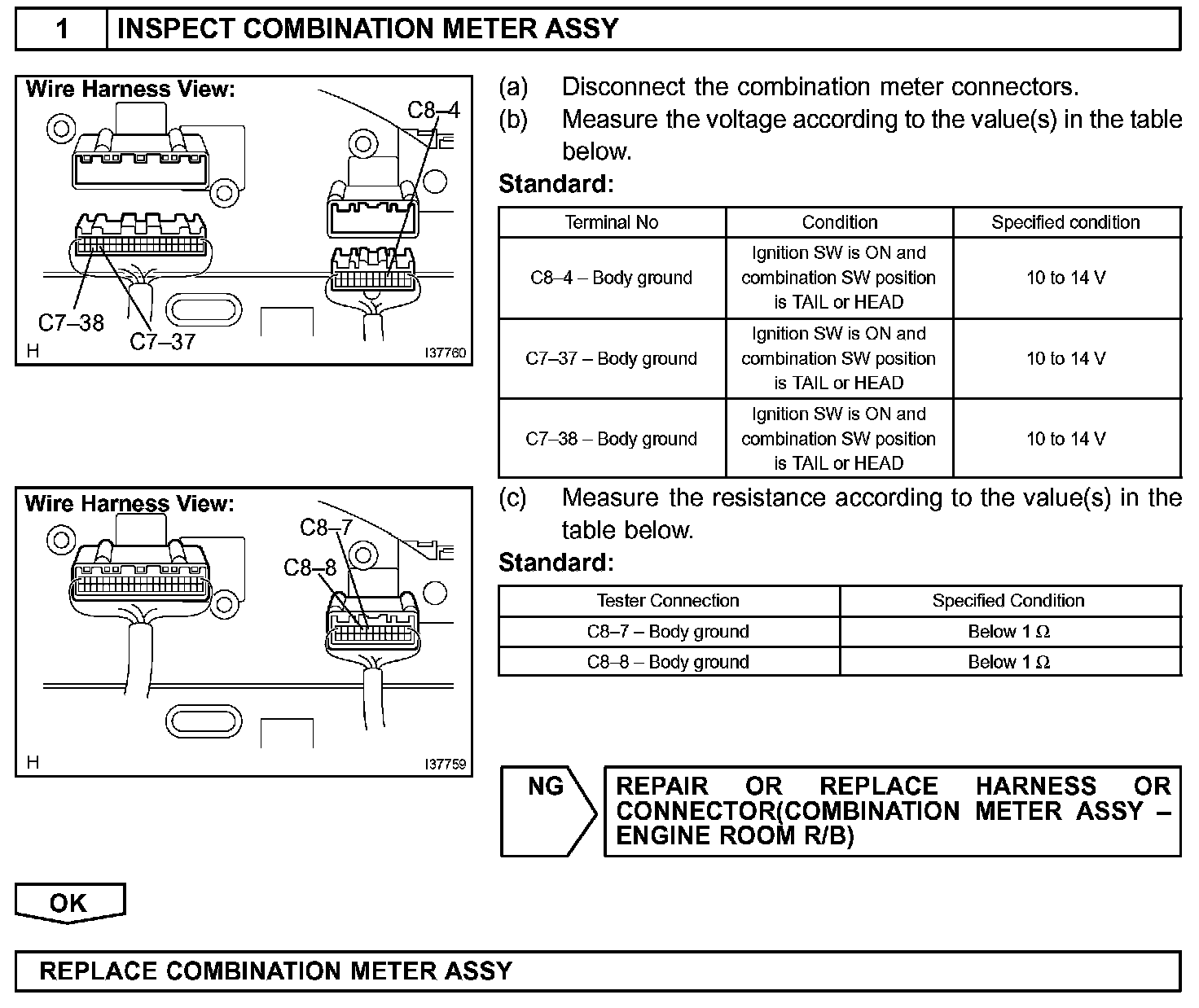

Step 1:
INSPECTION PROCEDURE
