No Seat Belt Warning Lamp For Front Passenger's Seat

SEAT BELT WARNING LAMP FOR FRONT PASSENGER'S SEAT DOES NOT OPERATE

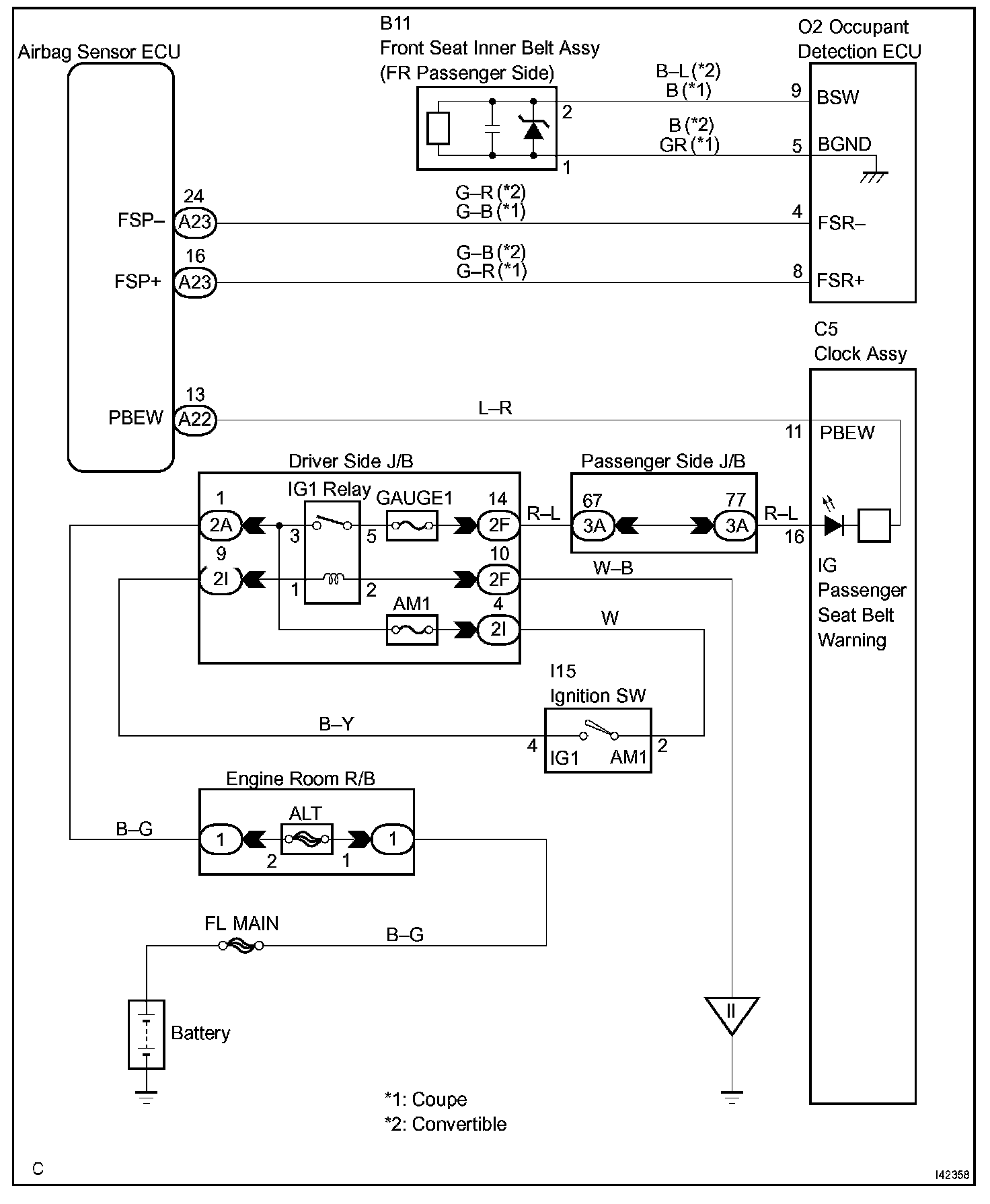

Wiring Diagram:

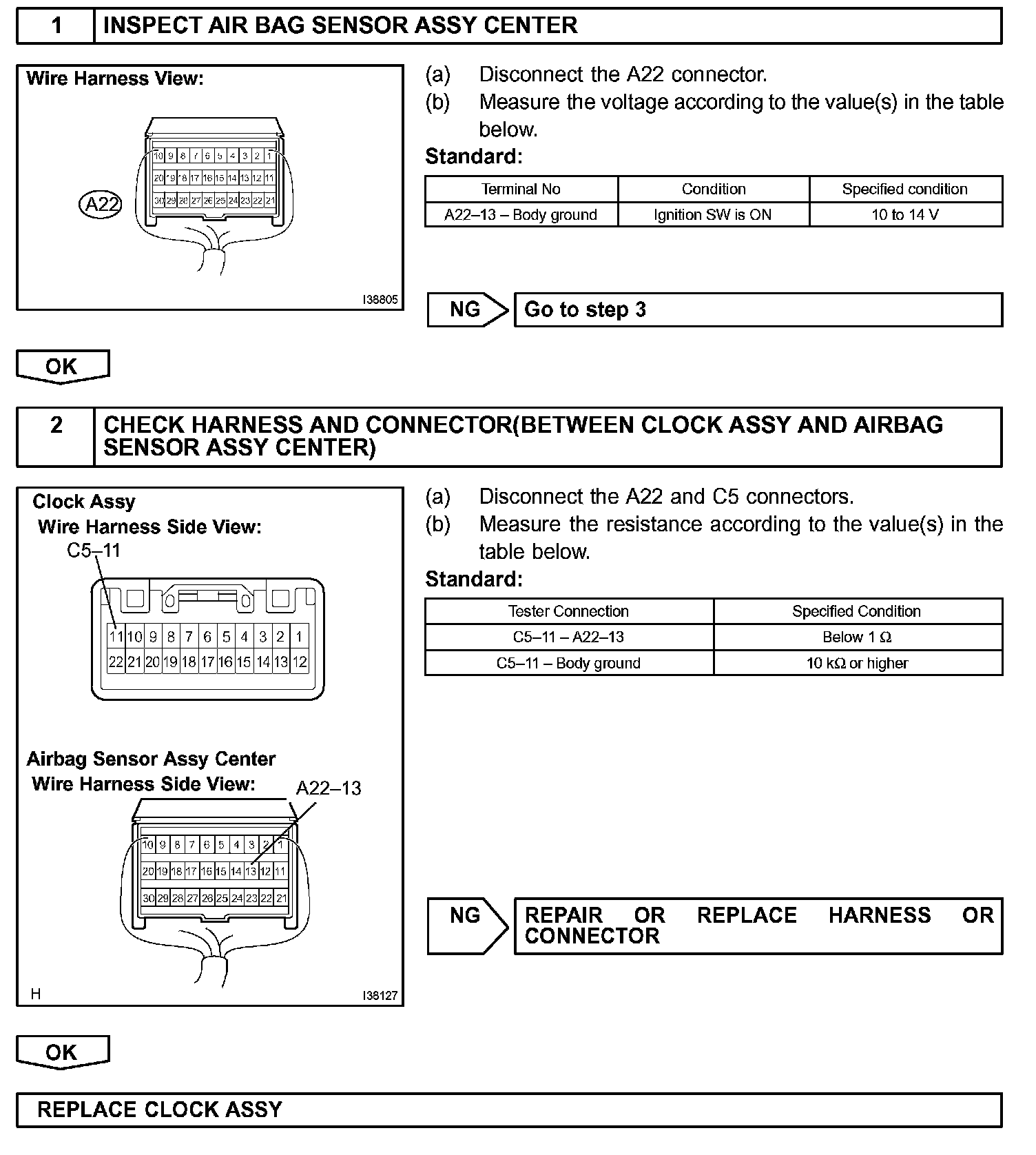

Step 1 - 2:

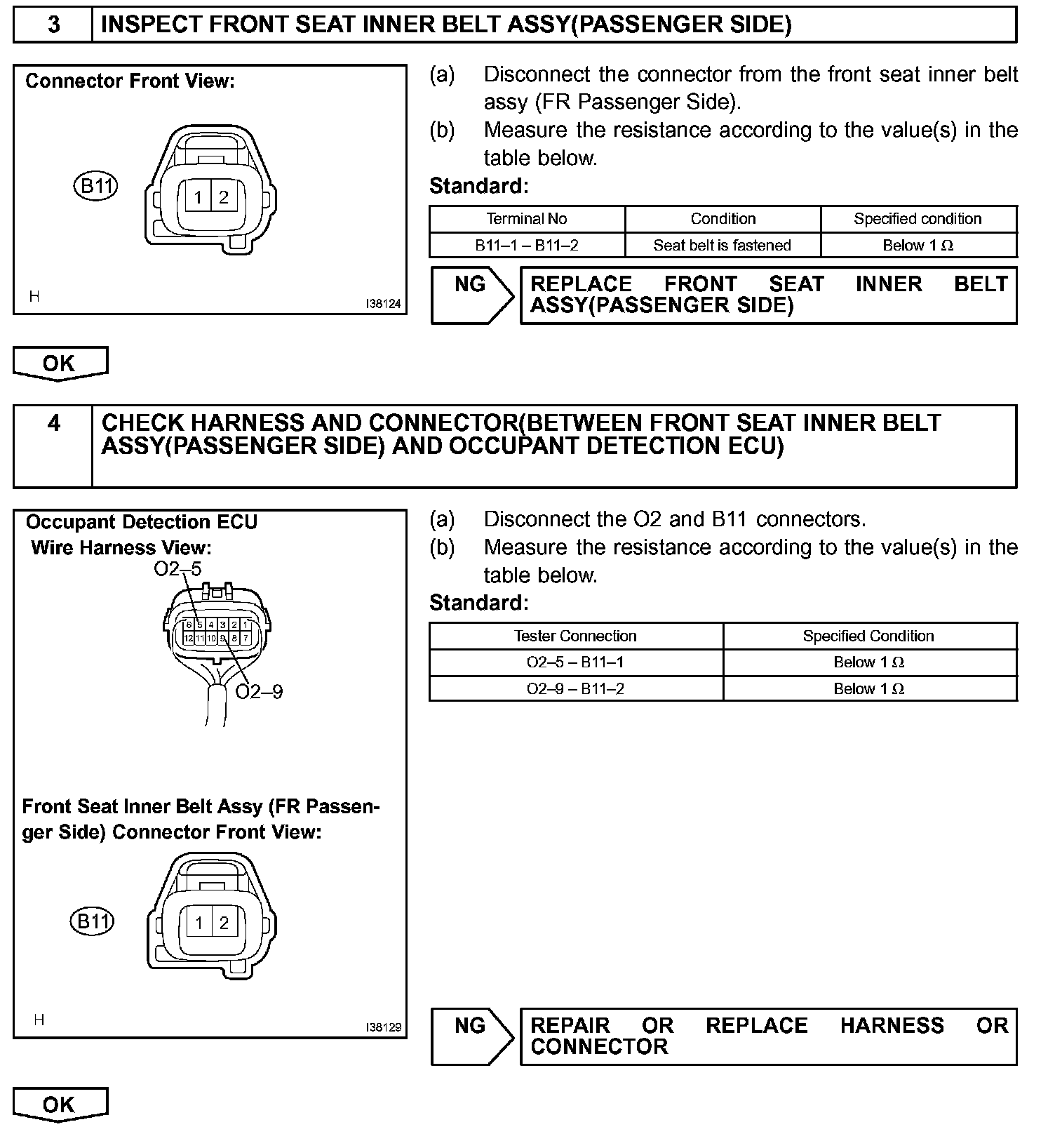

Step 3 - 4:

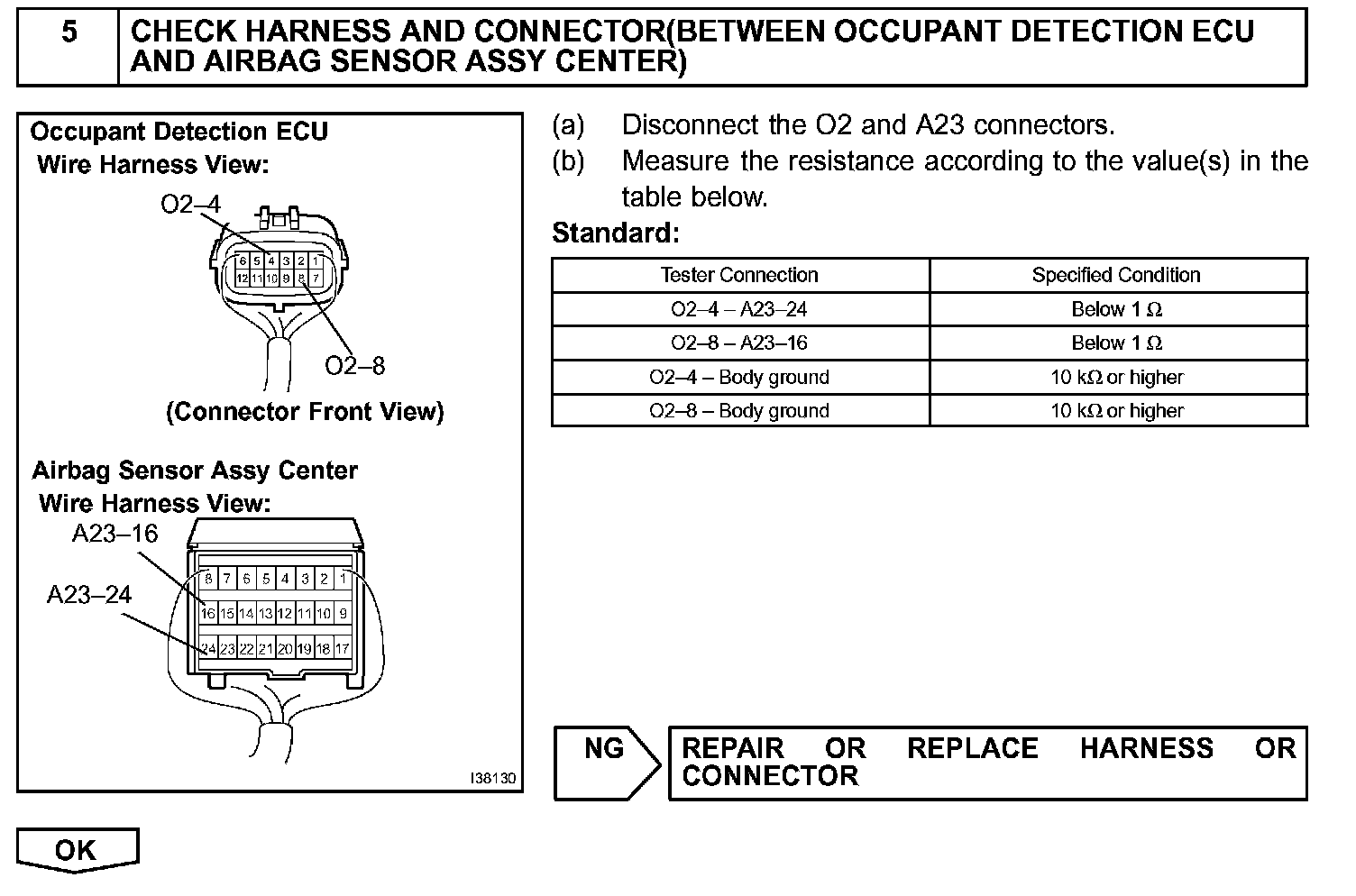

Step 5:

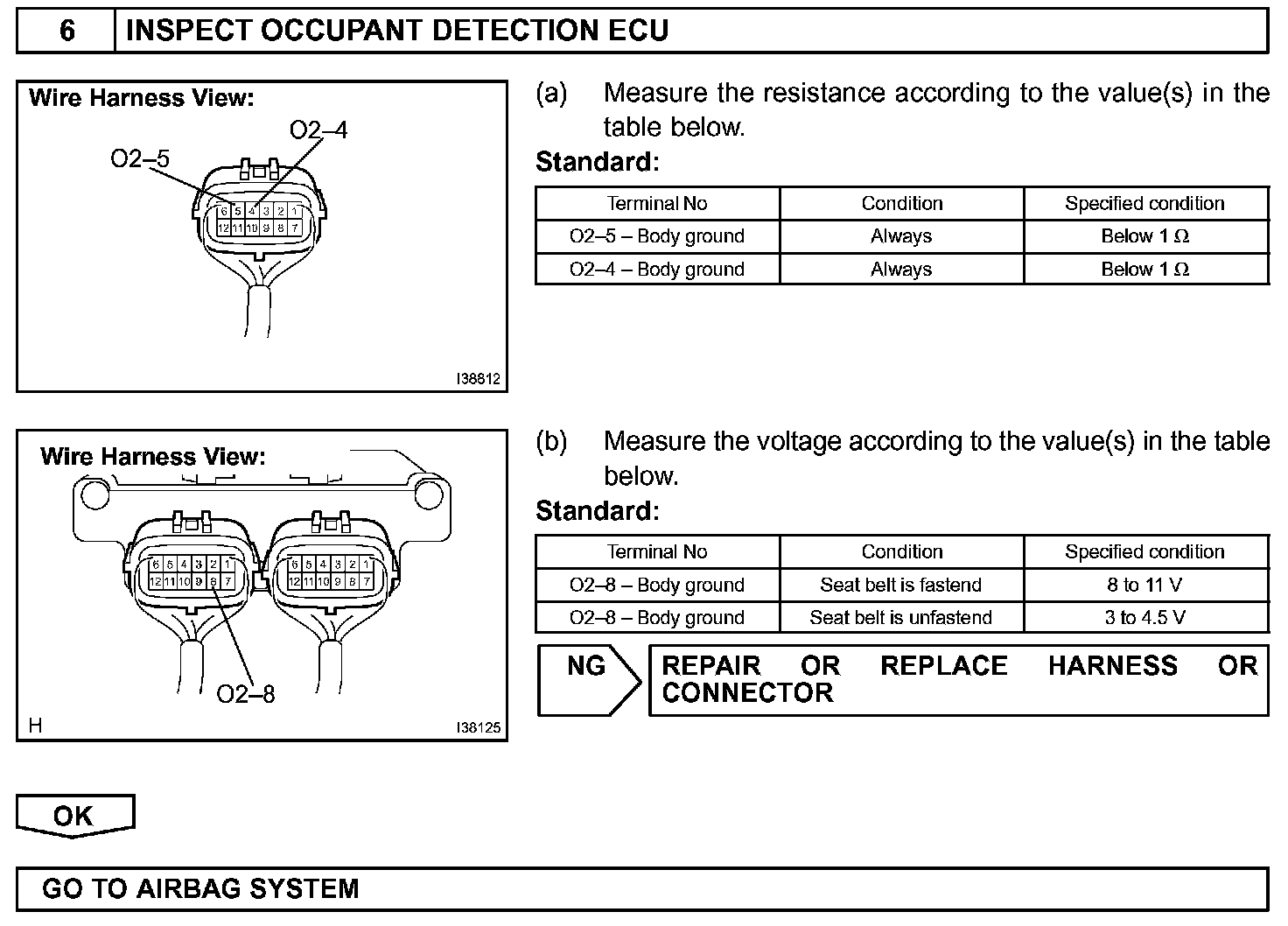

Step 6:

INSPECTION PROCEDURE

HINT: If there is an open in the ground circuit (Airbag sensor ECU), the airbag sensor ECU outputs DTCs. Perform troubleshooting with the "Supplemental Restraint System".
