Warning Buzzer Does Not Sound
WARNING BUZZER DOES NOT SOUND

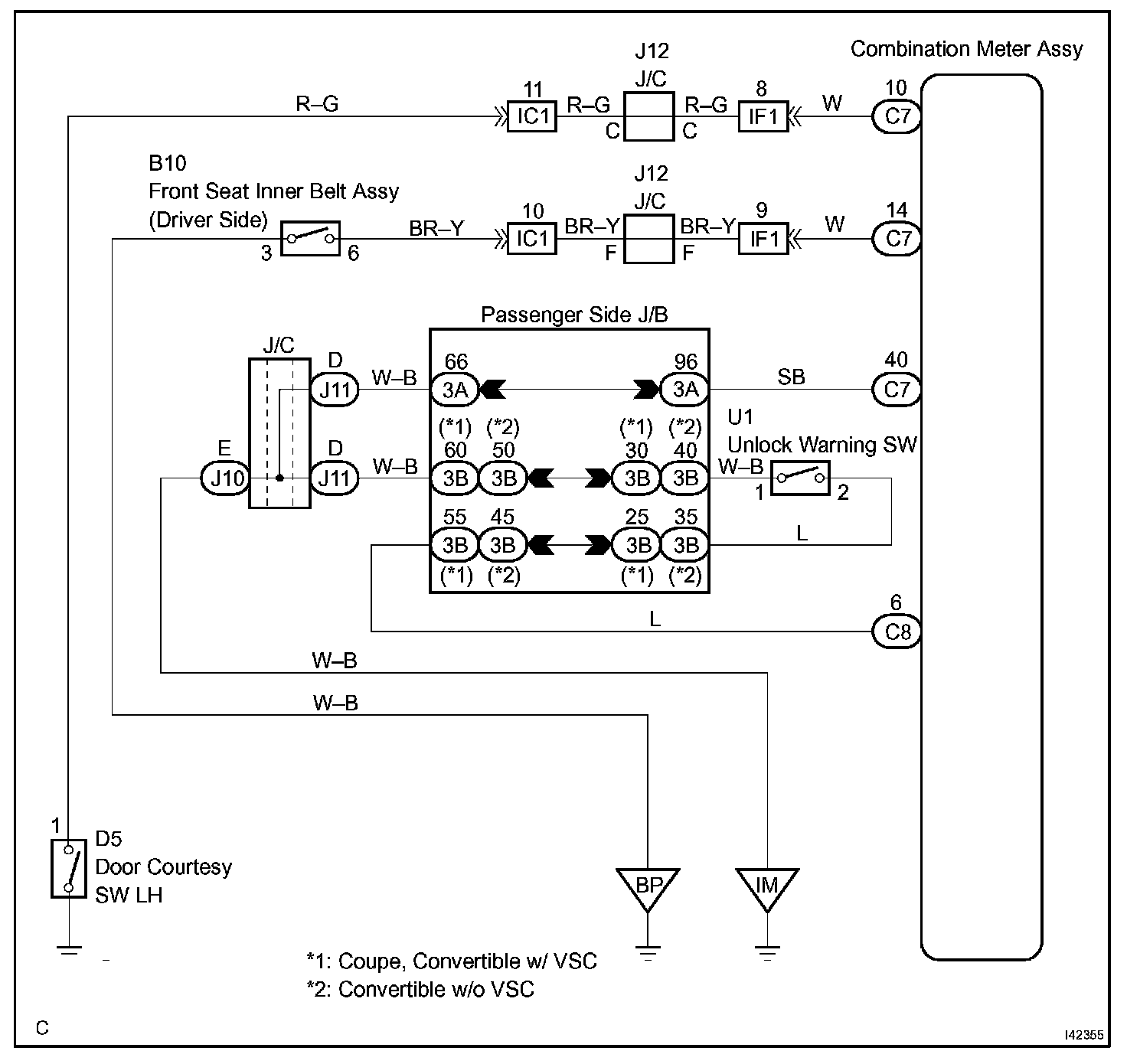

Wiring Diagram:

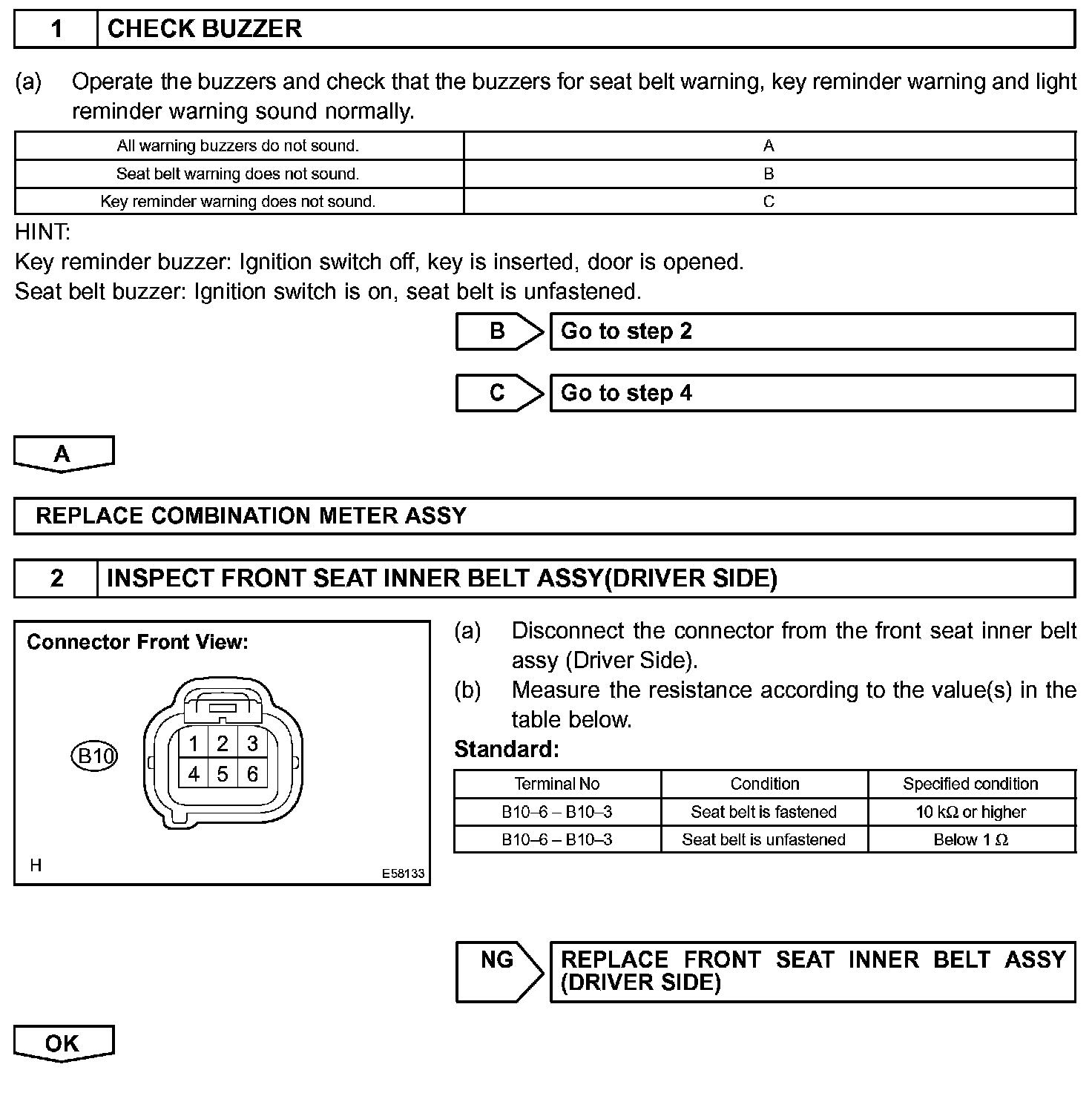

Step 1 - 2:

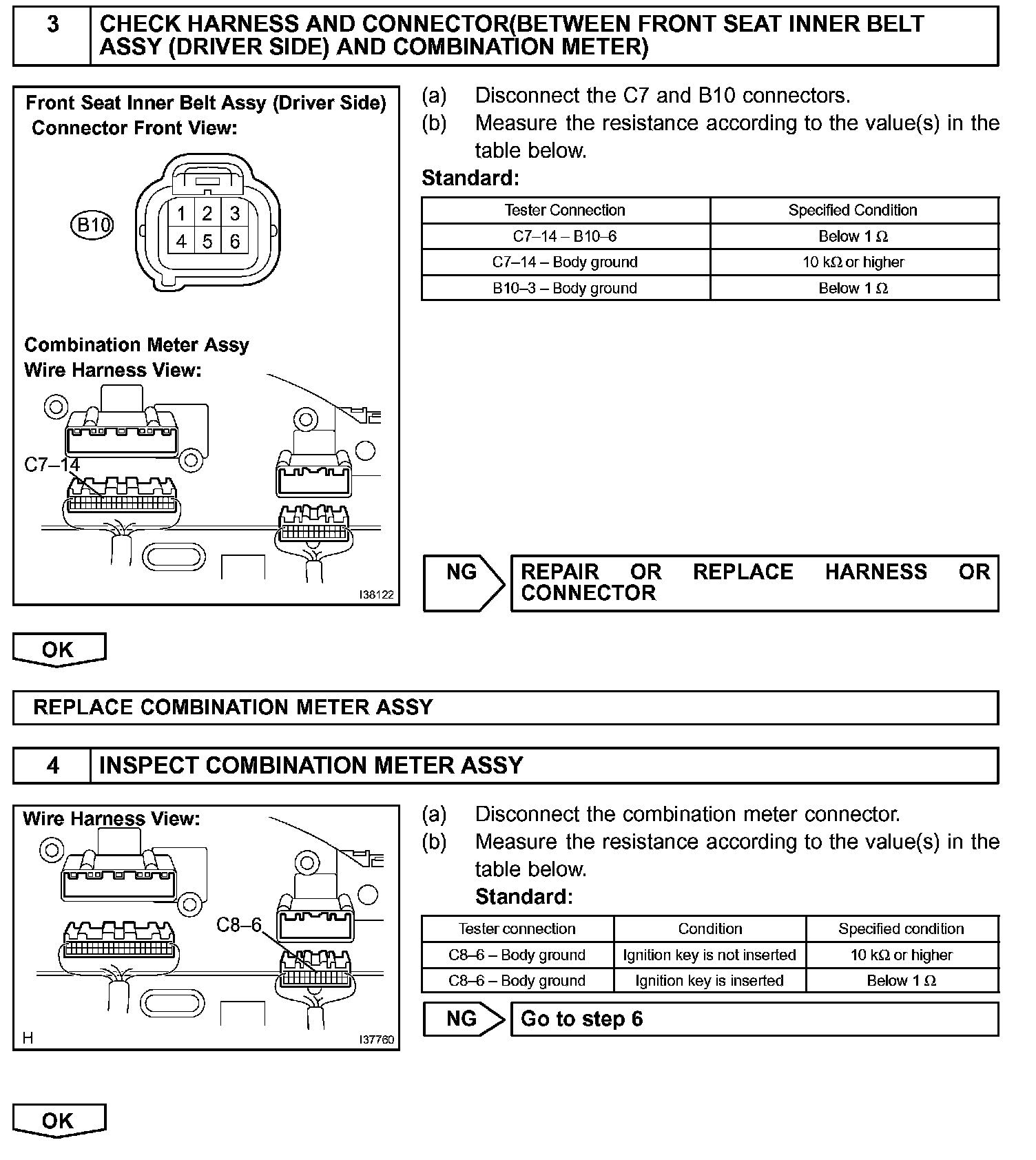

Step 3 - 4:
Step 5 - 7:
INSPECTION PROCEDURE
