Parking Brake Switch Circuit

PARKING BRAKE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The multiplex network body ECU receives the parking brake switch signal.

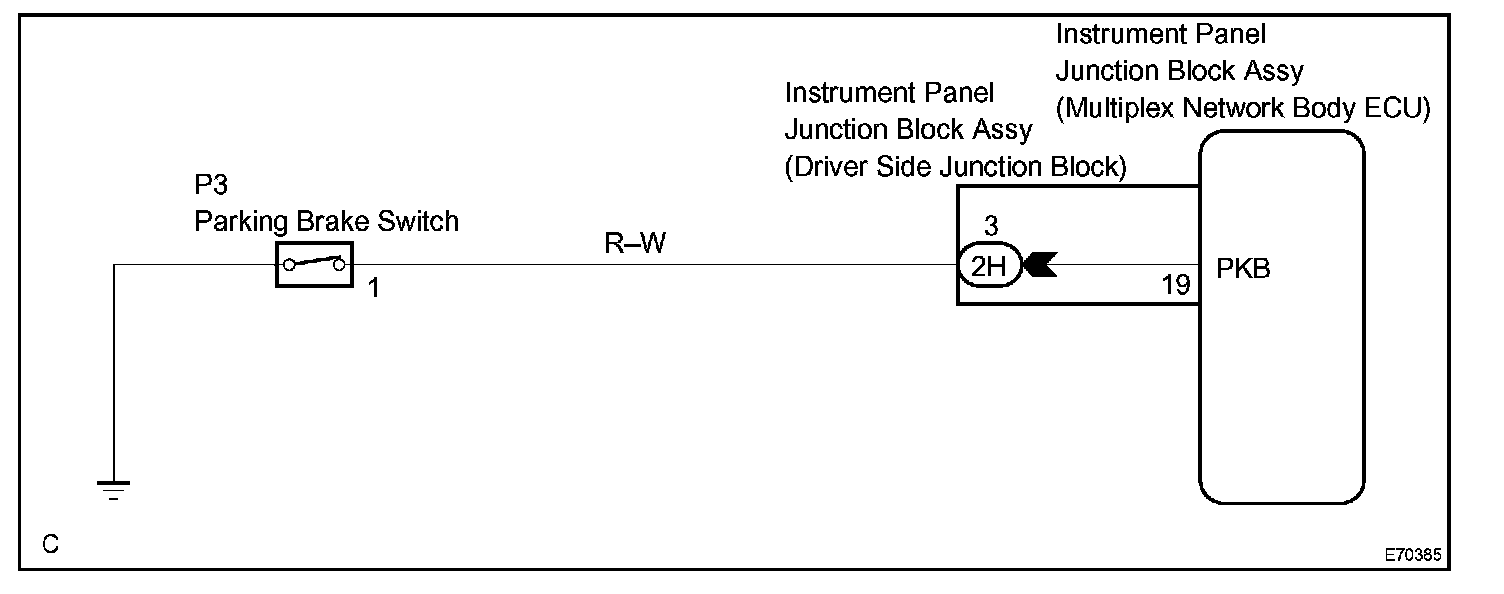

Wiring Diagram:






Step 1:

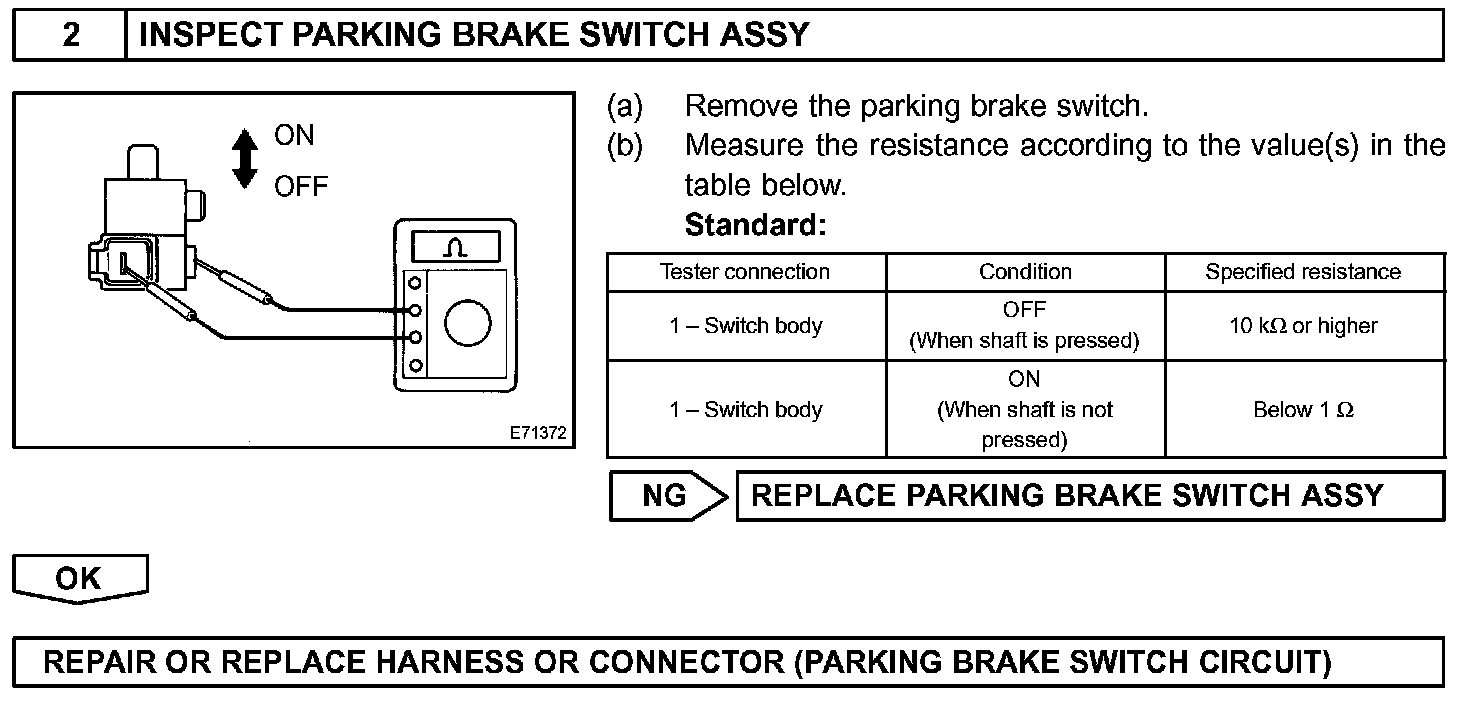

Step 2:




INSPECTION PROCEDURE
