Stop Lamp Switch Circuit

STOP LAMP SWITCH CIRCUIT

CIRCUIT DESCRIPTION

When the stop lamp switch is ON (brake pedal depressed), the skid control ECU suspends the tire pressure warning system.

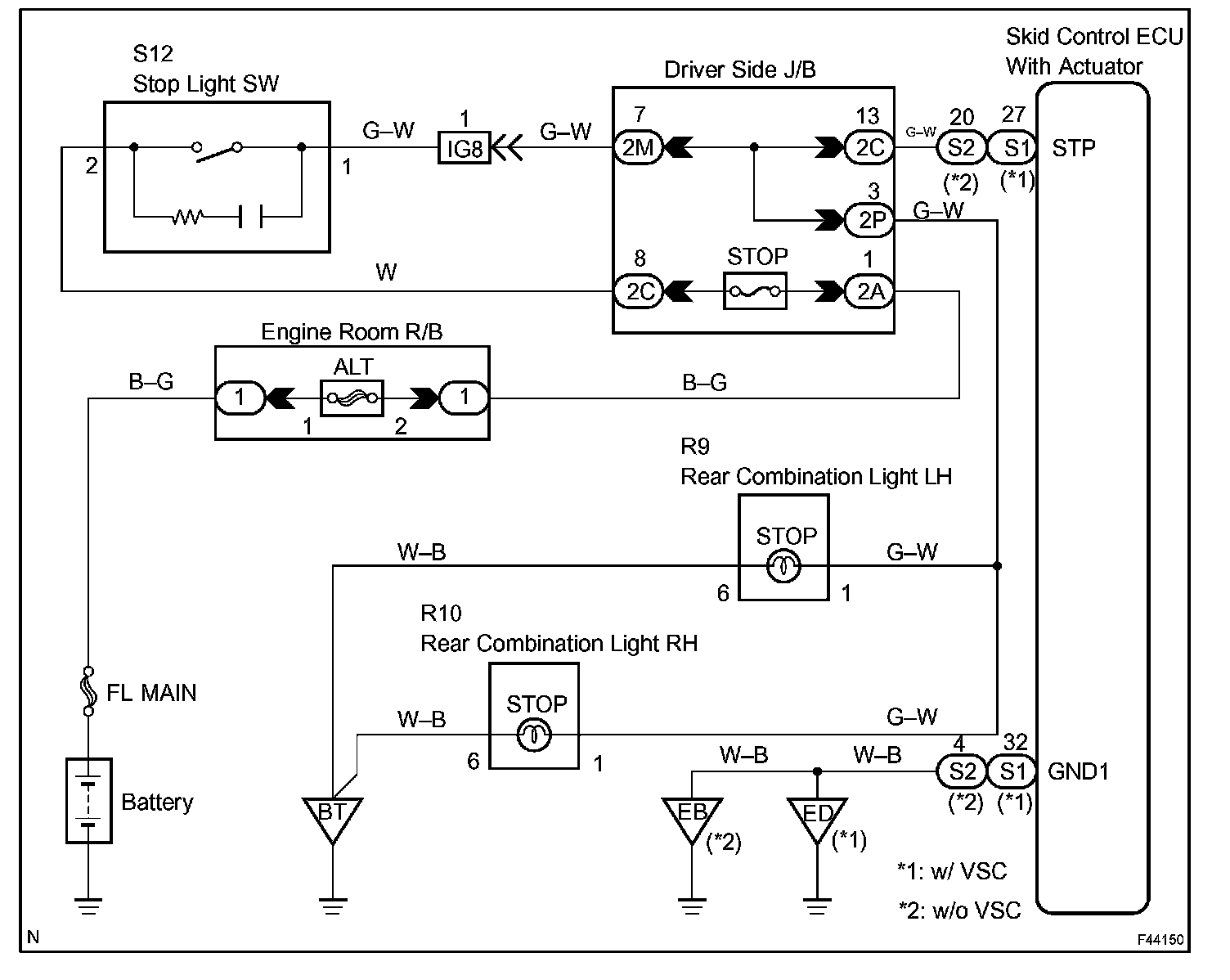

Wiring Diagram:

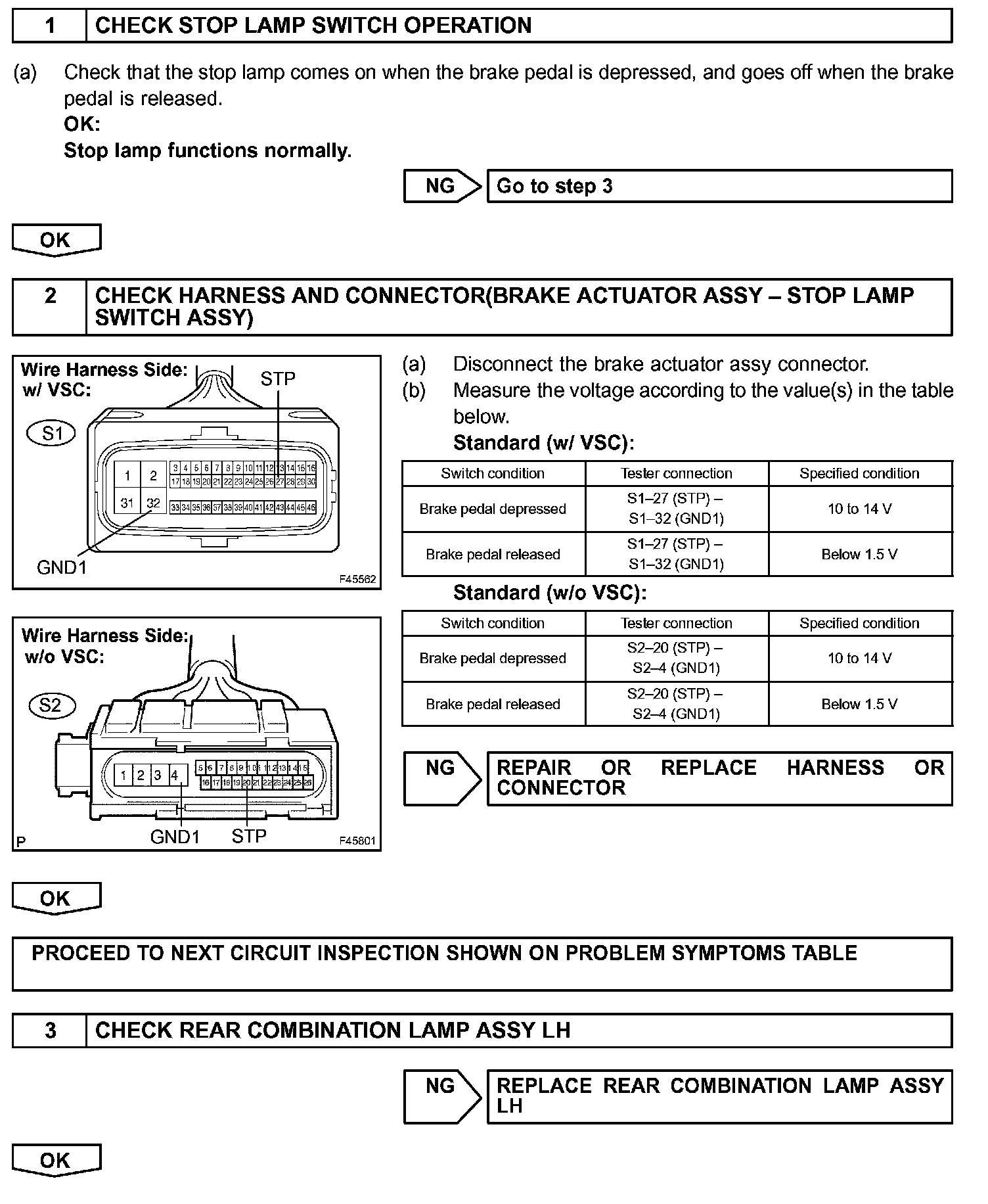

Step 1 - 3:

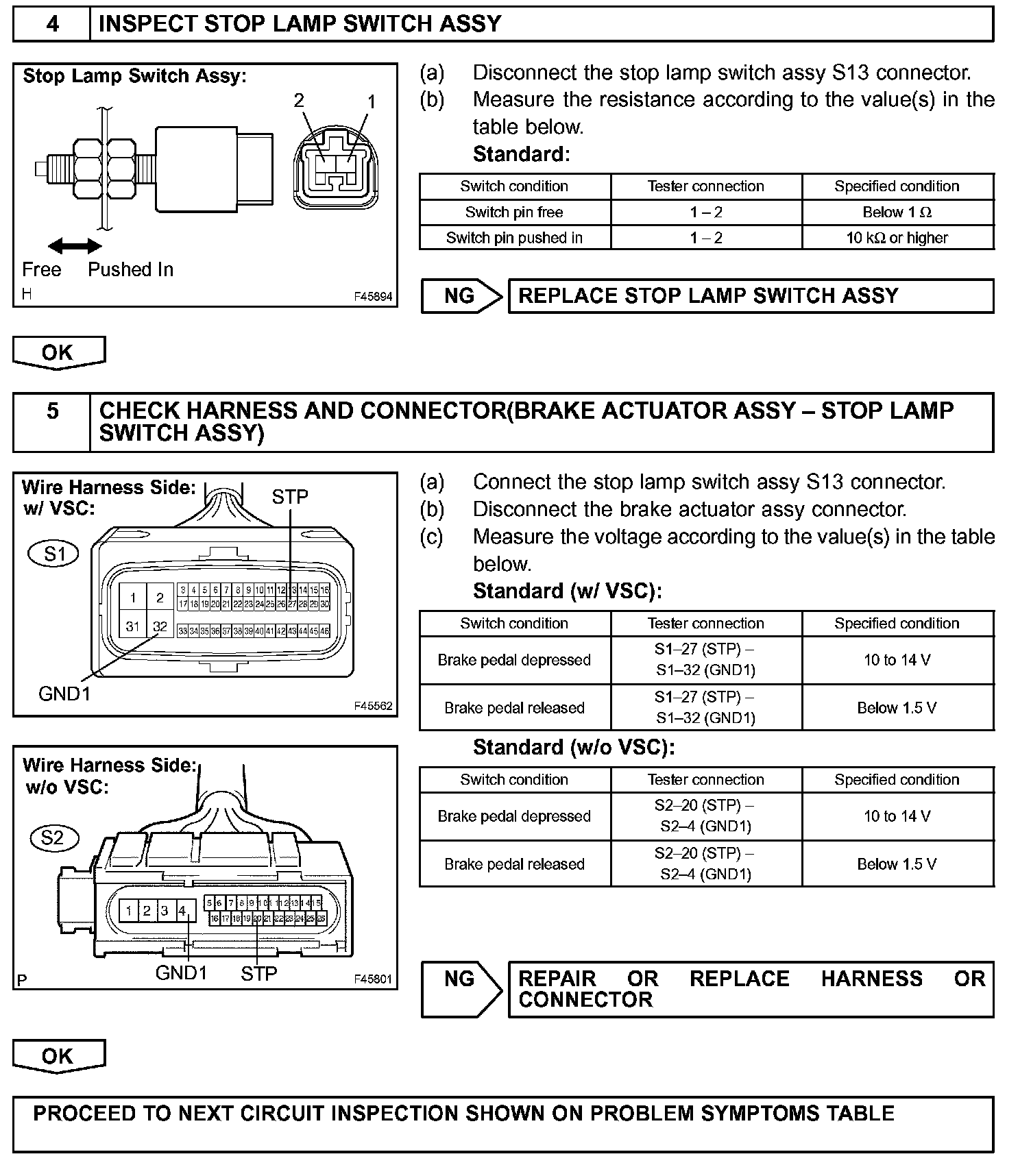

Step 4 - 5:

INSPECTION PROCEDURE
