ACIS Control Circuit
ACIS CONTROL CIRCUITCIRCUIT DESCRIPTION

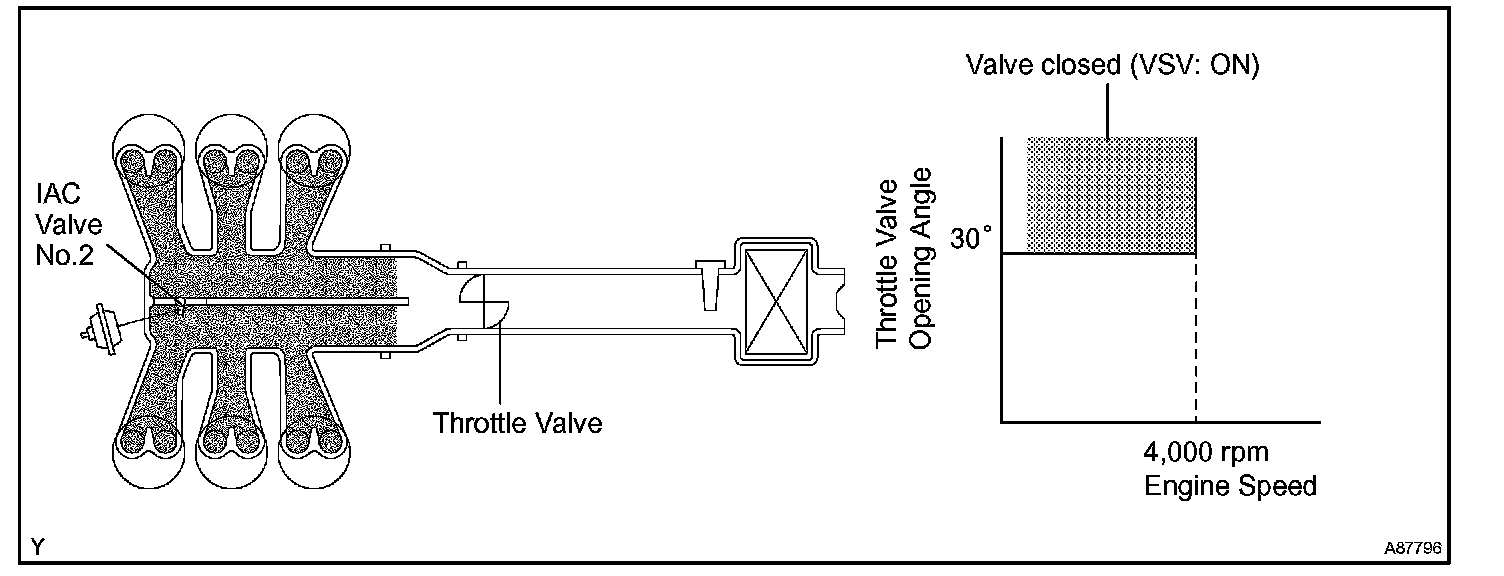

The ECM opens and closes the Intake Air Control (IAC) valve No.2 in response to engine speed (RPM/NE). This system improves intake manifold tuning for better efficiency at low and high engine rpm. When the engine speed is 4,000 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the VSV ON to operate the IAC valve.
HINT: ACIS stands for "Acoustic Control Induction System".

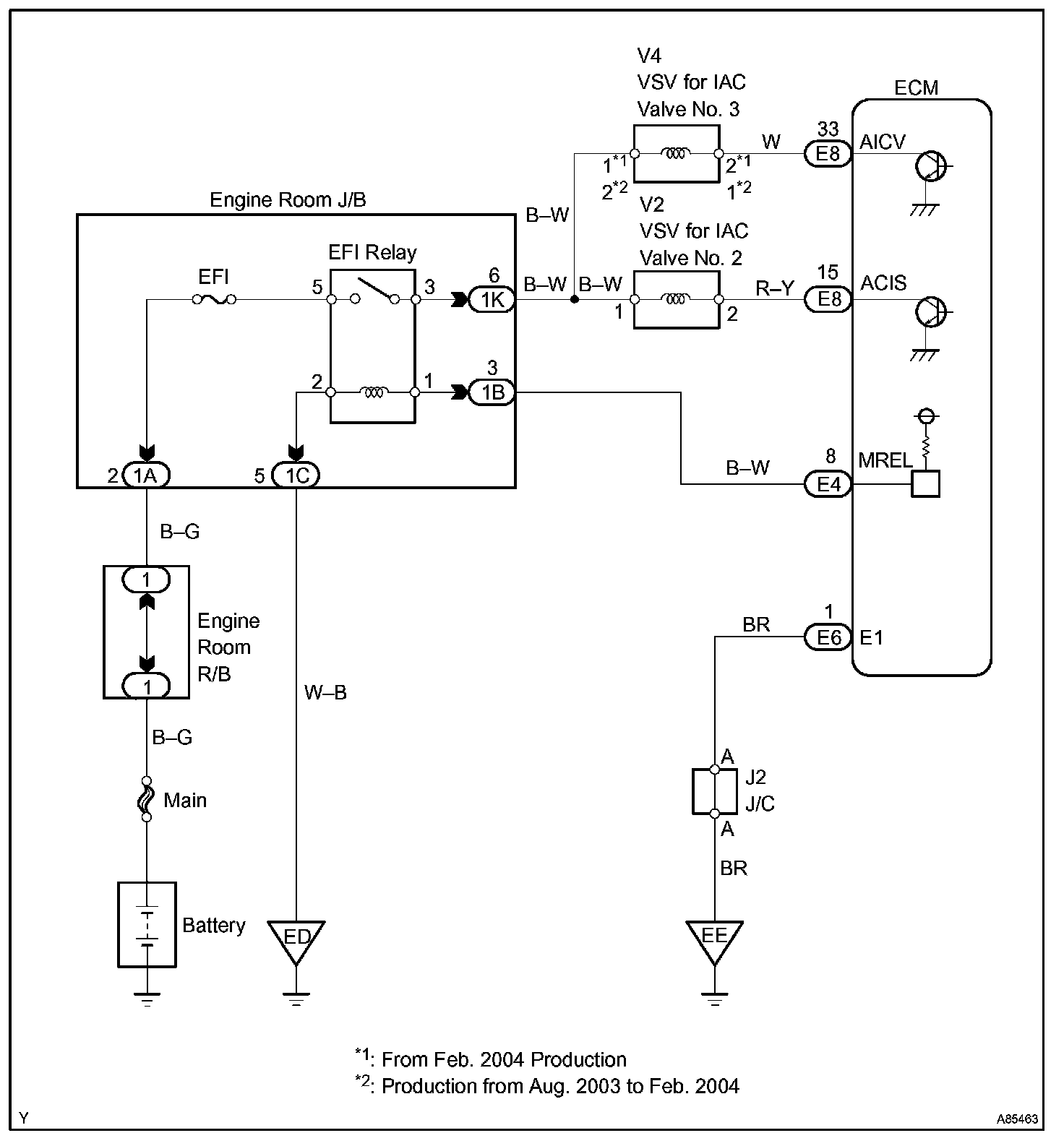

Wiring Diagram:
INSPECTION PROCEDURE

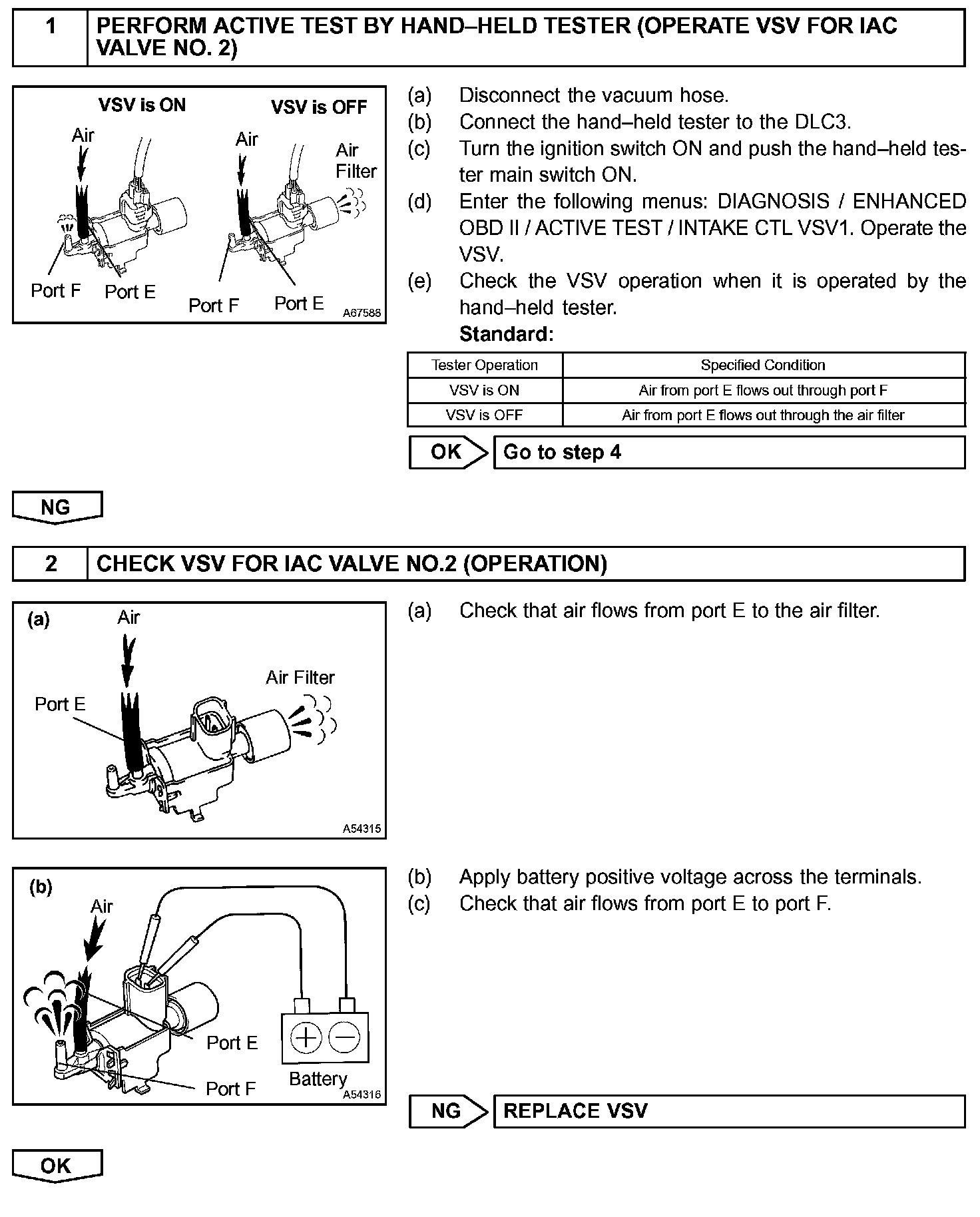

Step 1 - 2:

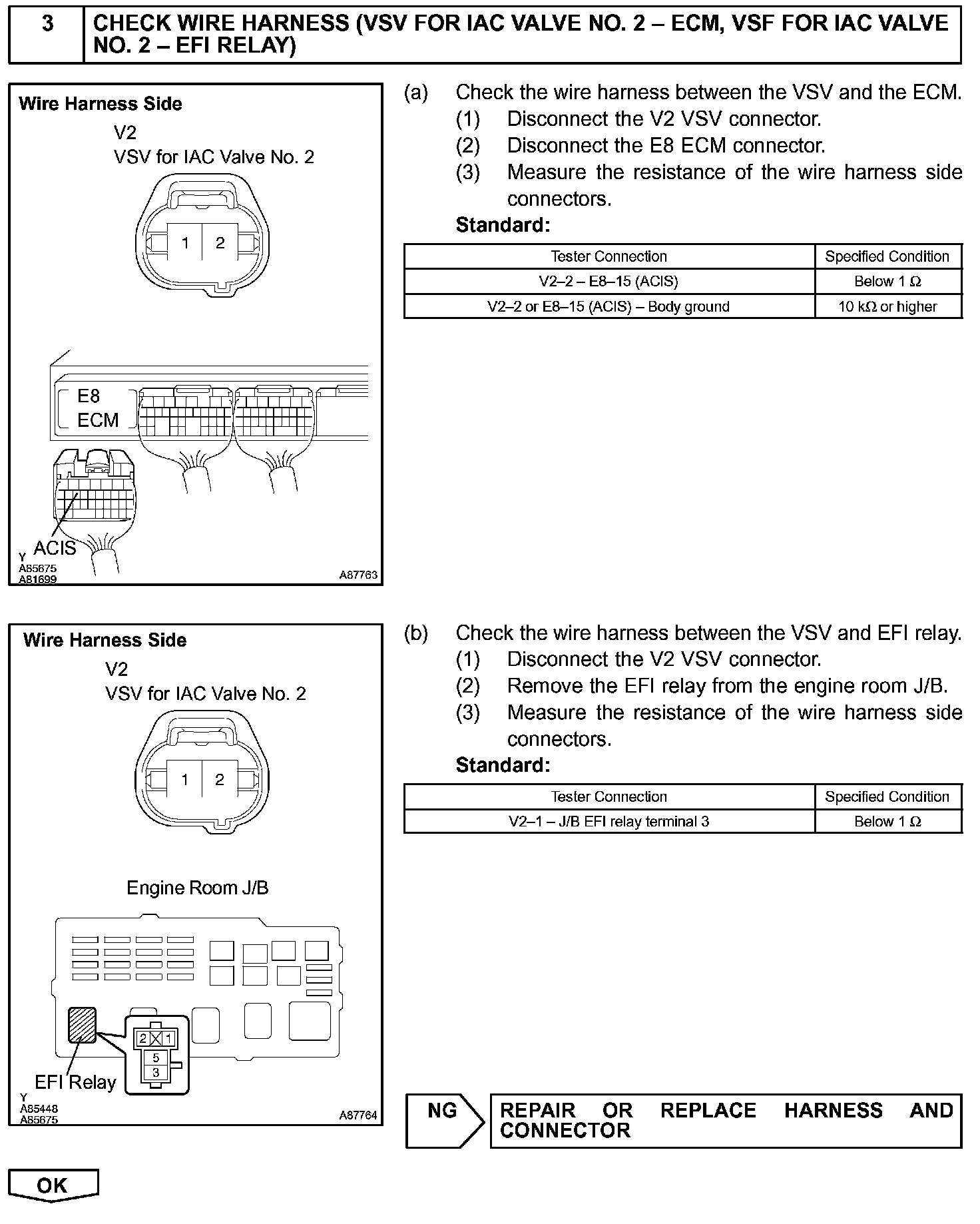

Step 3:

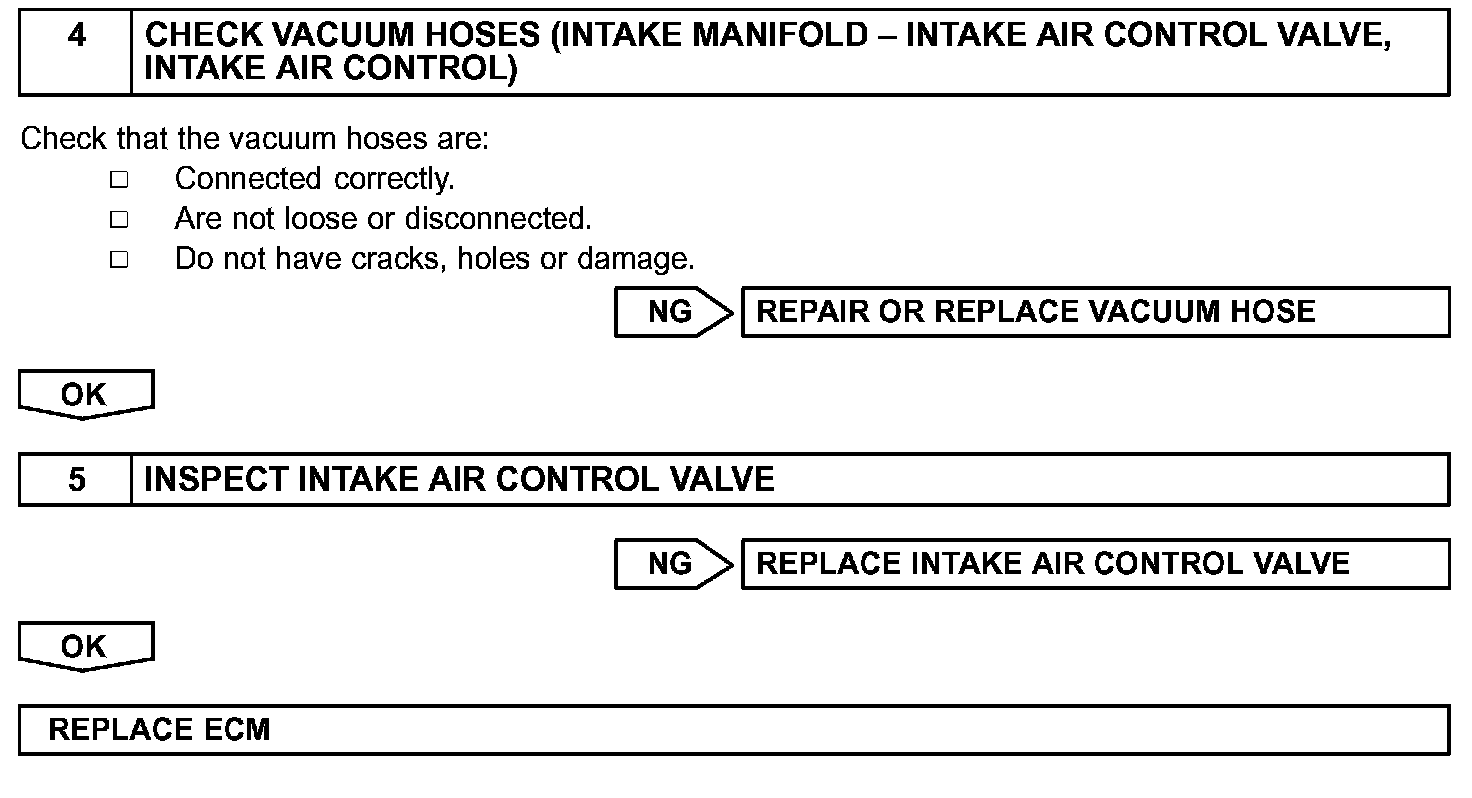

Step 4 - 5:
Hand held tester
Step 1 - 2:

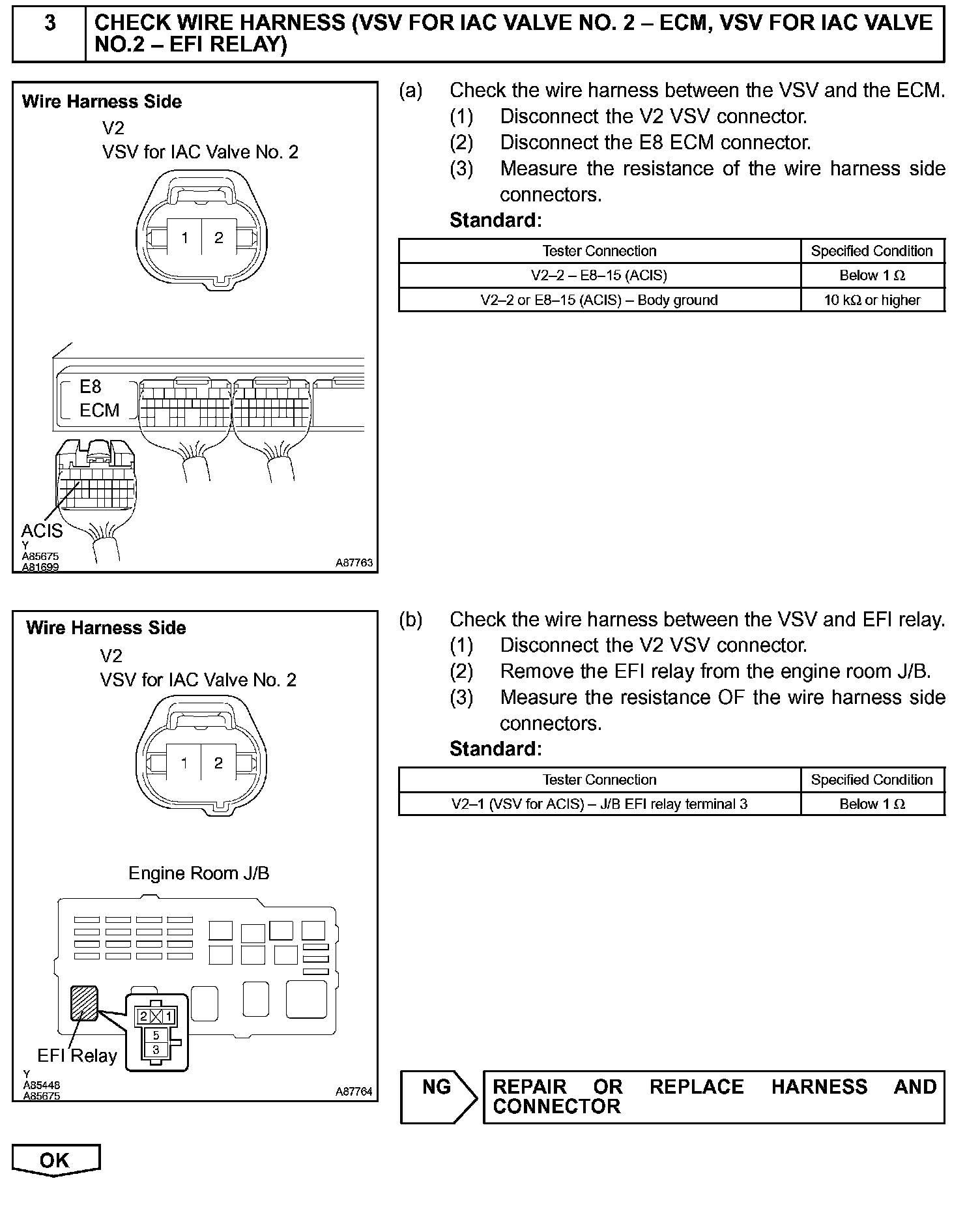

Step 3:

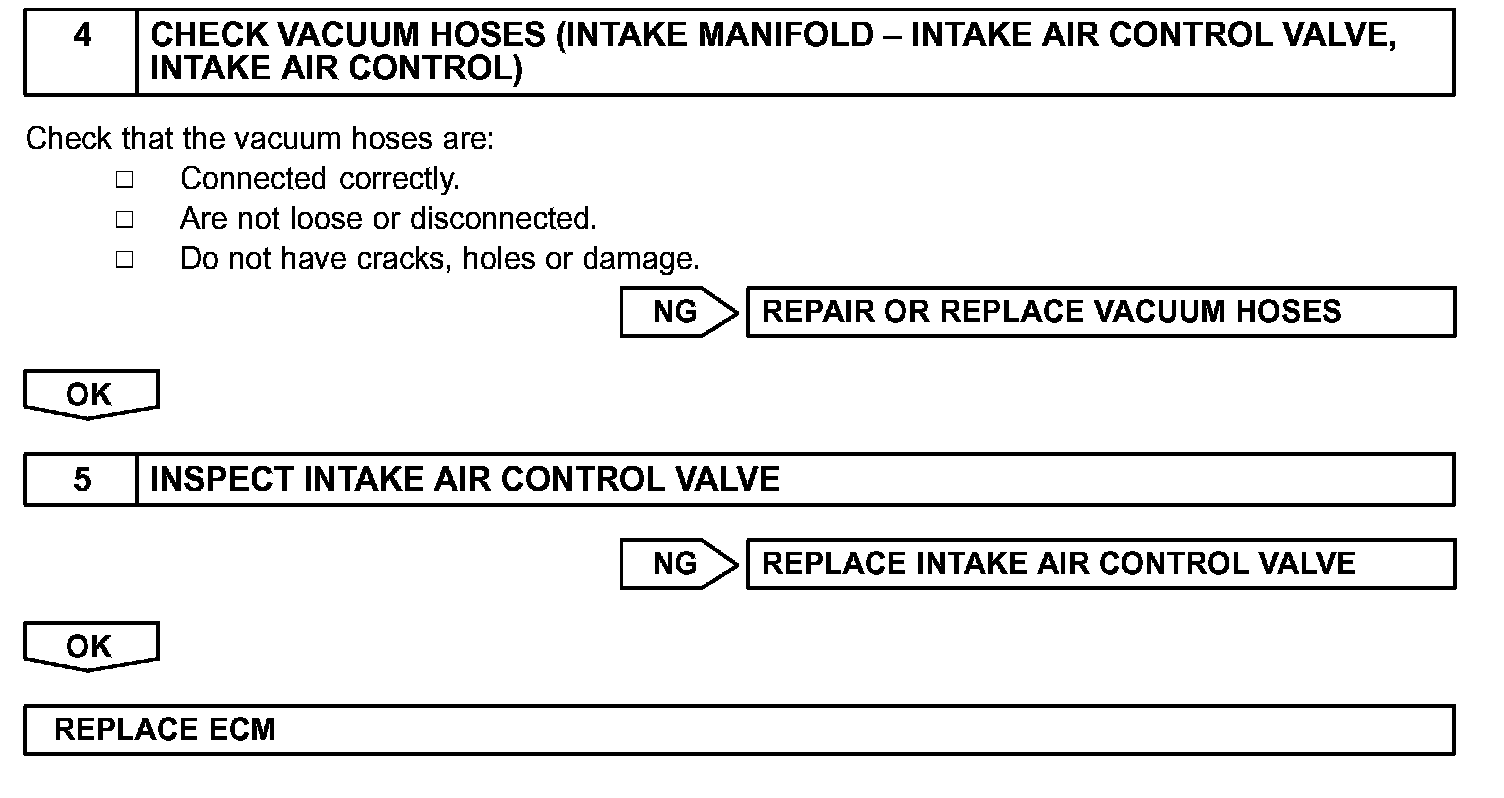

Step 4 - 5:
OBD II scan tool (excluding hand-held tester)
