Accelerator Pedal: Service and Repair

REPLACEMENT

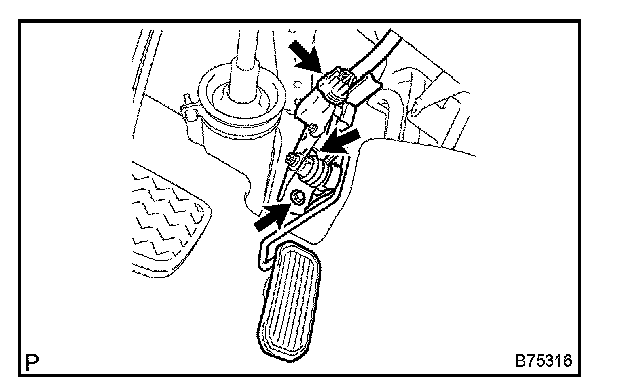

1. REMOVE ACCELERATOR PEDAL ASSY




a. Disconnect the accelerator position sensor connector.
b. Remove the 2 bolts and accelerator pedal.

2. INSTALL ACCELERATOR PEDAL ASSY
a. Connect the accelerator position sensor connector.
b. Install the accelerator pedal with the 2 bolts.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
