Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Solara V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Description and Operation
Fuel Delivery and Air Induction: Description and Operation

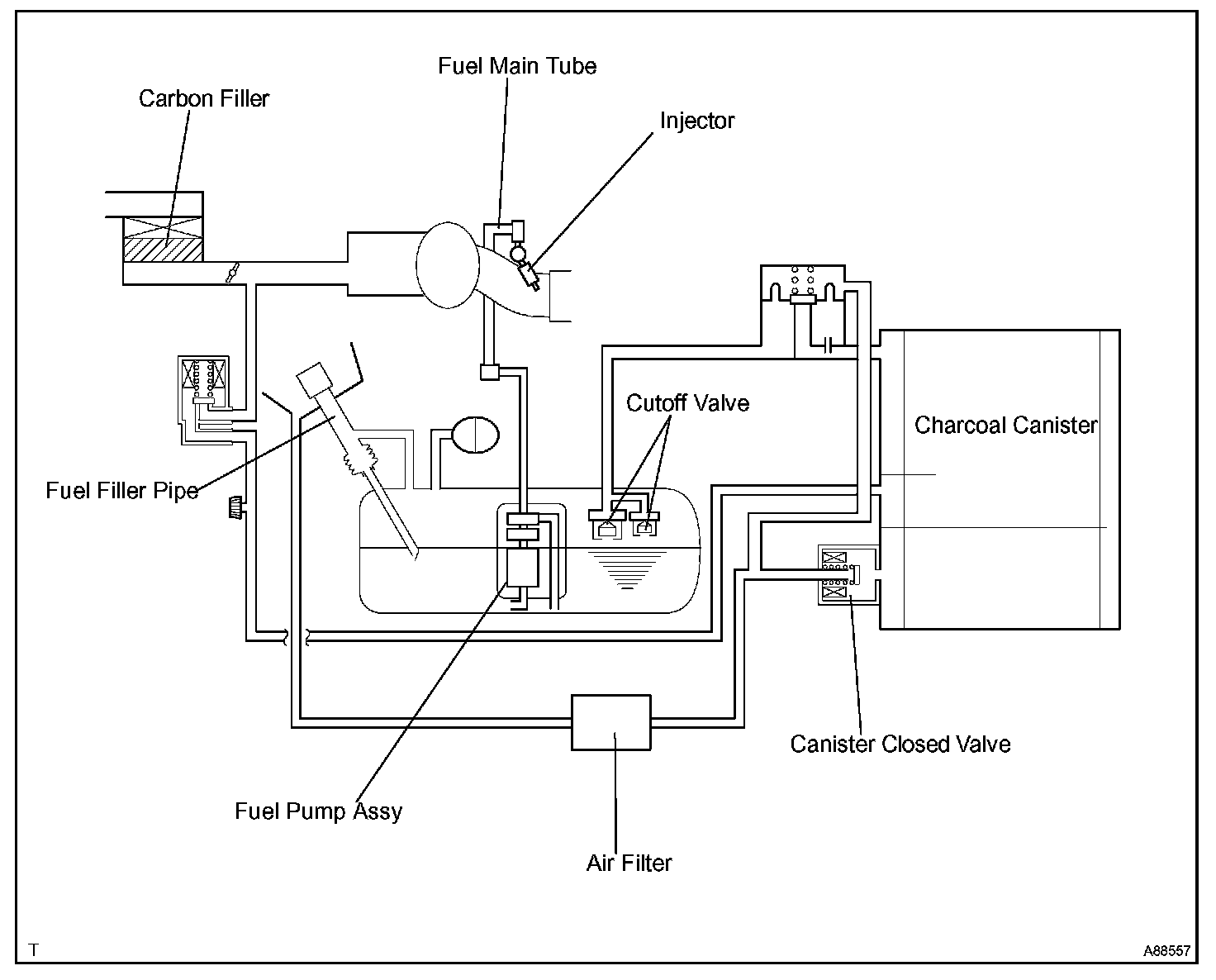

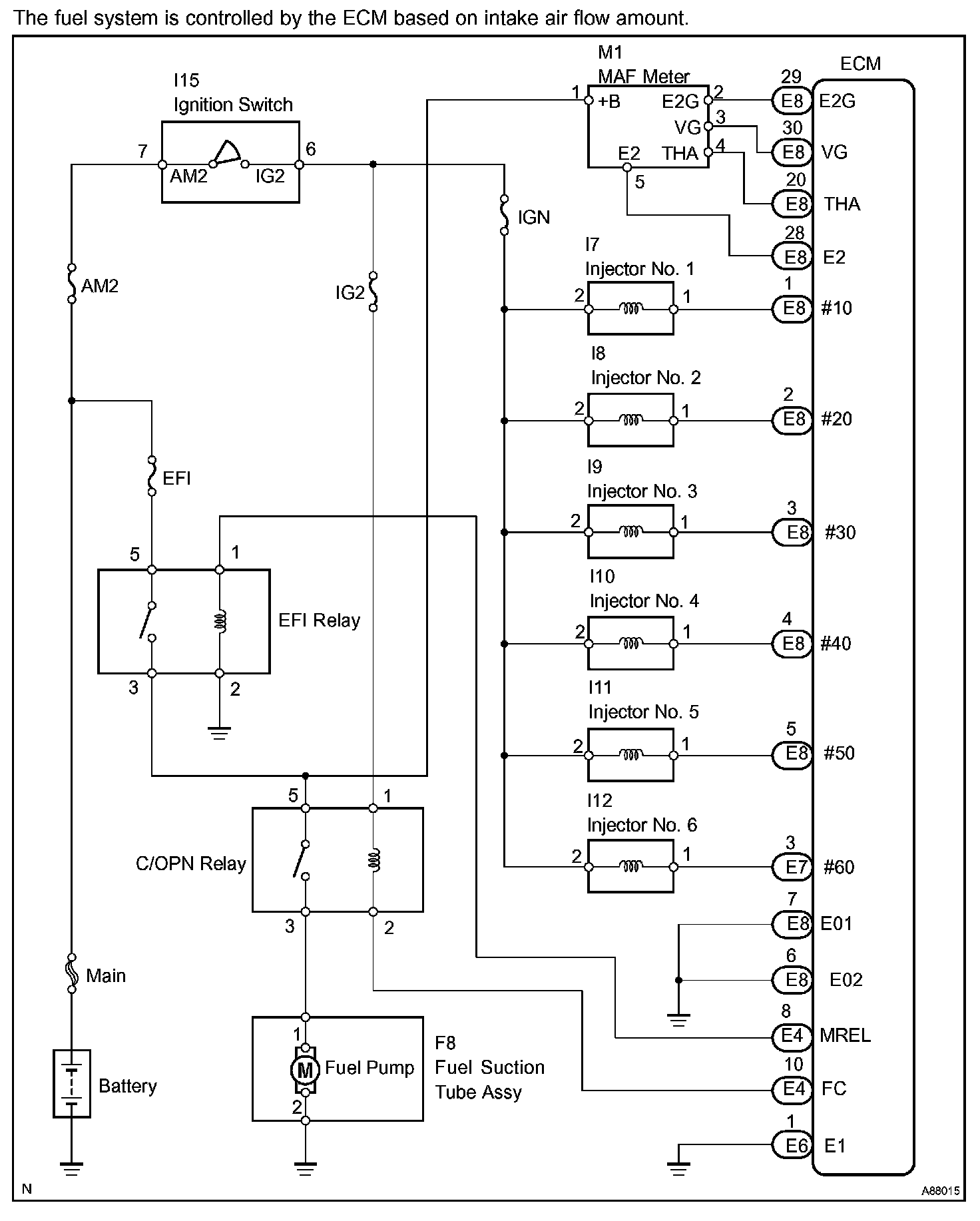

System Diagram:
System Diagram:
